uuHonda Sensing ®u Collision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
■Vehicle conditions
• Headlight lenses are dirty or the h eadlights are not properly adjusted.
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• The inside of the windshield is fogged.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• When tire chains are installed.
• The vehicle is tilted due to a heavy load or suspension modifications.
• The camera temperature gets too high.
• Driving with the parking brake applied.
• When the radar sensor behind the emblem gets dirty.
• The vehicle is towing a trailer.
20 PILOT-31TG76401.book 573 ページ ２０１９年７月２４日　水曜日　午後３時３２分

Continued585
uuHonda Sensing ®u Adaptive Cruise Control (ACC)
Driving
The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of thes e conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Sensor Camera P. 607
■Environmental conditions
Driving in bad weather (r ain, fog, snow, etc.).
■Roadway conditions
Driving on a snowy or wet roadway (obscure d lane marking, vehicle tracks, reflected
lights, road spra y, high contrast).
■Vehicle conditions
• The outside of the windshield is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (wro ng sized, varied size or construction,
improperly inflated, co mpact spare tire, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the front grille is dirty.
• The vehicle is tilted due to a heavy load or suspension modifications.
• When tire chains are installed.
■ACC Conditions and Limitations1ACC Conditions and Limitations
If you need the radar sensor to be repaired, or
removed, or the radar se nsor cover is strongly
impacted, turn off the system by pressing the MAIN
button and take your vehicle to a dealer.
Have your vehicle checked by a dealer if you find any
unusual behavior of the system (e.g., the warning
message appears too frequently).
20 PILOT-31TG76401.book 585 ページ ２０１９年７月２４日　水曜日　午後３時３２分

606

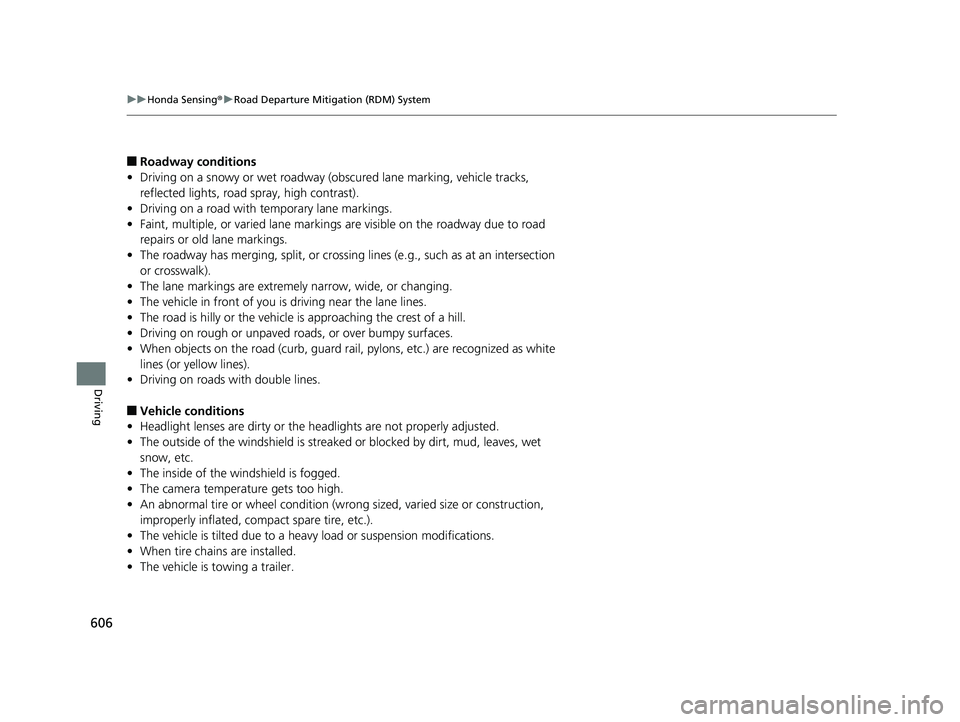

uuHonda Sensing ®u Road Departure Mitigation (RDM) System
Driving
■Roadway conditions
• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
• Driving on a road with temporary lane markings.
• Faint, multiple, or varied lane markings are visible on the roadway due to road
repairs or old lane markings.
• The roadway has merging, split, or crossing lines (e.g., such as at an intersection
or crosswalk).
• The lane markings are extremely narrow, wide, or changing.
• The vehicle in front of you is driving near the lane lines.
• The road is hilly or the vehicle is approaching the crest of a hill.
• Driving on rough or unpaved roads, or over bumpy surfaces.
• When objects on the road (c urb, guard rail, pylons, etc.) are recognized as white
lines (or yellow lines).
• Driving on roads with double lines.
■Vehicle conditions
• Headlight lenses are dirty or the headlights are not properly adjusted.
• The outside of the windshield is streake d or blocked by dirt, mud, leaves, wet
snow, etc.
• The inside of the windshield is fogged.
• The camera temperature gets too high.
• An abnormal tire or wheel condition (wrong sized, varied size or construction,
improperly inflated, comp act spare tire, etc.).
• The vehicle is tilted due to a heav y load or suspension modifications.
• When tire chains are installed.
• The vehicle is towing a trailer.
20 PILOT-31TG76401.book 606 ページ ２０１９年７月２４日　水曜日　午後３時３２分

612
uuBraking uAnti-lock Brake System (ABS)
Driving
Anti-lock Brake System (ABS)
Helps prevent the wheels from locking up, an d helps you retain steering control by
pumping the brakes rapidly, much faster than you.
The electronic brake distribution (EBD) system, which is part of the ABS, also
balances the front-to-rear braking distri bution according to vehicle loading.
You should never pump the brake pedal. Let the ABS work for you by always
keeping firm, steady pressure on the brake pe dal. This is sometimes referred to as
“stomp and steer.”
■ABS operation
The brake pedal may pulsate slightly when the ABS is working. Depress the brake
pedal and keep holding the pedal firmly do wn. On dry pavement, you will need to
press on the brake pedal very hard before the ABS activates. However, you may feel
the ABS activate immediately if yo u are trying to stop on snow or ice.
ABS may activate when you depress the brake pedal when driving on:
• Wet or snow covered roads.
• Roads paved with stone.
• Roads with uneven surfaces, such as potholes, cracks, manholes, etc.
When the vehicle speed goes unde r 6 mph (10 km/h), the ABS stops.
■ABS1Anti-lock Brake System (ABS)
NOTICE
The ABS may not function correc tly if you use a tire of
the wrong size or type.
If the ABS indicator comes on while driving, there
may be a problem with the system.
While normal braking will not be affected, there is a
possibility that the ABS wi ll not be operating. Have
your vehicle checked by a dealer immediately.
The ABS is not designed for the purpose of reducing
the time or distance it takes for a vehicle to stop: It is
designed to limit brake lo ckup which can lead to
skidding and loss of steering control.
In the following cases, yo ur vehicle may need more
distance to stop than a vehicle without the ABS:
•You are driving on rough or uneven road surfaces,
such as gravel or snow.
•The tires are equipped with snow chains.
The following may be observed with the ABS system:
•Motor sounds coming from the engine
compartment when the brakes are applied, or when
system checks are being performed after the engine
has been started and while the vehicle accelerates.
•Brake pedal and/or the ve hicle body vibration when
ABS activates.
These vibrations and sou nds are normal to ABS
systems and are no cause for concern.
20 PILOT-31TG76401.book 612 ページ ２０１９年７月２４日　水曜日　午後３時３２分

670

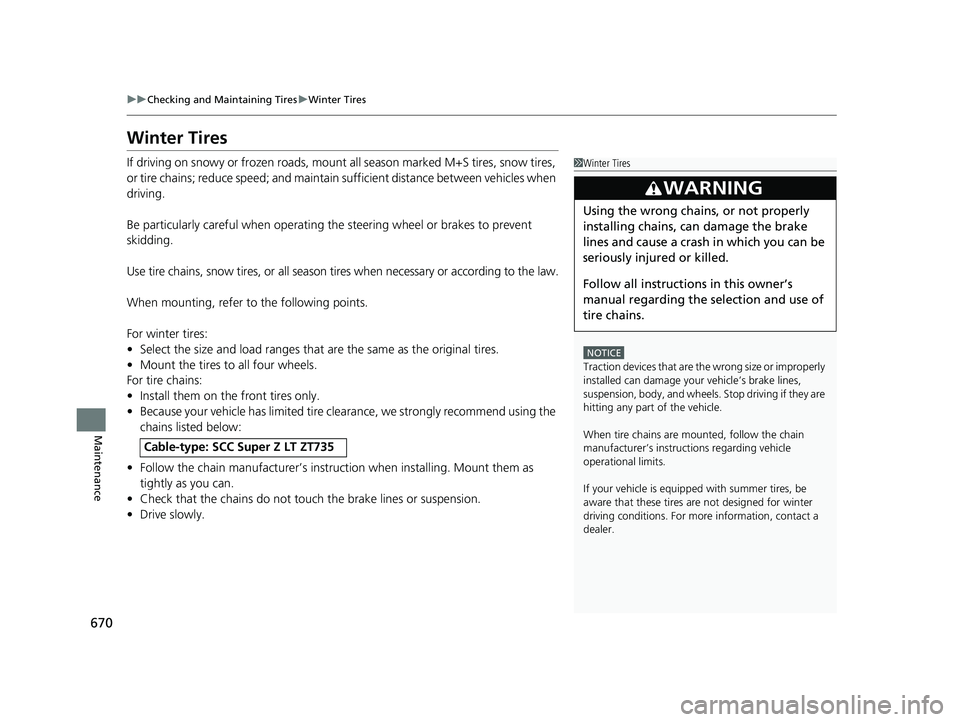

uuChecking and Maintaining Tires uWinter Tires
Maintenance
Winter Tires
If driving on snowy or frozen roads, mount all season marked M+S tires, snow tires,
or tire chains; reduce speed; and maintain su fficient distance between vehicles when
driving.
Be particularly careful when operating the steering wheel or brakes to prevent
skidding.
Use tire chains, snow tires, or all season ti res when necessary or according to the law.
When mounting, refer to the following points.
For winter tires:
• Select the size and load ranges that are the same as the original tires.
• Mount the tires to all four wheels.
For tire chains:
• Install them on the front tires only.
• Because your vehicle has limited tire clearance, we strongly recommend using the
chains listed below:
• Follow the chain manufacturer’s instruction when installing. Mount them as
tightly as you can.
• Check that the chains do not to uch the brake lines or suspension.
• Drive slowly.
Cable-type: SCC Super Z LT ZT735
1Winter Tires
NOTICE
Traction devices that are th e wrong size or improperly
installed can damage your vehicle’s brake lines,
suspension, body, and wheels. Stop driving if they are
hitting any part of the vehicle.
When tire chains are mounted, follow the chain
manufacturer’s instructi ons regarding vehicle
operational limits.
If your vehicle is equipp ed with summer tires, be
aware that these tires are not designed for winter
driving conditions. For more information, contact a
dealer.
3WARNING
Using the wrong chains, or not properly
installing chains, can damage the brake
lines and cause a crash in which you can be
seriously injured or killed.
Follow all instruction s in this owner’s
manual regarding the selection and use of
tire chains.
20 PILOT-31TG76401.book 670 ページ ２０１９年７月２４日　水曜日　午後３時３２分

739
Index
Siri Eyes Free............................................. 340
SiriusXM ® Radio ....................................... 306
Snow Tires ................................................ 670
Social Playlist ............................................ 331
Spare Tire ......................................... 687, 721
Spark Plugs ............................................... 720
Specifications ........................................... 720
Specified Fuel ................................... 627, 720
Speedometer ............................................ 111
SRS Airbags (Airbags) ................................ 50
Starting Assist Brake Function ................ 548
Starting the Engine .................................. 526
Does Not Start ........................................ 695
Jump Starting ......................................... 700
Remote Engine Start ............................... 528
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 227
Stopping ................................................... 614
Summer Tires ............................................ 670
Sunglasses Holder .................................... 222
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ............................................ 4, 5, 171
SYNC Mode .............................................. 238
System Message Indicator ......................... 89
System Updates ........................................ 284T
Tachometer............................................... 111
Tailgate ..................................................... 153
Unable to Open ....................................... 717
Temperature
Gauge ..................................................... 110
Outside Temperature Display ................... 112
Temperature Gauge ................................. 110
Temperature Sensor ......................... 112, 241
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access .............................. 204
Tie-down Anchors .................................... 228
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 708
Tire Pressure .............................................. 118
Tire Pressure Moni toring System (TPMS)
Indicator .................................................... 87
Tires ........................................................... 662
Air Pressure ..................................... 663, 721
Checking and Maintaining ....................... 662
Inspection ................................................ 662
Labeling .................................................. 663
Puncture (Flat Tire) ................................... 687
Regulations ............................................. 665
Rotation .................................................. 669
Spare Tire ........................................ 687, 721
Summer .................................................. 670
Tire Chains .............................................. 670
Wear Indicators ....................................... 667
Winter ..................................................... 670
Tools .......................................................... 686 Towing a Trailer
....................................... 514
Equipment and Accessories ..................... 517
Load Limits .............................................. 514
Towing Your Vehicle ................................ 523
Emergency .............................................. 714
TPMS (Tire Pressure Monitoring System) Indicator.................................................... 87
TPMS with Tire Fill Assist ......................... 561
Indicator.................................................. 708
Tire Fill Assist ........................................... 708
Trailer Stability Assist ............................... 521
Transmission ......................... 22, 24, 534, 536
Automatic ........................... 22, 24, 534, 536
Fluid ........................................................ 651
Gear Position Indicator ...................... 81, 538
Number................................................... 722
Sequential Mode ..................................... 542
Transmission System Indicator ................... 82
Trip Computer .......................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 685
Blown Fuse...................... 709, 710, 711, 712
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 714
Engine Won’t Start .................................. 695
Noise When Braking .................................. 31
Overheating ............................................ 703
Puncture/Flat Tire .................................... 687
Rear Door Won’t Open...................... 30, 151
Shift Lever Does Not Move ...................... 699
20 PILOT-31TG76401.book 739 ページ ２０１９年７月２４日　水曜日　午後３時３２分

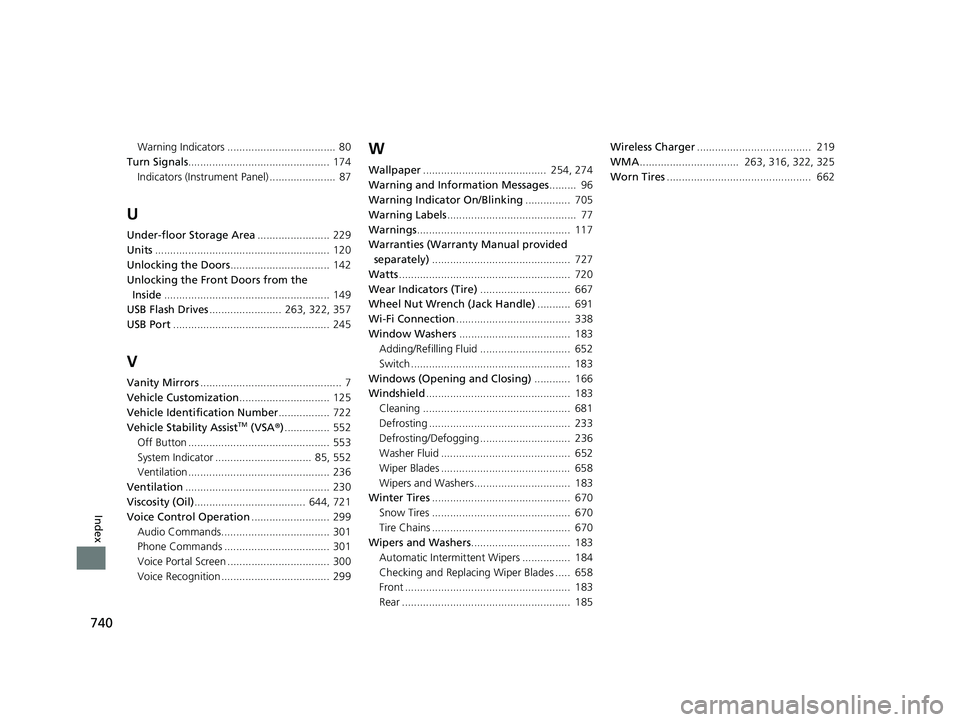

740
Index
Warning Indicators .................................... 80
Turn Signals ............................................... 174
Indicators (Instrum ent Panel) ...................... 87
U
Under-floor Storage Area ........................ 229
Units .......................................................... 120
Unlocking the Doors ................................. 142
Unlocking the Fron t Doors from the
Inside ....................................................... 149
USB Flash Drives ........................ 263, 322, 357
USB Port .................................................... 245
V
Vanity Mirrors ............................................... 7
Vehicle Customization .............................. 125
Vehicle Identification Number ................. 722
Vehicle Stability Assist
TM (VSA ®)............... 552
Off Button ............................................... 553
System Indicator ................................ 85, 552
Ventilation ............................................... 236
Ventilation ................................................ 230
Viscosity (Oil) ..................................... 644, 721
Voice Control Operation .......................... 299
Audio Commands.................................... 301
Phone Commands ................................... 301
Voice Portal Screen .................................. 300
Voice Recognition .................................... 299
W
Wallpaper ......................................... 254, 274
Warning and Information Messages ......... 96
Warning Indicator On/Blinking ............... 705
Warning Labels ........................................... 77
Warnings ................................................... 117
Warranties (Warranty Manual provided separately) .............................................. 727
Watts ......................................................... 720
Wear Indicators (Tire) .............................. 667
Wheel Nut Wrench (Jack Handle) ........... 691
Wi-Fi Connection ...................................... 338
Window Washers ..................................... 183
Adding/Refilling Fluid .............................. 652
Switch ..................................................... 183
Windows (Opening and Closing) ............ 166
Windshield ................................................ 183
Cleaning ................................................. 681
Defrosting ............................................... 233
Defrosting/Defogging .............................. 236
Washer Fluid ........................................... 652
Wiper Blades ........................................... 658
Wipers and Washers................................ 183
Winter Tires .............................................. 670
Snow Tires .............................................. 670
Tire Chains .............................................. 670
Wipers and Washers ................................. 183
Automatic Intermi ttent Wipers ................ 184
Checking and Replacing Wiper Blades ..... 658
Front ....................................................... 183
Rear ........................................................ 185 Wireless Charger
...................................... 219
WMA ................................. 263, 316, 322, 325
Worn Tires ................................................ 662
20 PILOT-31TG76401.book 740 ページ ２０１９年７月２４日　水曜日　午後３時３２分
