navigation HONDA PILOT 2021 Navigation Manual (in English)

87
uuMap Operation uMap Tools
Navigation
H (Home) uNavigation uuWhere Am I?
You can confirm your current location , address, and nearest intersection.
Select an option.
The following options are available:
• Save : Saves your current location.
2Saving Your Current Location P. 21
•Hospitals /Police Stations /Gas Stations /Tow Services : Searches for a hospital,
police station, gas station or tow service around your current location.
2 Searching Near Establishment P. 95
■Viewing the Current Location Information1
Viewing the Current Location Information
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.
When you deviated from the planned route, the
closest route-able road is also displayed.
19 PILOT NAVI-31TG78300.book 87 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

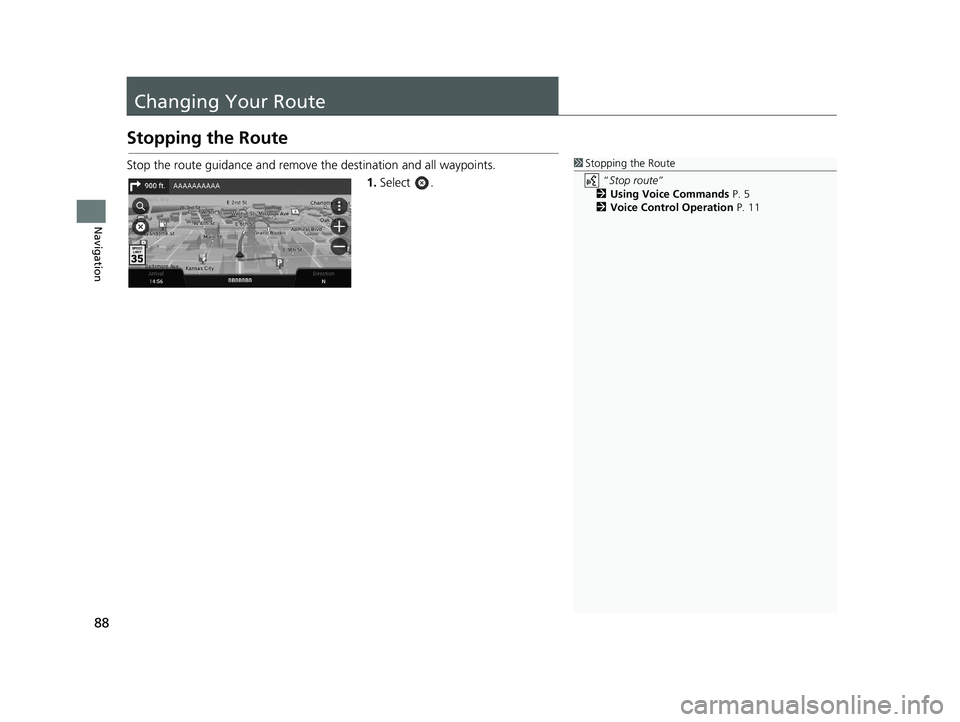

88
Navigation
Changing Your Route
Stopping the Route
Stop the route guidance and remove the destination and all waypoints.
1.Select .1Stopping the Route
“Stop route ”
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
19 PILOT NAVI-31TG78300.book 88 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

89
uuChanging Your Route uTaking a Detour
Navigation
Taking a Detour
H (Home) uNavigation uuDetour (when en route)
Calculates a new route to avoid something ahead of you. The system creates a new
route if possible. The system attempts to get you back on your original route as
quickly as possible.
You can take a detour for a specified dist ance along your route or detour around
specific roads. This is usef ul if you encounter construction zones, closed roads, or
poor road conditions.
Select an option.
The following options are available:
• Skip Next Turn : Calculates a new route by avoiding the next turn on your route.
• 0.5 mi. : Calculates a new route by avoiding the next 0.5 mile on your route.
• 2 mi. : Calculates a new route by avoiding the next 2 miles on your route.
• 5 mi. : Calculates a new route by avoiding the next 5 miles on your route.
■Taking a Detour Around Specified Areas
1
Taking a Detour
“Detour ”
2 Using Voice Commands P. 5
2 Voice Control Operation P. 11
If your current route is the only reasonable option,
the system might not calculate a detour.
1 Taking a Detour Around Specified Areas
Skip Next Destination
Calculates a new route by skipping the next
waypoint.
This option is available when you are in the route
with multiple destinations.
19 PILOT NAVI-31TG78300.book 89 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

90
uuChanging Your Route uAdding Waypoints
Navigation
Adding Waypoints
Add waypoints (pit stops) along the route to your destination.
1.While en route, select a search
method to add a new destination
or waypoint.
2 Entering a Destination P. 54
2.Select a place. Select Go!.
3. Select Add as Next Stop or Add
to Active Route .
u Select Add as Next Stop to set
the location as your next
waypoint. The route is
automatically recalculated and
displayed on the map screen.
u If selecting Add to Active
Route , proceed to steps 4 and 5.
4. Select and hold , or and
then move the destination to the
desired position.
5. Select Go!.
u The route is automatically
recalculated and displayed on
the map screen.
1Adding Waypoints
When you add a waypoint, the system may take
some time to update the arrival time.
Select Start New Route to set the location as your
new destination.
Select Add as Last Stop to add the location to the
end of your route. 2 Entering a New Destination P. 97
19 PILOT NAVI-31TG78300.book 90 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

91
uuChanging Your Route uEditing the Route
Continued
Navigation
Editing the Route
You can edit destinations on your route and save the route as your favorite trip.
H (Home) uNavigation
1.Select the text bar on the top of
the map.
2. Select .
3. Select Edit Destinations .
4. Select and hold , or and
then move the destination to the
desired position.
u Select Add Destinations to
add a new location.
5. Select .
u The route is automatically
recalculated.
■Reordering Destinations
19 PILOT NAVI-31TG78300.book 91 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

92
uuChanging Your Route uEditing the Route
Navigation
H (Home) uNavigation
1.Select the text bar on the top of
the map.
2. Select .
3. Select Edit Destinations .
4. Select .
5. Select Remove Destinations .
6. Select the location to delete.
u Select Select All to delete all
destinations.
7. Select Remove .
8. Select .
u The route is automatically
recalculated.
■Deleting a Destination
19 PILOT NAVI-31TG78300.book 92 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

93
uuChanging Your Route uEditing the Route
Navigation
H (Home) uNavigation
You can add the current route to myTrips list. 1.Select the text bar on the top of
the map.
2. Select .
3. Select Save Route .
4. Enter a name.
5. Select Done.
■Saving Your Current Route1
Saving Your Current Route
You can use the saved trip from myTrips screen. 2 myTrips P. 69
You can also save your current route from myTrips
screen. Select on the routing map, and then
select myTrips . Select Save .
19 PILOT NAVI-31TG78300.book 93 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

94
Navigation
Changing Your Destination
Selecting a Destination on the Map
Select a new destination when en route by selecting a location on the map.
1.Select any point on the map, or a
street, intersection, or category
icon.
2. Select Go!.
3. Select an option.
The following options are available:
• Start New Route : Sets the location as your new destination.
• Add as Next Stop : Sets the location as the next waypoint.
• Add as Last Stop : Adds the location as your last destination.
• Add to Active Route : Sets the location as the waypoint and edits the order of
destinations in your route.
2 Adding Waypoints P. 90
19 PILOT NAVI-31TG78300.book 94 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

95
uuChanging Your Destination uSearching Near Establishment
Continued
Navigation
Searching Near Establishment
H (Home) uNavigation
Search for a hospital, police station, gas station or tow service around your current
location.
1.Select your vehicle icon.
u You can also confirm your
current location, address, and
nearest intersection.
2. Scroll down to the bottom, and
then select a category type.
3. Select a place.
4. Select Go!.1Searching Near Establishment
You can also search for nearby establishment by
selecting on the map screen and select Where
Am I? .
19 PILOT NAVI-31TG78300.book 95 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

96
uuChanging Your Destination uSearching Near Establishment
Navigation
5. Select an option.
The following options are available:
• Start New Route : Sets the location as your new destination.
• Add as Next Stop : Sets the location as the next waypoint.
• Add as Last Stop : Adds the location as your last destination.
• Add to Active Route : Sets the location as the waypoint and edits the order of
destinations in your route.
2 Adding Waypoints P. 90
19 PILOT NAVI-31TG78300.book 96 ページ ２０１８年５月２４日　木曜日　午前１０時５２分
