navigation system HONDA PILOT 2021 (in English) Owner's Guide

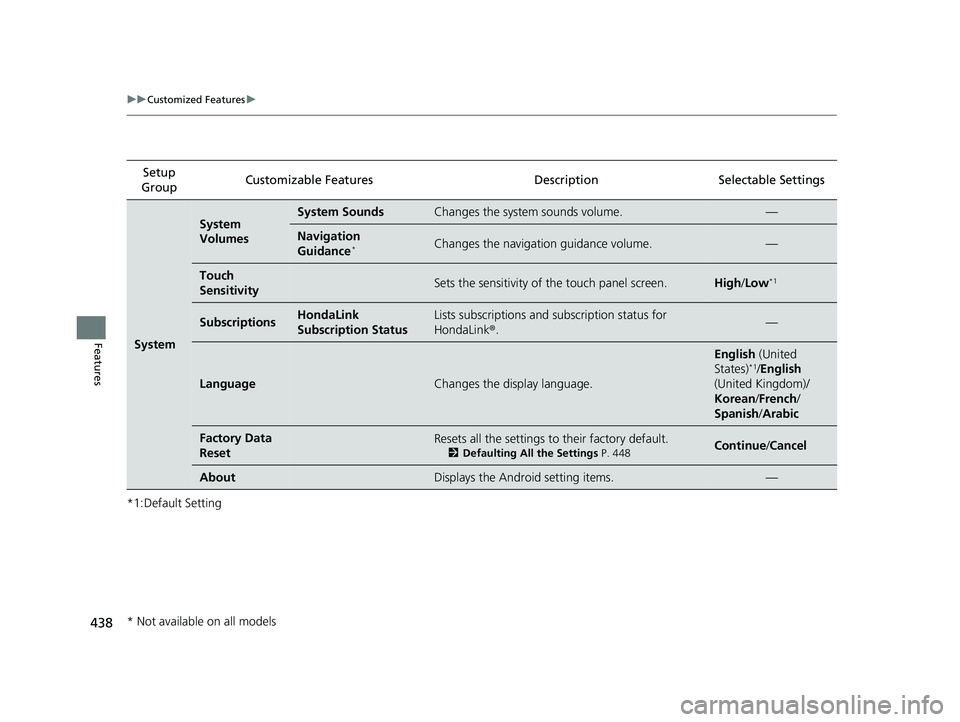

438
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
System
VolumesSystem SoundsChanges the system sounds volume.—
Navigation
Guidance*Changes the navigation guidance volume.—
Touch
SensitivitySets the sensitivity of the touch panel screen.High
/Low*1
SubscriptionsHondaLink
Subscription StatusLists subscriptions and subscription status for
HondaLink ®.—
LanguageChanges the display language.
English (United
States)*1/ English
(United Kingdom)/
Korean /French /
Spanish /Arabic
Factory Data
ResetResets all the settings to their factory default.
2 Defaulting All the Settings P. 448Continue /Cancel
AboutDisplays the Android setting items.—
* Not available on all models
21 PILOT-31TG76500.book 438 ページ ２０２０年３月１８日　水曜日　午後４時３８分

439
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
SystemAdvanced
Options
App ManagerDisplays the Android system memory and apps
information.—
Recent Location
Request from AppsDisplays the recent location requests from apps.—
Location SettingSelects OFF not to allow apps including the
navigation system* to access the vehicle’s location.ON*1/ OFF
Inter-
ruptions
Inter-
ruption
ModeSets the interruption mode for allowing to notify
when calls and notifications arrive.
Always interrupt*1/
Don’t interrupt/
Allow only priority
interruptions
Events and
remindersSets priority interruptions of events and reminders.ON*1/ OFF
CallsSets priority interruptions of calls.ON*1/OFF
MessagesSets priority interruptions of messages.ON*1/OFF
Calls/
messages
from
Sets priority interruptions of from who.
Anyone*1/Contacts
only /Starred
contacts only
* Not available on all models
21 PILOT-31TG76500.book 439 ページ ２０２０年３月１８日　水曜日　午後４時３８分

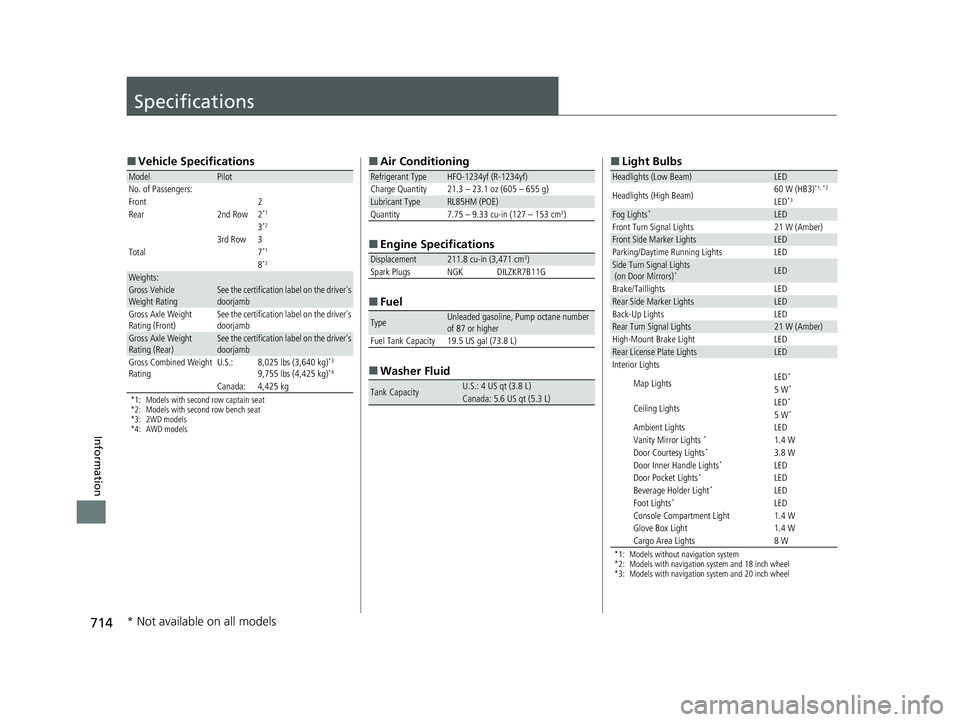

714
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*3
9,755 lbs (4,425 kg)*4
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system and 18 inch wheel
*3: Models with navigation system and 20 inch wheel
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1, *2
LED*3
Fog Lights*LEDFront Turn Signal Lights21 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up LightsLEDRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior Lights
Map LightsLED*
5 W*
Ceiling LightsLED*
5 W*
Ambient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
21 PILOT-31TG76500.book 714 ページ ２０２０年３月１８日　水曜日　午後４時３８分

733
Index
Safety ..................................................... 629
Service Items ........................................... 634
Tires........................................................ 658
Transmission Fluid ................................... 647
Under the Hood ...................................... 637
Wireless Headphone ............................... 671
Malfunction Indicator Lamp ............. 83, 700
Map Lights ................................................ 210
Maximum Load Limit ............................... 509
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 679
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 621
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 716
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 522
Oil (Engine) ............................................... 640
Adding .................................................... 642
Checking ................................................. 641
Displaying Maintenance Minder Information ........................................... 632
Low Oil Pressure Symbol .......................... 699
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 640
Viscosity .................................................. 640
Open Source Licenses ............................... 369
Opening/Closing
Hood ....................................................... 638
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 697
P
Paddle Shifters (Sequential Mode) .... 24, 539
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 610
Parking Brake ........................................... 606 Parking Brake and Brake System
Indicator .................................................. 701
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 612
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 530
Driving Guidelines for Your Utility Vehicle .................................................. 530
Rain ........................................................ 530
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 683
R
Radiator.................................................... 646
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 719
