trip computer HONDA PILOT 2021 Owner's Manual (in English)

111
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

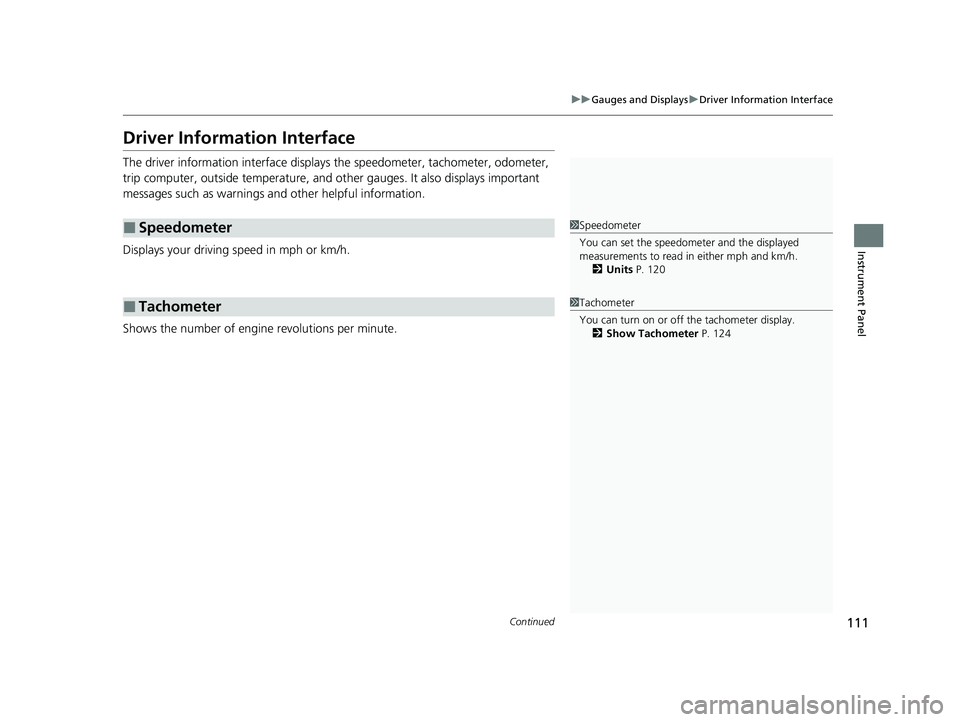

Driver Information Interface
The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and ot her gauges. It also displays important
messages such as warnings and other helpful information.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Speedometer
■Tachometer
1 Speedometer
You can set the speedometer and the displayed
measurements to read in either mph and km/h.
2 Units P. 120
1Tachometer
You can turn on or off the tachometer display.
2 Show Tachometer P. 124
21 PILOT-31TG76500.book 111 ページ ２０２０年３月１８日　水曜日　午後４時３８分

115
uuGauges and Displays uDriver Information Interface
Continued
Instrument Panel

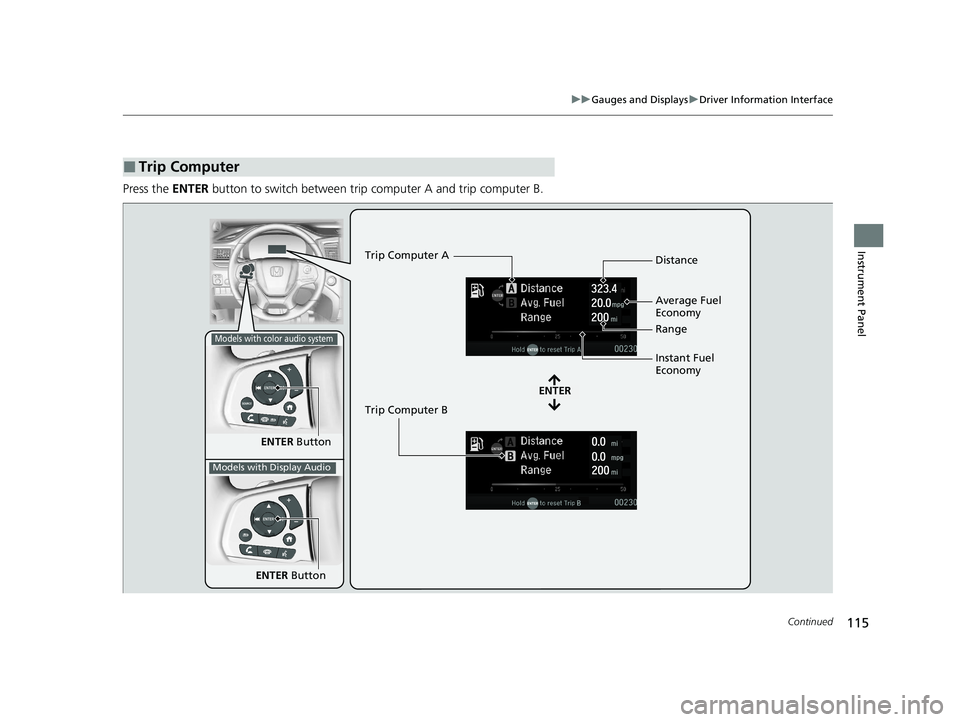

Press the ENTER button to switch between trip computer A and trip computer B.
■Trip Computer
ENTER Button
ENTER
Trip Computer A
Trip Computer B Distance
Range
Average Fuel
Economy
Instant Fuel
Economy
Models with color audio system
Models with Display Audio
ENTER
Button
21 PILOT-31TG76500.book 115 ページ ２０２０年３月１８日　水曜日　午後４時３８分

128
uuGauges and Displays uDriver Information Interface
Instrument Panel

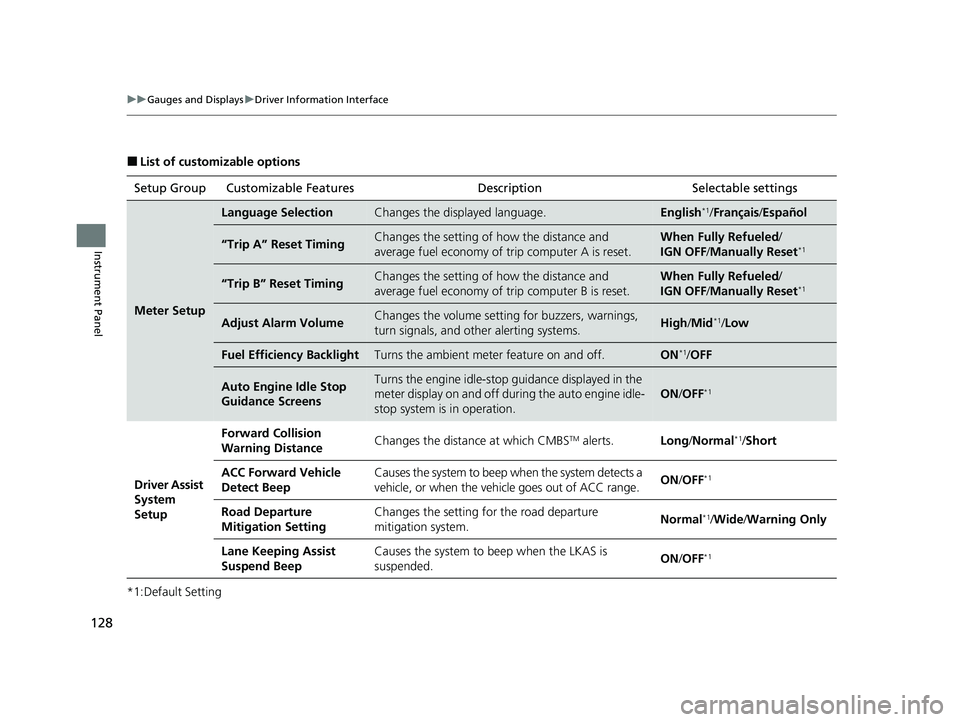

■List of customizable options
*1:Default Setting Setup Group Customizable Features Description Selectable settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
Français /Español
“Trip A” Reset TimingChanges the setting of how the distance and
average fuel economy of trip computer A is reset.When Fully Refueled /
IGN OFF /Manually Reset*1
“Trip B” Reset TimingChanges the setting of how the distance and
average fuel economy of trip computer B is reset.When Fully Refueled /
IGN OFF /Manually Reset*1
Adjust Alarm VolumeChanges the volume setting for buzzers, warnings,
turn signals, and other alerting systems.High /Mid*1/Low
Fuel Efficien cy BacklightTurns the ambient meter feature on and off.ON*1/OFF
Auto Engine Idle Stop
Guidance ScreensTurns the engine idle-stop guidance displayed in the
meter display on and off during the auto engine idle-
stop system is in operation.
ON /OFF*1
Driver Assist
System
Setup Forward Collision
Warning Distance
Changes the distance at which CMBS
TM alerts.
Long/Normal*1/Short
ACC Forward Vehicle
Detect Beep Causes the system to beep when the system detects a
vehicle, or when the vehi
cle goes out of ACC range. ON
/OFF
*1
Road Departure
Mitigation Setting Changes the setting for the road departure
mitigation system.
Normal*1/
Wide /Warning Only
Lane Keeping Assist
Suspend Beep Causes the system to beep when the LKAS is
suspended.
ON
/OFF
*1
21 PILOT-31TG76500.book 128 ページ ２０２０年３月１８日　水曜日　午後４時３８分

267
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 477
■Trip Computer
Displays the trip computer information.
• Current Drive tab: Displays the current trip information.
• Trip A /Trip B tab: Displays information for the current and three previous drives.
The information is stored ev ery time you reset Trip A/B.
To reset Trip A/B, select Reset.
To change the setting of how to reset Trip A/B, select Settings, then select Trip
A Reset Method or Trip B Reset Method .
■Clock
Displays the clock.
■System Updates
Updates the software version of the audio system.
2 System Updates P. 280
■FM/AM/Sirius XM*/CD*/USB/Bluetooth Audio/AUX Input/My Honda
Music/Social Playlist
Displays the each audio information.
■Settings
Enters the customizing menu screen.
2 Customized Features P. 430
* Not available on all models
21 PILOT-31TG76500.book 267 ページ ２０２０年３月１８日　水曜日　午後４時３８分

735
Index
Jump Starting ......................................... 694
Remote Engine Start ............................... 526
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 228
Stopping ................................................... 610
Summer Tires ............................................ 666
Sunglasses Holder .................................... 223
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ........ 6, 7, 171
SYNC Mode .............................................. 234
System Message Indicator ......................... 90
System Updates ........................................ 280
T
Tachometer.............................................. 111
Tailgate ..................................................... 153
Unable to Open ...................................... 711
Temperature
Gauge .................................................... 110
Outside Temperature Display .................. 112
Temperature Gauge ................................ 110
Temperature Sensor ........................ 112, 237
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 204
Tie-down Anchors .................................... 229
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 702
Tire Pressure ............................................. 118 Tire Pressure Moni
toring System (TPMS)
Indicator .................................................... 88
Tires ........................................................... 658
Air Pressure ..................................... 659, 715
Checking and Maintaining ....................... 658
Inspection ................................................ 658
Labeling .................................................. 659
Puncture (Flat Tire) ................................... 683
Regulations ............................................. 661
Rotation .................................................. 665
Spare Tire ........................................ 683, 715
Summer .................................................. 666
Tire Chains .............................................. 666
Wear Indicators ....................................... 663
Winter ..................................................... 666
Tools .......................................................... 682
Towing a Trailer ....................................... 512
Equipment and Accessories ..................... 515
Load Limits .............................................. 512
Towing Your Vehicle ................................ 521
Emergency .............................................. 708
TPMS (Tire Pressure Monitoring System)
Indicator .................................................... 88
TPMS with Tire Fill Assist .......................... 557
Indicator .................................................. 702
Tire Fill Assist ........................................... 702
Trailer Stability Assist ............................... 519
Transmission ....................................... 23, 532
Automatic ......................................... 23, 532
Fluid ........................................................ 647
Gear Position Indicator ...................... 83, 534 Number................................................... 716
Sequential Mode ..................................... 538
Trip Computer .......................................... 115
Trip Meter ................................................. 116
Troubleshooting ....................................... 681
Blown Fuse...................... 703, 704, 705, 706
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 708
Engine Won’t Start .................................. 691
Noise When Braking .................................. 31
Overheating ............................................ 697
Puncture/Flat Tire .................................... 683
Rear Door Won’t Open...................... 29, 151
Warning Indicators .................................... 82
Turn Signals .............................................. 174
Indicators (Instrument Panel) ..................... 88
U
Under-floor Storage Area ........................ 230
Units .......................................................... 120
Unlocking the Doors ................................ 142
Unlocking the Fron t Doors from the
Inside ....................................................... 149
USB Flash Drives ....................... 259, 318, 354
USB Port .................................................... 241
