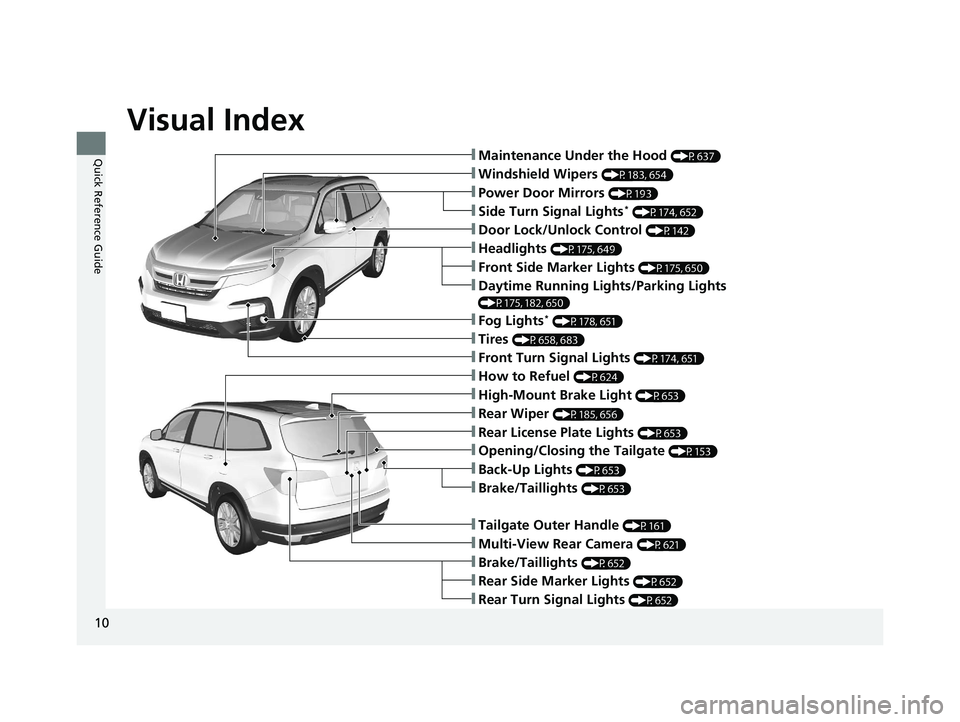

Visual Index
10
Quick Reference Guide❚Maintenance Under the Hood (P637)
❚Windshield Wipers (P183, 654)
❚Tires (P658, 683)
❚Power Door Mirrors (P193)
❚Headlights (P175, 649)
❚Front Side Marker Lights (P175, 650)
❚Front Turn Signal Lights (P174, 651)
❚Side Turn Signal Lights* (P174, 652)
❚Daytime Running Lights/Parking Lights
(P175, 182, 650)
❚How to Refuel (P624)
❚High-Mount Brake Light (P653)
❚Rear Wiper (P185, 656)
❚Rear License Plate Lights (P653)
❚Rear Side Marker Lights (P652)
❚Rear Turn Signal Lights (P652)
❚Brake/Taillights (P652)
❚Tailgate Outer Handle (P161)
❚Multi-View Rear Camera (P621)
❚Opening/Closing the Tailgate (P153)
❚Door Lock/Unlock Control (P142)
❚Fog Lights* (P178, 651)
❚Back-Up Lights (P653)
❚Brake/Taillights (P653)
21 PILOT-31TG76500.book 10 ページ ２０２０年３月１８日　水曜日　午後４時３８分

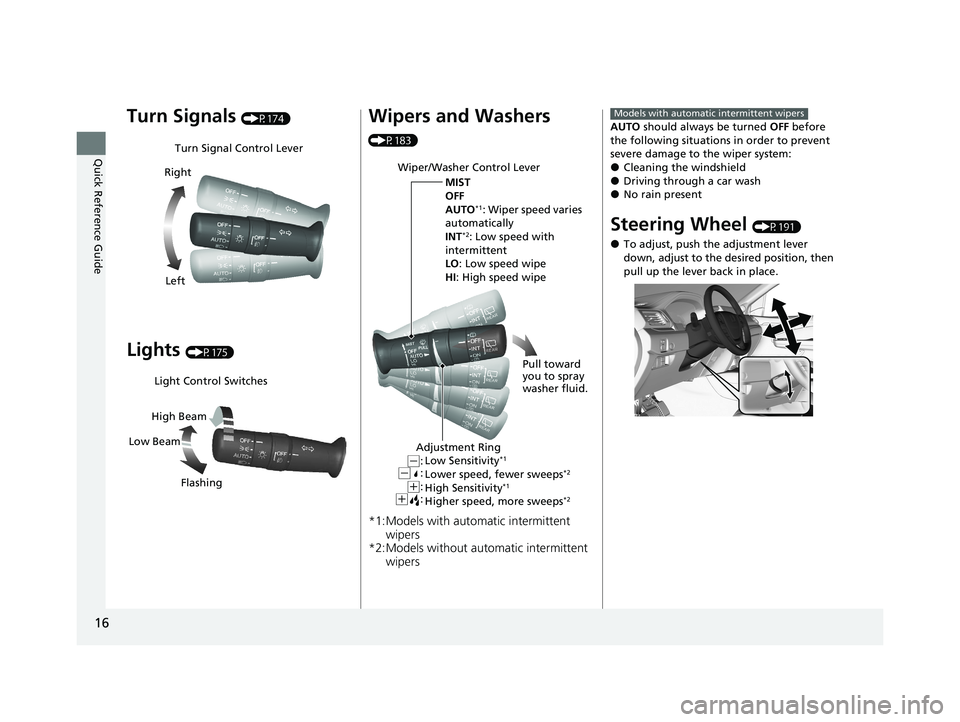

16
Quick Reference Guide
Turn Signals (P174)
Lights (P175)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
Wipers and Washers
(P183)
*1:Models with automatic intermittent wipers
*2:Models without automatic intermittent
wipers
Wiper/Washer Control Lever
MIST
OFF
AUTO
*1: Wiper speed varies
automatically
INT
*2: Low speed with
intermittent
LO : Low speed wipe
HI: High speed wipe
Pull toward
you to spray
washer fluid.
Adjustment Ring
Low Sensitivity*1
Lower speed, fewer sweeps*2
High Sensitivity*1
Higher speed, more sweeps*2(+:(+:
(-:(-:
AUTO should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P191)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
pull up the lever back in place.
Models with automatic intermittent wipers
21 PILOT-31TG76500.book 16 ページ ２０２０年３月１８日　水曜日　午後４時３８分

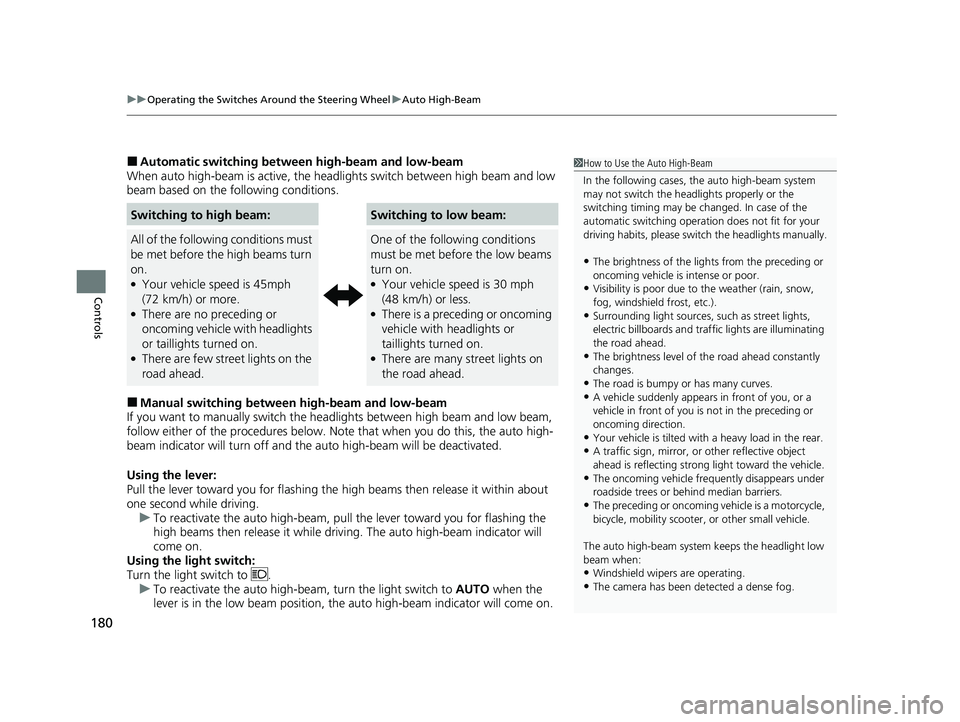

uuOperating the Switches Around the Steering Wheel uAuto High-Beam
180
Controls
■Automatic switching between high-beam and low-beam
When auto high-beam is ac tive, the headlights switch between high beam and low
beam based on the following conditions.
■Manual switching between high-beam and low-beam
If you want to manually switch the headlights between high beam and low beam,
follow either of the proced ures below. Note that when you do this, the auto high-
beam indicator will turn off and the auto high-beam will be deactivated.
Using the lever:
Pull the lever toward you fo r flashing the high beams then release it within about
one second while driving. u To reactivate the auto high-beam, pull the lever toward you for flashing the
high beams then release it while driving. The auto high-beam indicator will
come on.
Using the light switch:
Turn the light switch to . u To reactivate the auto high-be am, turn the light switch to AUTO when the
lever is in the low beam position, the auto high-beam indicator will come on.
Switching to high beam:Switching to low beam:
All of the following conditions must
be met before the high beams turn
on.
●Your vehicle speed is 45mph
(72 km/h) or more.
●There are no preceding or
oncoming vehicle with headlights
or taillights turned on.
●There are few street lights on the
road ahead.
One of the following conditions
must be met before the low beams
turn on.
●Your vehicle speed is 30 mph
(48 km/h) or less.
●There is a preceding or oncoming
vehicle with headlights or
taillights turned on.
●There are many street lights on
the road ahead.
1 How to Use the Auto High-Beam
In the following cases, th e auto high-beam system
may not switch the head lights properly or the
switching timing may be ch anged. In case of the
automatic switching operati on does not fit for your
driving habits, please swit ch the headlights manually.
•The brightness of the lights from the preceding or
oncoming vehicle is intense or poor.
•Visibility is poor due to the weather (rain, snow,
fog, windshield frost, etc.).
•Surrounding light sources, such as street lights,
electric billboards and traf fic lights are illuminating
the road ahead.
•The brightness level of th e road ahead constantly
changes.
•The road is bumpy or has many curves.•A vehicle suddenly appears in front of you, or a
vehicle in front of you is not in the preceding or
oncoming direction.
•Your vehicle is tilted with a heavy load in the rear.•A traffic sign, mirror, or other reflective object
ahead is reflecting strong light toward the vehicle.
•The oncoming vehicle freq uently disappears under
roadside trees or be hind median barriers.
•The preceding or oncoming vehicle is a motorcycle,
bicycle, mobility scooter, or other small vehicle.
The auto high-beam system keeps the headlight low
beam when:
•Windshield wipers are operating.
•The camera has been detected a dense fog.
21 PILOT-31TG76500.book 180 ページ ２０２０年３月１８日　水曜日　午後４時３８分

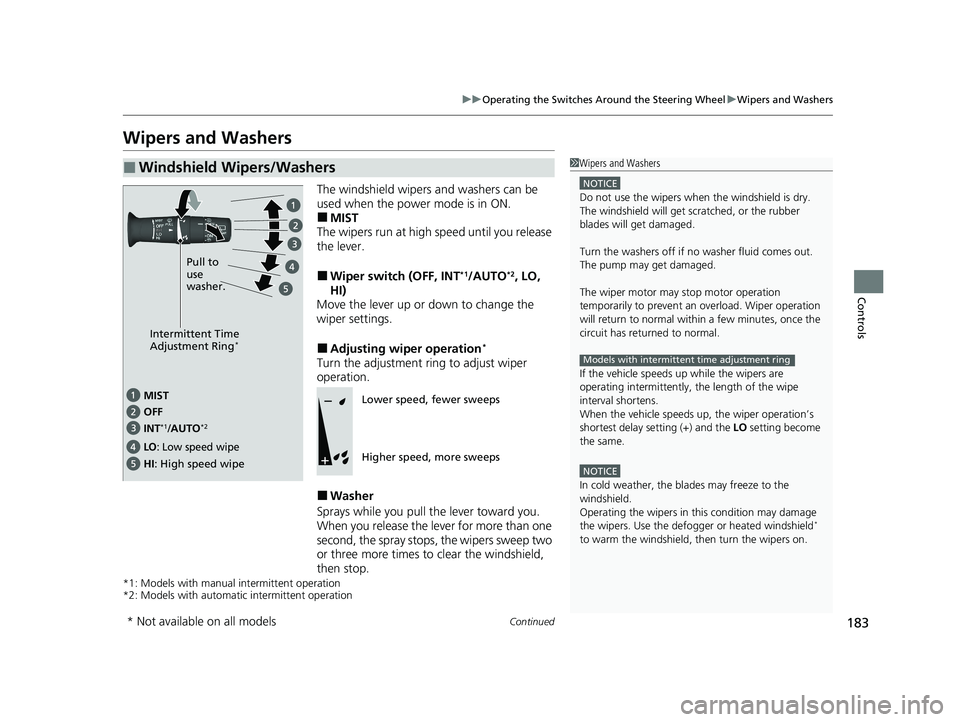

183
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Continued
Controls
Wipers and Washers
The windshield wipers and washers can be
used when the power mode is in ON.
■MIST
The wipers run at high speed until you release
the lever.
■Wiper switch (OFF, INT*1/AUTO*2, LO,
HI)
Move the lever up or down to change the
wiper settings.
■Adjusting wiper operation*
Turn the adjustment ring to adjust wiper
operation.
■Washer
Sprays while you pull the lever toward you.
When you release the le ver for more than one
second, the spray stops, the wipers sweep two
or three more times to clear the windshield,
then stop.
*1: Models with manual intermittent operation
*2: Models with automati c intermittent operation
■Windshield Wipers/Washers1Wipers and Washers
NOTICE
Do not use the wipers when the windshield is dry.
The windshield will get sc ratched, or the rubber
blades will get damaged.
Turn the washers off if no washer fluid comes out.
The pump may get damaged.
The wiper motor may stop motor operation
temporarily to prevent an overload. Wiper operation
will return to normal within a few minutes, once the
circuit has returned to normal.
If the vehicle speeds up while the wipers are
operating intermittently, the length of the wipe
interval shortens.
When the vehicle speeds up, the wiper operation’s
shortest delay se tting (+) and the LO setting become
the same.
NOTICE
In cold weather, the blades may freeze to the
windshield.
Operating the wipers in th is condition may damage
the wipers. Use the defogge r or heated windshield
*
to warm the windshield, then turn the wipers on.
Models with intermittent time adjustment ring
Intermittent Time
Adjustment Ring*
MIST
INT
*1/AUTO*2OFF
LO: Low speed wipe
HI: High speed wipe Pull to
use
washer.
Lower speed, fewer sweeps
Higher speed, more sweeps
* Not available on all models
21 PILOT-31TG76500.book 183 ページ ２０２０年３月１８日　水曜日　午後４時３８分

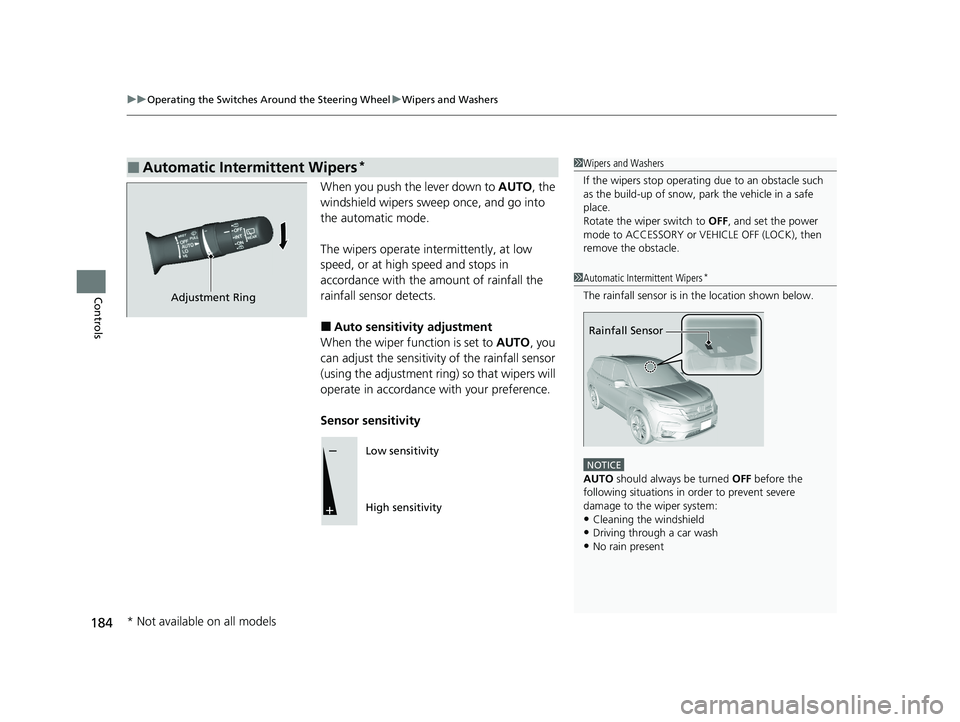

uuOperating the Switches Around the Steering Wheel uWipers and Washers
184
Controls
When you push the lever down to AUTO, the
windshield wipers sweep once, and go into
the automatic mode.
The wipers operate intermittently, at low
speed, or at high speed and stops in
accordance with the am ount of rainfall the
rainfall sensor detects.
■Auto sensitivity adjustment
When the wiper function is set to AUTO, you
can adjust the sensitivity of the rainfall sensor
(using the adjustment ring) so that wipers will
operate in accordance with your preference.
Sensor sensitivity
■Automatic Intermittent Wipers*1 Wipers and Washers
If the wipers st op operating due to an obstacle such
as the build-up of snow, pa rk the vehicle in a safe
place.
Rotate the wiper switch to OFF, and set the power
mode to ACCESSORY or VEHICLE OFF (LOCK), then
remove the obstacle.
1 Automatic Intermittent Wipers*
The rainfall sensor is in the location shown below.
NOTICE
AUTO should always be turned OFF before the
following situations in order to prevent severe
damage to the wiper system:
•Cleaning the windshield•Driving through a car wash
•No rain present
Rainfall Sensor
Adjustment Ring
Low sensitivity
High sensitivity
* Not available on all models
21 PILOT-31TG76500.book 184 ページ ２０２０年３月１８日　水曜日　午後４時３８分

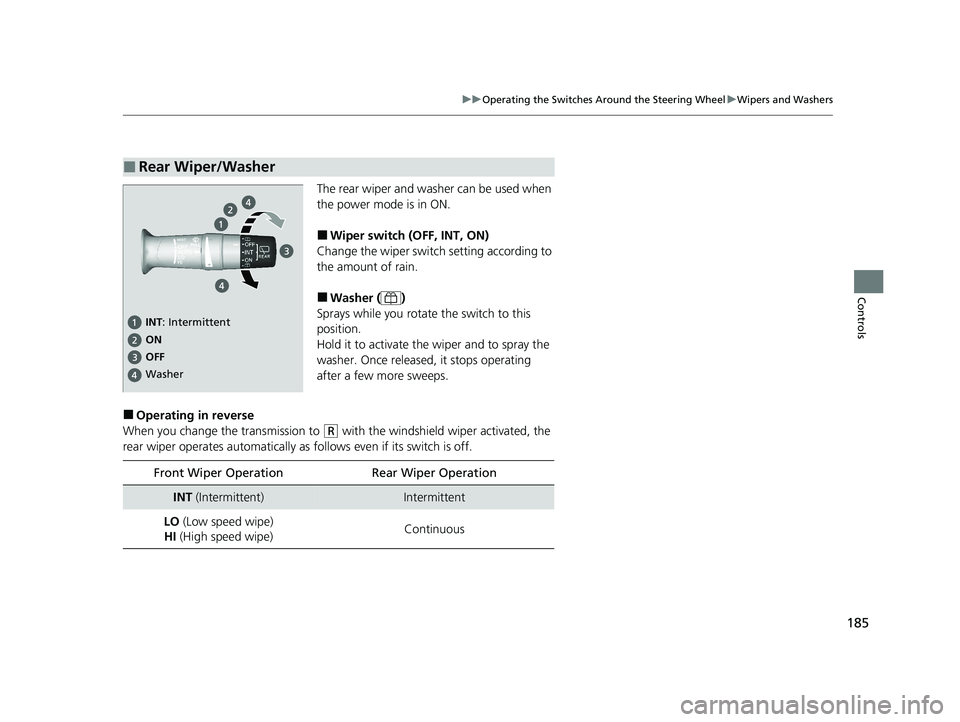

185
uuOperating the Switches Around the Steering Wheel uWipers and Washers
Controls
The rear wiper and washer can be used when
the power mode is in ON.
■Wiper switch (OFF, INT, ON)
Change the wiper switch setting according to
the amount of rain.
■Washer ( )
Sprays while you rotate the switch to this
position.
Hold it to activate th e wiper and to spray the
washer. Once released , it stops operating
after a few more sweeps.
■Operating in reverse
When you change the transmission to
(R with the windshield wiper activated, the
rear wiper operates automatically as follows even if its switch is off.
■Rear Wiper/Washer
INT: Intermittent
OFF ON
Washer
Front Wiper Operation Rear Wiper Operation
INT (Intermittent)Intermittent
LO (Low speed wipe)
HI (High speed wipe) Continuous
21 PILOT-31TG76500.book 185 ページ ２０２０年３月１８日　水曜日　午後４時３８分

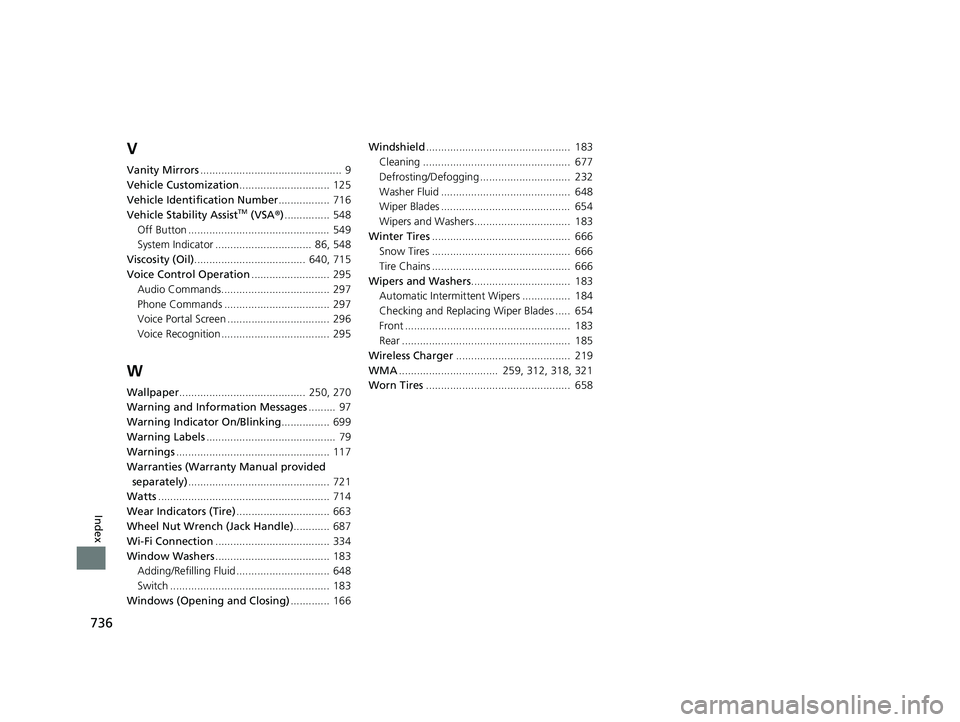

736
Index
V
Vanity Mirrors............................................... 9
Vehicle Customization .............................. 125
Vehicle Identification Number ................. 716
Vehicle Stability Assist
TM (VSA ®)............... 548
Off Button ............................................... 549
System Indicator ................................ 86, 548
Viscosity (Oil) ..................................... 640, 715
Voice Control Operation .......................... 295
Audio Commands.................................... 297
Phone Commands ................................... 297
Voice Portal Screen .................................. 296
Voice Recognition .................................... 295
W
Wallpaper .......................................... 250, 270
Warning and Information Messages ......... 97
Warning Indicator On/Blinking ................ 699
Warning Labels ........................................... 79
Warnings ................................................... 117
Warranties (Warranty Manual provided separately) ............................................... 721
Watts ......................................................... 714
Wear Indicators (Tire) ............................... 663
Wheel Nut Wrench (Jack Handle) ............ 687
Wi-Fi Connection ...................................... 334
Window Washers ...................................... 183
Adding/Refilling Fluid ............................... 648
Switch ..................................................... 183
Windows (Opening and Closing) ............. 166Windshield
................................................ 183
Cleaning ................................................. 677
Defrosting/Defogging .............................. 232
Washer Fluid ........................................... 648
Wiper Blades ........................................... 654
Wipers and Washers................................ 183
Winter Tires .............................................. 666
Snow Tires .............................................. 666
Tire Chains .............................................. 666
Wipers and Washers ................................. 183
Automatic Intermi ttent Wipers ................ 184
Checking and Replacing Wiper Blades ..... 654
Front ....................................................... 183
Rear ........................................................ 185
Wireless Charger ...................................... 219
WMA ................................. 259, 312, 318, 321
Worn Tires ................................................ 658
21 PILOT-31TG76500.book 736 ページ ２０２０年３月１８日　水曜日　午後４時３８分
