engine HONDA PILOT 2022 Owners Manual

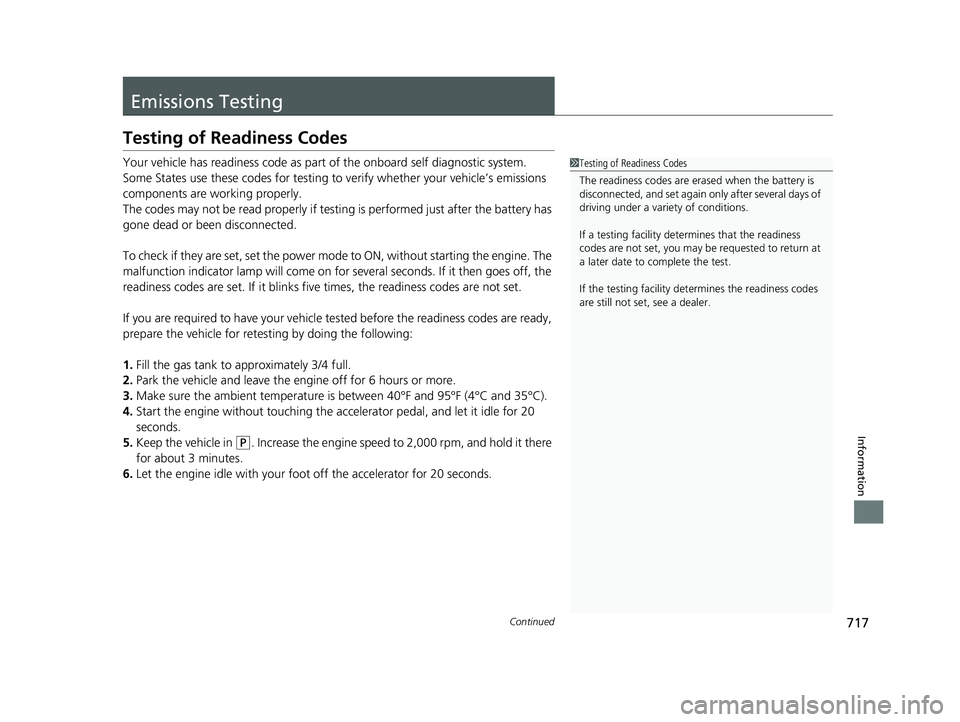

717Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
22 PILOT-31TG76600.book 717 ページ ２０２１年６月１１日　金曜日　午後４時４０分

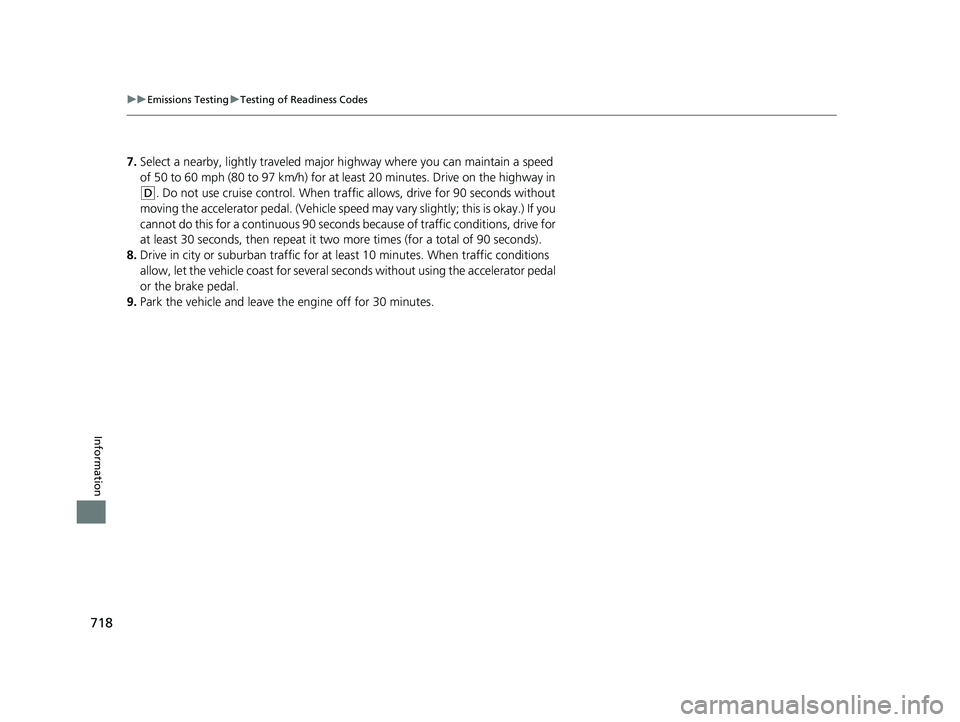

718
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D. Do not use cruise control. When tra ffic allows, drive for 90 seconds without
moving the accelerator pedal. (Vehicle spee d may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two mo re times (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
22 PILOT-31TG76600.book 718 ページ ２０２１年６月１１日　金曜日　午後４時４０分

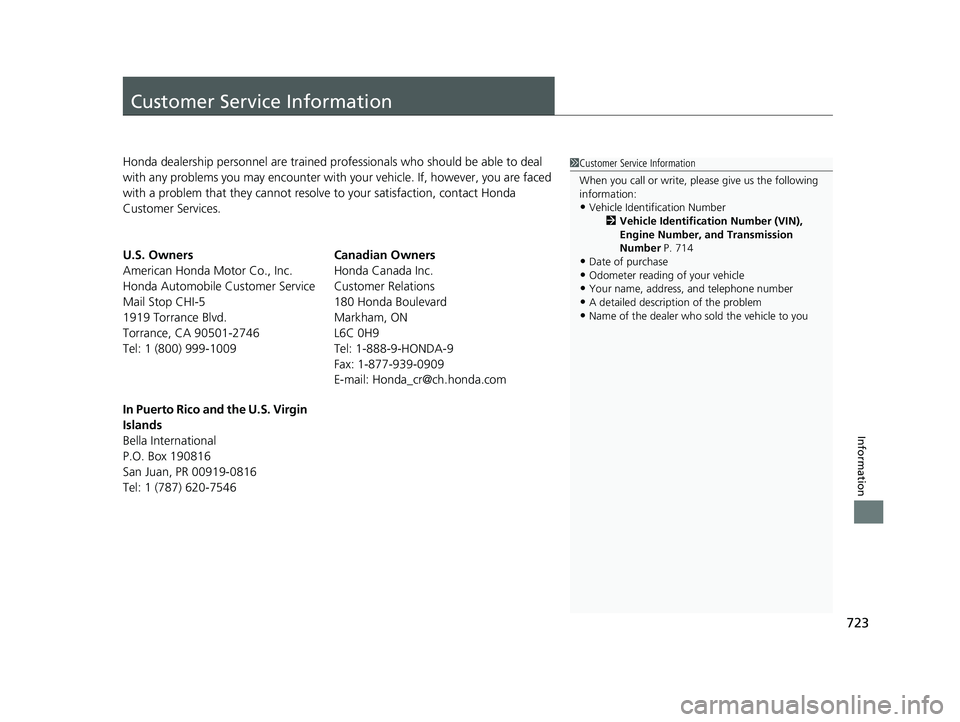

723
Information
Customer Service Information
Honda dealership personnel are trained professionals who should be able to deal
with any problems you may encounter with your vehicle. If, however, you are faced
with a problem that they cannot resolve to your satisfaction, contact Honda
Customer Services.
U.S. Owners
American Honda Motor Co., Inc.
Honda Automobile Customer Service
Mail Stop CHI-5
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: 1 (800) 999-1009 Canadian Owners
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin
Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Customer Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, and Transmission
Number P. 714
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the dealer who sold the vehicle to you
22 PILOT-31TG76600.book 723 ページ ２０２１年６月１１日　金曜日　午後４時４０分

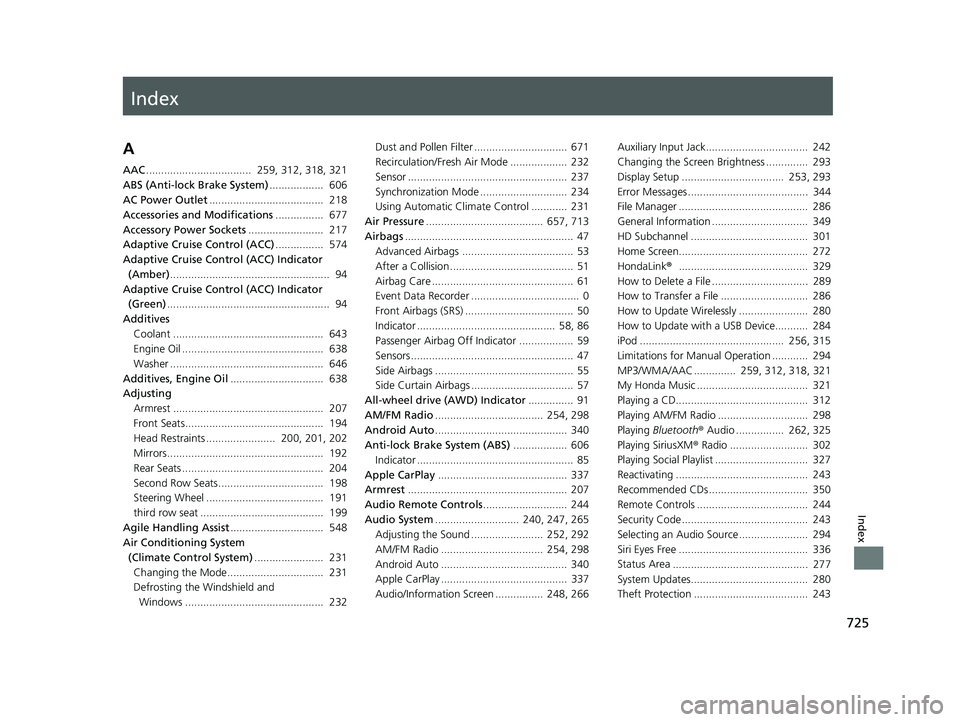

Index
725
Index
Index
A
AAC................................... 259, 312, 318, 321
ABS (Anti-lock Brake System) .................. 606
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 677
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) ................ 574
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 94
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 94
Additives Coolant .................................................. 643
Engine Oil ............................................... 638
Washer ................................................... 646
Additives, Engine Oil ............................... 638
Adjusting
Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 200, 201, 202
Mirrors.................................................... 192
Rear Seats ............................................... 204
Second Row Seats................................... 198
Steering Wheel ....................................... 191
third row seat ......................................... 199
Agile Handling Assist ............................... 548
Air Conditioning System (Climate Control System) ....................... 231
Changing the Mode................................ 231
Defrosting the Windshield and Windows .............................................. 232 Dust and Pollen Filter ............................... 671
Recirculation/Fresh Air Mode ................... 232
Sensor ..................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Air Pressure ....................................... 657, 713
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 58, 86
Passenger Airbag Off Indicator .................. 59
Sensors ...................................................... 47
Side Airbags .............................................. 55
Side Curtain Airbags .................................. 57
All-wheel drive (AWD) Indicator ............... 91
AM/FM Radio .................................... 254, 298
Android Auto ............................................ 340
Anti-lock Brake System (ABS) .................. 606
Indicator .................................................... 85
Apple CarPlay ........................................... 337
Armrest ..................................................... 207
Audio Remote Controls ............................ 244
Audio System ............................ 240, 247, 265
Adjusting the Sound ........................ 252, 292
AM/FM Radio .................................. 254, 298
Android Auto .......................................... 340
Apple CarPlay .......................................... 337
Audio/Information Screen ................ 248, 266 Auxiliary Input Jack.................................. 242
Changing the Screen Brightness .............. 293
Display Setup .................................. 253, 293
Error Messages ........................................ 344
File Manager ........................................... 286
General Information ................................ 349
HD Subchannel ....................................... 301
Home Screen........................................... 272
HondaLink
®........................................... 329
How to Delete a File ................................ 289
How to Transfer a File ............................. 286
How to Update Wirelessly ....................... 280
How to Update with a USB Device........... 284
iPod ................................................ 256, 315
Limitations for Manual Operation ............ 294
MP3/WMA/AAC .............. 259, 312, 318, 321
My Honda Music ..................................... 321
Playing a CD............................................ 312
Playing AM/FM Radio .............................. 298
Playing Bluetooth ® Audio ................ 262, 325
Playing SiriusXM ® Radio .......................... 302
Playing Social Playlist ............................... 327
Reactivating ............................................ 243
Recommended CDs ................................. 350
Remote Controls ..................................... 244
Security Code .......................................... 243
Selecting an Audio Source ....................... 294
Siri Eyes Free ........................................... 336
Status Area ...........................

.................. 277
System Updates....................................... 280
Theft Protection ...................................... 243
22 PILOT-31TG76600.book 725 ページ ２０２１年６月１１日　金曜日　午後４時４０分

727
Index
Rear Turn Signal Lights............................ 650
Side Turn Signal/Emergency Indicator Lights .................................................... 650
Bulb Specifications ................................... 712
C
CabinTalkTM.............................................. 502
Car Wash Mode ........................................ 534
Carbon Monoxide Gas ............................... 78
Carrying Cargo ................................. 505, 507
CD Player .................................................. 312
Certification Label ................................... 714
Changing Bulbs ........................................ 647
Charging System Indicator ................ 83, 697
Child Safety ................................................ 62
Childproof Door Locks ............................ 151
Child Seat ................................................... 62
Booster Seats ............................................ 77
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 76
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 674
Cleaning the Interior ............................... 672
Climate Control System ........................... 231
Changing the Mode................................ 231 Defrosting the Windshield and
Windows ............................................... 232
Dust and Pollen Filter ............................... 671
Recirculation and Fresh Air Mode ............ 232
Sensors .................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Clock .......................................................... 136
Coat Hook ................................................. 222
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 562
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 94, 95
Compact Spare Tire .......................... 681, 713
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 643
Adding to the Radiator ............................ 644
Adding to the Reserve Tank ..................... 643
Overheating ............................................ 695
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 529
Cross Traffic Monitor ................................ 615
Cup Holders .............................................. 215
Customer Service Information ................. 723
Customized Features ................ 125, 422, 429
D
Daytime Running Lights ........................... 182
Dead Battery ............................................. 692 Defaulting All the Settings
...................... 447
Defrosting the Windshield and
Windows ................................................. 232
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 715
Dimming Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 639
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 659
Driver Information Interface ................... 111
Accessing Content .................................. 113
Warning and Information Messages .......... 97
Driving ...................................................... 503
Adaptive Cruise Control (ACC) ................ 574
Automatic Transmission .......................... 529
Braking ................................................... 604
Off-Highway Driving Guidelines............... 520
Shifting Gear ........................................... 530
22 PILOT-31TG76600.book 727 ページ ２０２１年６月１１日　金曜日　午後４時４０分

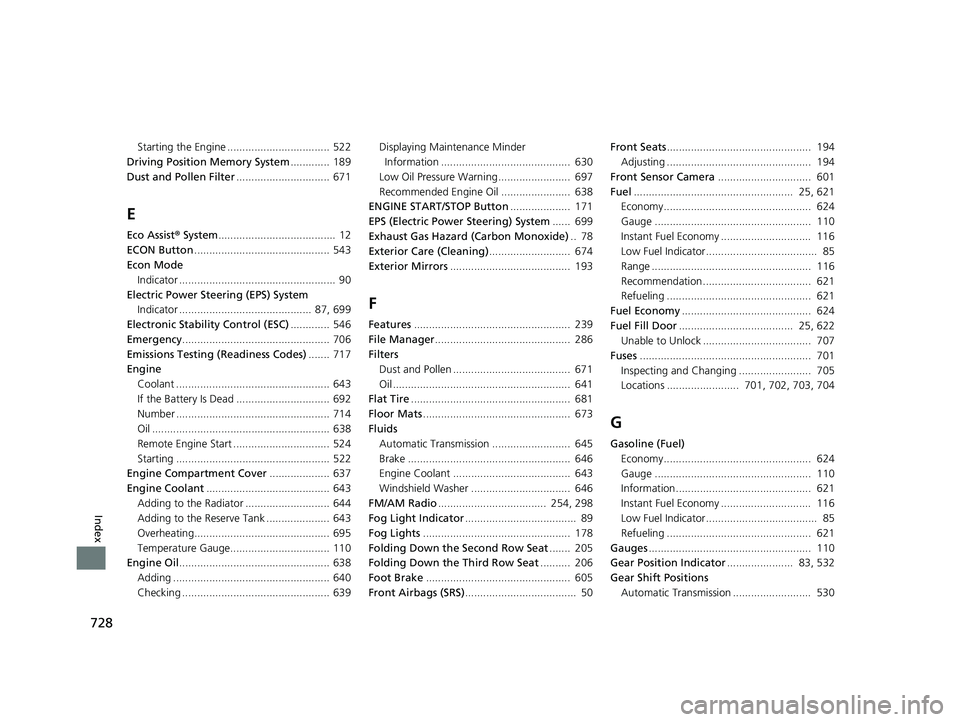

728
Index
Starting the Engine .................................. 522
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 671
E
Eco Assist® System ....................................... 12
ECON Button ............................................. 543
Econ Mode Indicator .................................................... 90
Electric Power Steering (EPS) System Indicator ............................................ 87, 699
Electronic Stability Control (ESC) ............. 546
Emergency ................................................. 706
Emissions Testing (Readiness Codes) ....... 717
Engine
Coolant ................................................... 643
If the Battery Is Dead ............................... 692
Number ................................................... 714
Oil ........................................................... 638
Remote Engine Start ................................ 524
Starting ................................................... 522
Engine Compartment Cover .................... 637
Engine Coolant ......................................... 643
Adding to the Radiator ............................ 644
Adding to the Reserve Tank ..................... 643
Overheating............................................. 695
Temperature Gauge................................. 110
Engine Oil .................................................. 638
Adding .................................................... 640
Checking ................................................. 639 Displaying Maintenance Minder
Information ........................................... 630
Low Oil Pressure Warning........................ 697
Recommended Engine Oil ....................... 638
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 699
Exhaust Gas Hazard (Carbon Monoxide) .. 78
Exterior Care (Cleaning) ........................... 674
Exterior Mirrors ........................................ 193
F
Features.................................................... 239
File Manager ............................................. 286
Filters Dust and Pollen ....................................... 671
Oil ........................................................... 641
Flat Tire ..................................................... 681
Floor Mats ................................................. 673
Fluids Automatic Transmission .......................... 645
Brake ...................................................... 646
Engine Coolant ....................................... 643
Windshield Washer ................................. 646
FM/AM Radio .................................... 254, 298
Fog Light Indicator ..................................... 89
Fog Lights ................................................. 178
Folding Down the Second Row Seat ....... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 605
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 601
Fuel ..................................................... 25, 621
Economy................................................. 624
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Range ..................................................... 116
Recommendation.................................... 621
Refueling ................................................ 621
Fuel Economy ........................................... 624
Fuel Fill Door ...................................... 25, 622
Unable to Unlock .................................... 707
Fuses ......................................................... 701
Inspecting and Changing ........................ 705
Locations ........................ 701, 702, 703, 704
G
Gasoline (Fuel)
Economy................................................. 624
Gauge .................................................... 110
Information............................................. 621
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Refueling ................................................ 621
Gauges ...................................................... 110
Gear Position Indicator ...................... 83, 532
Gear Shift Positions
Automatic Transmission .......................... 530
22 PILOT-31TG76600.book 728 ページ ２０２１年６月１１日　金曜日　午後４時４０分

729
Index
Glass (care)............................................... 675
Glove Box ................................................. 213
H
Handling the Unexpected ....................... 679
Hands Free Access .................................... 155
HandsFreeLink ® (HFL) ...................... 451, 476
Automatic Import of Cellular Phonebook
and Call History............................. 465, 485
Automatic Transferring ........................... 484
Caller ID Information............................... 463
Displaying Messages ............................... 495
Favorite Contacts .................................... 486
HFL Buttons .................................... 451, 476
HFL Menus...................................... 453, 479
HFL Status Display ........................... 452, 478
In Case of Emergency ............................. 499
Limitations for Manual Operation.... 452, 478
Making a Call ................................. 470, 488
Options During a Call...................... 475, 491
Phone Setup ................................... 457, 481
Receiving a Call............................... 474, 491
Receiving a Text Message........................ 493
Ring Tone ....................................... 463, 484
Selecting a Phone ................................... 494
Speed Dial .............................................. 466
To Clear the System ................................ 464
To Set Up a Text Message Options .......... 492
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 301 HDMI
TM Port
.............................................. 377
Head Restraints ......................... 200, 201, 202
Headlights ................................................. 175
Auto High-Beam ...................................... 179
Automatic Operation ............................... 176
Dimming ......................................... 175, 182
Operating ................................................ 175
Heated Steering Wheel ............................ 228
Heated Windshield Button ...................... 187
Heater (Steering Wheel) .......................... 228
Heaters (Seat) ........................... 225, 226, 227
HFL (HandsFreeLink ®)....................... 451, 476
High Beam Indicator .................................. 88
Hill Start Assist System ............................. 527
HomeLink® Universal Transceiver ............ 448
Honda App License Agreement ............... 354
Honda Sensing ®........................................ 26
HondaLink ®............................................. 329
I
Identification Numbers ............................ 714
Engine and Transmission ......................... 714
Vehicle Identification ............................... 714
Illumination Control ................................. 188
Button ..................................................... 188
Immobilizer System .................................. 163
Indicator .................................................... 89
Indicators .................................................... 82
Adaptive Cruise Control (ACC) (Amber) ..... 94
Adaptive Cruise Control (ACC) (Green) ...... 94 All-wheel drive (AWD) ............................... 91
Anti-lock Brake System (ABS)..................... 85
Auto High-Beam ....................................... 86
Auto Idle Stop (Green)............................... 91
Auto Idle Stop System (Amber) .................. 91
Blind spot information ....................... 96, 550
Brake System (Amber) ............................... 82
Brake System (Red) ............................ 82, 699
Charging System ............................... 83, 697
Collision Mitigati
on Braking System
TM
(CMBSTM) ........................................... 94, 95
Econ Mode................................................ 90
Electric Power Steering (EPS) System .. 87, 699
Fog Light ................................................... 89
Gear Position............................................. 83
Hazard Warning ........................................ 88
High Beam ................................................ 88
Immobilizer System ................................... 89
Lane Keeping Assist System (LKAS) .......... 589
Lane Keeping Assist System (LKAS) (Amber) ................................................... 92
Lane Keeping Assist System (LKAS)
(Green) .................................................... 92
Lights On .................................................. 88
Low Fuel ................................................... 85
Low Oil Pressure Warning........................ 697
Low Tire Pressure/TPMS ..................... 88, 700
Malfunction Indicator Lamp............... 83, 698
Parking Brake and Brake System .............. 699
Parking Brake and Brake System (Amber) .. 82
Parking Brake and Brake System (Red) ....... 82
22 PILOT-31TG76600.book 729 ページ ２０２１年６月１１日　金曜日　午後４時４０分

731
Index
Safety ..................................................... 627
Service Items ........................................... 632
Tires........................................................ 656
Transmission Fluid ................................... 645
Under the Hood ...................................... 635
Wireless Headphone ............................... 669
Malfunction Indicator Lamp ............. 83, 698
Map Lights ................................................ 210
Maximum Load Limit ............................... 507
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 677
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 619
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 714
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 520
Oil (Engine) ............................................... 638
Adding .................................................... 640
Checking ................................................. 639
Displaying Maintenance Minder Information ........................................... 630
Low Oil Pressure Warning ........................ 697
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 638
Viscosity .................................................. 638
Open Source Licenses ............................... 368
Opening/Closing
Hood ....................................................... 636
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 695
P
Paddle Shifters (Sequential Mode) .... 24, 537
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 608
Parking Brake ........................................... 604 Parking Brake and Brake System
Indicator .................................................. 699
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 610
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 528
Driving Guidelines for Your Utility Vehicle .................................................. 528
Rain ........................................................ 528
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 681
R
Radiator.................................................... 644
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 717
22 PILOT-31TG76600.book 731 ページ ２０２１年６月１１日　金曜日　午後４時４０分

732
Index
Rear Climate Control SystemFrom the Rear Panel................................. 236
Rear Defogger/Heated Door Mirror Button ...................................................... 186
Rear Entertainment System ..................... 374
Rear Seats .................................................. 204
Second Row Seat ............................. 204, 205
Third Row Seat ........................................ 206
Rearview Mirror ........................................ 192
Refueling ................................................... 621
Fuel Gauge .............................................. 110
Gasoline .......................................... 621, 712
Low Fuel Indicator ..................................... 85
Regulations ............................... 557, 659, 715
Remote Engine Start ................................ 524
Remote Transmitter .................................. 147
Replacement
Battery..................................... 667, 668, 669
Bulbs ....................................................... 647
Front Wiper Blade Rubber ........................ 652
Fuses ............................... 701, 702, 703, 704
Rear Wiper Blade Rubber ......................... 654
Tires ........................................................ 662
Reporting Safety Defects ......................... 716
Reverse Tilt Door Mirror ........................... 193
Road Departure Mitigation (RDM) .......... 596
On and Off .............................................. 598
Road Departure Mitigation (RDM)
Indicator .................................................... 93S
Safe Driving ................................................ 33
Safety Check ............................................... 38
Safety Labels ............................................... 79
Safety Message ............................................. 3
Seat Belts .................................................... 39
Adjusting the Shoulder Anchor.................. 43
Automatic Seat Belt Tensioners ................. 41
Checking................................................... 46
Detachable Anchor.................................... 44
Fastening .................................................. 42
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 71
Pregnant Women ...................................... 45
Reminder .................................................. 40
Warning Indicator ............................... 40, 85
Seat Heaters .............................. 225, 226, 227
Seat Ventilators ........................................ 226
Seats .......................................................... 194
Adjusting ................................................ 194
Driver’s Seat Lumbar Support .................. 194
Front Seats .............................................. 194
Rear Seats ............................................... 204
Seat Heaters ............................ 225, 226, 227
Seat Ventilators ....................................... 226
Second Row Seat ............................ 204, 205
Third Row Seat ........................................ 206
Second Row Outer Seats Heaters ............ 227
Second Row Seat (Folding Down) ........... 205
Security System ......................................... 163
Immobilizer System Indicator ..................... 89 Security System Alarm Indicator ................ 89
Select Button ...................................... 23, 530
Operation ......................................... 23, 532
Selecting a Child Seat ................................ 66
Selector Knob (Audio) ............................. 247
Sequential Mode ...................................... 536
Sequential Mode Operation ................... 537
Setting the Clock ...................................... 136
Settings Arrange Apps ......................................... 123
Show Tachometer ................................... 124
Shift Button ........................................ 23, 530
Shifting (Transmission) ...................... 23, 530
Shoulder Anchor ........................................ 43
Show Tachometer .................................... 124
Show/Hide Apps ....................................... 122
Side Airbags ............................................... 55
Side Curtain Airbags .................................. 57
Siri Eyes Free ............................................. 336
SiriusXM ® Radio ....................................... 302
Snow Tires ................................................ 664
Social Playlist ............................................ 327
Spare Tire ......................................... 681, 713
Spark Plugs ............................................... 712
Specifications ........................................... 712
Specified Fuel ................................... 621, 712
Speedometer ............................................ 111
SRS Airbags (Airbags) ................................ 50
Starting Assist Brake Function ................ 542
Starting the Engine .................................. 522
Does Not Start ........................................ 689
22 PILOT-31TG76600.book 732 ページ ２０２１年６月１１日　金曜日　午後４時４０分

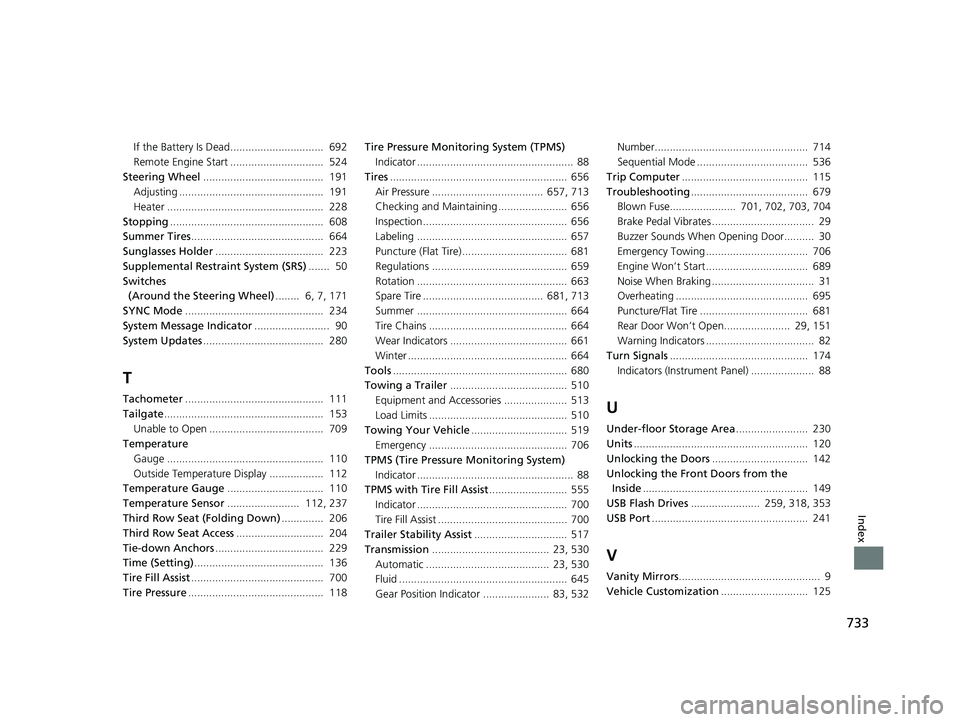

733
Index
If the Battery Is Dead............................... 692
Remote Engine Start ............................... 524
Steering Wheel ........................................ 191
Adjusting ................................................ 191
Heater .................................................... 228
Stopping ................................................... 608
Summer Tires ............................................ 664
Sunglasses Holder .................................... 223
Supplemental Restraint System (SRS) ....... 50
Switches (Around the Steering Wheel) ........ 6, 7, 171
SYNC Mode .............................................. 234
System Message Indicator ......................... 90
System Updates ........................................ 280
T
Tachometer.............................................. 111
Tailgate ..................................................... 153
Unable to Open ...................................... 709
Temperature
Gauge .................................................... 110
Outside Temperature Display .................. 112
Temperature Gauge ................................ 110
Temperature Sensor ........................ 112, 237
Third Row Seat (Folding Down) .............. 206
Third Row Seat Access ............................. 204
Tie-down Anchors .................................... 229
Time (Setting) ........................................... 136
Tire Fill Assist ............................................ 700
Tire Pressure ............................................. 118 Tire Pressure Moni
toring System (TPMS)
Indicator .................................................... 88
Tires ........................................................... 656
Air Pressure ..................................... 657, 713
Checking and Maintaining ....................... 656
Inspection ................................................ 656
Labeling .................................................. 657
Puncture (Flat Tire) ................................... 681
Regulations ............................................. 659
Rotation .................................................. 663
Spare Tire ........................................ 681, 713
Summer .................................................. 664
Tire Chains .............................................. 664
Wear Indicators ....................................... 661
Winter ..................................................... 664
Tools .......................................................... 680
Towing a Trailer ....................................... 510
Equipment and Accessories ..................... 513
Load Limits .............................................. 510
Towing Your Vehicle ................................ 519
Emergency .............................................. 706
TPMS (Tire Pressure Monitoring System)
Indicator .................................................... 88
TPMS with Tire Fill Assist .......................... 555
Indicator .................................................. 700
Tire Fill Assist ........................................... 700
Trailer Stability Assist ............................... 517
Transmission ....................................... 23, 530
Automatic ......................................... 23, 530
Fluid ........................................................ 645
Gear Position Indicator ...................... 83, 532 Number................................................... 714
Sequential Mode ..................................... 536
Trip Computer .......................................... 115
Troubleshooting ....................................... 679
Blown Fuse...................... 701, 702, 703, 704
Brake Pedal Vibrates .................................. 29
Buzzer Sounds When Opening Door.......... 30
Emergency Towing .................................. 706
Engine Won’t Start .................................. 689
Noise When Braking .................................. 31
Overheating ............................................ 695
Puncture/Flat Tire .................................... 681
Rear Door Won’t Open...................... 29, 151
Warning Indicators .................................... 82
Turn Signals .............................................. 174
Indicators (Instrument Panel) ..................... 88U
Under-floor Storage Area ........................ 230
Units .......................................................... 120
Unlocking the Doors ................................ 142
Unlocking the Fron t Doors from the
Inside ....................................................... 149
USB Flash Drives ....................... 259, 318, 353
USB Port .................................................... 241
V
Vanity Mirrors ............................................... 9
Vehicle Customization ............................. 125
22 PILOT-31TG76600.book 733 ページ ２０２１年６月１１日　金曜日　午後４時４０分
