navigation system HONDA PILOT 2022 Owner's Manual

436
uuCustomized Features u
Features
■List of customizable options
*1:Default Setting Setup
Group Customizable Features Description Selectable Settings
SystemDate & Time
Set
Date &
Time
Automatic
Date &
TimeSelects
ON to have the GPS automatically adjust
the clock. Select OFF to cancel this function.ON*1/OFF
Set DateAdjusts date.
2 Adjusting the Clock P. 136—
Set TimeAdjusts clock.
2Adjusting the Clock P. 136—
Set
Time
ZoneAutomatic
Time Zone*
Sets the navigation system to automatically adjust
the clock when driving through different time
zones.
ON*1/ OFF
Select time
zoneChanges the time zone manually.—
Select Time FormatSelects the digital clock display from 12H to 24H.12H*1/24H
* Not available on all models
22 PILOT-31TG76600.book 436 ページ ２０２１年６月１１日　金曜日　午後４時４０分

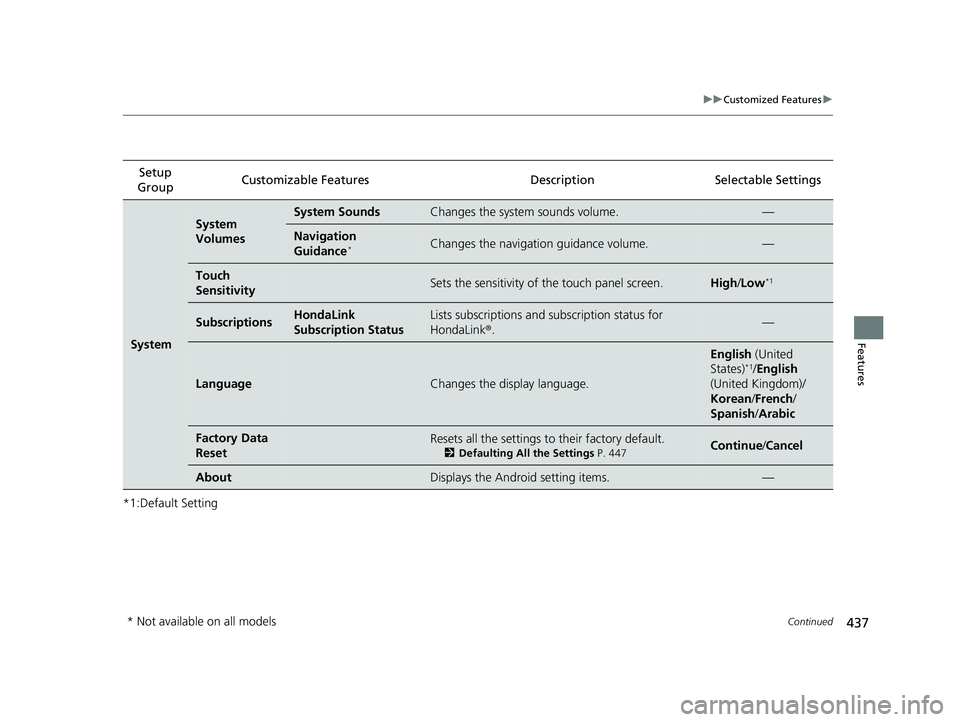

437
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
System
System
VolumesSystem SoundsChanges the system sounds volume.—
Navigation
Guidance*Changes the navigation guidance volume.—
Touch
SensitivitySets the sensitivity of the touch panel screen.High
/Low*1
SubscriptionsHondaLink
Subscription StatusLists subscriptions and subscription status for
HondaLink®.—
LanguageChanges the display language.
English (United
States)*1/ English
(United Kingdom)/
Korean /French /
Spanish/ Arabic
Factory Data
ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 447Continue /Cancel
AboutDisplays the Android setting items.—
* Not available on all models
22 PILOT-31TG76600.book 437 ページ ２０２１年６月１１日　金曜日　午後４時４０分

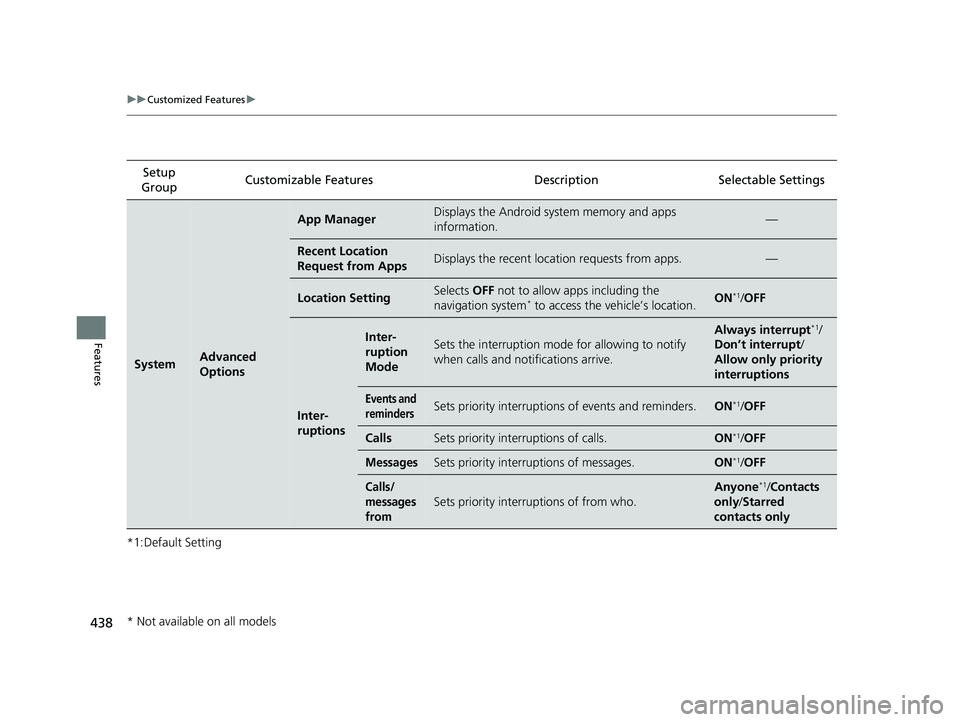

438
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
SystemAdvanced
Options
App ManagerDisplays the Android sy
stem memory and apps
information.—
Recent Location
Request from AppsDisplays the recent loca tion requests from apps.—
Location SettingSelects OFF not to allow apps including the
navigation system* to access the vehicle’s location.ON*1/ OFF
Inter-
ruptions
Inter-
ruption
ModeSets the interruption mode for allowing to notify
when calls and notifications arrive.
Always interrupt*1/
Don’t interrupt /
Allow only priority
interruptions
Events and
remindersSets priority interruptions of events and reminders.ON*1/ OFF
CallsSets priority interruptions of calls.ON*1/OFF
MessagesSets priority interruptions of messages.ON*1/OFF
Calls/
messages
from
Sets priority interruptions of from who.
Anyone*1/ Contacts
only /Starred
contacts only
* Not available on all models
22 PILOT-31TG76600.book 438 ページ ２０２１年６月１１日　金曜日　午後４時４０分

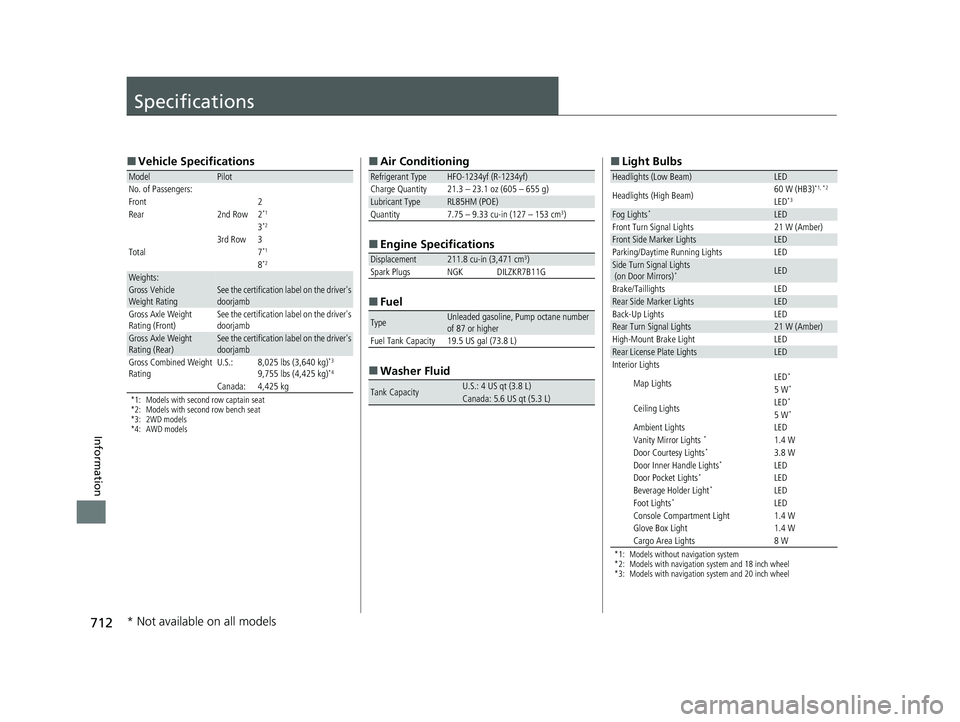

712
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*3
9,755 lbs (4,425 kg)*4
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system and 18 inch wheel
*3: Models with navigation system and 20 inch wheel
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1, *2
LED*3
Fog Lights*LEDFront Turn Signal Lights21 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up LightsLEDRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior Lights
Map LightsLED*
5 W*
Ceiling LightsLED*
5 W*
Ambient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
22 PILOT-31TG76600.book 712 ページ ２０２１年６月１１日　金曜日　午後４時４０分

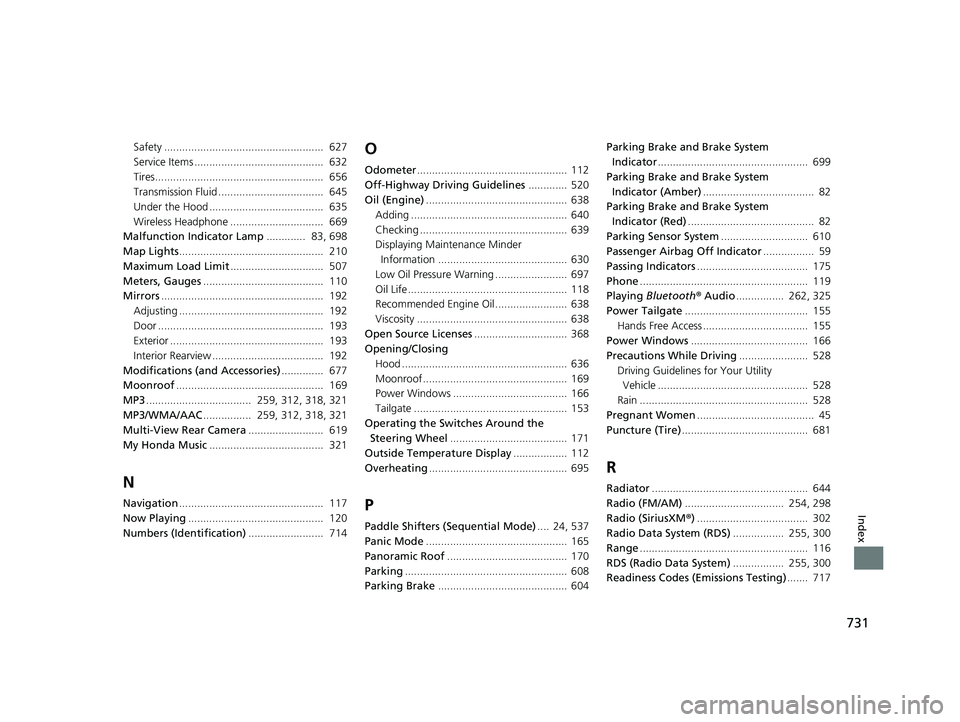

731
Index
Safety ..................................................... 627
Service Items ........................................... 632
Tires........................................................ 656
Transmission Fluid ................................... 645
Under the Hood ...................................... 635
Wireless Headphone ............................... 669
Malfunction Indicator Lamp ............. 83, 698
Map Lights ................................................ 210
Maximum Load Limit ............................... 507
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 677
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 619
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 714
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 520
Oil (Engine) ............................................... 638
Adding .................................................... 640
Checking ................................................. 639
Displaying Maintenance Minder Information ........................................... 630
Low Oil Pressure Warning ........................ 697
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 638
Viscosity .................................................. 638
Open Source Licenses ............................... 368
Opening/Closing
Hood ....................................................... 636
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 695
P
Paddle Shifters (Sequential Mode) .... 24, 537
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 608
Parking Brake ........................................... 604 Parking Brake and Brake System
Indicator .................................................. 699
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 610
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 528
Driving Guidelines for Your Utility Vehicle .................................................. 528
Rain ........................................................ 528
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 681
R
Radiator.................................................... 644
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 717
