88
uuIndicators u
Instrument Panel

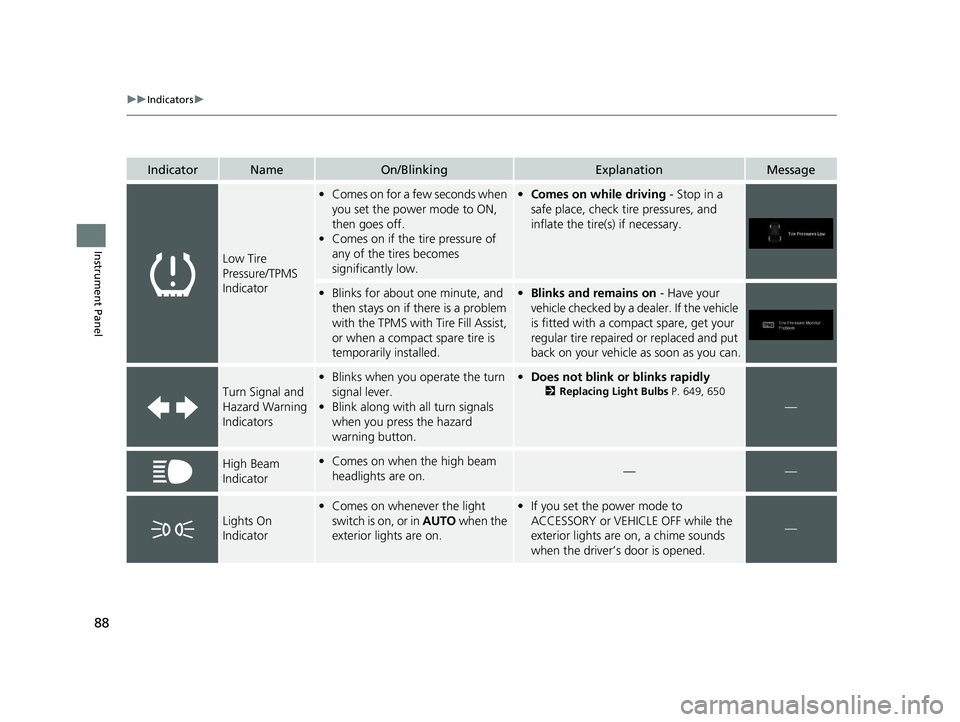

IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if the tire pressure of
any of the tires becomes
significantly low.•Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
• Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill Assist,
or when a compact spare tire is
temporarily installed.•Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators
• Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard
warning button.•Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 649, 650
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO when the
exterior lights are on.• If you set the power mode to
ACCESSORY or VEHICLE OFF while the
exterior lights are on, a chime sounds
when the driver’s door is opened.
—
22 PILOT-31TG76600.book 88 ページ ２０２１年６月１１日　金曜日　午後４時４０分

647Continued
Maintenance

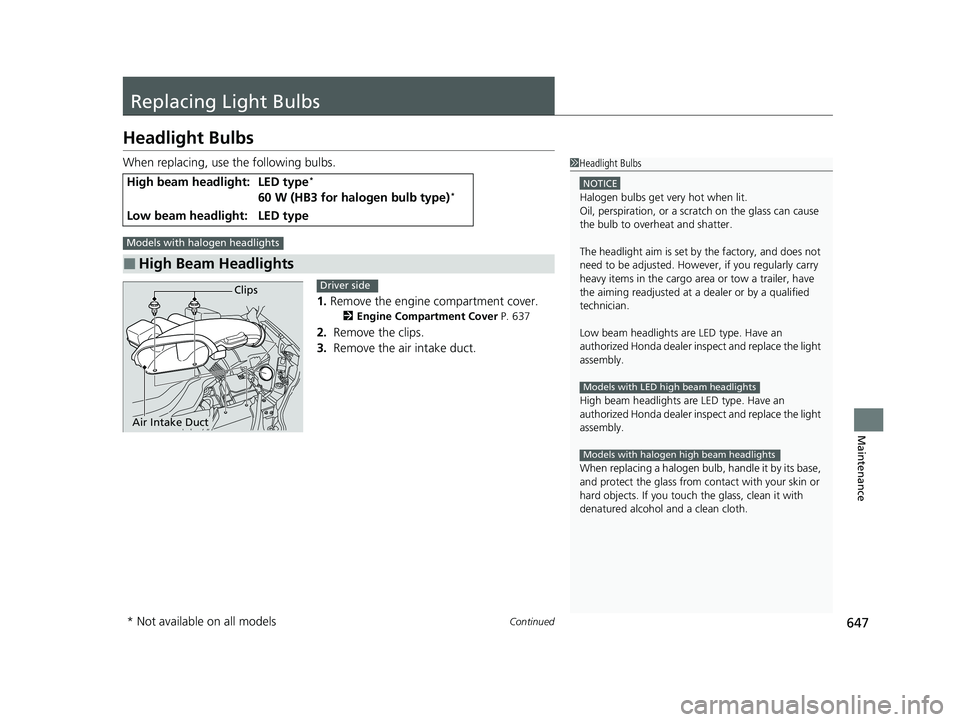

Replacing Light Bulbs
Headlight Bulbs
When replacing, use the following bulbs.1.Remove the engine compartment cover.
2 Engine Compartment Cover P. 637
2. Remove the clips.
3. Remove the air intake duct.
High beam headlight:LED type*
60 W (HB3 for halogen bulb type)*
Low beam headlight:LED type
■High Beam Headlights
1Headlight Bulbs
NOTICE
Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overhe at and shatter.
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.
Low beam headlights are LED type. Have an
authorized Honda d ealer inspect and replace the light
assembly.
High beam headlights ar e LED type. Have an
authorized Honda d ealer inspect and replace the light
assembly.
When replacing a halogen bu lb, handle it by its base,
and protect the glass from c ontact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.
Models with LED high beam headlights
Models with halogen high beam headlights
Models with halogen headlights
Clips
Air Intake Duct
Driver side
* Not available on all models
22 PILOT-31TG76600.book 647 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuReplacing Light Bulbs uDaytime Running Lights and Parking Lights
648
Maintenance

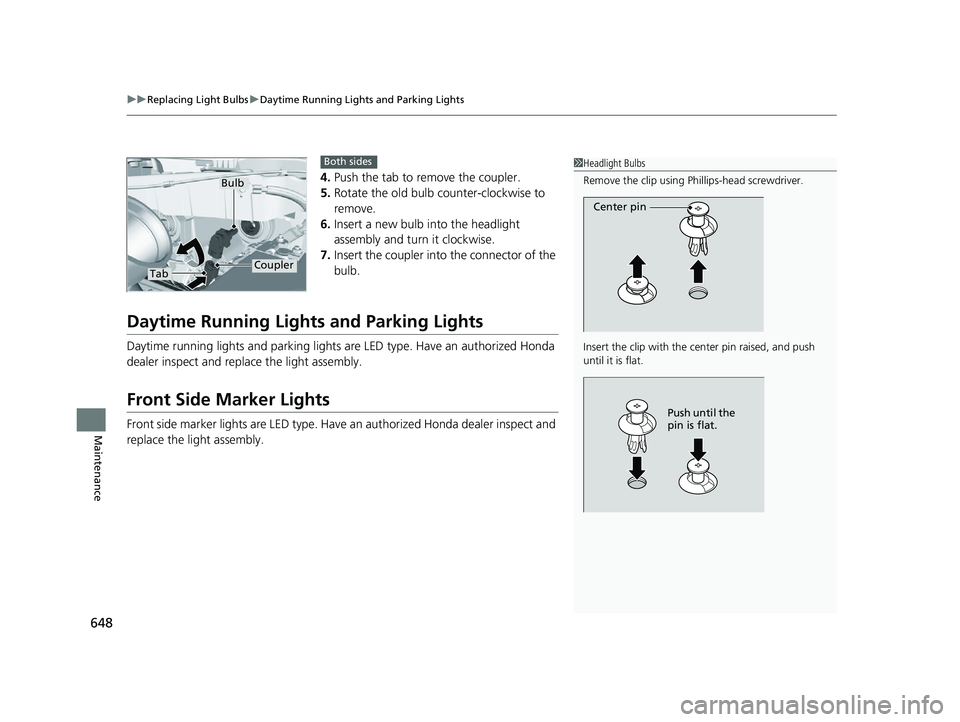

4. Push the tab to remove the coupler.
5. Rotate the old bulb counter-clockwise to
remove.
6. Insert a new bulb into the headlight
assembly and turn it clockwise.
7. Insert the coupler into the connector of the
bulb.
Daytime Running Lights and Parking Lights
Daytime running lights and parking lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
1Headlight Bulbs
Remove the clip using Ph illips-head screwdriver.
Insert the clip with the center pin raised, and push
until it is flat.
Center pin
Push until the
pin is flat.
TabCoupler
Bulb
Both sides
22 PILOT-31TG76600.book 648 ページ ２０２１年６月１１日　金曜日　午後４時４０分

712
Information
Specifications
■Vehicle Specifications
*1: Models with second row captain seat
*2: Models with second row bench seat
*3: 2WD models
*4: AWD models
ModelPilot
No. of Passengers:
Front 2
Rear 2nd Row 2
*1
3*2
3rd Row 3
Total7*1
8*2
Weights:Gross Vehicle
Weight RatingSee the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver's
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver's
doorjamb
Gross Combined Weight
RatingU.S.:8,025 lbs (3,640 kg)*3
9,755 lbs (4,425 kg)*4
Canada:4,425 kg
■ Air Conditioning
■ Engine Specifications
■ Fuel
■ Washer Fluid
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)Quantity7.75 – 9.33 cu-in (127 – 153 cm3)
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 4 US qt (3.8 L)Canada: 5.6 US qt (5.3 L)
■ Light Bulbs
*1: Models without navigation system
*2: Models with navigation system and 18 inch wheel
*3: Models with navigation system and 20 inch wheel
Headlights (Low Beam)LED
Headlights (High Beam)60 W (HB3)*1, *2
LED*3
Fog Lights*LEDFront Turn Signal Lights21 W (Amber)Front Side Marker LightsLEDParking/Daytime Running LightsLEDSide Turn Signal Lights
(on Door Mirrors)*LED
Brake/TaillightsLEDRear Side Marker LightsLEDBack-Up LightsLEDRear Turn Signal Lights21 W (Amber)High-Mount Brake LightLEDRear License Plate LightsLEDInterior Lights
Map LightsLED*
5 W*
Ceiling LightsLED*
5 W*
Ambient LightsLEDVanity Mirror Lights *1.4 WDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDDoor Pocket Lights*LEDBeverage Holder Light*LEDFoot Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WCargo Area Lights8 W
* Not available on all models
22 PILOT-31TG76600.book 712 ページ ２０２１年６月１１日　金曜日　午後４時４０分

726
Index
Updating Apps ........................................ 278
USB Flash Drives ...................... 259, 318, 353
USB Port .................................................. 241
Wallpaper Setup .............................. 250, 270
Wi-Fi Connection ..................................... 334
Audio/Information Screen ................ 248, 266
Authorized Manuals ................................. 722
Auto Door Locking/Unlocking ................. 152
Auto High-Beam ....................................... 179
Indicator .................................................... 86
Auto Idle Stop Indicator (Green) ............... 91
Auto Idle Stop System Indicator (Amber) ..................................................... 91
Auto Idle-stop ........................................... 538
OFF Button .............................................. 539
Automatic Intermittent Wipers ............... 184
Automatic Lighting .................................. 176
Automatic Transmission ........................... 529
Creeping ................................................. 529
Fluid ........................................................ 645
Kickdown ................................................ 529
Operating the Shift Button....................... 532
Shifting.................................................... 530
Auxiliary Input Jack .................................. 242
Average Fuel Economy ............................. 116
AWD Torque ............................................. 119
B
Battery....................................................... 665
Charging System Indicator ................. 83, 697 If the Battery Is Dead ............................... 692
Maintenance (Checking the Battery) ........ 665
Belts (Seat) .................................................. 39
Beverage Holders ..................................... 215
Blind spot information System ................ 549
Bluetooth® Audio............................. 262, 325
Bluetooth® HandsFreeLink ®........... 451, 476
Blu-ray/DVD Rear Entertainment
System ..................................................... 374
Audio Sources for Front and Rear Seats ... 395
Auxiliary Console Panels .......................... 376
DVD or Blu-ray
TM Player Error Messages ... 420
Front Control Panel Operation ................. 387
HDMI
TM Port ............................................ 377
How Much Farther?TM............................. 394
Media Servers.......................................... 394
Operating the System .............................. 378
Overhead Screen ..................................... 377
Playable Disc Region Codes ..................... 418
Playable Disc Types .................................. 418
Playable Discs .......................................... 396
Playing a Disc in the Rear......................... 392
Playing a DVD/Blu-ray
TM........................... 381
Playing a Video Using the HDMITM........... 393
Playing an iPod and a USB Flash Drive in
the Rear ................................................ 392
Playing Apps ........................................... 390
Rear DVD or Blu-ray
TM Menu ................... 382
Rear System Setup................................... 388
Recommended Discs ............................... 419 Selecting the App using Front Control
Panel..................................................... 387
Setting the DVD or Blu-ray
TM Menu ......... 389
System Controls .............................. 381, 391
System Settings....................................... 385
Video Accessibility ................................... 379
Wireless Headphones .............................. 375
Booster Seats (For Children) ...................... 77
Brake System ............................................ 604
Anti-lock Brake System (ABS) .................. 606
Brake Assist System................................. 607
Fluid ....................................................... 646
Foot Brake .............................................. 605
Indicator ........................................... 82, 699
Parking Brake.......................................... 604
Brake System (Red) Indicator ................................................. 699
Brightness Control (Instrument Panel) ... 188
Bulb Replacement .................................... 647
Back-Up Lights ........................................ 651
Brake Lights ............................................ 651
Brake/Taillights........................................ 650
Daytime Running Lights .......................... 648
Fog Lights ............................................... 649
Front Side Marker Lights ......................... 648
Front Turn Signal Lights .......................... 649
Headlights .............................................. 647
High-Mount Brake Light.......................... 651
Parking Lights ......................................... 648
Rear License Plate Lights ......................... 651
Rear Side Marker Lights .......................... 650
22 PILOT-31TG76600.book 726 ページ ２０２１年６月１１日　金曜日　午後４時４０分

727
Index
Rear Turn Signal Lights............................ 650
Side Turn Signal/Emergency Indicator Lights .................................................... 650
Bulb Specifications ................................... 712
C
CabinTalkTM.............................................. 502
Car Wash Mode ........................................ 534
Carbon Monoxide Gas ............................... 78
Carrying Cargo ................................. 505, 507
CD Player .................................................. 312
Certification Label ................................... 714
Changing Bulbs ........................................ 647
Charging System Indicator ................ 83, 697
Child Safety ................................................ 62
Childproof Door Locks ............................ 151
Child Seat ................................................... 62
Booster Seats ............................................ 77
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 71
Larger Children ......................................... 76
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 674
Cleaning the Interior ............................... 672
Climate Control System ........................... 231
Changing the Mode................................ 231 Defrosting the Windshield and
Windows ............................................... 232
Dust and Pollen Filter ............................... 671
Recirculation and Fresh Air Mode ............ 232
Sensors .................................................... 237
Synchronization Mode ............................. 234
Using Automatic Climate Control ............ 231
Clock .......................................................... 136
Coat Hook ................................................. 222
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 562
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 94, 95
Compact Spare Tire .......................... 681, 713
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 643
Adding to the Radiator ............................ 644
Adding to the Reserve Tank ..................... 643
Overheating ............................................ 695
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 529
Cross Traffic Monitor ................................ 615
Cup Holders .............................................. 215
Customer Service Information ................. 723
Customized Features ................ 125, 422, 429
D
Daytime Running Lights ........................... 182
Dead Battery ............................................. 692 Defaulting All the Settings
...................... 447
Defrosting the Windshield and
Windows ................................................. 232
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 715
Dimming Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 639
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the
Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 659
Driver Information Interface ................... 111
Accessing Content .................................. 113
Warning and Information Messages .......... 97
Driving ...................................................... 503
Adaptive Cruise Control (ACC) ................ 574
Automatic Transmission .......................... 529
Braking ................................................... 604
Off-Highway Driving Guidelines............... 520
Shifting Gear ........................................... 530
22 PILOT-31TG76600.book 727 ページ ２０２１年６月１１日　金曜日　午後４時４０分
