jump start HONDA PILOT 2022 Owners Manual

28
Quick Reference Guide
Handling the Unexpected (P679)
Flat Tire (P681)
●Park in a safe location and replace the
flat tire with the compact spare tire
located under the cargo area.
Indicators Come On (P697)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P689)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P701)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P695)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P706)
●Call a professional towing service if you
need to tow your vehicle.
22 PILOT-31TG76600.book 28 ページ ２０２１年６月１１日　金曜日　午後４時４０分

689
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the driver information interface.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Remote Battery is Weak P. 690
uMake sure the keyless remote is in its operating range.
2ENGINE START/STOP Button Operating Range P. 171
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 665●If the interior lights come on normally 2 Fuses P. 701
The starter turns over normally
but the engine doesn’t start.
There may be a problem with a
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 522
Check the immobilize r system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2 Immobilizer System P. 163
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 110
Check the fuses.
Check all fuses, or have the vehicle checked by a dealer.
2 Inspecting and Changing Fuses P. 705
If the problem continues:
2Emergency Towing P. 706
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 If the Battery Is Dead P. 692
22 PILOT-31TG76600.book 689 ページ ２０２１年６月１１日　金曜日　午後４時４０分

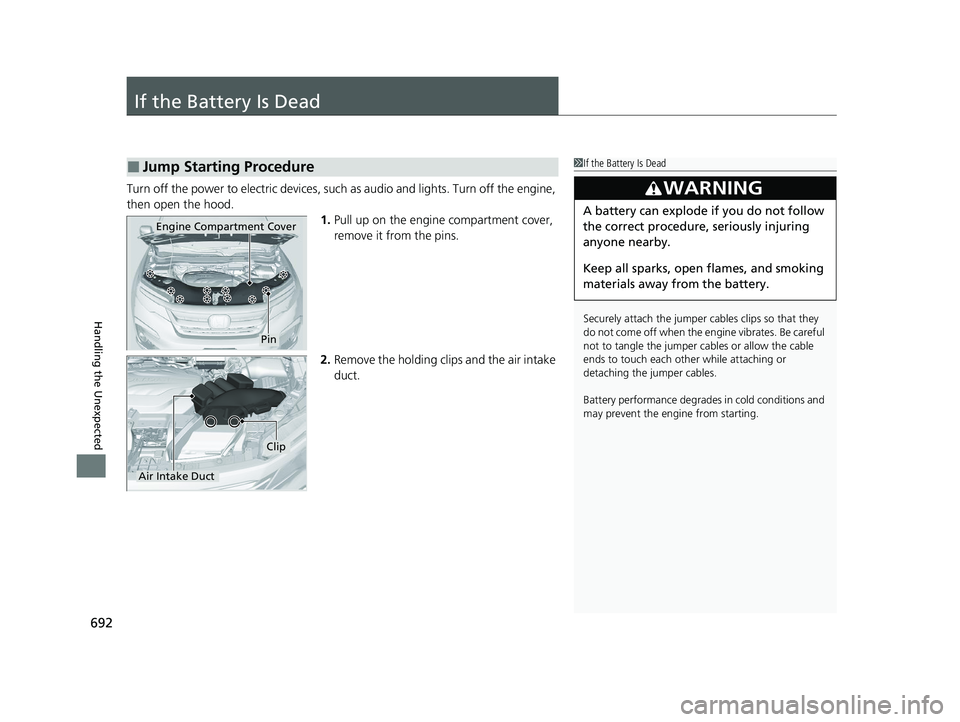

692
Handling the Unexpected
If the Battery Is Dead
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Pull up on the engine compartment cover,
remove it from the pins.
2. Remove the holding clips and the air intake
duct.
■Jump Starting Procedure1If the Battery Is Dead
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Be careful
not to tangle the jumper cables or allow the cable
ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Pin
Engine Compartment Cover
Air Intake Duct
Clip
22 PILOT-31TG76600.book 692 ページ ２０２１年６月１１日　金曜日　午後４時４０分

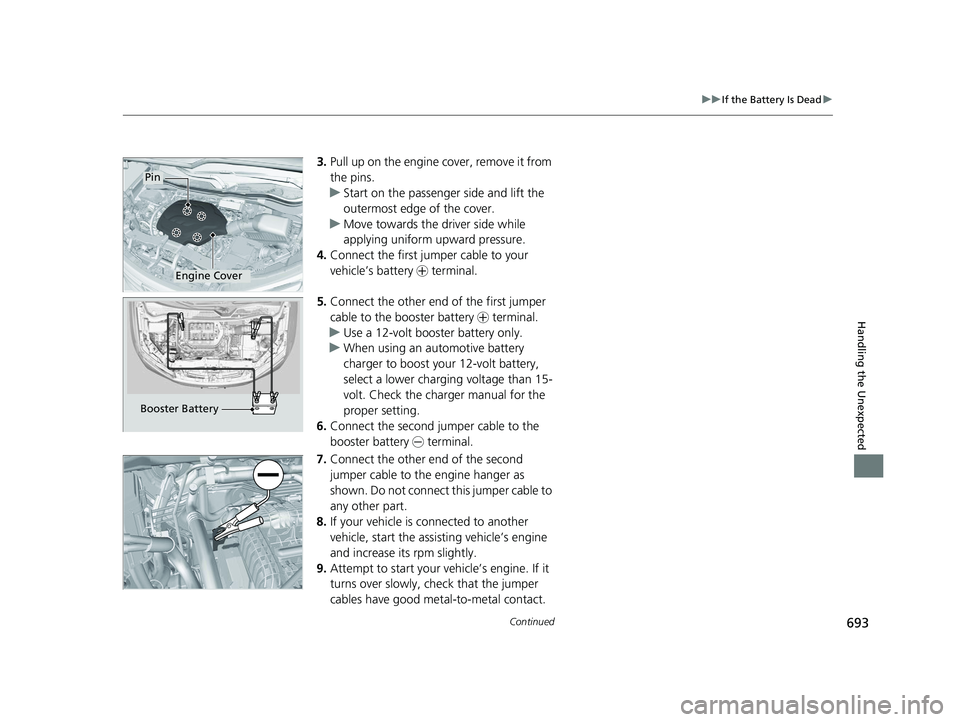

693
uuIf the Battery Is Dead u
Continued
Handling the Unexpected
3.Pull up on the engine cover, remove it from
the pins.
u Start on the passenger side and lift the
outermost edge of the cover.
u Move towards the driver side while
applying uniform upward pressure.
4. Connect the first jumper cable to your
vehicle’s battery + terminal.
5. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.
6. Connect the second jumper cable to the
booster battery - terminal.
7. Connect the other end of the second
jumper cable to the engine hanger as
shown. Do not connect this jumper cable to
any other part.
8. If your vehicle is connected to another
vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.
9. Attempt to start your ve hicle’s engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.
Pin
Engine Cover
Booster Battery
22 PILOT-31TG76600.book 693 ページ ２０２１年６月１１日　金曜日　午後４時４０分

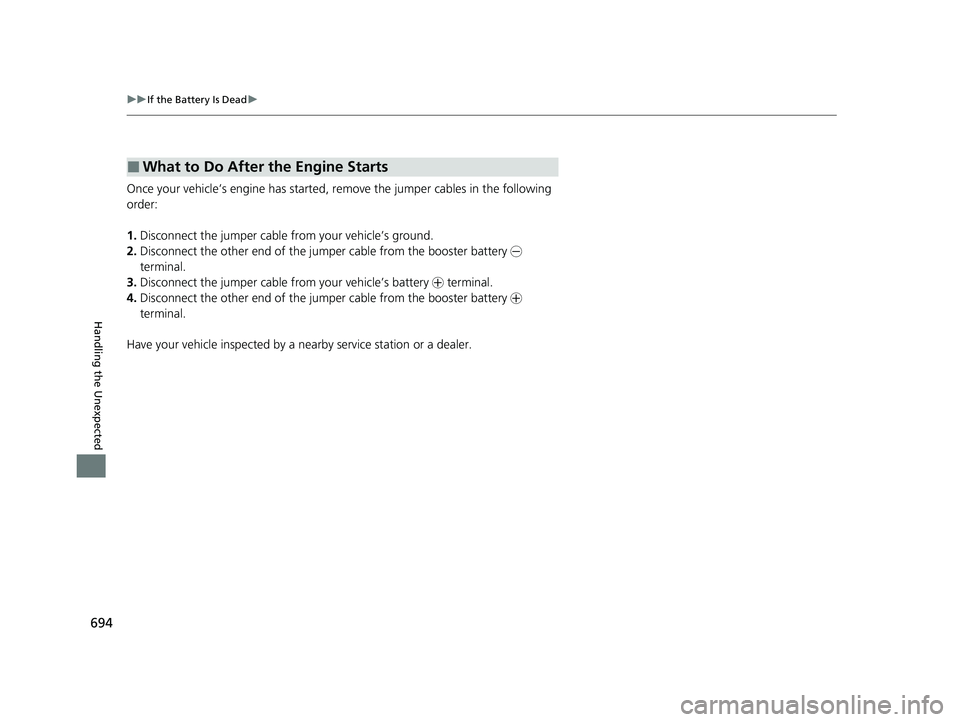

694
uuIf the Battery Is Dead u
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order:
1. Disconnect the jumper cable from your vehicle’s ground.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts
22 PILOT-31TG76600.book 694 ページ ２０２１年６月１１日　金曜日　午後４時４０分

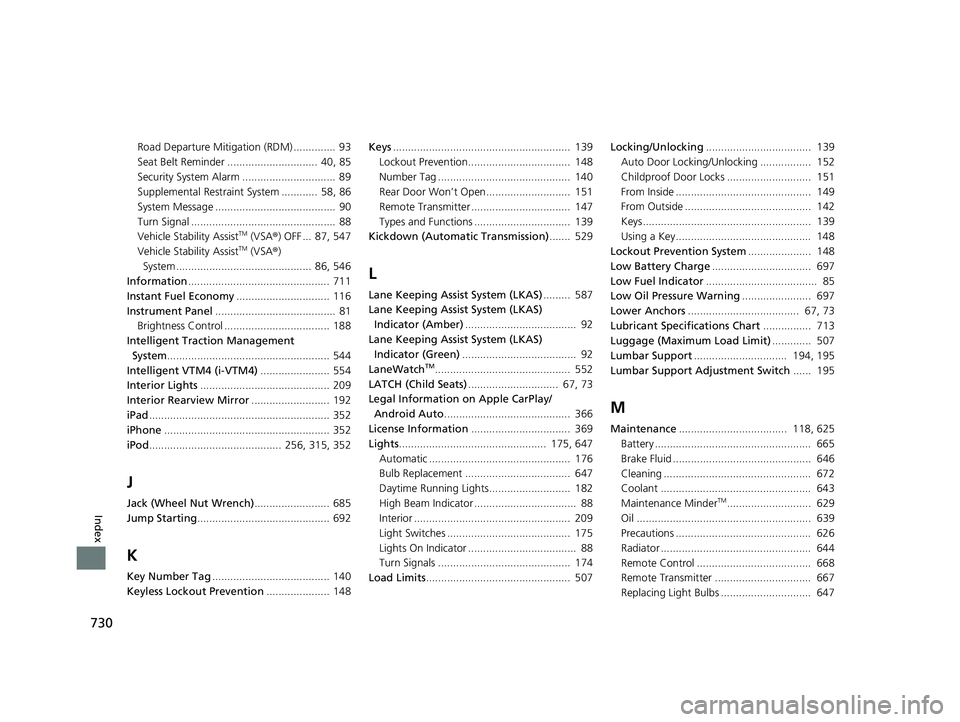

730
Index
Road Departure Mitigation (RDM) .............. 93
Seat Belt Reminder .............................. 40, 85
Security System Alarm ............................... 89
Supplemental Restraint System ............ 58, 86
System Message ........................................ 90
Turn Signal ................................................ 88
Vehicle Stability Assist
TM (VSA®) OFF ... 87, 547
Vehicle Stability AssistTM (VSA ®)
System ............................................. 86, 546
Information ............................................... 711
Instant Fuel Economy ............................... 116
Instrument Panel ........................................ 81
Brightness Control ................................... 188
Intelligent Traction Management
System ...................................................... 544
Intelligent VTM4 (i-VTM4) ....................... 554
Interior Lights ........................................... 209
Interior Rearview Mirror .......................... 192
iPad ............................................................ 352
iPhone ....................................................... 352
iPod ............................................ 256, 315, 352
J
Jack (Wheel Nut Wrench) ......................... 685
Jump Starting ............................................ 692
K
Key Number Tag ....................................... 140
Keyless Lockout Prevention ..................... 148Keys
........................................................... 139
Lockout Prevention.................................. 148
Number Tag ............................................ 140
Rear Door Won’t Open............................ 151
Remote Transmitter ................................. 147
Types and Functions ................................ 139
Kickdown (Automatic Transmission) ....... 529
L
Lane Keeping Assist System (LKAS)......... 587
Lane Keeping Assist System (LKAS) Indicator (Amber) ..................................... 92
Lane Keeping Assist System (LKAS) Indicator (Green) ...................................... 92
LaneWatch
TM............................................. 552
LATCH (Child Seats) .............................. 67, 73
Legal Information on Apple CarPlay/
Android Auto .......................................... 366
License Information ................................. 369
Lights ................................................. 175, 647
Automatic ............................................... 176
Bulb Replacement ................................... 647
Daytime Running Lights........................... 182
High Beam Indicator .................................. 88
Interior .................................................... 209
Light Switches ......................................... 175
Lights On Indicator .................................... 88
Turn Signals ............................................ 174
Load Limits ................................................ 507 Locking/Unlocking
................................... 139
Auto Door Locking/Unlocking ................. 152
Childproof Door Locks ............................ 151
From Inside ............................................. 149
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 148
Lockout Prevention System ..................... 148
Low Battery Charge ................................. 697
Low Fuel Indicator ..................................... 85
Low Oil Pressure Warning ....................... 697
Lower Anchors ..................................... 67, 73
Lubricant Specifications Chart ................ 713
Luggage (Maximum Load Limit) ............. 507
Lumbar Support ............................... 194, 195
Lumbar Support Adjustment Switch ...... 195
M
Maintenance.................................... 118, 625
Battery .................................................... 665
Brake Fluid .............................................. 646
Cleaning ................................................. 672
Coolant .................................................. 643
Maintenance Minder
TM............................ 629
Oil .......................................................... 639
Precautions ............................................. 626
Radiator .................................................. 644
Remote Control ...................................... 668
Remote Transmitter ................................ 667
Replacing Light Bulbs .............................. 647
