service indicator HONDA PILOT 2023 Owners Manual

Quick Reference Guide
33
Handling the Unexpected (P749)
Flat Tire (P751)
●Park in a safe location and replace the
flat tire with the spare tire located under
the cargo area.
Indicators Come On (P771)
●Identify the indicator and consult the
owner’s manual.
Engine Won’t Start (P762)
●If the battery is dead, jump start using a
booster battery.
Blown Fuse (P778)
●Check for a blown fuse if an electrical
device does not operate.
Overheating (P769)
●Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P785)
●Call a professional towing service if you
need to tow your vehicle.
23 PILOT-31T906000_03.book 33 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

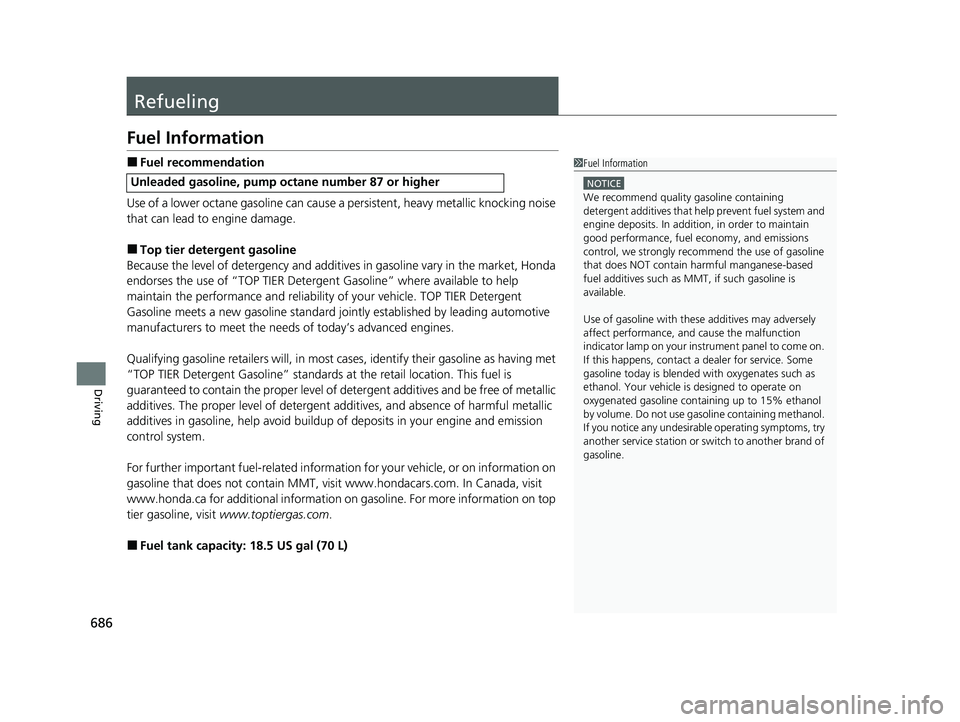

686
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of a lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additive s in gasoline vary in the market, Honda
endorses the use of “TOP TIER Deterg ent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard join tly established by leading automotive
manufacturers to meet the need s of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid buildup of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com .
■Fuel tank capacity: 18.5 US gal (70 L)
Unleaded gasoline, pump octane number 87 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use ga soline containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.
23 PILOT-31T906000_03.book 686 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

691
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 692
Safety When Performing Maintenance ..693
Parts and Fluids Used in Maintenance Service ........................................... 694
Maintenance Minder
TM..................... 695
Maintenance Under the Hood Maintenance Items Under the Hood .. 705
Opening the Hood ........................... 706
Engine Compartment Cover ............. 708
Recommended Engine Oil ................ 709
Oil Check ......................................... 710
Adding Engine Oil ............................ 711
Changing the Engine Oil and Oil Filter ....712
Engine Coolant ................................ 714
Transmission Fluid ............................ 716
Transfer Assembly Fluid
*.................. 716
Brake Fluid ....................................... 717
Refilling Window Wa sher Fluid......... 717
Replacing Light Bulbs ....................... 718
Checking and Maintaining Wiper
Blades .......................................... 723
Checking and Maintaining Tires
Checking Tires ................................. 728
Tire and Loading Information Label .. 729
Tire Labeling .................................... 729
DOT Tire Quality Grading (U.S. Vehicles) .. 731
Wear Indicators ............................... 733
Tire Service Life ................................ 733
Tire and Wheel Replacement ........... 734
Tire Rotation .................................... 735
Winter Tires ..................................... 736
Battery ............................................... 737
Remote Transmitter Care ................. 739
Climate Control System Maintenance .. 740Cleaning
Interior Care .................................... 742
Exterior Care.................................... 744
Accessories and Modifications ........ 747
* Not available on all models
23 PILOT-31T906000_03.book 691 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

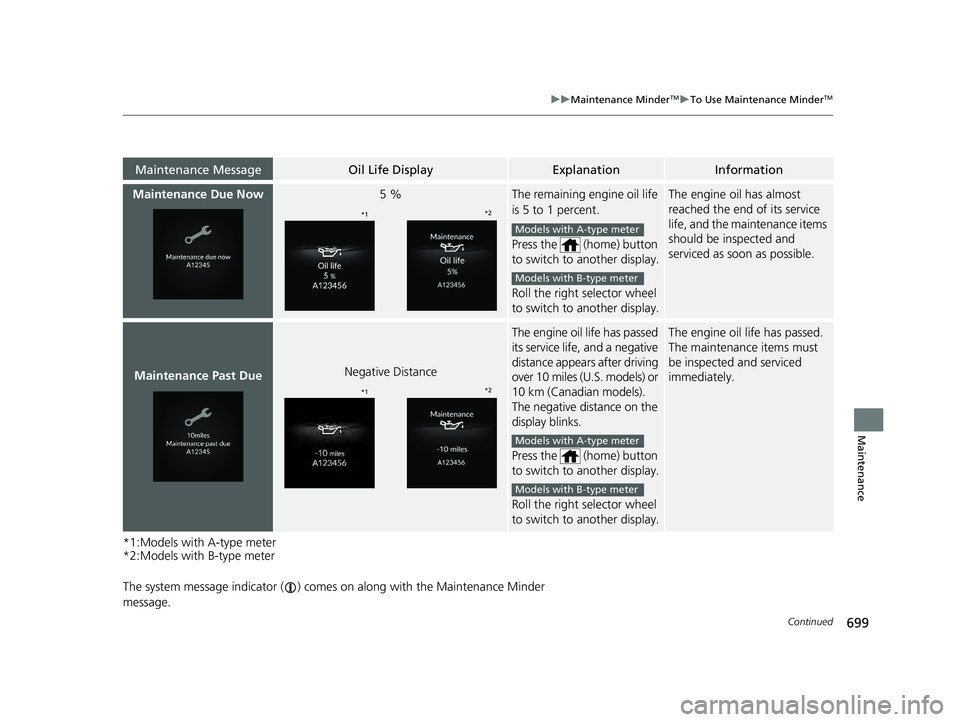

699
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
*1:Models with A-type meter
*2:Models with B-type meter
The system message indicator ( ) comes on along with the Maintenance Minder
message.
Maintenance MessageOil Life DisplayExplanationInformation
Maintenance Due Now5 %The remaining engine oil life
is 5 to 1 percent.
Press the (home) button
to switch to another display.
Roll the right selector wheel
to switch to another display.The engine oil has almost
reached the end of its service
life, and the maintenance items
should be inspected and
serviced as s oon as possible.
Maintenance Past DueNegative Distance
The engine oil life has passed
its service life, and a negative
distance appears after driving
over 10 miles (U.S. models) or
10 km (Canadian models).
The negative distance on the
display blinks.
Press the (home) button
to switch to another display.
Roll the right selector wheel
to switch to another display.The engine oil life has passed.
The maintenance items must
be inspected and serviced
immediately.
*1 *2
Models with A-type meter
Models with B-type meter
*1*2
Models with A-type meter
Models with B-type meter
23 PILOT-31T906000_03.book 699 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

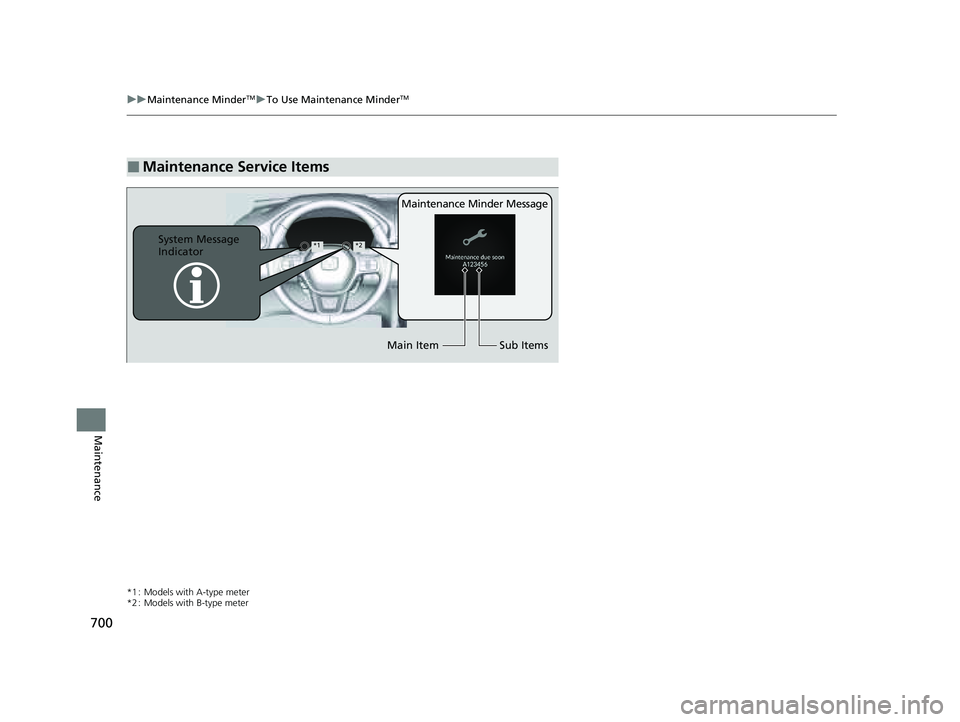

700
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
*1 : Models with A-type meter
*2 : Models with B-type meter
■Maintenance Service Items
Maintenance Minder Message
System Message
Indicator
Sub Items
Main Item
*1*2
23 PILOT-31T906000_03.book 700 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

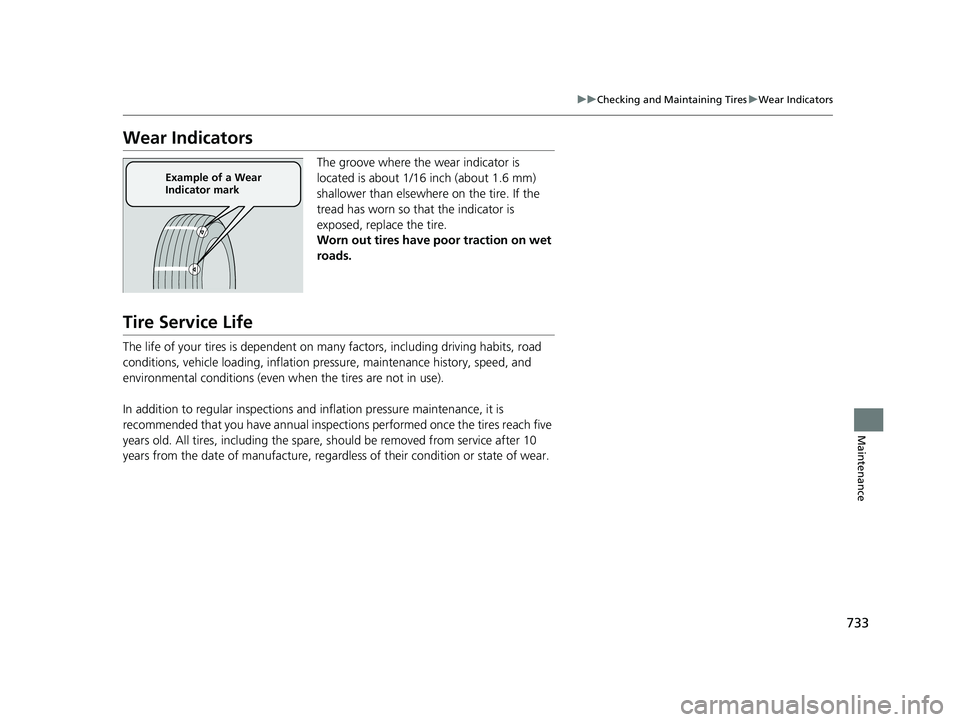

733
uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is about 1/16 inch (about 1.6 mm)
shallower than elsewher e on the tire. If the
tread has worn so th at the indicator is
exposed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and in flation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark
23 PILOT-31T906000_03.book 733 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

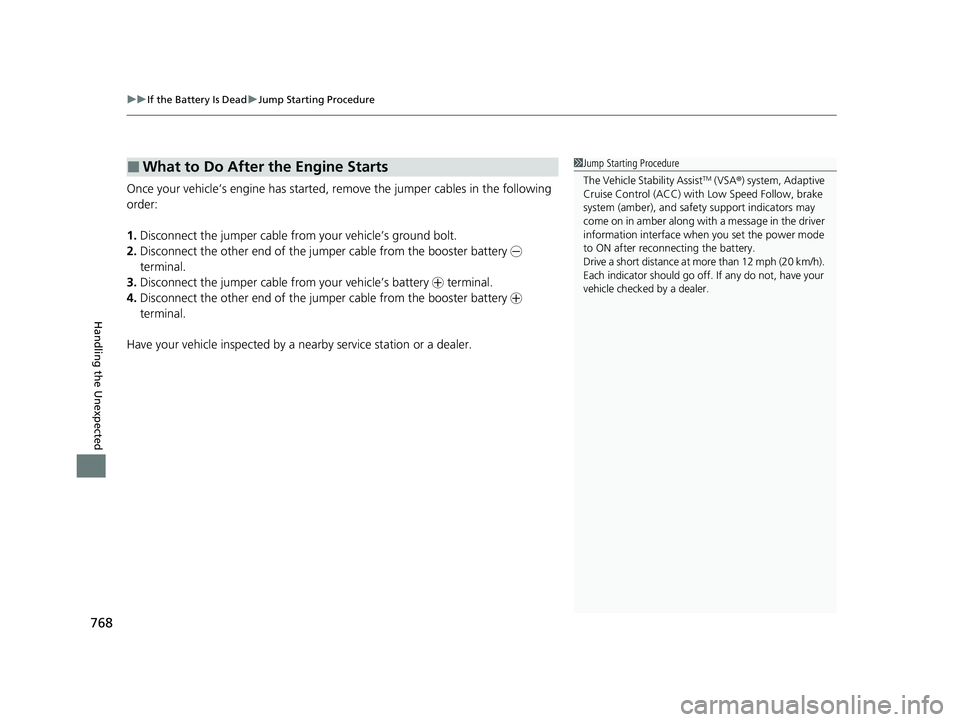

uuIf the Battery Is Dead uJump Starting Procedure
768
Handling the Unexpected
Once your vehicle’s engine has started, re move the jumper cables in the following
order:
1. Disconnect the jumper cable from your vehicle’s ground bolt.
2. Disconnect the other end of the jumper cable from the booster battery -
terminal.
3. Disconnect the jumper cable from your vehicle’s battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +
terminal.
Have your vehicle inspected by a n earby service station or a dealer.
■What to Do After the Engine Starts1Jump Starting Procedure
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, brake
system (amber), and safety support indicators may
come on in amber along with a message in the driver
information interface when you set the power mode
to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
23 PILOT-31T906000_03.book 768 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

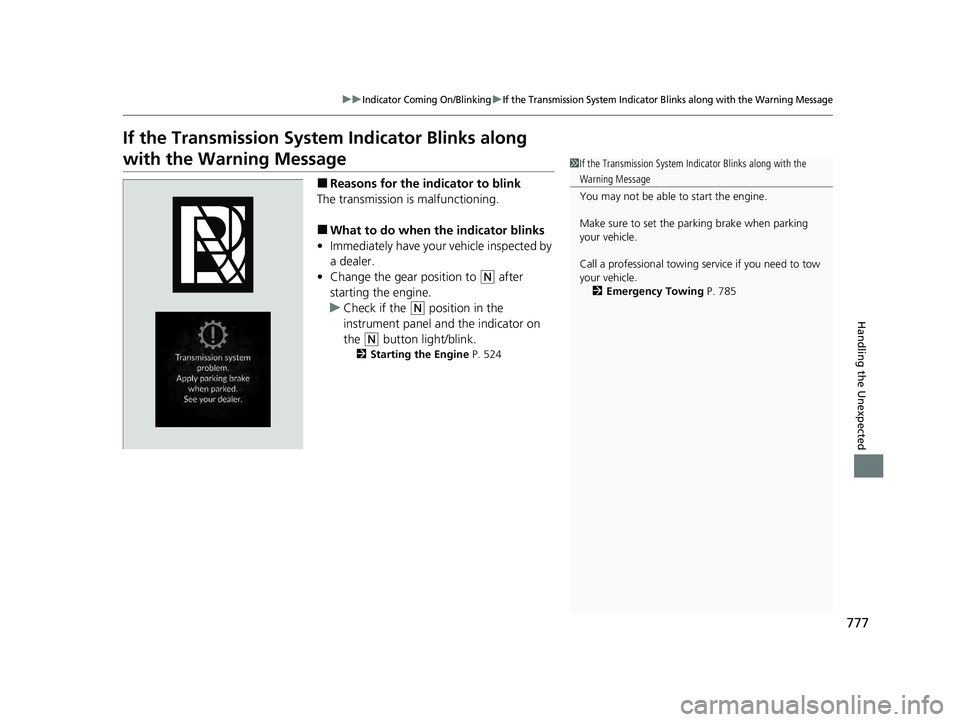

777
uuIndicator Coming On/BlinkinguIf the Transmission System Indicator Blinks along with the Warning Message
Handling the Unexpected
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the indicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehicle inspected by
a dealer.
• Change the gear position to
(N after
starting the engine.
u Check if the
(N position in the
instrument panel and the indicator on
the
(N button light/blink.
2 Starting the Engine P. 524
1If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 785
23 PILOT-31T906000_03.book 777 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

806
Index
Coolant (Engine)....................................... 714
Adding to the Radiator ............................ 715
Adding to the Reserve Tank ..................... 714
Overheating............................................. 769
Creeping (Automatic Transmission) ........ 532
Cross Traffic Monitor ................................ 668
Cup Holders ............................................... 264
Customer Service Information ................. 801
Customize Display ..................................... 152
Customized Features ........................ 421, 429
D
Daytime Running Lights ........................... 225
Dead Battery ............................................. 767
Defaulting All the Settings .............. 428, 455
Defrosting the Windshield and Windows .................................................. 285
Detachable Anchor ..................................... 54
Devices that Emit Radio Waves ................ 793
Dimming
Headlights ............................................... 220
Rearview Mirror ....................................... 236
Dipstick (Engine Oil) ................................. 710
Display Setup .................................... 303, 347
Door Mirrors ............................................. 237
Doors ......................................................... 178
Auto Door Locking .................................. 195
Auto Door Unlocking ............................... 195
Door Open Message .................................. 42
Keys ........................................................ 178 Locking/Unlocking the Doors from
the Inside .............................................. 192
Locking/Unlocking the Doors from the Outside ........................................... 181
DOT Tire Quality Grading ........................ 731
Drive Mode System .................................. 548
Driver Attention Monitor ................ 132, 160
Driver Information Interface
Switching the Display ...................... 125, 154
Driver Information Interface (A-type Meter) ........................................ 125
Driver Information Interface Left Side Area (B-type-Meter) ........................................ 151
Driver Information Interface Right Side Area
(B-type-Meter) ........................................ 154
Driving ...................................................... 501
Automatic Transmission .......................... 532
Braking ................................................... 652
Off-Highway Driving Guidelines............... 519
Shifting Gear ........................................... 533
Starting the Engine.................................. 524
Driving Position Memory System ............ 233
Dust and Pollen Filter ............................... 741
E
Eco Assist® System ...................................... 14
Elapsed Time ..................................... 130, 159
Electric Power Steering (EPS) System Indicator.......................................... 106, 774
Electronic Stability Control (ESC) ............. 555Emergency
................................................ 785
Emissions Testing (Readiness Codes) ...... 795
Engine Coolant .................................................. 714
If the Battery Is Dead............................... 767
Number .................................................. 792
Oil .......................................................... 709
Starting................................................... 524
Switch Buzzer ................................. 218, 219
Engine Compartment Cover .................... 708
Engine Coolant ........................................ 714
Adding to the Radiator ........................... 715
Adding to the Reserve Tank .................... 714
Overheating ............................................ 769
Temperature Gauge ................................ 122
Engine Oil ................................................. 709
Adding ................................................... 711
Checking ................................................ 710
Displaying Oil Life ................................... 696
Engine oil pressure low Warning ............. 771
Recommended Engine Oil ....................... 709
Engine oil pressure low Warning ............ 771
ENGINE START/STOP Button .................... 217
EPS (Electric Power Steering) System ...... 774
Exhaust Gas Hazard (Carbon Monoxide) .. 95
Exterior Care (Cleaning) .......................... 744
Exterior Mirrors ........................................ 237
23 PILOT-31T906000_03.book 806 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

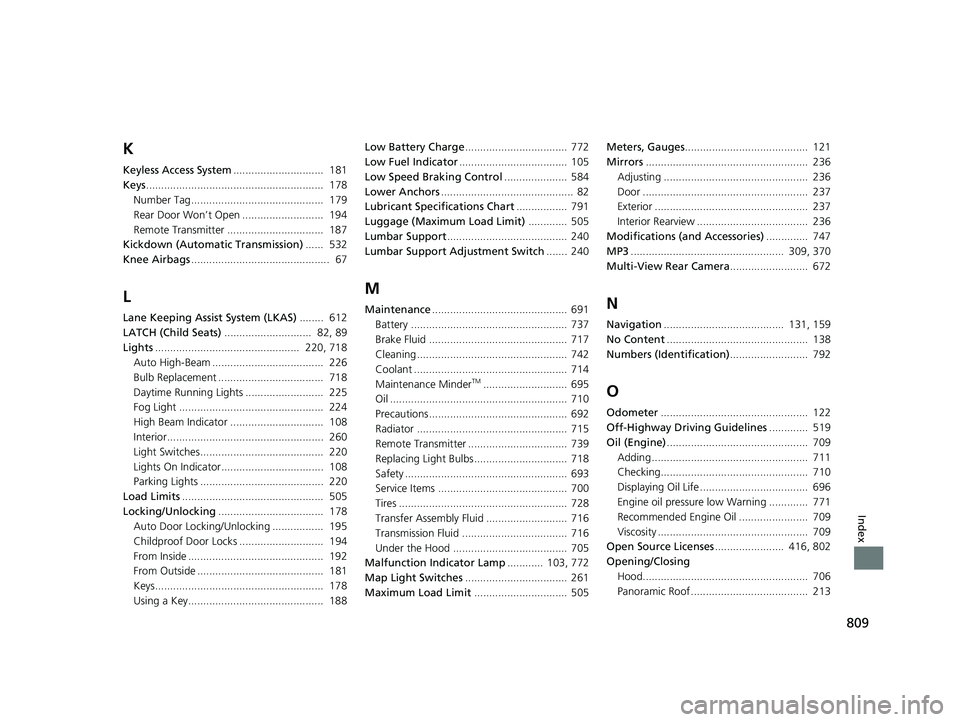

809
Index
K
Keyless Access System.............................. 181
Keys ........................................................... 178
Number Tag............................................ 179
Rear Door Won’t Open ........................... 194
Remote Transmitter ................................ 187
Kickdown (Automatic Transmission) ...... 532
Knee Airbags .............................................. 67
L
Lane Keeping Assist System (LKAS) ........ 612
LATCH (Child Seats) ............................. 82, 89
Lights ................................................ 220, 718
Auto High-Beam ..................................... 226
Bulb Replacement ................................... 718
Daytime Running Lights .......................... 225
Fog Light ................................................ 224
High Beam Indicator ............................... 108
Interior.................................................... 260
Light Switches......................................... 220
Lights On Indicator.................................. 108
Parking Lights ......................................... 220
Load Limits ............................................... 505
Locking/Unlocking ................................... 178
Auto Door Locking/Unlocking ................. 195
Childproof Door Locks ............................ 194
From Inside ............................................. 192
From Outside .......................................... 181
Keys........................................................ 178
Using a Key............................................. 188 Low Battery Charge
.................................. 772
Low Fuel Indicator .................................... 105
Low Speed Braking Control ..................... 584
Lower Anchors ............................................ 82
Lubricant Specifications Chart ................. 791
Luggage (Maximum Load Limit) ............. 505
Lumbar Support ........................................ 240
Lumbar Support Adjustment Switch ....... 240
M
Maintenance............................................. 691
Battery .................................................... 737
Brake Fluid .............................................. 717
Cleaning .................................................. 742
Coolant ................................................... 714
Maintenance Minder
TM............................ 695
Oil ........................................................... 710
Precautions .............................................. 692
Radiator .................................................. 715
Remote Transmitter ................................. 739
Replacing Light Bulbs ............................... 718
Safety ...................................................... 693
Service Items ........................................... 700
Tires ........................................................ 728
Transfer Assembly Fluid ........................... 716
Transmission Fluid ................................... 716
Under the Hood ...................................... 705
Malfunction Indicator Lamp ............ 103, 772
Map Light Switches .................................. 261
Maximum Load Limit ............................... 505 Meters, Gauges
......................................... 121
Mirrors ...................................................... 236
Adjusting ................................................ 236
Door ....................................................... 237
Exterior ................................................... 237
Interior Rearview ..................................... 236
Modifications (and Accessories) .............. 747
MP3 ................................................... 309, 370
Multi-View Rear Camera .......................... 672
N
Navigation........................................ 131, 159
No Content ............................................... 138
Numbers (Identification) .......................... 792
O
Odometer................................................. 122
Off-Highway Driving Guidelines ............. 519
Oil (Engine) ............................................... 709
Adding .................................................... 711
Checking................................................. 710
Displaying Oil Life .................................... 696
Engine oil pressure low Warning ............. 771
Recommended Engine Oil ....................... 709
Viscosity .................................................. 709
Open Source Licenses ....................... 416, 802
Opening/Closing
Hood....................................................... 706
Panoramic Roof ....................................... 213
23 PILOT-31T906000_03.book 809 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
