HONDA RIDGELINE 2006 1.G Repair Manual

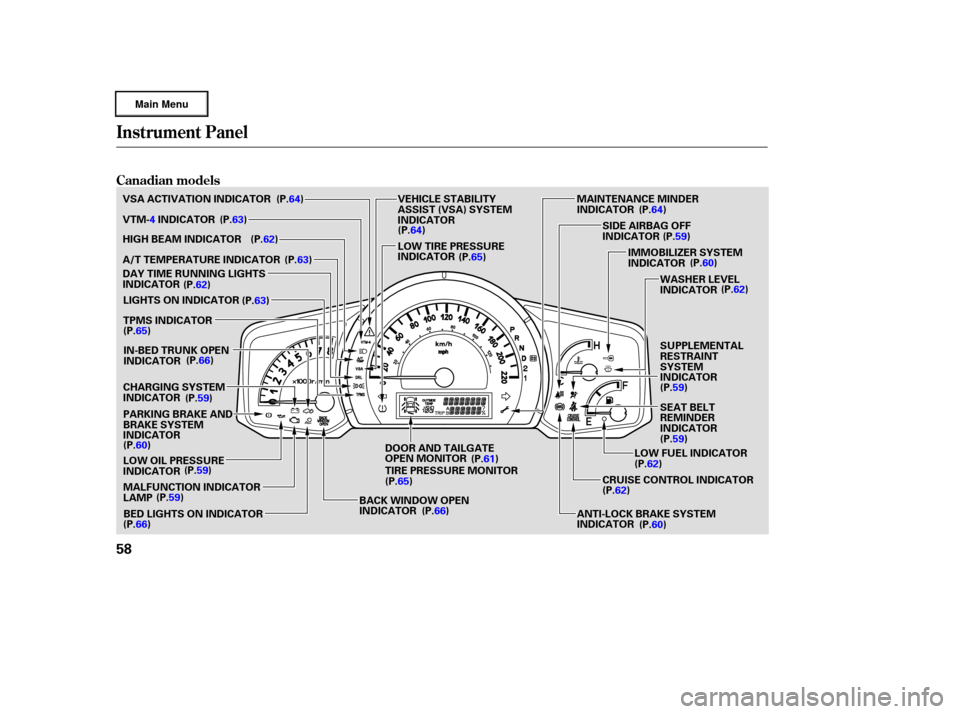

Instrument Panel
Canadian models
58
IMMOBILIZER SYSTEM
INDICATORWASHER LEVEL
INDICATOR
MALFUNCTION INDICATOR
LAMP LOW OIL PRESSURE
INDICATOR
VSA ACTIVATION INDICATOR
VTM-4INDICATOR
HIGH BEAM INDICATOR
A/T TEMPERATURE INDICATOR
LIGHTS ON INDICATOR
TPMS INDICATOR
CHARGING SYSTEM
INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR SIDE AIRBAG OFF
INDICATOR
LOW FUEL INDICATOR
CRUISE CONTROL INDICATOR
DOOR AND TAILGATE
OPEN MONITOR
BACK WINDOW OPEN
INDICATOR LOW TIRE PRESSURE
INDICATOR
MAINTENANCE MINDER
INDICATOR
ANTI-LOCK BRAKE SYSTEM
INDICATOR
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
INDICATOR
SUPPLEMENTAL
RESTRAINT
SYSTEM
INDICATOR
SEAT BELT
REMINDER
INDICATOR
DAY TIME RUNNING LIGHTS
INDICATOR
BED LIGHTS ON INDICATOR TIRE PRESSURE MONITOR
(P.64)
(P.63) (P.62)
(P.63)
(P.62) (P.63)
(P.65) (P.66)
(P.59)
(P.60) (P.59)
(P.59)
(P.66) (P.64)
(P.65) (P.64)
(P.59) (P.60)
(P.62)
(P.59)
(P.59)
(P.62)
(P.62)
(P.60)
(P.61)
(P.65)
(P.66)
IN-BED TRUNK OPEN
INDICATOR
—
—y
y
(yy

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.
If you turn the ignition switch to ON
(II) bef ore f astening your seat belt,
the beeper sounds and the indicator
f lashes. If you do not f asten your
seat belt bef ore the beeper stops, the
indicator stops f lashing but remains
on.
If you continue driving without
f astening your seat belt, the beeper
sounds and the indicator f lashes
again at regular intervals.See page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page .
This indicator comes on when you
turn the ignition switch to ON (II). It
reminds you and your passengers to
f asten your seat belts. A beeper also
sounds if you have not f astened your
seat belt.
This indicator comes on brief ly when
you turn the ignition switch to ON
(II). If it comes on at any other time,
it indicates a potential problem with
your f ront airbags. This indicator will
also alert you to a potential problem
with your side airbags, passenger’s
side airbag automatic cutoff system,
side curtain airbags, rollover sensor,
or automatic seat belt tensioners.
For more inf ormation, see page .
This indicator comes on when you
turn the ignition switch to ON (II). If
it comes on at any other time, it
indicates that the passenger’s side
airbag has automatically shut off.
For more inf ormation, see page .
279
278
278 27
28
Seat Belt Reminder
Indicator
Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
IndicatorSupplemental Restraint
System Indicator
Side Airbag Of f
Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
59
U.S. Canada
—
—y

y
(yy

This indicator has two f unctions:This indicator comes on when you
turn the ignition switch to ON (II).
It is a reminder to check the
parking brake. A beeper sounds if
you try to drive with the parking
brake not fully released. Driving
with the parking brake not fully
released can damage the brakes
and tires. This indicator also blinks several
times when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0).
If it remains on af ter you have
fully released the parking brake
while the engine is running, or if it
comes on while driving, there
could be a problem with the brake
system. For more inf ormation, see
page . This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II), and when
the ignition switch is turned to
START (III). If it comes on at any
other time, there is a problem with
theABS.If thishappens,haveyour
vehicle checked at a dealer. With
this on, your vehicle still has normal
braking ability but no anti-lock
brakes. For more inf ormation, see
page .
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to ON (II). It will then go of f
if you have inserted a properly-coded
ignition key. If it is not a properly-
coded key, the indicator will blink,
and the engine will not start (see
page ).
1.
2.
280 203
78
Parking Brake and Brake System
Indicator
Anti-lock Brake System
(A BS) Indicator
Immobilizer System
Indicator
Instrument Panel Indicators
60
U.S. Canada
—
—y
y
(yy

When you press the hazard warning
button, both turn signal indicators
blink. All turn signals on the outside
of the vehicle should f lash.This monitor includes two f unctions;
the door open indicator and the
tailgate open indicator. This monitor
works with the ignition switch in any
position.
The specif ic door indicator comes on
in this monitor if any door is not
closed tightly.
Thetailgateindicatorcomeson
whenthetailgateisswungopenorif
it is not closed completely af ter you
swing it closed.If the tailgate is swung open or is not
closed tightly, you will hear six beeps
and see the indicator blinking when
you turn the ignition switch to the
ON (II) position. The beeper also
sounds and the indicator blinks when
you move the shif t lever out of Park
or neutral position.
The tailgate open indicator does not
monitor the tailgate when it is
dropped open.
If the driver does not f asten the seat
belt and the tailgate is swung open,
the seat belt reminder alarm will
sound at first, then the tailgate open
reminder beeper will sound.
For more inf ormation on the tailgate,
see page .
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
91
246
247
Turn Signal and
Hazard Warning
Indicators
Door and T ailgate Open Monitor
Instrument Panel Indicators
Inst rument s and Cont rols
61
——y


y
(yy

This indicator comes on when you
turn the ignition switch to ON (II)
with the headlight switch off and the
parking brake set. It should go of f if
youturnontheheadlightsorrelease
the parking brake. If it comes on at
any other time, it means there is a
problem with the DRL. There may
also be a problem with the high
beam headlights.
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control. This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
This indicator is located in the f uel
gauge. It comes on as a reminder
that you must ref uel soon.
On Canadian models, this indicator
comes on with reduced brightness
when the daytime running lights
(DRL) are on (see page ).
This indicator comes on when the
washer f luid level is low. Add washer
f luid when you see this indicator
(see page ).
When the indicator comes on, there
is about 3.30 U.S. gal (12.5
)of fuel
remaining in the tank bef ore the
needle reaches E. There is a small
reserve of f uel remaining in the tank
when the needle does reach E.
163 72
75
240
Canadian models only
‘‘Daytime Running
Lights’’ Indicator
Cruise Control Indicator High Beam Indicator L ow Fuel Indicator
Washer Level Indicator
Instrument Panel Indicators
62
LOW FUEL INDICATOR
—
—y
y
(yy

This indicator monitors the
temperature of the automatic
transmission f luid. It should come on
f or a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on while driving, it means the
transmission fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the indicator
goes out.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). If it comes
on at any other time, there is a
problem in the 4WD system. Take
the vehicle to your dealer to have it
checked.
If the indicator blinks while driving,
the VTM-4 fluid temperature is too
high. Pull to the side of the road
when it is saf e, shif t to Park, and let
the engine idle until the indicator
goes out.
This indicator reminds you that the
exterior lights are on. It comes on
when you turn the headlight control
dial to either the or
position.
If you turn the ignition switch to
ACCESSORY (I) or LOCK (0)
without turning of f the headlight
control dial, this indicator remains on.
A reminder chime will also sound
when you open the driver’s door. Lights On Indicator A/T Temperature
IndicatorVTM-4 Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
63
Continuing to drive with the A/T
temperature indicator on may cause
serious damage to the transmission.
Continuing to drive with the VTM-4
indicator blinking may cause serious
damage to the system.
—
—y
y
(yy

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II).
If itcomesonandstaysonatany
other time, or if it does not come on
when you turn the ignition switch to
ON (II), there is a problem with the
VSA system. Take your vehicle to a
dealer to have it checked. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page for more information
on the VSA system.This indicator has three f unctions:
Itcomesonasareminderthatyou
have turned off the vehicle
stability assist (VSA) system.
It flashes when VSA is active (see
page ).
It comes on along with the VSA
system indicator if there is a
problem with the VSA system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). For more
inf ormation, see page . This indicator reminds you that it is
time to take your vehicle in for
scheduled maintenance. The
maintenance main items and sub
items will be displayed in the
inf ormation display. See page f or
more inf ormation on the
maintenance minder.
This indicator goes of f when your
dealer resets it after completing the
required maintenance service.
1.
2.
3.
205 205
205 225
Vehicle Stability Assist
(VSA ) System Indicator
VSA A ctivation Indicator Maintenance Minder
Indicator
Instrument Panel Indicators
64
—
—y


y
(yy

If this indicator comes on and stays
on at any other time, or if it does not
come on when you turn the ignition
switch to ON (II), there is a problem
with the TPMS. With this indicator
on, the low tire pressure indicator
and the tire pressure monitor will not
come on when a tire loses pressure.
Take the vehicle to your dealer to
have the system checked.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II).
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are extremely low on
pressure.
If this happens, pull to the side of the
road when it is saf e, check which tire
has lost the pressure on the tire
pressure monitor, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service
(see page ). Ref er to page
f or more inf ormation. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II).
The appropriate tire indicator will
come on along with the low tire
pressure indicator if a tire is
extremely underinf lated or has
suddenly lost pressure. See for what to
do if this indicator comes on. This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II).
264
199 286 Tire Pressure Monitoring
System (T PMS) Indicator
Low Tire Pressure
Indicator T ire Pressure Monitor
Low
Tire Pressure Indicator
Instrument Panel Indicators
Inst rument s and Cont rols
65
—
—y
y
(yy

This indicator reminds you that the
bed lights are on. With the shif t lever
in the Park position, they come on
when you push the light switch on
the dashboard, swing open the
tailgate, or open the In-Bed Trunk.This indicator reminds you that the
In-Bed Trunk is open. If you do not
close it, the indicator stays on for
about3minutes. See page f or
more inf ormation.
This indicator reminds you that the
back window is not completely
closed when you turn the ignition
switch f rom ON (II) to ACCESSORY
(I) or LOCK (0). With the ignition
switch in the ACCESSORY (I)
position, it goes of f af ter about 30
seconds. With the ignition switch in
the LOCK (0) position, it goes of f
af ter about 3 minutes.
If you remove the ignition key and
open the driver’s door without
closing the back window, you will
hear f ive beeps and see the indicator
blink. If you do not close the back
window bef ore the beeper stops, the
indicator stops blinking but remains
on. It will go of f af ter about 3
minutes. See page f or more
inf ormation.
If you turn the ignition switch to
ACCESSORY (I) or LOCK (0)
without turning of f the bed lights,
this indicator will remain on, and
then go of f af ter20minutes. See
page f or more inf ormation.
103
92
117
Instrument Panel Indicators
Back Window Open
Indicator
Bed L ights On Indicator In-Bed T runk Open
Indicator
66
—
—y
y
(y
y

To switch the information display
between the odometer, trip meter
and outside temperature (if
equipped), and engine oil lif e and
maintenance service items, press the
SELECT button repeatedly.
This shows the total distance your
vehicle has been driven. It measures
miles in U.S. models and kilometers
in Canadian models.
It is illegal under U.S. f ederal law and
Canadian provincial regulations to
disconnect, reset, or alter the
odometer with the intent to change
the number of miles or kilometers
indicated.
Gauges
Odometer
Inst rument s and Cont rols
67

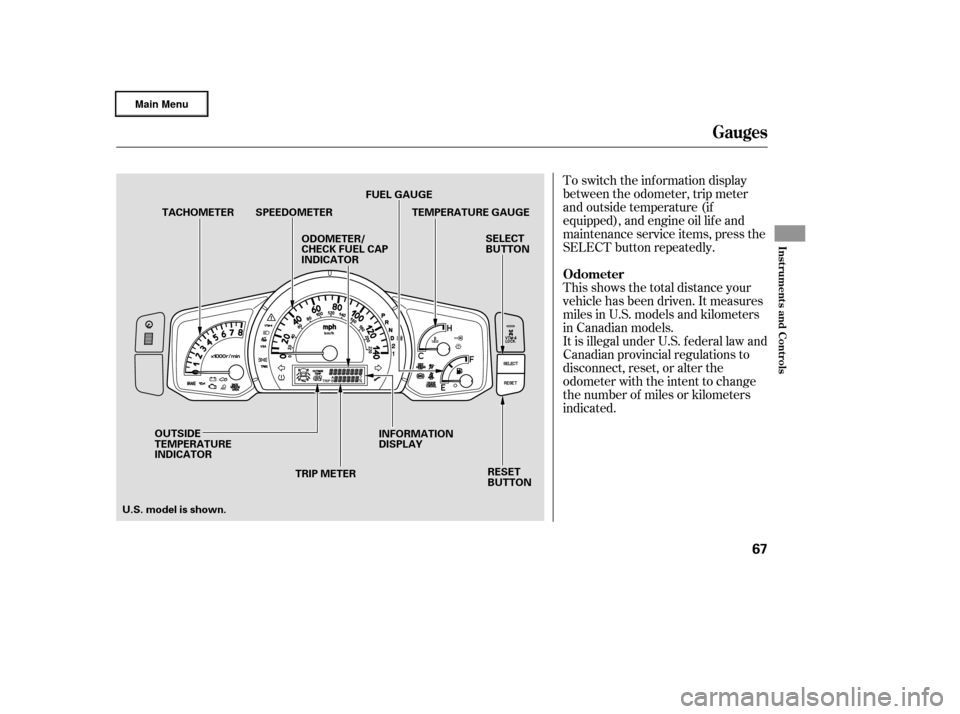

SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE
ODOMETER/
CHECK FUEL CAP
INDICATORFUEL GAUGE
SELECT
BUTTON
TRIP METER RESET
BUTTON
OUTSIDE
TEMPERATURE
INDICATOR
U.S. model is shown. INFORMATION
DISPLAY
—
—y
y
(yy
