HONDA RIDGELINE 2007 1.G Owners Manual

Pull up the vanity mirror cover to use
it.
The light comes on when you pull up
the cover.
The light will not come on if the sun
visor is slid outward.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
In this position, the sun visor can be
adjusted by moving it on its slider.
Do not use the extended sun visor
over the inside mirror. To use the sun visor, pull it down.
Whenusingthesunvisorforthe
side window, remove the support rod
f rom the clip, and swing it out. Sun Visor Vanity Mirror
Interior Convenience Items
Inst rument s and Cont rols
117
SUN VISOR

When the interior light control switch isin the ON position: When the switch is in the OFF position:
When the switch is in the door position:
None of the lights come on when a
door is opened.
The map lights in the f ront can be
turned on and of f by pushing each
lens. The rear map lights cannot
be used.
All the individual map lights and
the rear console light come on and
stay on as long as the switch
remains in the ON position. The individual map lights and the
rear console light come on when
any door is opened, or when the
remote transmitter or the key is
used to unlock the doors. When
the doors are closed, each
individual map light can be turned
on and of f by pushing the lens.
The lights fade out about 30
seconds after all the doors are
closed.
With any door lef t open and the
key is removed f rom the ignition
switch, the lights stay on about 3
minutes, then go out.
Interior L ight Control Switch
Interior Lights
118
ON
OFF
DOOR POSITION

Turn on a front individual map light
by pushing the lens. Push the lens
again to turn it off. With the interior
light control switch in the door
position, a rear map light can be
tu rn ed on by pushing the lens. Push
the lens again to turn it off. The
courtesy light in each door
comes on when you open that door.
The light around the ignition switch
only comes on when you open the
driver’s door. After you close the
door, the ignition switch light fades
out in about 30 seconds.
The courtesy light in the back of the
center console comes on when you
open any door with the interior light
control switch in the door position.
After you close the doors, the light
fades out.
The
map lights stay on when the
interior light control switch is in the
door position and the map light
switch is on.
The courtesy light between the front
map lights comes on when you turn
the parking lights on. To adjust its
brightness, turn the instrument
panel brightness control dial on the
dashboard (see page ). 78
If equipped
Individual Map L ights Individual Interior L ights Courtesy L ight
Interior Lights
Inst rument s and Cont rols
119

If you turn the ignition switch to
ACCESSORY (I) or LOCK (0)
wi thout turning off the bed lights,
the lights and the indicator will
remain on, then go off after 20
minutes (see page ).
Your vehicle has bed lights in the
pickup bed: a light on each f ront
upper and rear bottom side. With the
shif t lever in the Park position, the
bed lights come on when you push
the bed light switch on the
dashboard, swing open the tailgate,
or open the In-Bed Trunk. The
indicator on the instrument panel
alsocomesontoremindyouthatthe
bed lights are on. To turn of f the lights, push the light
switch again, or close the tailgate
and the In-Bed Trunk.
When you move the shif t lever out of
the Park position, the bed lights go
of f and cannot be used. 69
Bed L ights
120
BED LIGHT SWITCH

The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.) The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it.
The security system helps to
discourage vandalism and thef t of
your vehicle..............
Vents, Heating, and A/C . 122
Using the Heater ....................... 126
Using Automatic Climate ...................................
Control .128
........................
Rear Ventilation .129
..........
Dual Temperature Control . 130
..............
Climate Control Sensors . 132
..........
Playing the AM/FM Radio . 133
............
AM/FM Radio Reception . 140
.
Playing the XM
Satellite Radio . 142
..........
Playing a CD, CD Changer . 148
....................
Protecting Your CDs .159
CD Player/Changer Error ...................................
Messages .160
................
Remote Audio Controls . 161
...
Playing an Optional Audio Unit . 161
.................
Radio Thef t Protection . 162
..........................
Setting the Clock .163
............................
Security System .164
...............................
Cruise Control .165
.........................................
Compass .168
HomeLink Universal ................................
Transceiver .171
Tire Pressure Monitoring System (TPMS)-Required .............
Federal Explanation . 175
On all models except RT, RTX, and
Canadian LX
Features
Features
121
...........................
Using the A/C .126

Vents, Heating, and A/C
122

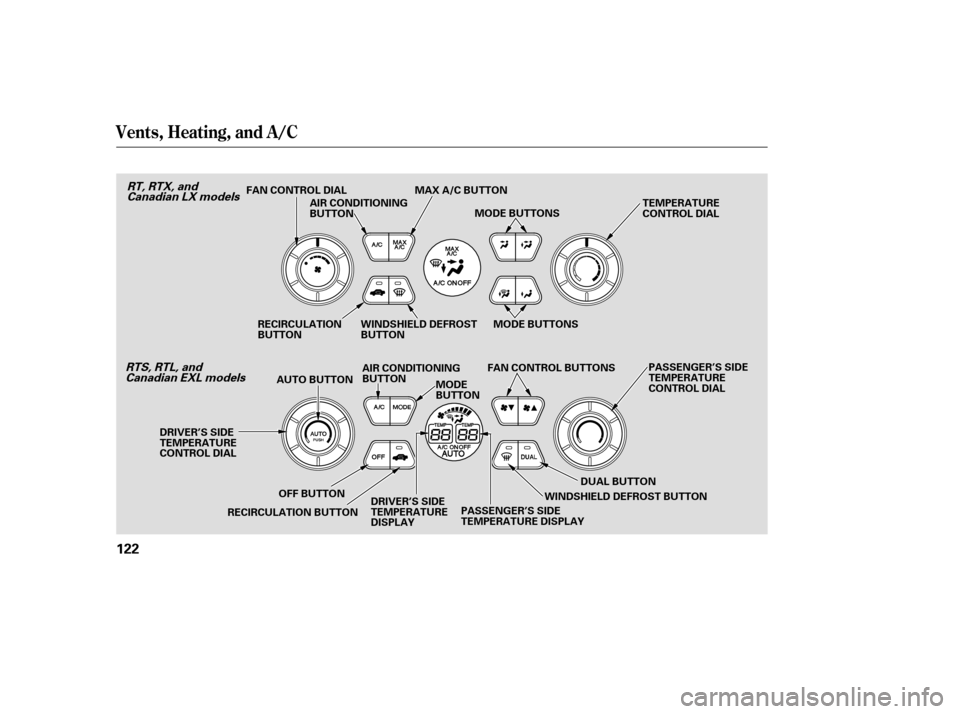

FAN CONTROL DIALMODE BUTTONSTEMPERATURE
CONTROL DIAL
RECIRCULATION
BUTTON WINDSHIELD DEFROST
BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL DIAL
DRIVER’S SIDE
TEMPERATURE
CONTROL DIAL OFF BUTTON WINDSHIELD DEFROST BUTTONDUAL BUTTON
AIR CONDITIONING
BUTTON
MAX A/C BUTTON
MODE BUTTONS
AIR CONDITIONING
BUTTON
AUTO BUTTON
DRIVER’S SIDE
TEMPERATURE
DISPLAY
RECIRCULATION BUTTON
PASSENGER’S SIDE
TEMPERATURE DISPLAY
MODE
BUTTON
FAN CONTROL BUTTONS
RTS, RTL, and
Canadian EXL models
RT,RTX,and
Canadian LX models

Turn the dial clockwise to increase
the fan speed and airflow. Turn the
dial counterclockwise to decrease it. Tu
rning this dial clockwise increases
the temperature of the airflow.
On
RTS, RTL, and Canadian EXL
models, see pages and for
info rmation on automatic climate
control and semi-automatic operation.
Select the fan speed by pressing the
fan control buttons ( or ).
The fan speed is shown in vertical
bars on the display. When
the indicator in the DUAL
button is off, both sides adjust to the
driver’s side temperature.
Push
the DUAL button. When the
indicator in the button is on, turn the
dials to adjust the temperature.
The
driver and passenger can select
independent temperature settings. You
can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator on). When the
indicator in the DUAL button is off,
you can adjust both sides to the
same temperature with the driver’s
side temperature control dial. Press the DUAL button to select
dual temperature control mode (see
page ). 130
128 129
CONT INUED
On RTS, RTL, and Canadian EXL
models
On RT, RTX, and Canadian LX models On RTS, RTL, and Canadian EXL
models
On RTS, RTL, and Canadian EXL models On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
Fan Control
Temperature Control Dual Button
Features
123

The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.Use the mode control buttons to
select the vents air flows from. Some
air will f low f rom the dashboard
corner vents in all modes.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent throughout the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Each time you press the MODE
button (On RTS, RTL, and Canadian
EXL models) or either mode button
(On RT, RTX, and Canadian LX
models), the display shows the mode
selected.
Air f lows f rom the f loor
vents. Airf low is divided between
the vents in the dashboard, rear and
the f loor vents. Air flows from the center,
corner, and rear vents in the
dashboard.
Recirculation Button
Mode Control
Air Conditioning (A/C) Button
Vents, Heating, and A/C
124

Airf low is divided between
the f loor vents and the def roster
vents at the base of the windshield. The f low-through ventilation system
draws in outside air, circulates it
through the interior, then exhausts it
through vents near the back window.
Press the button, Air f lows
f rom the def roster vents at the base
of the windshield.
When you select or ,
the system automatically switches to
f resh air mode and turns on the A/C. Set the temperature to the lower
limit.
Make sure the A/C is of f .
Select and fresh air mode.
Set the f an to the desired speed.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center, side, and rear vents in the
dashboard. Pressing the or
A/C button cancels MAX A/C.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C. When you select , the system
automatically switches to f resh air
mode. 1.
2.
3.
4.
On RTS, RTL, and Canadian EXL
models
On RT, RTX, and Canadian LX models
On RT, RTX, and Canadian LX models
Vents, Heating, and A/C
MAX A/C Button
Ventilation
Features
125

The heater uses engine coolant to
warm the air. If the engine is cold, it
will be several minutes before you
feel warm air coming from the
system. Air
conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page ). If it moves near the red zone,
turn of f the A/C until the gauge
reading returns to normal.
Turn on the A/C by pressing the
button. The display shows A/C
ON on when a f an speed is
selected.
Make sure the temperature is set
to maximum cool.
Select .
If the outside air is humid, select
recirculation mode. If the outside
air is dry, select f resh air mode.
Set the f an to the desired speed. you can
cool it down more rapidly by partially
opening the windows, turning on the
A/C, and setting the fan to
maximum speed in f resh air mode.
To cool the interior with MAX A/C:
Select .
When you select , the system
automatically switches to the fresh
air mode.
Set the f an to the desired speed.
Adjust the warmth of the air with
the temperature control dial. Set the f an to the desired speed.
Select MAX A/C mode.
The system automatically turns on
the A/C, selects , and
switches to recirculation mode.
Make sure the temperature is set
to maximum cool.
1.
2.
3.
1.
2.
3.
1.
2.
3.
4.
5. 72
If the interior is very warm,
On RT, RTX, and Canadian LX modelsUsing the Heater Using the A /C
Vents, Heating, and A/C
126
