HONDA RIDGELINE 2008 1.G Owners Manual

Turn on the hazard warning lights,
and turn the ignition switch to the
LOCK (0) position. Have all
passengers get out of the vehicle
while you change the tire.
Park the vehicle on f irm, level, and
non-slippery ground. Put the
transmission in Park. Apply the
parking brake.
If you are towing a trailer, unhitch
it.
If you have a f lat tire while driving,
stop in a saf e place to change it.
Drive slowly along the shoulder until
you get to an exit or an area to stop
that is far away from the traffic lanes.
If you tow a trailer f requently, we
recommend that you use a regular
tire as a spare. You can store the
regular size spare tire on the tire tray,
but store the tool kit at the side of
the In-Bed Trunk (see page ),
and secure it.
2.
1.
283
CONT INUED
Changing a Flat Tire
T aking Care of t he Unexpect ed
277
TOOL BOX SPARE TIRE
The vehicle can easily roll off
the jack, seriously injuring
anyone underneath.
Follow the directions for
changing a tire exactly, and
never get under the vehicle
when it is supported only by the
jack.
\f—\f—y

y
(\fy\fy
2008 Ridgeline

Open the In-Bed Trunk.
Remove the two tire tray holding
bolts.Pull out the tire tray with the
handle, and hook the rear of the
tire tray to the guides on the back
edge of the In-Bed Trunk.Unfasten the strap to remove the
tool box, and unscrew the wing
bolt.
Takeoutthecompactsparetire.
If you are using a cargo net or a
cargo cover in the In-Bed Trunk,
remove it bef ore pulling out the tire
tray.
4.
3. 5. 6.
7.
Changing a Flat Tire
278
TIRE TRAY HOLDING BOLTS WING BOLT
TOOL BOX STRAP
TIRE
TRAY
\f—\f—y

y
(\fy\fy
2008 Ridgeline

CONT INUED
Loosen each wheel nut 1/2 turn
with the wheel nut wrench.Place the jack under the jacking
point nearest the tire you need to
change.Turn the dial at the bottom of the
jack clockwise until the top of the
jack contacts the jacking point.
Make sure the jacking point tab is
restinginthejacknotch.
8. 9. 10.
Changing a Flat Tire
T aking Care of t he Unexpect ed
279
DIAL
JACKING POINT
\f—\f—y

\fy
(\fy\fy
2008 Ridgeline

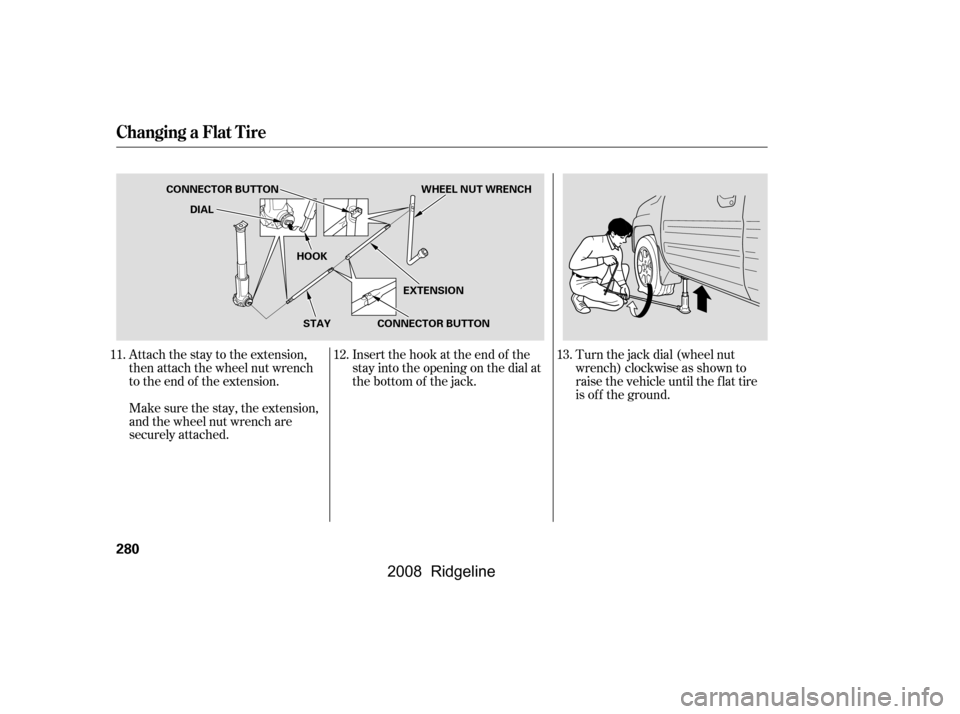

Attach the stay to the extension,
then attach the wheel nut wrench
to the end of the extension.Turn the jack dial (wheel nut
wrench) clockwise as shown to
raise the vehicle until the f lat tire
is of f the ground.
Make sure the stay, the extension,
and the wheel nut wrench are
securely attached. Insert the hook at the end of the
stay into the opening on the dial at
the bottom of the jack.
11. 12. 13.
Changing a Flat Tire
280
EXTENSION
CONNECTOR BUTTON
DIAL
CONNECTOR BUTTON WHEEL NUT WRENCH
HOOKSTAY
\f—\f—y

y
(\fy\fy
2008 Ridgeline

CONT INUED
Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel nut wrench
until the wheel is f irmly against
the hub. Do not try to tighten the
wheel nuts f ully.
Lower the vehicle to the ground,
and remove the jack.
Remove the wheel nuts and the
wheel cap (on RT and Canadian
LX models) then remove the f lat
tire. Handle the wheel nuts
caref ully; they may be hot f rom
driving. Place the f lat tire on the
ground with the outside surf ace
f acing up. Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully;itmaybehotfrom
driving.
The wheel cap cannot be removed
without first removing the wheel
nuts.
14. 15. 16.
17.
On RT and Canadian LX models
Changing a Flat Tire
T aking Care of t he Unexpect ed
281
BRAKE HUB
WHEEL CAP
RT/LX model is shown.
\f—\f—y

y
(\fy\fy
2008 Ridgeline

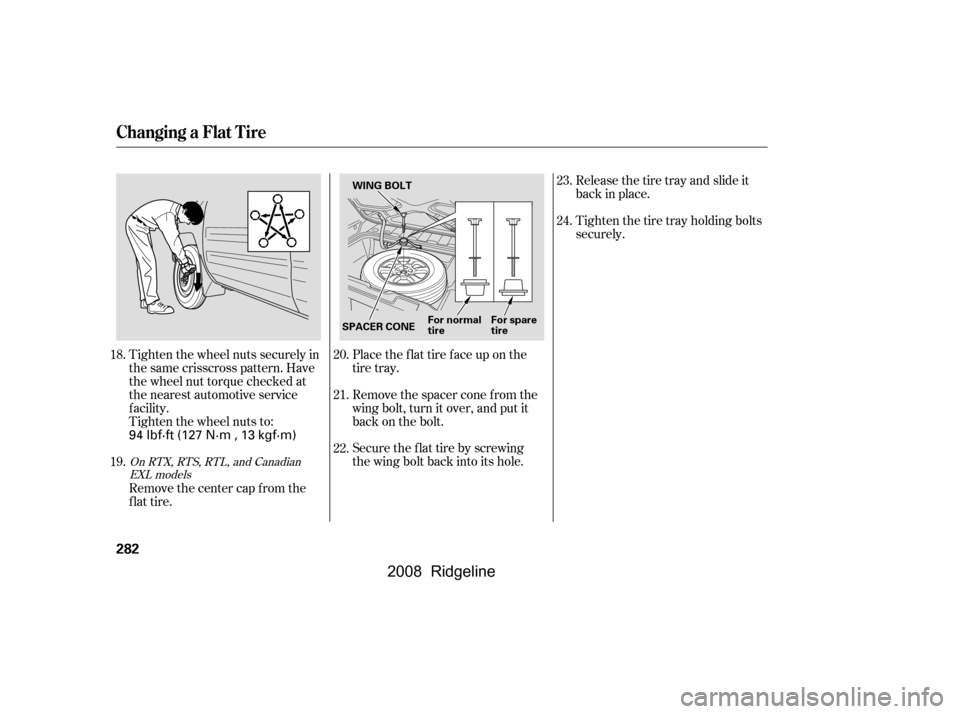

Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:Place the flat tire face up on the
tire tray.
Remove the spacer cone f rom the
wing bolt, turn it over, and put it
back on the bolt.
Securetheflattirebyscrewing
the wing bolt back into its hole.Release the tire tray and slide it
back in place.
Tighten the tire tray holding bolts
securely.
Remove the center cap from the
flat tire.
18.
19.
20.
21.
22.23.
24.
On RTX, RTS, RTL, and Canadian
EXL models
Changing a Flat Tire
282
WING BOLT
SPACER CONE For normal
tireFor spare
tire
94 lbf·ft (127 N·m , 13 kgf·m)
\f—\f—y

\fy
(\fy\fy
2008 Ridgeline

Store the wheel cap or center cap
in the In-Bed Trunk. Make sure it
does not get scratched or
damaged.
Refer to(see page ).
When storing the f lat tire, place
the tool box at the right side of the
In-Bed Trunk as shown.
Store the jack and the tools in the
tool box.
25.
26. 27.
28.
210
Changing a T ire with
TPMS
Changing a Flat Tire
T aking Care of t he Unexpect ed
283
TOOL BOX
Loose items can be thrown out
of the vehicle in a crash and
could seriously injure the
occupants.
Store the wheel, jack, and tools
securely before driving.
\f—\f—y

\fy
(\fy\fy
2008 Ridgeline

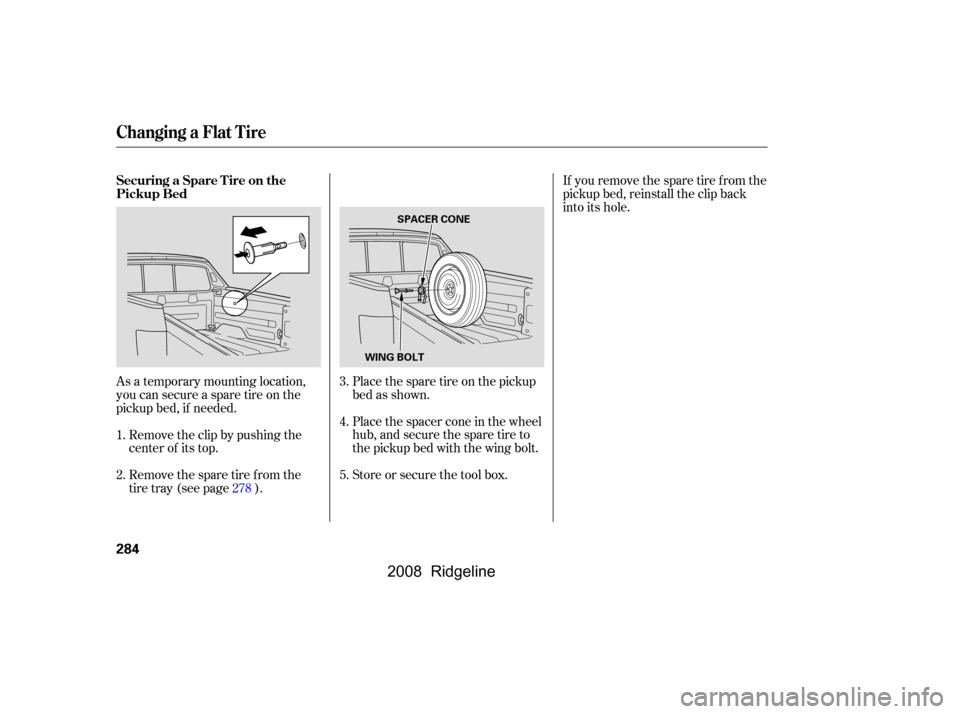

As a temporary mounting location,
you can secure a spare tire on the
pickup bed, if needed.Placethesparetireonthepickup
bed as shown.
Place the spacer cone in the wheel
hub,andsecurethesparetireto
the pickup bed with the wing bolt.If youremovethesparetirefromthe
pickup bed, reinstall the clip back
into its hole.
Remove the clip by pushing the
center of its top.
Remove the spare tire from the
tire tray (see page ). Store or secure the tool box.
1.
2. 3.
4.
5.
278
Changing a Flat Tire
Securing a Spare Tire on the
Pickup Bed
284
WING BOLT SPACER CONE
\f—\f—y


y
(\fy\fy
2008 Ridgeline

Diagnosing why the engine won’t
start f alls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:Check the transmission interlock.
The transmission must be in Park
or neutral or the starter will not
operate.
Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See
on page . If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of
the battery and terminal connec-
tions (see page ). You can
then try jump starting the vehicle
f rom a booster battery (see page
).
In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run. Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the f uses. If the f uses
areOK,thereisprobably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualif ied technician to
determine the problem. See
on page .
Check these things:
When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound, a series of clicks, or
nothing at all. You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run.
You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
81
286
298 272
286
CONT INUED
Jump Starting T he Starter Operates Normally
Emergency T owing
Nothing Happens or the Starter
Motor Operates Very Slowly
If theEngineWon’tStart
T aking Care of t he Unexpect ed
285
\f—\f—y

y
(\fy\f\fy
2008 Ridgeline

Are you using the proper starting
procedure? Ref er toon page .
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See on page . Although this seems like a simple
procedure, you should take several
precautions.
You cannot start your vehicle by
pushing or pulling it.
Do you have f uel? Check the f uel
gauge; the low f uel indicator may
not be working.
Turn of f all electrical accessories:
heater, A/C, climate control, audio
system, lights, etc. Put the
transmission in Park, and set the
parking brake.
Open the hood, and check the
physical condition of the battery.
In very cold weather, check the
condition of the electrolyte. If it
seems slushy or f rozen, do not try
jump starting until it thaws.
1.
2.
200
293 298 Starting the
Engine
Emergency
Towing Jump Starting
If the Engine Won’t Start, Jump Starting
To Jump Start Your Vehicle:
286
A battery can explode if you do
not follow the correct procedure,
seriously injuring anyone
nearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.
\f—\f—y

y
(\fy\f
y
