Follow these precautions when using
the seat heaters:Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Push the top of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the bottom of the switch. This will
keep the seat warm.
Seat Heaters
Inst rument s and Cont rols
127
SEAT HEATER SWITCHES
\f—\f—\fy\f\f
\f
y
(\fy\f
y
2009 Ridgeline

µ
Turn the ignition switch to the ON
(II) position to raise or lower any
side window, or open and close the
back window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Pull back on the
switchandholdittoclosethe
window.
Thewindowsoperateforupto10
minutes after you turn off the
ignition switch. Opening either f ront
door cancels this f unction.
To open or close the
driver’s window, push or pull the
window switch firmly down or up to
the second detent, and release it.
The window will automatically go up
or down all the way. To stop the
window, pull or push the window
switch brief ly.
When you push the MAIN switch in,
the passenger windows and the back
window cannot be raised or lowered.
To cancel this f eature, push on the
switch again. Keep the MAIN switch
off whenyouhavechildreninthe
vehicle so they do not injure
themselves by operating the
windows unintentionally.
AUTO
Power Windows
128
DRIVER’S WINDOW SWITCHMAIN SWITCH
BACK WINDOWSWITCH
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.
——y
y
(y
y
2009 Ridgeline

µIf the driver’s
window senses any obstacle while it
is closing automatically, it will
reverse direction, and then stop. To
close the window, remove the
obstacle, then use the window switch
again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. Your vehicle has a power back
window.
This indicator comes on when you
turn the ignition switch from the ON
(II) position to the ACCESSORY (I)
or LOCK (0) position without closing
the back window. With the ignition
switch in the ACCESSORY (I)
position, the indicator goes off after
about 30 seconds. With the ignition
switch in the LOCK (0) position, the
indicator goes of f af ter about 3
minutes.
If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction may be disabled. If
the AUTO f unction is disabled, the
power window system will need to be
reset af ter reconnecting the battery
or installing the f use.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by your dealer.
Pull and hold the driver’s window
switch to close the window
completely, then hold the switch
f or about 2 seconds.
Start the engine. Push down and
hold the driver’s window switch
until the window is f ully open.
1.
2.
CONT INUED
AUTO REVERSE
Back Window
Back Window Open
Indicator
Power Windows
Inst rument s and Cont rols
129
\f—\f—\fy\f\f

y
(\fy\f
y
2009 Ridgeline

To open:Insert the key in the driver’s door
lock.
Turn the key clockwise, then
release it.
You can open all of the side windows
from the outside with the remote
transmitter.
Press the UNLOCK button once
to unlock the driver’s door.
Press the UNLOCK button a
second time, and hold it. The
passenger’s doors unlock, and all
f our side windows start to open.
To stop the windows, release the
button. You can open and close the side
windows with the key in the driver’s
door lock.
The back window is not designed to
carry long items through it. Do not
use the opened back window as a
cargo area pass-through.
If you remove the ignition key and
open the driver’s door without
closing the back window, you hear
f ive beeps and see the indicator blink.
If you do not close the back window
bef ore the beeper stops, the
indicator stops blinking but remains
on. It will go of f af ter about 3
minutes (see page ).
To open the windows further,
press the button again, within
about 3 seconds.
You cannot close the windows with
the remote transmitter.
1.
2.
3.
1.
2.
75
Opening the Side Windows with
the Remote Transmitter
Opening/Closing the Side
Windows with the Key
Power Windows
130
Open
Close
UNLOCK BUTTON
\f—\f—\fy\f\f
y
(\fy\f
y
2009 Ridgeline

Turnthekeyclockwiseagain,and
hold it. All f our side windows start
to open. To stop the windows,
release the key.
To open the windows f urther, turn
andholdthekeyagain(within
10 seconds).The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can slide back into
the roof. Use the switch near the left
dashboard vent to operate the
moonroof . The ignition switch must
be in the ON (II) position.
If the windows stop bef ore
the desired position, repeat steps 2
and 3. To close the windows further, turn
andholdthekeyagain(within
10 seconds).
To close: If the windows stop bef ore
the desired position, repeat steps 2
and 3.
Insert the key in the driver’s door
lock.
Turn the key counterclockwise,
then release it.
Turn the key counterclockwise
again, and hold it. All four side
windowsstarttoclose.Tostopthe
windows, release the key.
1.
2.
3. 4.
3.
4.
If equipped
CONT INUED
Moonroof
Power Windows, Moonroof
Inst rument s and Cont rols
131
NOTE:
NOTE:
MOONROOF SWITCH
\f—\f—\fy\f\f
y
(\fy\f
y
2009 Ridgeline

You can open and close the
moonroof f or up to 10 minutes af ter
you turn of f the ignition switch.
Opening either f ront door cancels
this function.
To apply the parking brake, push the
pedal down with your f oot. To
release it, pull the release handle
f ully. The parking brake indicator on
the instrument panel should go out
when the parking brake is f ully
released (see page ).
To tilt up the back of the moonroof ,
press and hold the center part of the
switch ( ). To close the
moonroof , press and hold the upper
part of the switch ( ). To open
the moonroof , press and hold the
lower part of the switch ( ).
Release the switch when the
moonroof gets to the desired
position.
Make sure everyone’s hands are
away f rom the moonroof bef ore
opening or closing it.
65
Parking Brake
Moonroof , Parking Brake
132
PARKING BRAKE PEDAL
RELEASE HANDLE
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it.
If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or its
motor.
——y
y
(y
y
2009 Ridgeline

Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.
The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.Therearviewmirrorhasacompass
function to indicate the vehicle’s
direction.
Refer to on page .
You will also see a ‘‘RELEASE
PARKING BRAKE’’ message on the
multi-inf ormation display (see page ).
90 210
If equipped
On models with navigation system
CONT INUED
Mirrors Compass
Parking Brake, Mirrors
Inst rument s and Cont rols
133
TABDriving the vehicle with the parking
brake applied can damage the rear
brakes and hubs. A beeper will sound if
the vehicle is driven with the parking
brake on.
\f—\f—\fy\f\f
y
(\fy\f
y
2009 Ridgeline

Turn the ignition switch to the ON
(II) position.When you f inish, move the
selector switch to the center (off)
position. This turns the
adjustment switch of f to keep your
settings.
The outside mirrors are heated to
remove fog and frost. With the
ignition switch in the ON (II)
position, turn on the heaters by
pressing the button. The indicator in
the button comes on as a reminder.
Press the button again to turn the
heaters off.
Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
Move the selector switch to L
(driver’s side) or R (passenger’s
side).
1.
2.
3. 4.If equipped
Adjusting the Power Mirrors Heated Mirrors
Mirrors
134

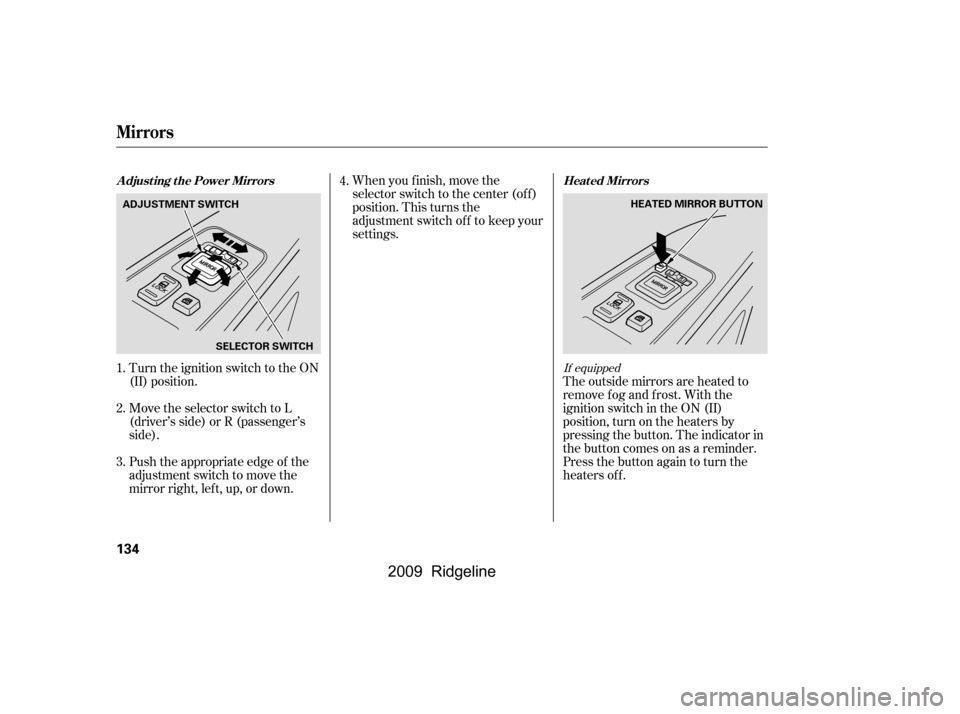

HEATED MIRROR BUTTON
SELECTOR SWITCH
ADJUSTMENT SWITCH
\f—\f—\fy\f\f\fy
(\fy\f
y
2009 Ridgeline

Î
Î
Interior Convenience Items
Inst rument s and Cont rols
135

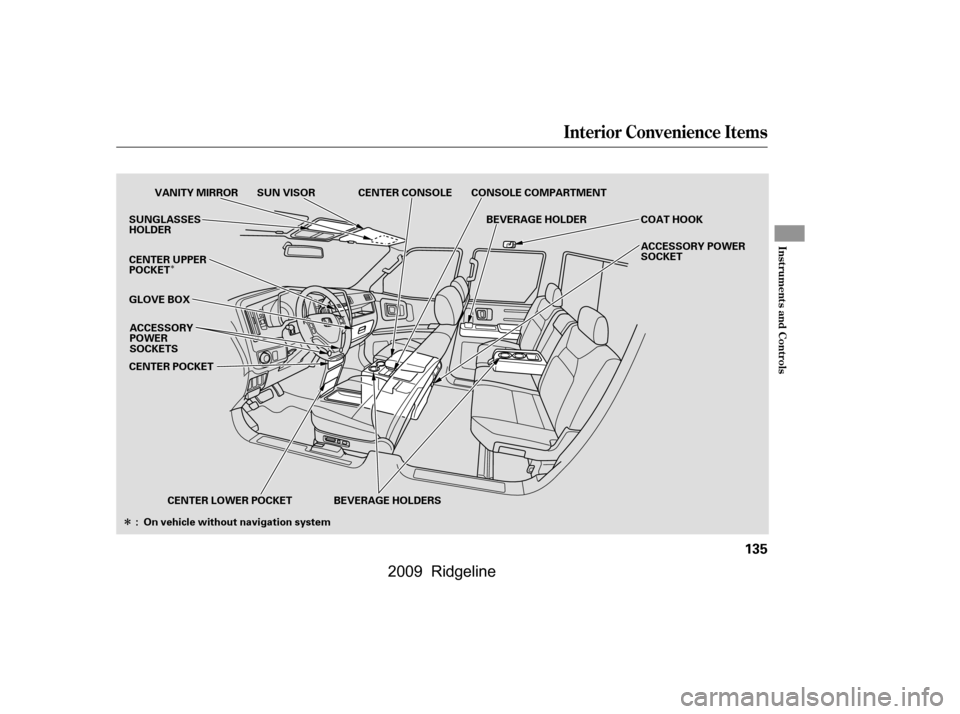

GLOVE BOXVANITY MIRROR SUN VISOR CENTER CONSOLE
BEVERAGE HOLDER
CONSOLE COMPARTMENT
COAT HOOK
ACCESSORY POWER
SOCKET
SUNGLASSES
HOLDER
CENTER UPPER
POCKET
CENTER POCKET
CENTER LOWER POCKET BEVERAGE HOLDERS
ACCESSORY
POWER
SOCKETS
: On vehicle without navigation system
\f—\f—\fy\f\f\fy
(\fy\f
\fy
2009 Ridgeline

Your vehicle has a multi-f unction
center console. It includes beverage
holders, storage compartments, an
armrest, a coin holder, and a storage
tray.The center console main
compartment is under the tray and
the beverage holder. You can access
the main compartment in two ways
(f ront or rear).
To open the f ront of the
compartment, squeeze the knob, and
push it f orward while sliding the
beverage holder. To close, squeeze
the knob and pull the compartment
backward until the beverage holder
latches.
To open the rear of the compartment,
push the button at the end of the
tray, then slide the tray forward. To
close, slide the tray back in place.
The console compartment light
comesonwhentheinstrumentpanel
lights are on.
There are two removable partitions
in the main compartment. The
partitions can be used to divide the
main compartment, or can be stored
at the f ront of the compartment.
Center Console
Console Compart ment s
Interior Convenience Items
136
\f—\f—\fy\f\f
y
(\fy\f

y
