HONDA RIDGELINE 2011 1.G Owners Manual

µµ
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name. You can use the SEEK/SKIP bar
while a disc is playing to select
passages and change tracks (f iles in
MP3/WMA mode).
Each time you press and
releasethe sideof theSEEK/
SKIP bar, the player skips f orward to
the beginning of the next track (f ile
in MP3 or WMA mode). Press and
release the side, to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track, press
and hold the or side of the
SEEK/SKIP bar. To
select a dif f erent f older, press either
side of the TUNE/FOLDER bar.
Press the side of the bar to skip
to the next folder, and the side
of the bar to skip to the beginning of
the previous f older.
In MP3 or WMA mode
CONT INUED
T o Change or Select T racks/Files
SK IP FOLDER SELECTION
CD Player
Features
177
Main MenuTable of Contents

µµµ
In MP3 or WMA mode
To continuously replay
a track (f iles in MP3 or WMA mode),
press and release the RPT button.
You will see ‘‘RPT’’ in the display.
Press and hold the RPT button for 2
seconds to turn it off. This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder
repeat, press the RPT button twice.
You will see ‘‘ RPT’’ in the
display. The system continuously
replays the current f older. Press the
RPT button again to turn it off.
Pressing the RDM button, or
selecting a dif f erent f older with the
TUNE/FOLDER bar also turns of f
the repeat f eature.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, then to
normal play. This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
repeatedly to select RDM (within a
disc random play). You will see
‘‘RDM’’ in the display. Press the
RDM button for 2 seconds to return
to normal play.
REPEAT (TRACK/FILE
REPEAT) FOLDER-REPEAT
RANDOM (Random within adisc)
CD Player
178
Main MenuTable of Contents

µ
µµIn MP3 or WMA mode
In MP3 or WMA mode
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the next f olders
f or 10 seconds. Af ter playing the f irst
file in the last folder, the system
plays normally.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press and
release the SCAN button. You will
see SCAN in the display. You will get
a10secondsamplingof eachtrack/
f ile on the disc. Press and hold the
SCAN button until you hear a beep
to get out of scan mode and play the
last track/f ile sampled.
This
feature, when activated, plays all
f iles on the selected f older in random
order. To activate f older random,
press the RDM button. You will see
‘‘ RDM’’ in the display. The
system will then select and play f iles
randomly. This continues until you
deactivate f older random by pressing
and holding the RDM button again,
or by selecting a dif f erent f older with
the FOLDER bar.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal play. Pressing either side of the SEEK/
SKIP bar also turns of f the scan
feature. This feature,
when activated, samples the first file
of each f older on the disc. To
activate f older scan, press the SCAN
button twice. You will see
‘‘ SCAN’’ in the display.
Pressing either side of the SEEK/
SKIP bar, selecting a dif f erent f older
with the TUNE/FOLDER bar, or
pressing the SCAN button, also turns
of f the f older scan.
Each time you press and release the
SCAN button, the mode changes
from file scan to folder scan, then to
normal play.
SCA N (T RA CK /FIL E SCA N)
FOL DER-RA NDOM FOL DER SCA N
CD Player
Features
179
Main MenuTable of Contents

µ´
You can also eject the disc when the
ignition switch is of f .
Press the eject button ( ) to
remove the disc. If you eject the disc,
but do not remove it f rom the slot,
the system will automatically reload
the disc af ter 10 seconds. To begin
playing, press the CD button.
To play the radio when a disc is
playing, press the AM/FM button.
Press the CD button again to switch
back to the CD player. If you turn the system of f while a
disc is playing, either with the PWR
button or by turning of f the ignition
switch, the disc will stay in the drive.
When you turn the system back on,
the disc will begin playing where it
left off.
An optional six disc CD changer is
available for your vehicle from your
dealer.
This disc changer uses the same
controls used f or the in-dash CD
player/changer and the radio.
Load the desired CDs into the
magazine, and load the magazine
into the changer according to the
instructions that came with the unit.To select the CD changer, press the
AUX button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the preset 5
(DISC ) side f or a previous disc or
the preset 6 (DISC ) side to select
the next disc in sequence.
If you select an empty slot in the
magazine, the changer will search
f or the next available CD to load and
play.
For inf ormation on how to handle
and protect compact discs, see page
.
198
To Stop Playing a Disc
Operating the Optional CD
ChangerProtecting Discs
CD Player
180
Main MenuTable of Contents

CONT INUED

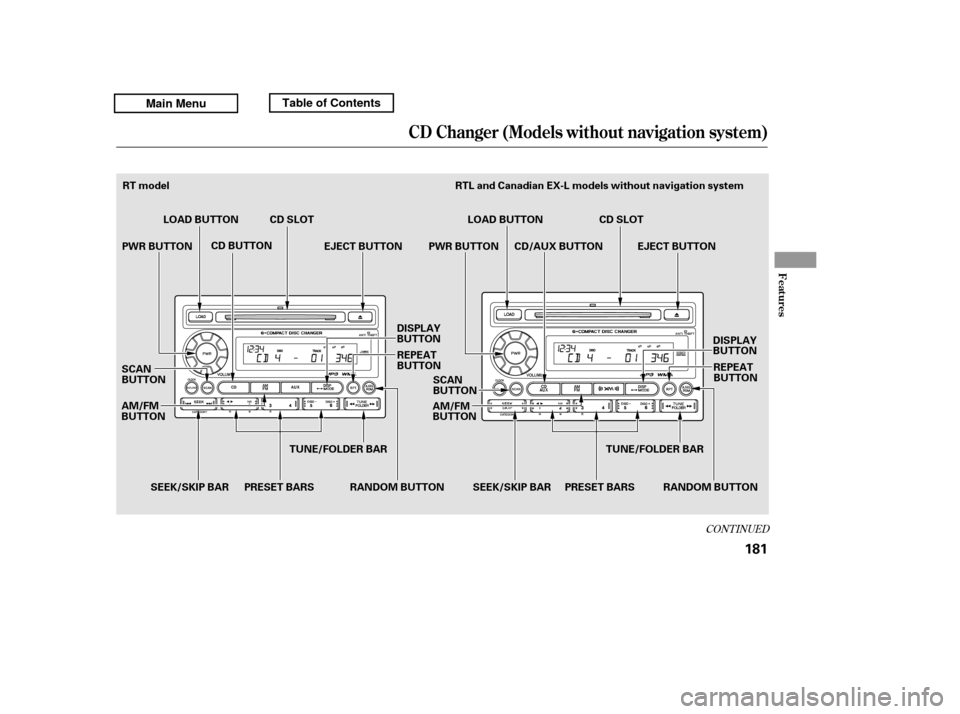

CD Changer (Models without navigation system)
Features
181
AM/FM
BUTTONPRESET BARS
SCAN
BUTTON RT model
TUNE/FOLDER BAR
CD SLOT
CD BUTTON
SEEK/SKIP BAR DISPLAY
BUTTON
REPEAT
BUTTON CD/AUX BUTTON
TUNE/FOLDER BARRANDOM BUTTONDISPLAY
BUTTON
REPEAT
BUTTON
AM/FM
BUTTON
LOAD BUTTON
LOAD BUTTON
PWR BUTTON
SCAN
BUTTON
PWR BUTTON
EJECT BUTTON
EJECT BUTTON
RANDOM BUTTON SEEK/SKIP BAR PRESET BARS
RTL and Canadian EX-L models without navigation system
CD SLOT
Main MenuTable of Contents

Your vehicle’s in-dash disc changer
holdsuptosixdiscs.
To load or play discs, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc changer with
the same controls used f or the radio.
To select the disc changer, press the
CD or CD/AUX button. You will see
‘‘CD’’ in the display. The disc and
track numbers, and the elapsed time
areshowninthedisplay.Youcan
also select the displayed inf ormation
with the DISP button (see page ).
The system will continuously play a
disc until you change modes. When ‘‘LOAD’’ appears again on
the display, insert the next CD into
the CD slot.
Do not try to insert a disc until
‘‘LOAD’’ appears. You could
damage the audio unit.
Repeat this until all six positions
are loaded. The system will then
begin playing the last CD loaded.
Insert a CD into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD load indicator
turns red and blinks as the CD is
loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
On the upper right side of the
display, the disc number f or an
empty position will begin blinking,
and the green CD load indicator
will come on.
To load only one CD, press and
release the LOAD button.
Press and hold the LOAD button
until you hear a beep and see
‘‘LOAD’’ in the display, then
release the button. 3. 4. 5.
1.2.
183
On RTS, RTL, and Canadian EX-L models without navigation system
CD Changer (Models without navigation system)
L oading Discs
To Play a Disc
182
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
Main MenuTable of Contents

CONT INUED
If the text data has more than 17
characters, you will see the f irst 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You can see up to 31
characters of the text data.
If youpressandholdtheDISP
button again, the display shows the
f irst 15 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
You will also see some text data
under these conditions:When a new f older, f ile, or track is
selected.
Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
When you press and release the
DISP button while a disc without text
data is playing, you will see ‘‘NO
INFO’’ on the display.
The display shows up to 16
characters of selected text data (the
f older name, f ile name, etc.).
If you are not loading CDs into all six
positions, press the LOAD button
again after the last CD has loaded.
The system will begin playing the
last CD loaded.
If you stop loading CDs bef ore all six
positions are f illed, the system will
wait f or 10 seconds, then stop the
load operation and begin playing the
last CD loaded.
CD Changer (Models without navigation system)
T ext Dat a Display Funct ion
Features
183
Main MenuTable of Contents

µEach time you press and
releasethe sideof theSEEK/
SKIP bar, the player skips f orward to
the beginning of the next track (f ile
in MP3 or WMA mode). Press and
release the side, to skip
backward to the beginning of the
current track. Press it again to skip
to the beginning of the previous
track.
To move rapidly within a track or f ile,
press and hold either side ( or
) of the SEEK/SKIP bar.
Use the SEEK/SKIP bar while a disc
is playing to select passages and
change tracks (f iles in MP3 or WMA
mode).
In MP3 or WMA mode, use the
TUNE/FOLDER bar to select
f olders in the disc and use either
side of the SEEK/SKIP bar to
change f iles.
To select a dif f erent disc, use the
appropriate preset buttons (1
through 6). If you select an empty
position, the system will go into the
loading sequence (see page ).
When you insert a disc, and the
system begins to play.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you turn on the audio system
next time, the system keeps your
selection with the DISP button. 182
CD Changer (Models without navigation system)
SK IPT o Change or Select T racks/Files
184
Main MenuTable of Contents

µ
µ
µ
µ This feature
continuously replays the current disc.
To activate disc repeat, press and
release the RPT button repeatedly
until you see ‘‘ RPT’’ in the
display. Press and hold the RPT
button again to turn it off.
Each time you press and release the
RPT button, the mode changes f rom
f ile repeat to f older repeat, to disc
repeat then to normal playing.
This feature,
when activated, replays all the f iles
on the selected f older in the order
they are compressed in MP3 or
WMA. To activate folder repeat
mode, press and release the RPT
button repeatedly until you see
‘‘ RPT’’ in the display. The
system continuously replays the
current f older. Press and hold the
RPT button to turn it of f . Pressing
the RDM button, or selecting a
different folder with the TUNE/
FOLDER bar also turns of f the
repeat feature. To continuously replay
a track (f iles in MP3 or WMA mode),
press and release the RPT button.
You will see ‘‘RPT’’ in the display.
Press and hold the RPT button for 2
seconds to turn it off.
To
select a dif f erent f older, press either
side of the TUNE/FOLDER bar.
Press the side of the bar to skip
to the next folder, and the side
of the bar to skip to the beginning of
the previous f older.In MP3 or WMA mode
In MP3 or WMA mode
CONT INUED
CD Changer (Models without navigation system)
DISC REPEAT
FOLDER REPEAT
REPEAT (TRACK/FILE
REPEAT)
FOLDER SELECTION
Features
185
Main MenuTable of Contents

µ
µ
µ The SCAN function
samples all the tracks on the disc in
the order they are recorded on the
disc (all f iles in the current f older in
MP3 or WMA mode). To activate the
scan feature, press and release the
SCAN button. You will see ‘‘SCAN’’
in the display. You will get a 10
second sampling of each track/f ile in
the disc/f older. Press and hold the
SCAN button to get out of scan
mode and play the last track sampled.
This
f eature, when activated, plays the
f iles within a current f older in
random order, rather than in the
order they are compressed in MP3
or WMA. To activate folder random
play, press and release the RDM
button repeatedly. You will see
‘‘ RDM’’ in the display. The
system will then select and play f iles
randomly. This continues until you
deactivate f older random play by
pressing and holding the RDM
button again, or you select a
different folder with the TUNE/
FOLDER bar.
This f eature plays the
tracks within a disc (the f iles in MP3
or WMA mode) in random order. To
activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
repeatedly to select RDM (within a
disc random play). You will see
‘‘RDM’’ in the display. Press the
RDM button for 2 seconds to return
to normal play.
Each time you press and release the
RDM button, the mode changes
f rom f older random play, to within a
disc random play, then to normal
play.In MP3 or WMA modeSCAN
FOLDER RANDOM
RANDOM (Random within adisc)
CD Changer (Models without navigation system)
186
Main MenuTable of Contents
