There are two common types of
trailer brakes: surge and electric.
Surge brakes are common f or boat
trailers, since the brakes will get wet.
If you choose electric brakes, be
sure they are electronically actuated.
Do not attempt to tap into your
vehicle’s hydraulic system. No
matter how successf ul it may seem,
any attempt to attach trailer brakes
to your vehicle’s hydraulic system
will lower braking ef f ectiveness and
create a potential hazard.A f actory installed, 4-pin gray
connector is located under the
instrument panel near the top of the
parking brake pedal. This connector
has all of the circuits required to
install most electric trailer brake
controllers. A jumper harness to
adapt your electric trailer brake
controller to the vehicle is included
with the optional Genuine Honda
trailer hitch kit. To obtain a trailer
hitch kit, see your dealer.
Have a qualif ied mechanic install
your trailer brake controller
f ollowing the trailer brake controller
manuf acturer’s instructions. Failure
to properly install the trailer brake
controller may increase the distance
it takes f or you to stop your vehicle
when towing a trailer.Use this illustration to identif y each
terminal in the trailer brake
controller connector.
Honda recommends that any trailer
with a total trailer weight of 1,000 lbs
(450 kg) or more has its own brakes.
Seeyourtrailerdealerorrental
agency f or more inf ormation on
installing electric brakes.
Trailer Brakes
Towing a Trailer
296
BRAKE
(20A)
(BLUE)
ELECTRIC BRAKE
(BROWN/WHITE)
GROUND
(BLACK) STOP
(SKY BLUE)
12/08/09 16:38:13 31SJC670_303
Driving

Always use saf ety chains when you
tow a trailer. Make sure the chains
are secured to the trailer and hitch,
and that they cross under the tongue
and can catch the trailer if it
becomes unhitched. Leave enough
slack to allow the trailer to turn
corners easily, but do not let the
chains drag on the ground.When towing a trailer, we
recommend that you carry a f ull-size
spare wheel and tire for your vehicle
and trailer. See page f or proper
tire size, page f or how to store a
full size wheel and tire, and page
f or inf ormation on changing a
flat tire.
Remember to unhitch the trailer
before changing a flat. Ask your
trailer sales or rental agency
where and how to store the
trailer’s spare tire.
This device is recommended if your
trailer tends to sway. Your trailer
dealer or rental agency can tell you
what kind of sway control you need
and how to install it.
Many states and provinces require
special exterior mirrors when towing
a trailer. Even if they don’t, you
should install special mirrors if you
cannot clearly see behind you, or if
the trailer creates a blind spot. 350
364
359
Saf et y Chains
Sway Cont rol Spare Tires
Trailer Mirrors
Towing a Trailer
297
12/08/09 16:38:20 31SJC670_304
Driving

´
Trailer lights and equipment must
comply with f ederal, state, province/
territory, and local regulations.
Check trailer light requirements f or
the areas where you plan to tow, and
use only equipment designed f or

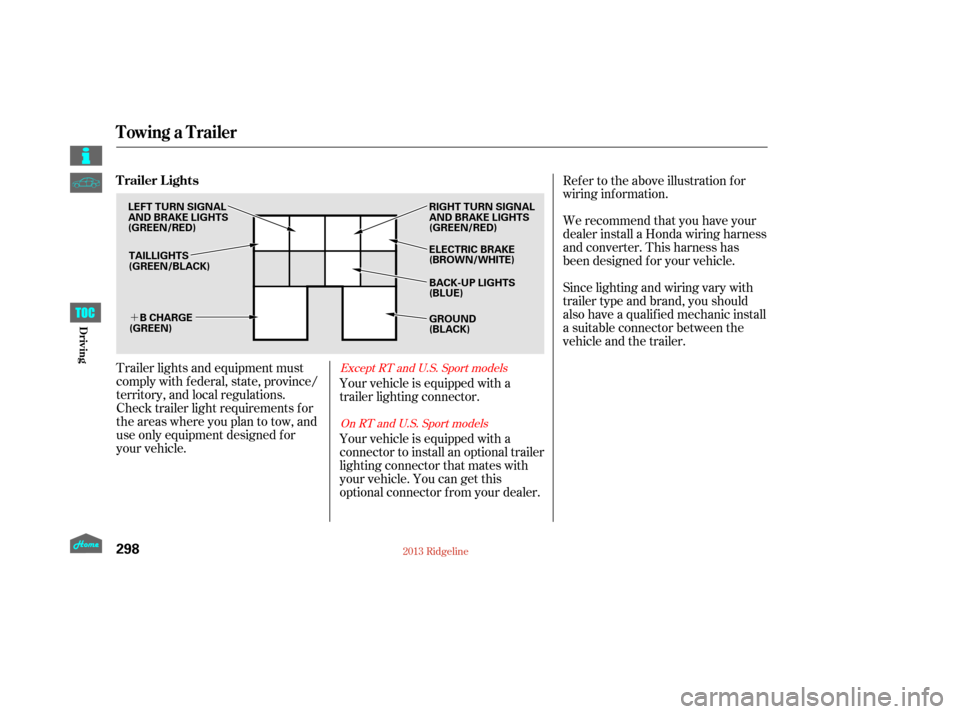

your vehicle.Ref er to the above illustration f or
wiring information.
We recommend that you have your
dealer install a Honda wiring harness
and converter. This harness has
been designed f or your vehicle.
Your vehicle is equipped with a
trailer lighting connector.
Your vehicle is equipped with a
connector to install an optional trailer
lighting connector that mates with
your vehicle. You can get this
optional connector f rom your dealer. Since lighting and wiring vary with
trailer type and brand, you should
also have a qualif ied mechanic install
a suitable connector between the
vehicle and the trailer.Except RT and U.S. Sport models
On RT and U.S. Sport models
Trailer Lights
Towing a Trailer
298
TAILLIGHTS
(GREEN/BLACK) ELECTRIC BRAKE
(BROWN/WHITE) RIGHT TURN SIGNAL
AND BRAKE LIGHTS
(GREEN/RED)
GROUND
(BLACK)
B CHARGE
(GREEN)
LEFT TURN SIGNAL
AND BRAKE LIGHTS
(GREEN/RED)
BACK-UP LIGHTS
(BLUE)
12/08/09 16:38:27 31SJC670_305
Driving

CONT INUED

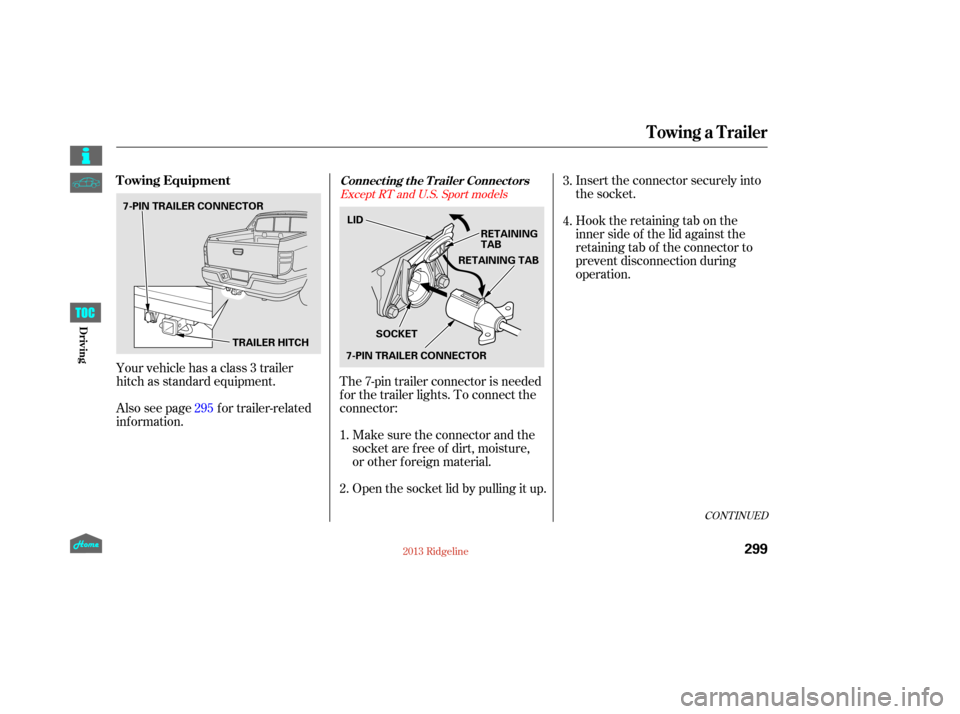

Insert the connector securely into
the socket.
Hook the retaining tab on the
inner side of the lid against the
retaining tab of the connector to
prevent disconnection during
operation.
Your vehicle has a class 3 trailer
hitch as standard equipment. Make sure the connector and the
socketarefreeof dirt,moisture,
or other f oreign material.
Open the socket lid by pulling it up.
Also see page f or trailer-related
inf ormation.
The 7-pin trailer connector is needed
f or the trailer lights. To connect the
connector:
1.
2.3.
4.
295
Except RT and U.S. Sport models
Towing Equipment
Towing a Trailer
Connect ing t he T railer Connect ors
299
TRAILER HITCH
7-PIN TRAILER CONNECTOR
7-PIN TRAILER CONNECTORLID
RETAINING
TAB
SOCKET RETAINING TAB
12/08/09 16:38:37 31SJC670_306
Driving

´

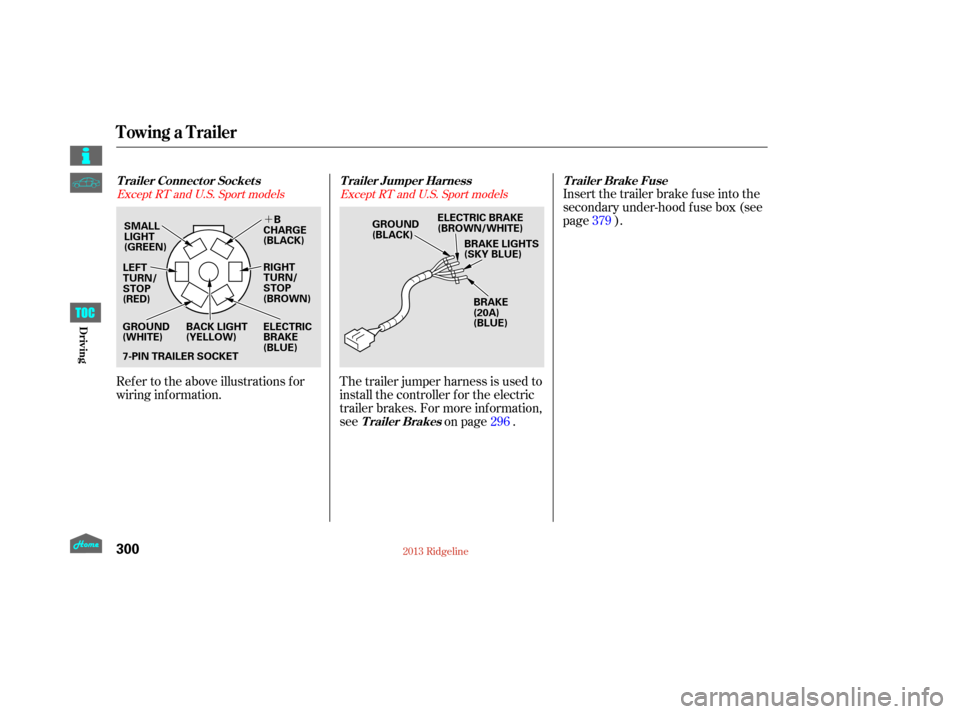

Ref er to the above illustrations f or
wiring information.The trailer jumper harness is used to
install the controller f or the electric
trailer brakes. For more inf ormation,
see
on page . Insert the trailer brake f use into the
secondary under-hood f use box (see
page ).
296 379
Except RT and U.S. Sport models Except RT and U.S. Sport models
T railer Connect or Socket s
T railer Jumper Harness
Trailer Brakes T railer Brake Fuse
Towing a Trailer
300
7-PIN TRAILER SOCKET
SMALL
LIGHT
(GREEN)
BACK LIGHT
(YELLOW)
GROUND
(WHITE) GROUND
(BLACK)
ELECTRIC BRAKE
(BROWN/WHITE)
LEFT
TURN/
STOP
(RED) BRAKE
(20A)
(BLUE)
B
CHARGE
(BLACK)
RIGHT
TURN/
STOP
(BROWN)
ELECTRIC
BRAKE
(BLUE) BRAKE LIGHTS
(SKY BLUE)
12/08/09 16:38:45 31SJC670_307
Driving

The added weight, length, and
height of a trailer will affect your
vehicle’s handling and performance,
so driving with a trailer requires
some special driving skills
and techniques.
The vehicle has been properly
serviced, and the tires, brakes,
suspension, cooling system,
and lights are in good
operating condition.
The trailer has been properly
serviced and is in good condition.
All weights and loads are
within limits.
Thehitch,safetychains,andany
other attachments are secure.
Allitemsonandinthetrailerare
properly secured and cannot shif t
while you drive.
When preparing to tow, and
before driving away, be sure to
check the following:
Towing performance can be
affected by high altitude, high
temperature, or when climbing
steep grades. Therefore,
premium fuel (premium
unleaded gasoline
with pump octane number
of 91 or higher)
is recommended when
towing more than
3,500 lbs (1,590 kg). The trailer tires and spare are
in good condition and
inflated as recommended by
the trailer maker. Your vehicle tires and spare
are in good condition and
properly inflated. The lights and brakes on your
vehicle and the trailer are
working properly.Foryoursafetyandthesafetyof
others,taketimetopracticedriving
maneuvers bef ore heading f or the
open road, and f ollow the guidelines
on thef ollowing page.
CONT INUED
Driving Saf ely With a T railer
Pre-T ow Checklist
Towing a Trailer
301
12/08/09 16:38:56 31SJC670_308
Driving

Drive slower than normal in all
driving situations, and obey posted
speed limits for vehicles with trailers.
When towing a fixed-sided trailer (e.g.,
camper), do not exceed 55 mph (88
km/h). At higher speeds, the trailer
may sway or affect vehicle handling.
When towing a trailer on level roads
under normal driving conditions, do
not use D3. This will increase the
automatic transmission fluid
temperature and may cause
overheating.With heavy cargo on the pickup
bed, your vehicle has a higher
center of gravity. Drive slowly
and cautiously, and allow more time
and distance for braking. Loading
heavy cargo could affect your
vehicle’s handling and performance.
Maketurnsmoreslowlyandwider
than normal. The trailer tracks a
smaller arc than your vehicle, and it
canhitorrunoversomethingthe
vehicle misses.
Allow more time and distance f or
braking. Do not brake or turn
suddenly as this could cause the
trailer to jackknif e or turn over.
When driving down hills, reduce
your speed, and use D3. Do not
‘‘ride’’ the brakes. If youmuststopwhenfacinguphill,
use the f oot brake or parking brake.
Do not try to hold the vehicle in
place by pressing on the accelerator,
as this can cause the automatic
transmission to overheat. When climbing hills, closely watch
your temperature gauge. If it nears
the red (Hot) mark, turn the air
conditioning of f , reduce speed and, if
necessary, pull to the side of the
road to let the engine cool.
If the automatic transmission f luid
temperature increases and exceeds
the specif ied limit, the A/T
temperature indicator comes on (see
page ).
You will also see an ‘‘A/T TEMP
HIGH’’ message on the multi-
inf ormation display (see page ). 69
91
On models with navigation system
T owing Speeds and Gears
Making T urns and BrakingDriving on Hills
Towing a Trailer
Remember, it
takes longer to slow down and
stop when towing a trailer.
302
12/08/09 16:39:06 31SJC670_309
Driving

If the vehicle’s tires slip when
retrieving a boat f rom the water,
shif t to f irst gear, and turn on VTM-4
lock (see page ). Disengage
VTM-4 lock as soon as the boat is
out of the water to prevent damage
to the VTM-4 system.
Your vehicle is not designed to be
towed behind a motor home. If your
vehicle needs to be towed in an
emergency, see page .
Do not park on an incline unless it is
unavoidable. If you must park on an
incline, f ollow the steps below to
help prevent the vehicle and trailer
f rom rolling and possibly injuring
someone.
Turn the f ront wheels toward the
curb on a downhill, and away f rom
the curb on an uphill.
With the f oot brake f ully pressed,
have someone place wheel chocks
on the downhill side of the vehicle
and trailer wheels.
Firmly apply the parking brake
bef ore you put the transmission in
Park. This keeps the vehicle f rom
putting pressure on the parking
mechanism in the transmission. It
also makes it easier to move the
shif t lever out of Park when you
want to drive away.
Crosswinds and air turbulence
caused by passing trucks can disrupt
your steering and cause the trailer to
sway. When being passed by a large
vehicle, keep a constant speed, and
steer straight ahead. Do not try to
make quick steering or braking
corrections.
When parking on level ground,
f ollow all normal precautions (see
page ) including putting the
transmission in Park, and f irmly
setting the parking brake. Always drive slowly and have
someone guide you when backing up.
Grip the of the steering wheel,
then turn the wheel to the left to get
the trailer to move to the lef t. Turn
the wheel to the right to move the
trailer to the right.
1.
2.
3.
284 274
381
bottom Ret rieving a Boat
Handling Crosswinds and Buf f et ing
Parking
Backing Up
Towing a Trailer
Towing Your Vehicle
303
12/08/09 16:39:15 31SJC670_310
Driving

Your vehicle has been designed
primarily f or use on pavement. But
its higher ground clearance and f our-
wheel drive VTM-4
system allow
you to occasionally travel on unpaved
roads and surf aces. Your vehicle is
not designed f or trailblazing,
mountain climbing, or other
challenging off-road activities. If you decide to drive on unpaved
roads, you will find that it requires
somewhat different driving skills.
Your vehicle will also handle
somewhat differently than it
does on pavement. Be sure to pay
extra attention to the precautions
and tips in this section, and get
acquainted with your vehicle before
leaving the pavement.
General Inf ormation
Of f -Highway Driving Guidelines
304
Improperly operating this
vehicle on or off-pavement can
cause a crash or rollover in
which you and your passengers
could be seriously injured or
killed.
Keep your speed low, and
don’t drive faster than
conditions permit. Follow all instructions and
guidelines in this owner’s
manual.
12/08/09 16:39:21 31SJC670_311
Driving

Before you leave the pavement, be
sure to do all scheduled maintenance
and service, and inspect your vehicle
f or any problems. Pay special
attention to the condition of the tires,
and check the tire pressures.
After you return to the pavement,
caref ully inspect your vehicle to
make sure there is no damage that
could make driving it unsaf e.
Recheck the condition of the tires
and the tire pressures.
The route presents limits (too steep
or bumpy roads). You have limits
(driving skill and comfort). And your
vehicle has limits (traction, stability,
and power).
Driving off-highway can be
hazardous if you fail to
recognize limits and take the
proper precautions.
To avoid loss of control or rollover,
be sure to f ollow all precautions and
recommendations.
Be sure to store cargo properly
and do not exceed your cargo load
limits (see page and ).
Be aware that a heavy load can
reduce ground clearance and your
ability to clear obstacles.
Whenever you drive, make sure
you and your passengers always
wear seat belts.
Keep your speed low, and never
go faster than the conditions allow.
It’s up to you to continually
assess the situation and drive
within the limits. 258 291
Check Out Your Vehicle
Remember
Important Saf ety Precautions
Of f -Highway Driving Guidelines
305
12/08/09 16:39:31 31SJC670_312
Driving
