HONDA RIDGELINE 2013 1.G Manual Online

Û
Ý
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .
This shows how much f uel you
have. It may show slightly more
or less than the actual amount.370
Gauges
Temperature Gauge
Fuel Gauge
76
U.S. model is shown.
On models with navigation system
SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE
SPEEDOMETER
TACHOMETER TEMPERATURE GAUGE
On models without navigation system
FUEL GAUGE
FUEL GAUGE
INFORMATION DISPLAY
MULTI-INFORMATION DISPLAY INFO ( ) BUTTON
INFO ( ) BUTTONTRIP/RESET
BUTTON SELECT
BUTTON
SEL/RESET
BUTTON
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
12/08/09 16:09:15 31SJC670_083
Inst rument s and Cont rols

With the ignition switch in the ON
(II) position, the inf ormation display
changesasshownonthenextpage
each time you press the SELECT
button or TRIP/RESET button.
The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
instant f uel economy, average f uel
economy, range (estimated distance),
and maintenance item code(s).
For inf ormation about the multi-
inf ormation display, see page
.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed. 82
CONT INUED
On models without navigation system
On models with navigation system
Gauges
Inf ormation Display
77
TRIP/RESET BUTTONSELECT BUTTON
12/08/09 16:09:21 31SJC670_084
Inst rument s and Cont rols

Gauges
78

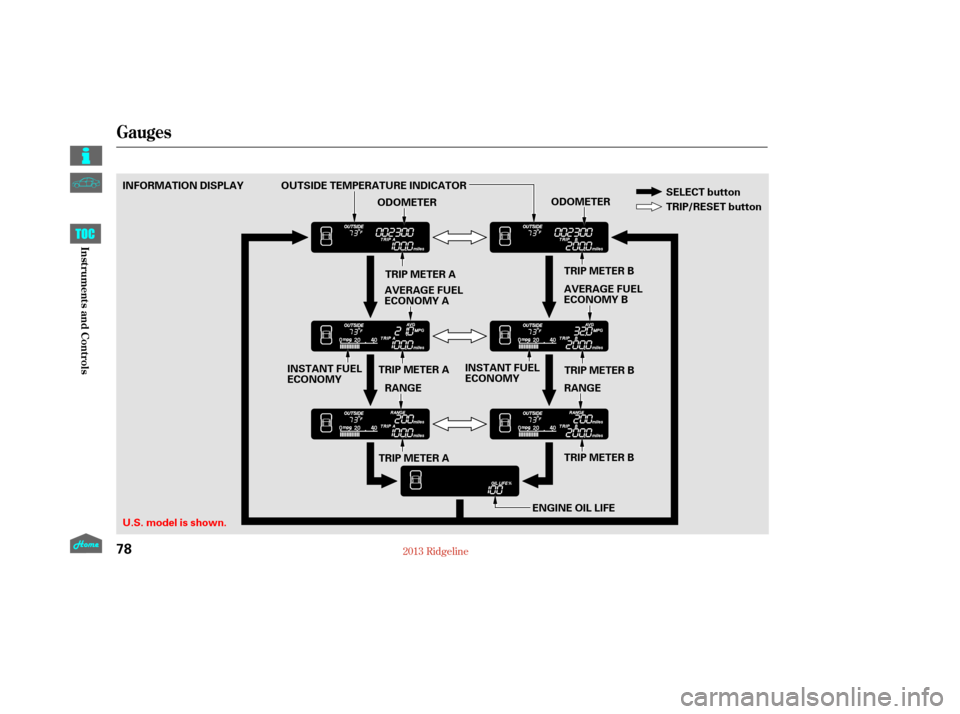

U.S. model is shown. INFORMATION DISPLAYOUTSIDE TEMPERATURE INDICATOR
ODOMETER
ODOMETER
RANGE ENGINE OIL LIFE
TRIP METER A TRIP METER B
RANGE TRIP METER B
TRIP METER A TRIP METER A
AVERAGE FUEL
ECONOMY A AVERAGE FUEL
ECONOMY B
INSTANT FUEL
ECONOMY INSTANT FUEL
ECONOMY TRIP/RESET button SELECT button
TRIP METER B
12/08/09 16:09:27 31SJC670_085
Inst rument s and Cont rols

¶¶µµ
µµµ
µµµ
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.
Both trip meters will reset if the
vehicle’s battery goes dead or is
disconnected.
In certain weather conditions,
temperature readings near f reezing(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed. This shows the outside temperature
in Fahrenheit (U.S. models), or in
Celsius (Canadian models). If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
To adjust the outside temperature
indicator, press and hold the TRIP/
RESET button f or 10 seconds. The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4, 3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the TRIP/
RESET button. You should see the
new outside temperature displayed.
Each trip meter works independently,
so you can keep track of two
dif f erent distances. To reset a trip
meter, display it, and then press and
hold the TRIP/RESET button until
the number resets to ‘‘0.0’’. There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the TRIP/
RESET button repeatedly. This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
CONT INUED
Except RT and U.S. Sport models
Odomet er
Out side T emperat ure Indicat or
Trip Meter
Gauges
79
NOTE:
12/08/09 16:09:38 31SJC670_086
Inst rument s and Cont rols

This display shows the estimated
distance you can travel on the fuel
remaining in the tank.
This distance is estimated f rom the
f uel economy you have achieved
over the last f ew miles (kilometers),
so it will vary with changes in speed,
traffic condition, etc.
This display shows the instant f uel
economy you are getting.
It shows the number of mpg (U.S.)
or l/100 km (Canada).
When either of the trip meters (trip
A or B) is displayed, your vehicle’s
average f uel economy since you last
resetthattripmetercanbeshown
on the inf ormation display (mpg on
U.S. models and l/100 km on
Canadian models). This number is
updated once per 10 seconds. To see
the average f uel economy, press and
release the TRIP/RESET button
repeatedly.
The average f uel economy will be
reset when you reset the trip meter,
or if the vehicle’s battery goes dead
or is disconnected.
This indicator is displayed as the
system message on the multi-
inf ormation display (see page ). The appropriate tire indicator will
come on along with the low tire
pressure indicator if a tire is
signif icantly underinf lated or has
suddenly lost pressure. See
for what to
do if this indicator comes on.
280
On models with navigation system
Gauges
Range (Estimated Distance)
T ire Pressure Monitor
A verage Fuel Economy
Inst ant Fuel Economy
Low
Tire Pressure Indicator
80
TIRE PRESSURE MONITOR
12/08/09 16:09:48 31SJC670_087
Inst rument s and Cont rols

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page
.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the SELECT button or
TRIP/RESET button.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message of f .
311
373
Maint enance MinderCheck Fuel Cap Message
Gauges
81
TM
12/08/09 16:09:54 31SJC670_088
Inst rument s and Cont rols

ÛÝ
ÛÝ
Û
ÝWith the ignition switch in the ON
(II) position, the multi-inf ormation
display changes as shown on the
next page each time you press the
INFO ( / ) button or the SEL/
RESET button.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
The multi-inf ormation display in the
instrument panel displays various
inf ormation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comf ortably. Others help to keep
you aware of the periodic
maintenance your vehicle needs f or
continued trouble-f ree driving.
To change the display, press the
INFO( / )buttononthe
dashboard repeatedly until the main
menu appears (see page ).
When you open the driver’s door, a
‘‘Welcome’’ message is shown on the
multi-inf ormation display.
In the multi-information display, the
system message is also displayed
(see page ).
83 90On models with navigation system
Multi-Inf ormation Display
82
SEL/RESET
BUTTON
INFO ( ) BUTTON
INFO ( ) BUTTON
12/08/09 16:10:01 31SJC670_089
Inst rument s and Cont rols

ÛÝ
Multi-Inf ormation Display
83

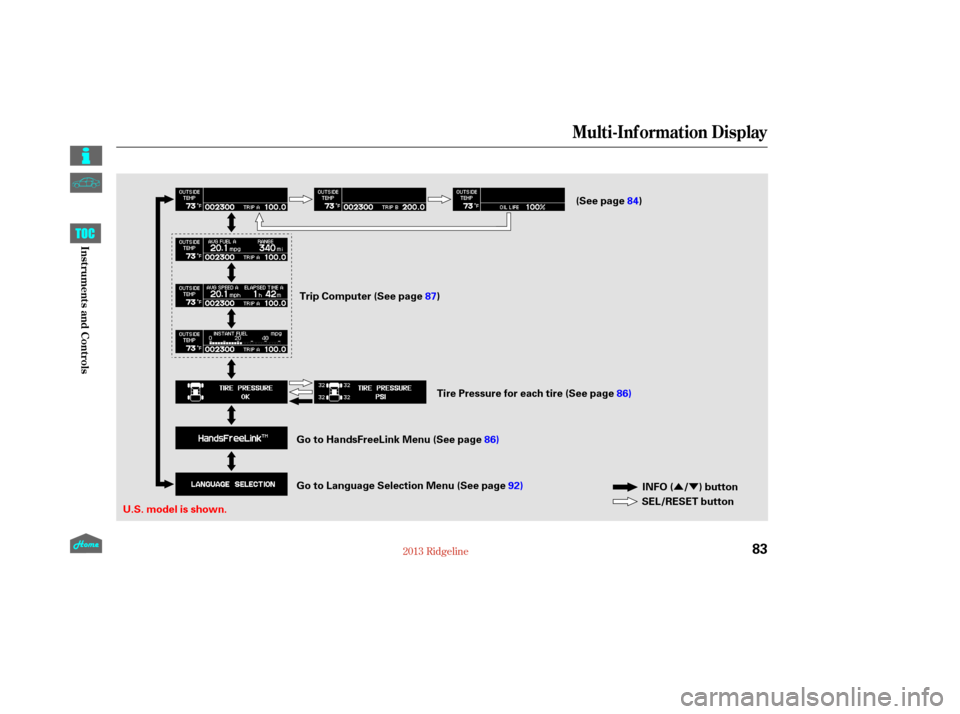

INFO ( / ) button
SEL/RESET button
U.S. model is shown. Trip Computer (See page
87) (See page
84)
Tire Pressure for each tire (See page 86)
Go to Language Selection Menu (See page 92)
Go to HandsFreeLink Menu (See page
86)
12/08/09 16:10:06 31SJC670_090
Inst rument s and Cont rols

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial/
territorial regulations to disconnect,
reset, or alter the odometer with the
intent to change the number of miles
or kilometers indicated.This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. There
are two trip meters: Trip A and Trip
B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.
To reset a trip meter, display it, and
then press and hold the SEL/
RESET button until the number
resets to ‘‘0.0.’’When you reset Trip A, AVERAGE
FUEL A, AVERAGE SPEED A, and
ELAPSED TIME A are reset at the
same time. When you reset Trip B,
AVERAGE FUEL B, AVERAGE
SPEED B, and ELAPSED TIME B
are reset.
Multi-Inf ormation Display
Odometer
T rip Meter
84

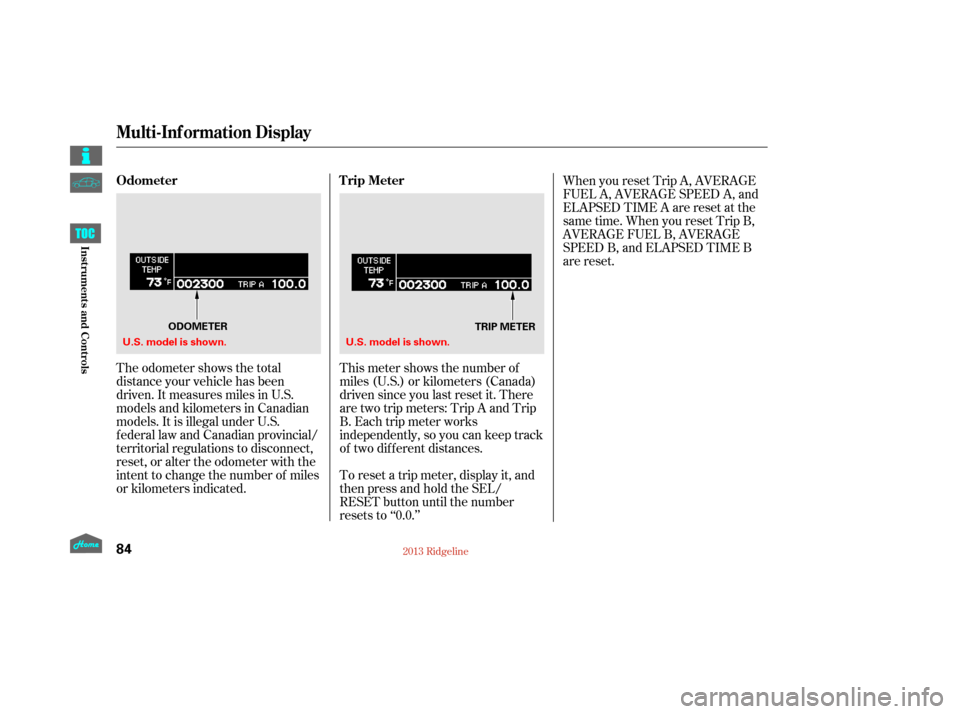

TRIP METER
ODOMETER
U.S. model is shown.
U.S. model is shown.
12/08/09 16:10:12 31SJC670_091
Inst rument s and Cont rols

¶¶µµ
µµµ
µµµ If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure.
To adjust the outside temperature
indicator, press and hold the SEL/
RESET button f or 10 seconds. The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4, 3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the SEL/
RESET button. You should see the
new outside temperature displayed.
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
This shows the outside temperature
in Fahrenheit (U.S. models), or in
Celsius (Canadian models). Outside Temperature
Multi-Inf ormation Display
85
NOTE:
OUTSIDE TEMPERATURE
U.S. model is shown.
12/08/09 16:10:20 31SJC670_092
Inst rument s and Cont rols
