13
How to Use This Manual
This section explains different methods on how you can easily find information in this manual.
Searching the Table of Contents
(P1)First, find the general chapter related to
what you are looking for (e.g., entering
a destination from the Saved Places).
Then, go to that chapter to view a more
specific table of contents.
Searching the Index (P141) This more detailed
table of contents
shows you exactly what information is
listed by section and title.
The Index consists of
main terms and sub-
entries. The sub-entries
help you get to the
desired page depending
on what you are looking
for.
Table of Contents
Chapter Contents
Navigation Screen Index
Two types of Tables of Contents help
you find your desired information.
Menu items displayed on the
navigation screen (e.g., Saved) can be
found individually in the Index.
More Detailed Contents
Go to the
Next Page
16 RIDGELINE HMA NAVI-31T6Z8000.book 13 ページ ２０１６年２月９日　火曜日　午後１時３４分

15

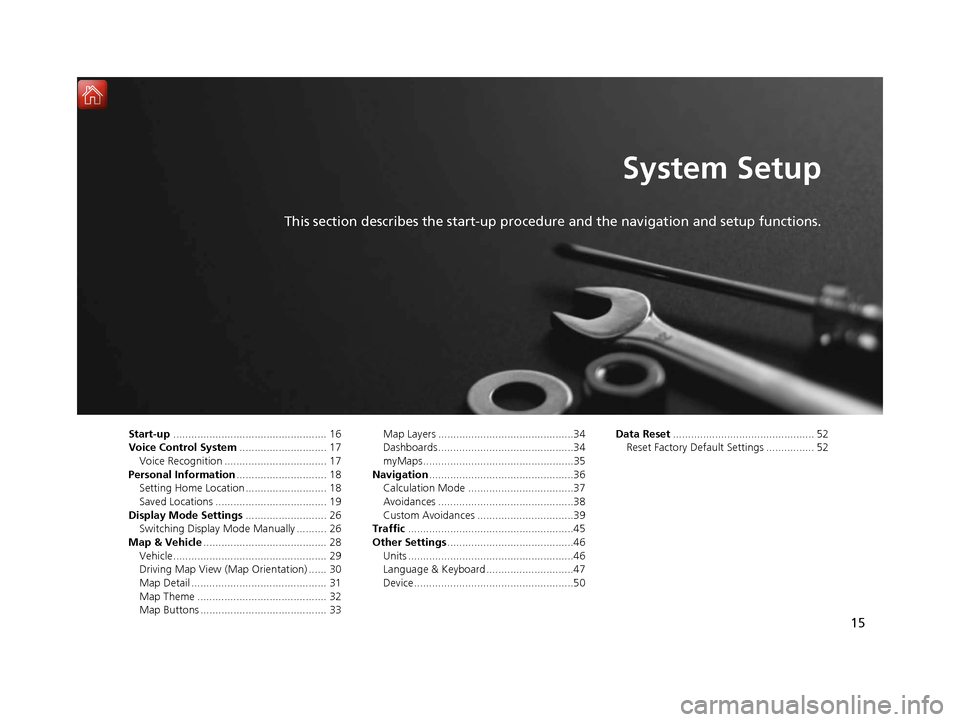

System Setup
This section describes the start-up procedure and the navigation and setup functions.
Start-up................................................... 16
Voice Control System ............................. 17
Voice Recognition .................................. 17
Personal Information .............................. 18
Setting Home Location ........................... 18
Saved Locations ..................................... 19
Display Mode Settings ........................... 26
Switching Display Mode Manually .......... 26
Map & Vehicle ......................................... 28
Vehicle ................................................... 29
Driving Map View (Map Orientation) ...... 30
Map Detail ............................................. 31
Map Theme ........................................... 32
Map Buttons .......................................... 33 Map Layers .............................................34
Dashboards.............................................34
myMaps..................................................35
Navigation ................................................36
Calculation Mode ...................................37
Avoidances .............................................38
Custom Avoidances ................................39
Traffic .......................................................45
Other Settings ..........................................46
Units .......................................................46
Language & Keyboard .............................47
Device.....................................................50 Data Reset
............................................... 52
Reset Factory Default Settings ................ 52
16 RIDGELINE HMA NAVI-31T6Z8000.book 15 ページ ２０１６年２月９日　火曜日　午後１時３４分

16
System Setup

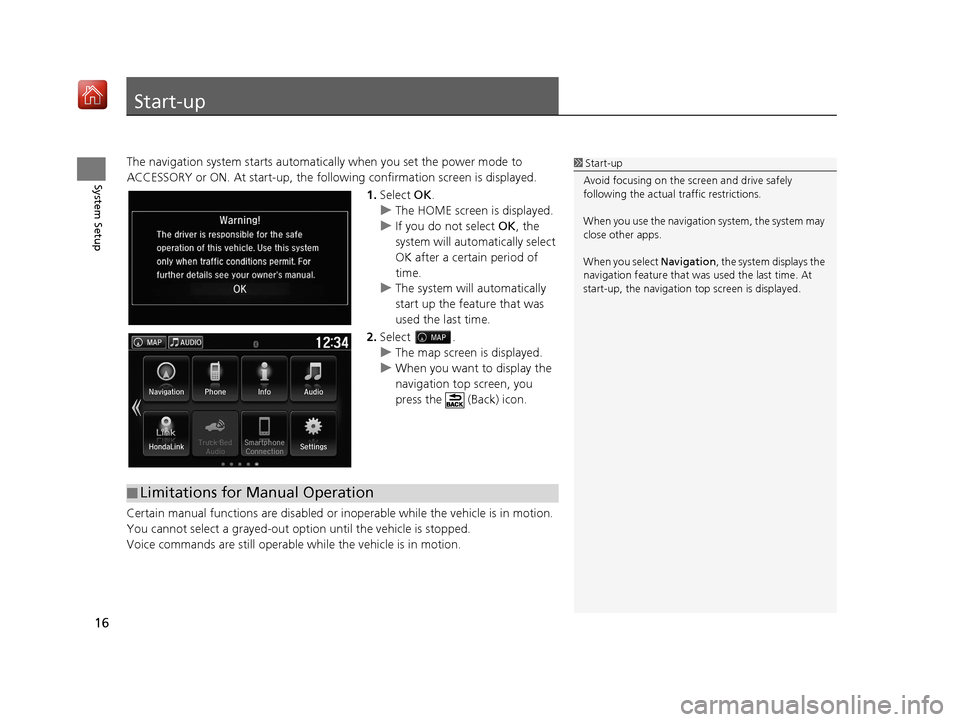

Start-up
The navigation system starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the follow ing confirmation screen is displayed.
1. Select OK.
u The HOME screen is displayed.
u If you do not select OK, the
system will automatically select
OK after a certain period of
time.
u The system will automatically
start up the feature that was
used the last time.
2. Select .
u The map screen is displayed.
u When you want to display the
navigation top screen, you
press the (Back) icon.
Certain manual functions are disabled or inoperable while the ve hicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.
Voice commands are still operable while the vehicle is in motion.1 Start-up
Avoid focusing on the scre en and drive safely
following the actual traffic restrictions.
When you use the navigation system, the system may
close other apps.
When you select Navigation , the system displays the
navigation feature that was used the last time. At
start-up, the navigation top screen is displayed.
■Limitations for Manual Operation
16 RIDGELINE HMA NAVI-31T6Z8000.book 16 ページ ２０１６年２月９日　火曜日　午後１時３４分

18
System Setup

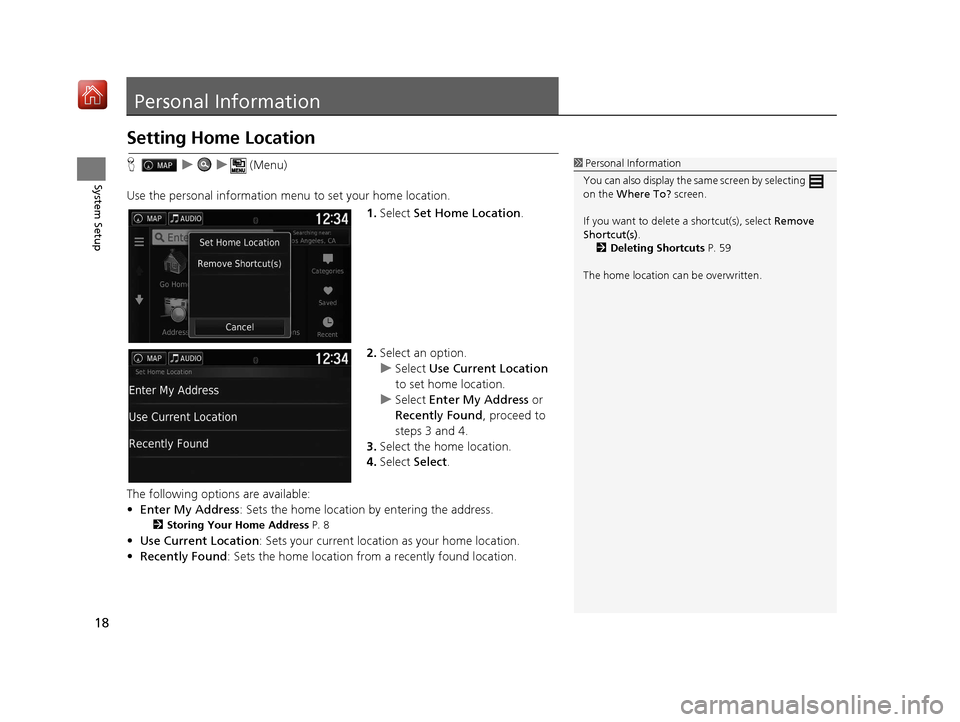

Personal Information
Setting Home Location
Huu (Menu)
Use the personal information menu to set your home location. 1.Select Set Home Location .
2. Select an option.
u Select Use Current Location
to set home location.
u Select Enter My Address or
Recently Found, proceed to
steps 3 and 4.
3. Select the home location.
4. Select Select.
The following options are available:
• Enter My Address : Sets the home location by entering the address.
2Storing Your Home Address P. 8
•Use Current Location : Sets your current location as your home location.
• Recently Found: Sets the home location from a recently found location.
1Personal Information
You can also display the same screen by selecting
on the Where To? screen.
If you want to delete a shortcut(s), select Remove
Shortcut(s) .
2 Deleting Shortcuts P. 59
The home location ca n be overwritten.
16 RIDGELINE HMA NAVI-31T6Z8000.book 18 ページ ２０１６年２月９日　火曜日　午後１時３４分

Continued21
uuPersonal Information uSaved Locations
System SetupH u (Back) uView Map
1.Select the vehicle icon.
2. Select Save.
3. Enter a name of the location.
4. Select Done.
5. Select OK.
■Saving Your Current Location1
Saving Your Current Location
Vehicle position may not be displayed when:
•The vehicle is traveling off-road.
•The vehicle position da ta cannot be updated.
16 RIDGELINE HMA NAVI-31T6Z8000.book 21 ページ ２０１６年２月９日　火曜日　午後１時３４分

26
System Setup

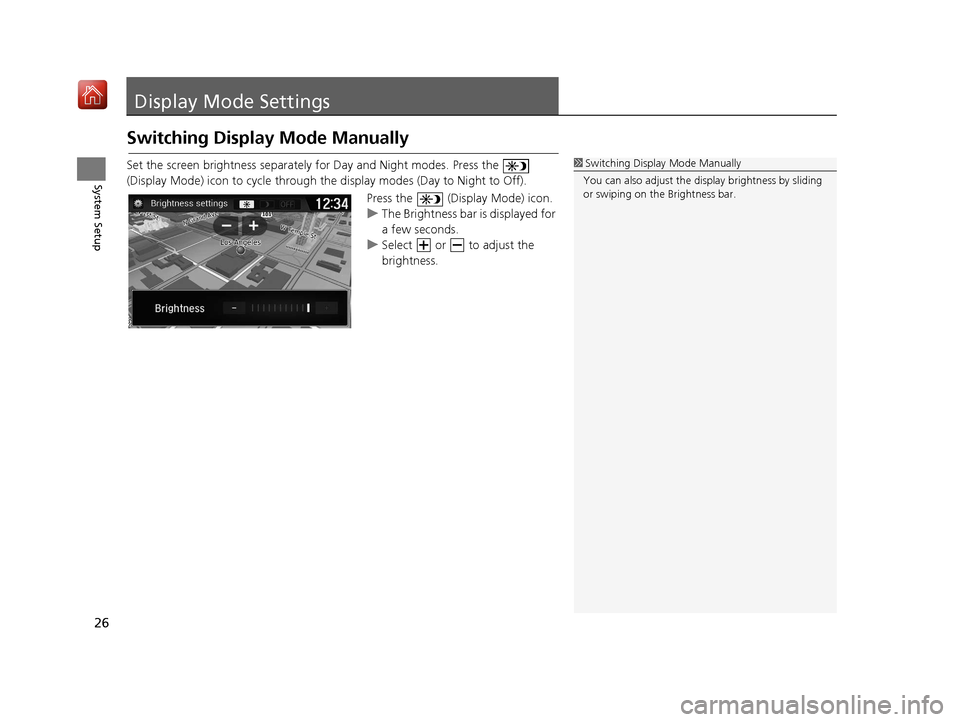

Display Mode Settings
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display Mode) icon to cycle through the display modes (Day to Night to Off).
Press the (Display Mode) icon.
uThe Brightness bar is displayed for
a few seconds.
u Select or to adjust the
brightness.1Switching Display Mode Manually
You can also adjust the display brightness by sliding
or swiping on the Brightness bar.
16 RIDGELINE HMA NAVI-31T6Z8000.book 26 ページ ２０１６年２月９日　火曜日　午後１時３４分

27

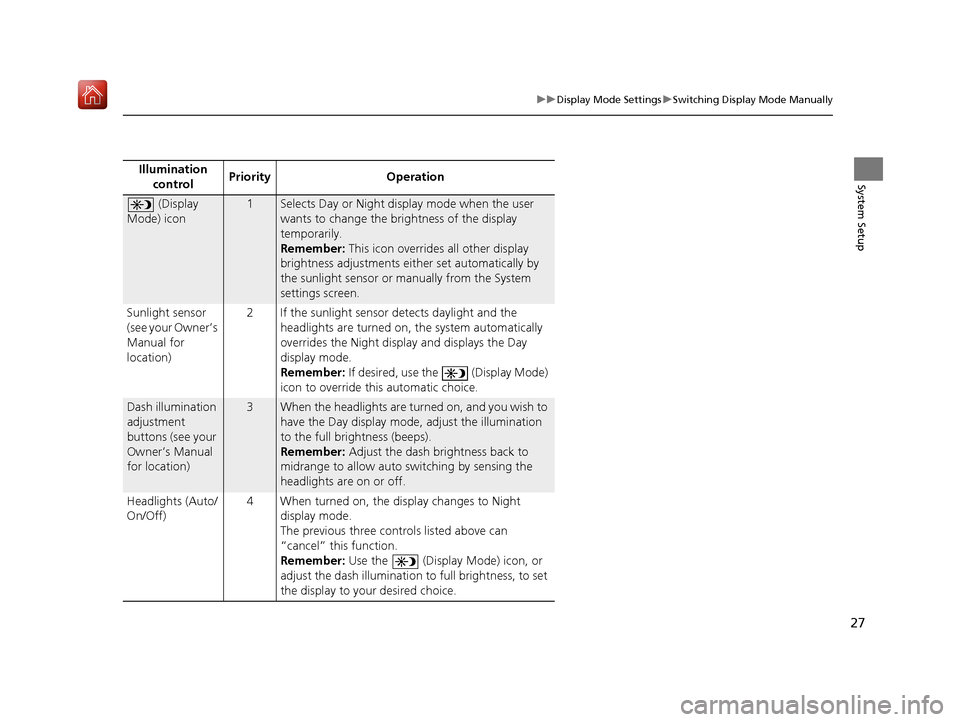

uuDisplay Mode Settings uSwitching Display Mode Manually
System SetupIllumination
control Priority Operation
(Display
Mode) icon1Selects Day or Night display mode when the user
wants to change the brightness of the display
temporarily.
Remember: This icon overrides all other display
brightness adjustments either set automatically by
the sunlight sensor or manually from the System
settings screen.
Sunlight sensor
(see your Owner’s
Manual for
location) 2 If the sunlight sensor detects daylight and the
headlights are turned on, the system automatically
overrides the Nigh t display and displays the Day
display mode.
Remember: If desired, use the (Display Mode)
icon to override th is automatic choice.
Dash illumination
adjustment
buttons (see your
Owner’s Manual
for location)3When the headlights are turn ed on, and you wish to
have the Day display mode, adjust the illumination
to the full brightness (beeps).
Remember: Adjust the dash brightness back to
midrange to allow auto switching by sensing the
headlights are on or off.
Headlights (Auto/
On/Off) 4 When turned on, the di
splay changes to Night
display mode.
The previous three controls listed above can
“cancel” this function.
Remember: Use the (Display Mode) icon, or
adjust the dash illumination to full brightness, to set
the display to your desired choice.
16 RIDGELINE HMA NAVI-31T6Z8000.book 27 ページ ２０１６年２月９日　火曜日　午後１時３４分

30
uuMap & Vehicle uDriving Map View (Map Orientation)
System Setup

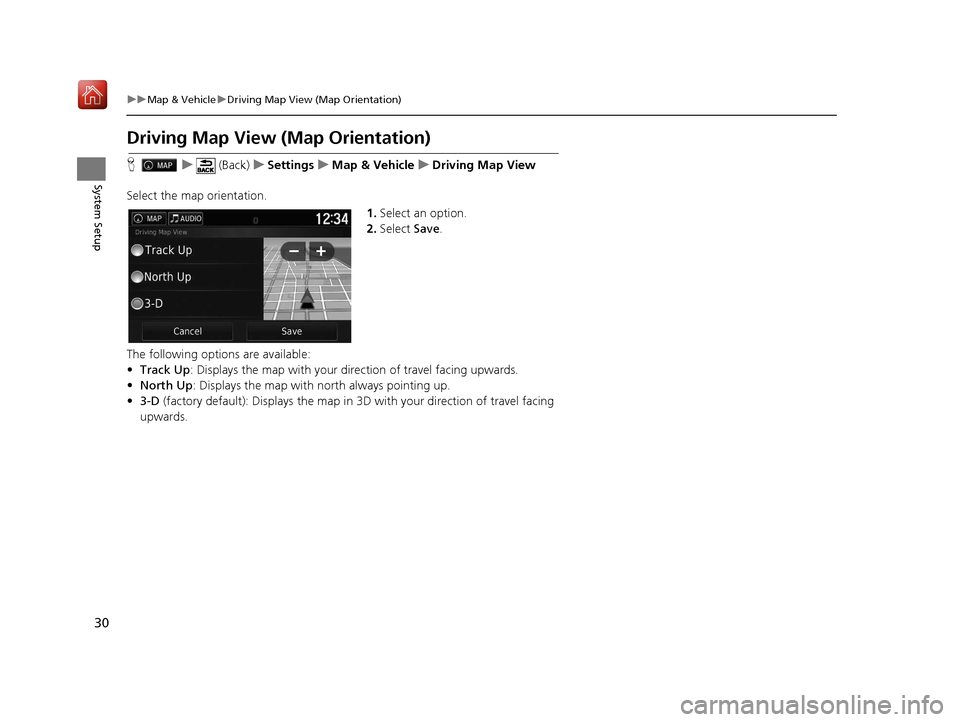

Driving Map View (Map Orientation)
H u (Back) uSettings uMap & Vehicle uDriving Map View
Select the map orientation. 1.Select an option.
2. Select Save.
The following options are available:
• Track Up : Displays the map with your di rection of travel facing upwards.
• North Up: Displays the map with no rth always pointing up.
• 3-D (factory default): Displays the map in 3D with your direction of travel facing
upwards.
16 RIDGELINE HMA NAVI-31T6Z8000.book 30 ページ ２０１６年２月９日　火曜日　午後１時３４分

40
uuNavigation uCustom Avoidances
System SetupH u (Back) uSettings uNavigation uCustom Avoidances
u Add Avoid Area
1.Select the upper-left (right) corner
of the area to avoid. Select Next.
u The icon is displayed on the
map.
2. Select the lower-right (left) corner
of the area to avoid. Select Next.
u The selected area is shaded on
the map.

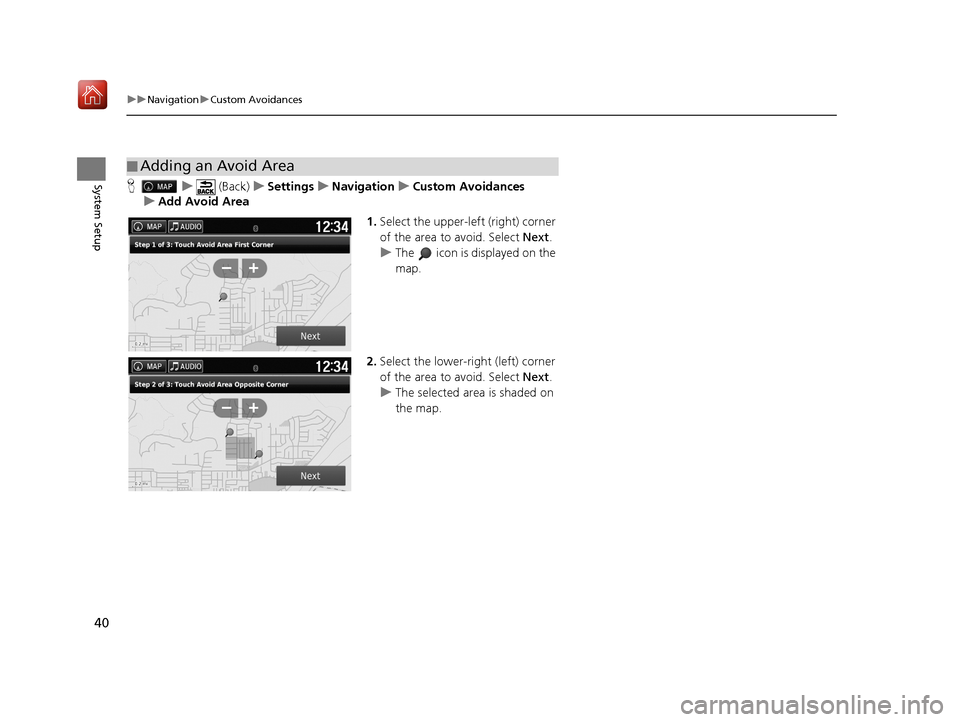

■Adding an Avoid Area
16 RIDGELINE HMA NAVI-31T6Z8000.book 40 ページ ２０１６年２月９日　火曜日　午後１時３４分

41
uuNavigation uCustom Avoidances
Continued
System Setup

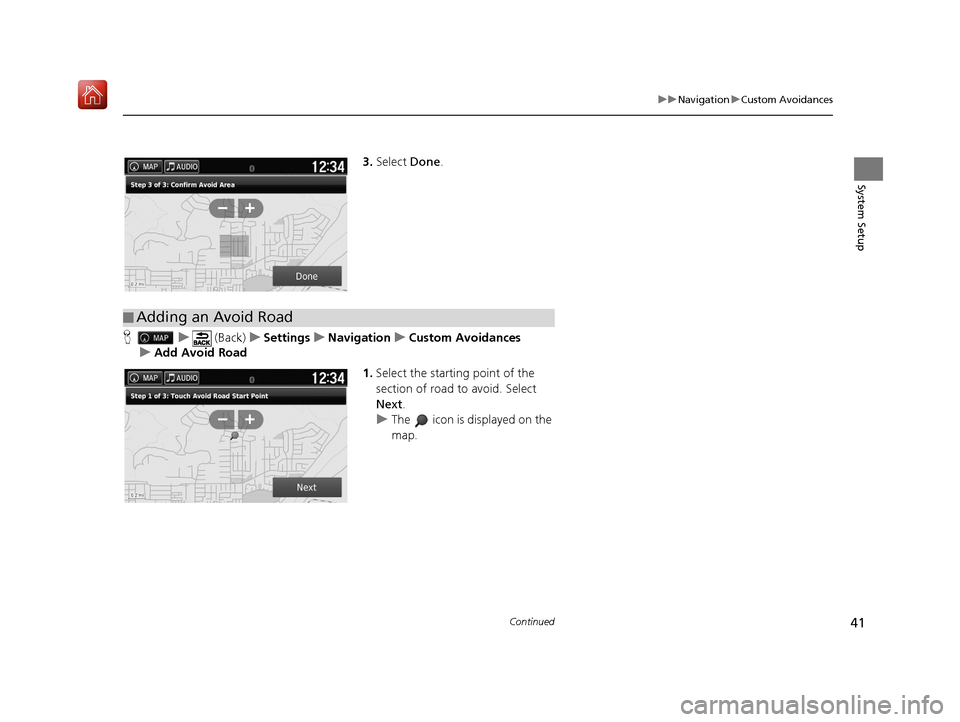

3. Select Done.
H u (Back) uSettings uNavigation uCustom Avoidances
u Add Avoid Road
1.Select the starting point of the
section of road to avoid. Select
Next .
u The icon is displayed on the
map.
■Adding an Avoid Road
