199

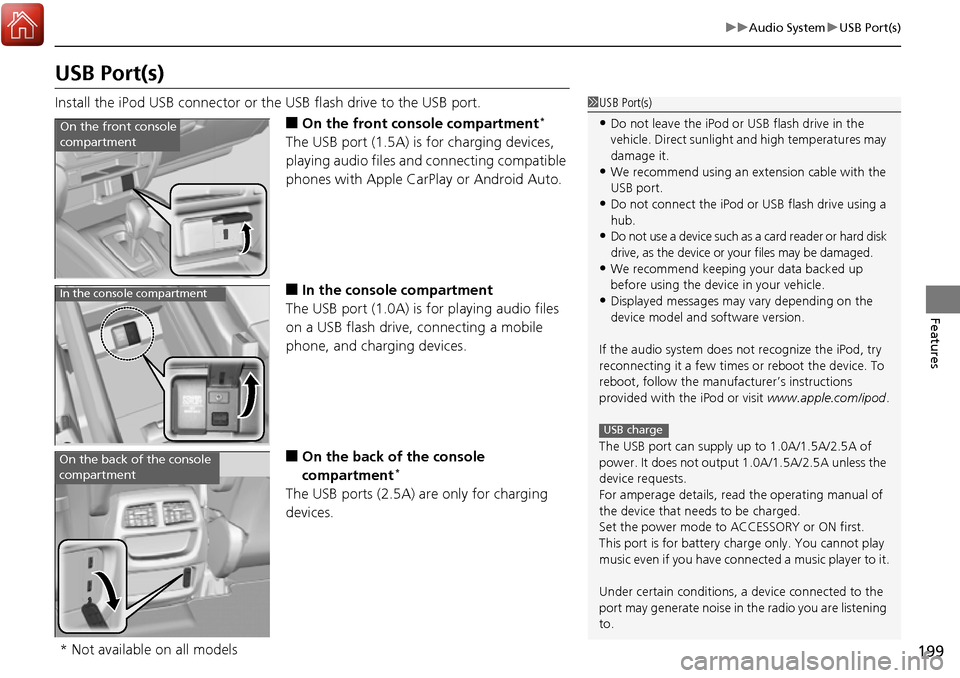

uuAudio System uUSB Port(s)
Features
USB Port(s)
Install the iPod USB connector or the USB flash drive to the USB port.
■On the front console compartment*
The USB port (1.5A) is for charging devices,
playing audio files and connecting compatible
phones with Apple CarPlay or Android Auto.
■In the consol e compartment
The USB port (1.0A) is for playing audio files
on a USB flash drive, connecting a mobile
phone, and charging devices.
■On the back of the console
compartment*
The USB ports (2.5A) are only for charging
devices.
1 USB Port(s)
•Do not leave the iPod or USB flash drive in the
vehicle. Direct sunlight and high temperatures may
damage it.
•We recommend using an extension cable with the
USB port.
•Do not connect the iPod or USB flash drive using a
hub.
•Do not use a device such as a card reader or hard disk
drive, as the device or your files may be damaged.
•We recommend keeping y our data backed up
before using the device in your vehicle.
•Displayed messages may vary depending on the
device model and software version.
If the audio system does not recognize the iPod, try
reconnecting it a few times or reboot the device. To
reboot, follow the manufac turer’s instructions
provided with the iPod or visit www.apple.com/ipod.
The USB port can supply up to 1.0A/1.5A/2.5A of
power. It does not output 1.0A/1.5A/2.5A unless the
device requests.
For amperage details, read the operating manual of
the device that ne eds to be charged.
Set the power mode to ACCESSORY or ON first.
This port is for battery charge only. You cannot play
music even if you have conne cted a music player to it.
Under certain condi tions, a device connected to the
port may generate noise in the radio you are listening
to.
USB charge
On the front console
compartment
In the console compartment
On the back of the console
compartment
* Not available on all models

244

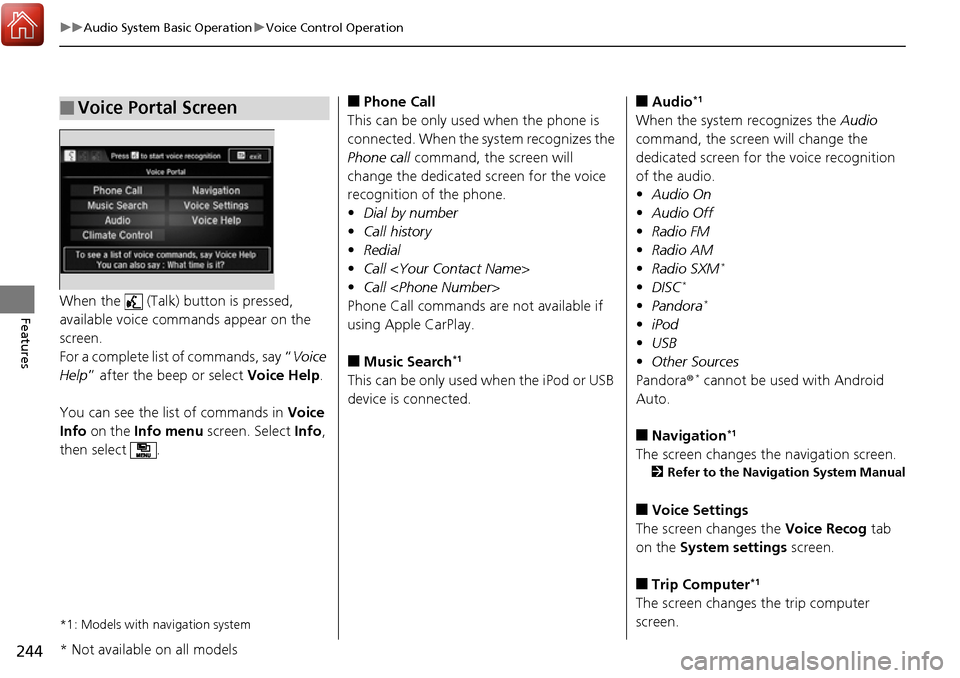

uuAudio System Basic Operation uVoice Control Operation
FeaturesWhen the (Talk) button is pressed,
available voice commands appear on the
screen.
For a complete list of commands, say “ Voice
Help ” after the beep or select Voice Help.
You can see the list of commands in Voice
Info on the Info menu screen. Select Info,
then select .
*1: Models with navigation system
■Voice Portal Screen■Phone Call
This can be only used when the phone is
connected. When the sy stem recognizes the
Phone call command, the screen will
change the dedicated screen for the voice
recognition of the phone.
• Dial by number
• Call history
• Redial
• Call
• Call
Phone Call commands are not available if
using Apple CarPlay.
■Music Search*1
This can be only used when the iPod or USB
device is connected.
■Audio*1
When the system recognizes the Audio
command, the screen will change the
dedicated screen for the voice recognition
of the audio.
• Audio On
• Audio Off
• Radio FM
• Radio AM
• Radio SXM
*
•DISC*
•Pandora*
•iPod
• USB
• Other Sources
Pandora ®
* cannot be used with Android
Auto.
■Navigation*1
The screen changes the navigation screen.
2 Refer to the Navigation System Manual
■Voice Settings
The screen changes the Voice Recog tab
on the System settings screen.
■Trip Computer*1
The screen changes the trip computer
screen.
* Not available on all models

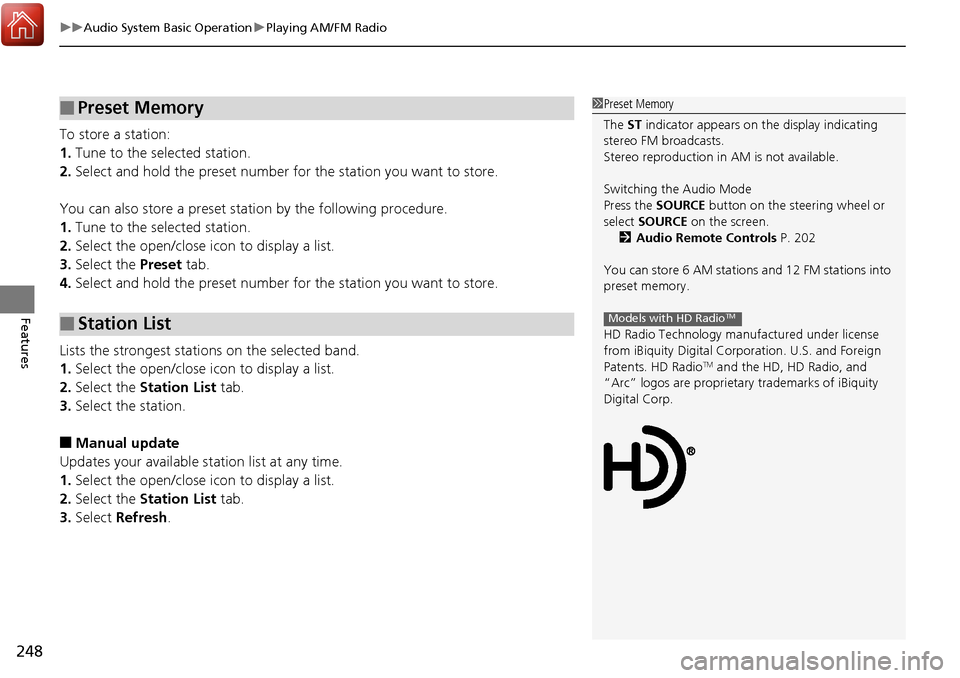

uuAudio System Basic Operation uPlaying AM/FM Radio
248
Features
To store a station:
1. Tune to the selected station.
2. Select and hold the preset number for the station you want to store.
You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select the open/close ic on to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.
Lists the strongest stations on the selected band.
1. Select the open/close ic on to display a list.
2. Select the Station List tab.
3. Select the station.
■Manual update
Updates your available station list at any time.
1. Select the open/close ic on to display a list.
2. Select the Station List tab.
3. Select Refresh.
■Preset Memory
■Station List
1Preset Memory
The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.
Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls P. 202
You can store 6 AM stations and 12 FM stations into
preset memory.
HD Radio Technology manufactured under license
from iBiquity Digital Cor poration. U.S. and Foreign
Patents. HD Radio
TM and the HD, HD Radio, and
“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.
Models with HD RadioTM

Index
597
Index
Index
A
ABS (Anti-lock Brake System).................. 476
AC Power Outlet ...................................... 182
Accessories and Modifications ................ 549
Accessory Power Sockets ......................... 175
Adaptive Cruise Control (ACC) ................ 441
Indicator ................................................... 83
Additives
Coolant .................................................. 519
Engine Oil ............................................... 514
Washer ................................................... 522
Adjusting Armrest .................................................. 168
Front Seats.............................................. 161
Head Restraints ............................... 166, 167
Mirrors.................................................... 159
Rear Seats ............................................... 164
Steering Wheel ....................................... 158
Temperature ........................................... 104
Agile Handling Assist System .................. 464
Air Conditioning System (Climate Control System) ....................... 186
Changing the Mode................................ 187
Defrosting the Windshield and Windows .............................................. 187
Dust and Pollen Filter .............................. 542
Recirculation/Fresh Air Mode................... 187
Sensor .................................................... 192
Synchronized Mode ................................ 189
Using Automatic Climate Control............ 186 Air Conditioning System (Heating and
Cooling System) ...................................... 193
Cooling ................................................... 195
Defrosting the Windshield and Windows ............................................... 196
Heating ................................................... 194
Air Pressure ....................................... 532, 587
Airbags ........................................................ 40
Advanced Airbags ..................................... 46
After a Collision ......................................... 44
Airbag Care ............................................... 52
Front Airbags (SRS) .................................... 43
Indicator .............................................. 50, 75
Passenger Airbag Off Indicator .................. 51
Sensors ...................................................... 40
Side Airbags .............................................. 47
Side Curtain Airbags .................................. 49
All-wheel drive (AWD) Indicator ............... 81
AM/FM Radio .................................... 211, 247
Android Auto ............................................ 287
Anti-lock Brake System (ABS) .................. 476
Indicator .................................................... 75
Apple CarPlay ........................................... 284
Armrest ..................................................... 168
Audio Remote Controls ............................ 202
Audio System ............................................ 198
Adjusting the Sound ........................ 209, 240
Audio/Information Screen ................ 205, 223
Auxiliary Input Jack .................................. 200
Changing the Home Screen Icon Layout ................................................... 227 Closing Apps ........................................... 237
Display Setup .................................. 210, 241
Error Messages ........................................ 292
General Information ................................ 296
Home Screen........................................... 230
Limitations for Manual Operation ............ 242
MP3/WMA/AAC ...................... 216, 259, 271
Playing a CD............................................ 259
Reactivating ............................................ 201
Recommended CDs ................................. 297
Remote Controls ..................................... 202
Security Code .......................................... 201
Selecting an Audio Source ....................... 242
Status Area ............................................. 236
Theft Protection ...................................... 201
USB Flash Drives ...................................... 299
USB Port.................................................. 199
Wallpaper Setup.............................. 207, 228
Audio/Information Screen ............... 205, 223
Authorized Manuals ................................ 595
Auto Door Locking/Unlocking ................. 122
Customize ............................................... 326
Auto High-Beam ....................................... 149
Auto high-beam Indicator ......................... 79
Automatic Intermittent Wipers ............... 153
Automatic Lighting .................................. 145

600
Index
F
Features..................................................... 197
Filters Dust and Pollen ....................................... 542
Oil ........................................................... 517
Flat Tire ..................................................... 553
Floor Mats ................................................. 544
Fluids
Automatic Transmission ........................... 521
Brake ....................................................... 522
Engine Coolant ........................................ 519
Windshield Washer .................................. 522
FM/AM Radio .................................... 211, 247
Fog Lights .................................................. 147
Indicator .................................................... 79
Folding Up the Rear Seat ......................... 164
Foot Brake ................................................. 475
Front Airbags (SRS) ..................................... 43
Front Seats ................................................ 161
Adjusting ................................................. 161
Front Sensor Camera ................................ 434
Fuel ...................................................... 21, 498
Economy ................................................. 501
Gauge ..................................................... 101
Instant Fuel Economy ............................... 105
Low Fuel Indicator ..................................... 75
Range ...................................................... 105
Recommendation .................................... 498
Refueling ................................................. 498
Fuel Economy and CO
2 Emissions ............ 501 Fuel Fill Door
...................................... 21, 499
Unable to Unlock .................................... 581
Fuses .......................................................... 575
Inspecting and Changing......................... 579
Locations................................. 575, 577, 578
G
Gasoline (Fuel) Economy ................................................. 501
Gauge ..................................................... 101
Information ............................................. 498
Instant Fuel Economy .............................. 105
Low Fuel Indicator ..................................... 75
Refueling................................................. 498
Gauges ...................................................... 101
Glass (care) ................................................ 547
Glove Box .................................................. 171
H
Halogen Bulbs .......................................... 523
Handling the Unexpected ........................ 551
HandsFreeLink ® (HFL) ....................... 337, 362
Automatic Import of Cellular Phonebook and Call History .................................... 351, 375
Caller’s ID Information............................. 349
Displaying Messages................................ 389
HFL Buttons..................................... 337, 362
HFL Menus ...................................... 339, 365
HFL Status Display ........................... 338, 364 In Case of Emergency ............................. 393
Limitations for Manual Operation .... 338, 364
Making a Call ................................. 356, 383
Options During a Call...................... 361, 386
Phone Setup ................................... 343, 370
Phonebook Phonetic M
odification........... 379
Receiving a Call............................... 360, 386
Receiving a Text Message/E-mail ............. 387
Ring Tone ....................................... 349, 374
Selecting a Mail Account......................... 388
Speed Dial ...................................... 352, 376
To Clear the System ................................ 350
To Set Up a Text Message/E-mail Options ................................................. 373
Hazard Warning Button .............................. 4
Hazard Warning Indicator ......................... 78
HD Radio
TM............................................... 247
Head Restraints ................................ 166, 167
Headlights ................................................ 144
Aiming.................................................... 523
Auto High-Beam ..................................... 149
Automatic Operation .............................. 145
Dimming......................................... 144, 148
Operating ............................................... 144
Heated Door Mirrors ............................... 154
Heated Steering Wheel ........................... 178
Heated Windshield Button ...................... 154
Heater (Steering Wheel) .......................... 178
Heaters (Seat) ........................... 179, 180, 181
