Page 79 of 606
78
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Electric Power
Steering (EPS)
System Indicator
●Comes on when you set the
power mode to ON, and goes off
when the engine starts.
●Comes on if there is a problem
with the EPS system.
●Stays on constantly or does not come on
at all - Have your vehicle checked by a
dealer.
2If the Electric Power Steering (EPS)
System Indicator Comes On P. 573
Low Tire Pressure/
TPMS Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Comes on if the tire pressure of
any of the tires becomes
significantly low.
●Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill
Assist, or when a compact spare
tire is temporarily installed.
●Comes on while driving - Stop in a safe
place, check tire pres sures, and inflate the
tire(s) if necessary.
●Blinks and remains on - Have your vehicle
checked by a dealer. If the vehicle is fitted
with a compact spare, get your regular tire
repaired or replaced and put back on your
vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink when you press the hazard
warning button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2 Replacing Light Bulbs P. 526, 527
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Page 526 of 606
525
uuReplacing Light Bulbs uDaytime Running Lights and Parking Lights
Maintenance
1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to
remove.
3. Insert a new bulb into the headlight
assembly and turn it clockwise.
4. Insert the coupler into the connector of the
bulb.
Daytime Running Lights and Parking Lights
Daytime running lights and parking lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
Daytime running light bulbs and high beam headlight bulbs are the same.
2Headlight Bulbs P. 523
Parking light bulbs and front turn signal bulbs are the same.
2Front Turn Signal/Parking* and Fog* Light Bulbs P. 526
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Hond a dealer inspect and
replace the light assembly.
■Low Beam Headlights1 Low Beam Headlights
Low beam headlights are LED type. Have an
authorized Honda dealer in spect and replace the light
assembly.
Models with Auto high-beamModels without Auto high-beam
TabCoupler
Bulb
Models with LED type daytime running lights
Models without LED type daytime running lights
* Not available on all models
Page 527 of 606
526
uuReplacing Light Bulbs uFront Turn Signal/Parking* and Fog* Light Bulbs
Maintenance
Front Turn Signal/Parking* and Fog* Light Bulbs
When replacing, use the following bulbs.
1.Remove the clip using a flat-tip screwdriver,
remove the bolt, and push up the under
cover.
2. Remove the coupler
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
Side Turn Signal*/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Front Turn Signal/Parking* Light:28/8W (Amber)
Fog Light*: 35 W (H8 for halogen bulb type)
1 Front Turn Signal/Parking* and Fog* Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Push until the pin
is flat.
Bolt
Clip
Bulb
SocketBulb
Tab
Coupler
Models with fog light
All models
* Not available on all models
Page 528 of 606
527
uuReplacing Light Bulbs uRear Turn Signal and Back-Up Light Bulbs
Maintenance
Rear Turn Signal and Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillip-head screwdriver to remove
the screws.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket co unter-clockwise and
remove it. Remove the old bulb.
4. Insert a new bulb and turn clockwise.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in until they fully seat.
Brake/Taillight and Rear Side Marker Lights
Brake/taillight and rear side marker lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.
Back-Up Light: 21 W
Rear Turn Signal Light: 21 W
Screws
Bulb
Socket Bulb
Socket

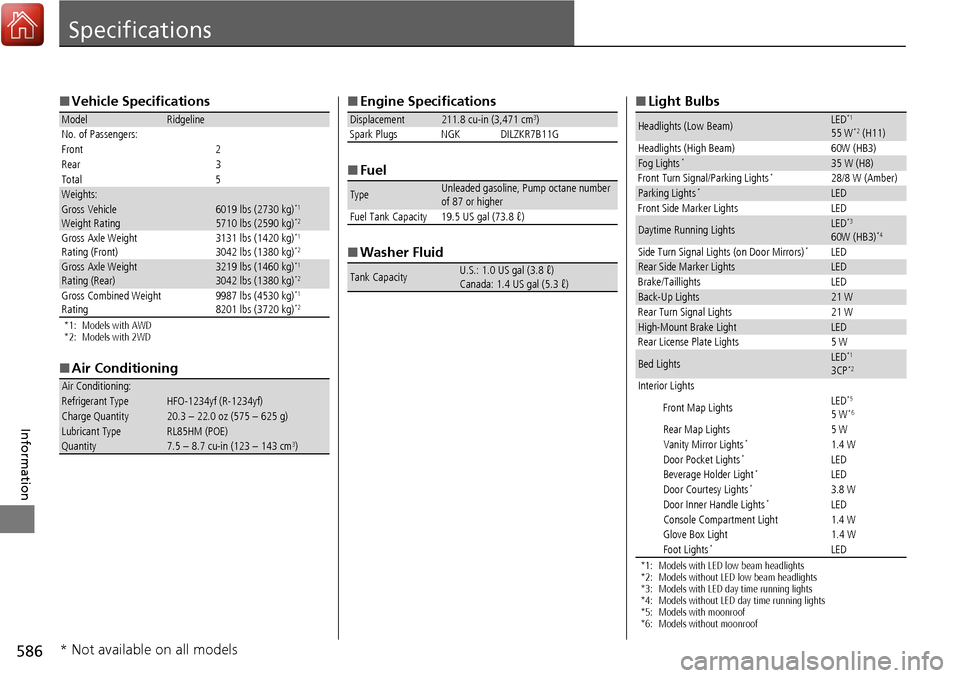

Page 587 of 606
586
Information
Specifications
■Vehicle Specifications
*1: Models with AWD
*2: Models with 2WD
■Air Conditioning
ModelRidgeline
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating6019 lbs (2730 kg)*1
5710 lbs (2590 kg)*2
Gross Axle Weight
Rating (Front)3131 lbs (1420 kg)*1
3042 lbs (1380 kg)*2
Gross Axle Weight
Rating (Rear)3219 lbs (1460 kg)*1
3042 lbs (1380 kg)*2
Gross Combined Weight
Rating 9987 lbs (4530 kg)*1
8201 lbs (3720 kg)*2
Air Conditioning:Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 – 22.0 oz (575 – 625 g)Lubricant TypeRL85HM (POE)Quantity7.5 – 8.7 cu-in (123 – 143 cm3)
■
Engine Specifications
■ Fuel
■ Washer Fluid
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 ℓ)
Tank CapacityU.S.: 1.0 US gal (3.8 ℓ)
Canada: 1.4 US gal (5.3 ℓ)
■ Light Bulbs
*1: Models with LED low beam headlights
*2: Models without LED low beam headlights
*3: Models with LED day time running lights
*4: Models without LED day time running lights
*5: Models with moonroof
*6: Models without moonroof
Headlights (Low Beam)LED*1
55 W*2 (H11)
Headlights (High Beam) 60W (HB3)
Fog Lights*35 W (H8)
Front Turn Signal/Parking Lights*28/8 W (Amber)Parking Lights*LED
Front Side Marker Lights LED
Daytime Running LightsLED*3
60W (HB3)*4
Side Turn Signal Lights (on Door Mirrors)*LEDRear Side Marker LightsLED
Brake/Taillights LED
Back-Up Lights21 W
Rear Turn Signal Lights 21 W
High-Mount Brake LightLED
Rear License Plate Lights 5 W
Bed LightsLED*1
3CP*2
Interior Lights
Front Map Lights LED*5
5 W*6
Rear Map Lights
5 W
Vanity Mirror Lights*1.4 W
Door Pocket Lights*LED
Beverage Holder Light*LED
Door Courtesy Lights*3.8 W
Door Inner Handle Lights*LED
Console Compartment Light 1.4 W
Glove Box Light 1.4 W
Foot Lights
*LED
* Not available on all models

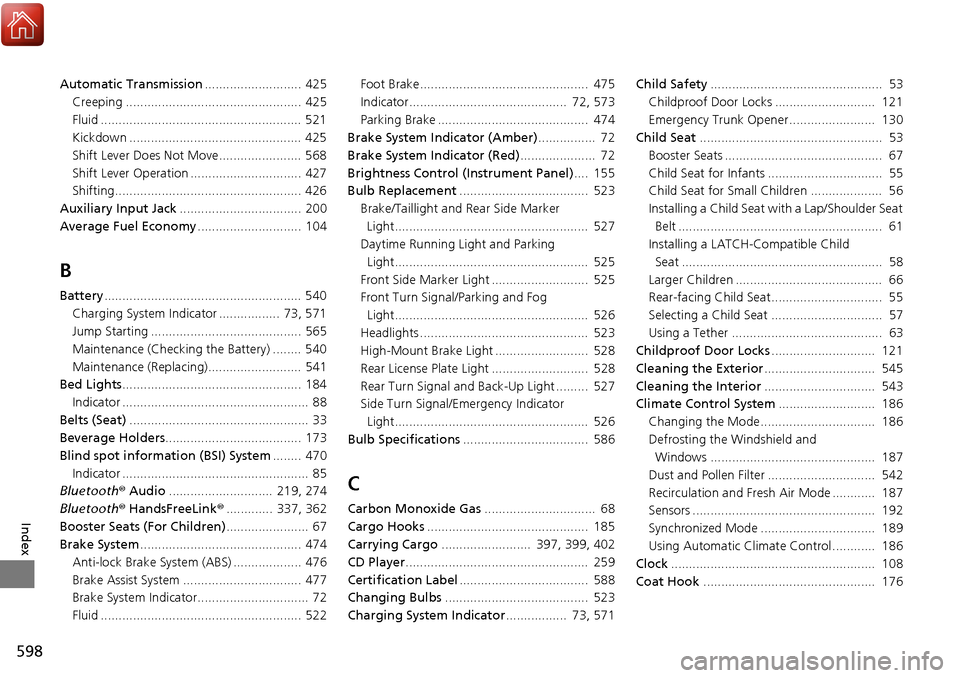

Page 599 of 606
598
Index
Automatic Transmission........................... 425
Creeping ................................................. 425
Fluid ........................................................ 521
Kickdown ................................................ 425
Shift Lever Does Not Move....................... 568
Shift Lever Operation ............................... 427
Shifting.................................................... 426
Auxiliary Input Jack .................................. 200
Average Fuel Economy ............................. 104
B
Battery....................................................... 540
Charging System Indicator ................. 73, 571
Jump Starting .......................................... 565
Maintenance (Checking the Battery) ........ 540
Maintenance (Replacing).......................... 541
Bed Lights .................................................. 184
Indicator .................................................... 88
Belts (Seat) .................................................. 33
Beverage Holders ...................................... 173
Blind spot information (BSI) System ........ 470
Indicator .................................................... 85
Bluetooth ® Audio ............................. 219, 274
Bluetooth ® HandsFreeLink ®............. 337, 362
Booster Seats (For Children) ....................... 67
Brake System ............................................. 474
Anti-lock Brake System (ABS) ................... 476
Brake Assist System ................................. 477
Brake System Indicator............................... 72
Fluid ........................................................ 522 Foot Brake............................................... 475
Indicator............................................ 72, 573
Parking Brake .......................................... 474
Brake System Indicator (Amber) ................ 72
Brake System Indicator (Red) ..................... 72
Brightness Control (Instrument Panel).... 155
Bulb Replacement .................................... 523
Brake/Taillight and Rear Side Marker
Light...................................................... 527
Daytime Running Light and Parking
Light...................................................... 525
Front Side Marker Light ........................... 525
Front Turn Signal/Parking and Fog Light...................................................... 526
Headlights ............................................... 523
High-Mount Brake Light .......................... 528
Rear License Plate Light ........................... 528
Rear Turn Signal and Back-Up Light ......... 527
Side Turn Signal/Emergency Indicator Light...................................................... 526
Bulb Specifications ................................... 586
C
Carbon Monoxide Gas ............................... 68
Cargo Hooks ............................................. 185
Carrying Cargo ......................... 397, 399, 402
CD Player ................................................... 259
Certification Label .................................... 588
Changing Bulbs ........................................ 523
Charging System Indicator ................. 73, 571Child Safety
................................................ 53
Childproof Door Locks ............................ 121
Emergency Trunk Opener........................ 130
Child Seat ................................................... 53
Booster Seats ............................................ 67
Child Seat for Infants ................................ 55
Child Seat for Small Children .................... 56
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 61
Installing a LATCH-Compatible Child Seat ........................................................ 58
Larger Children ......................................... 66
Rear-facing Child Seat............................... 55
Selecting a Child Seat ............................... 57
Using a Tether .......................................... 63
Childproof Door Locks ............................. 121
Cleaning the Exterior ............................... 545
Cleaning the Interior ............................... 543
Climate Control System ........................... 186
Changing the Mode................................ 186
Defrosting the Windshield and Windows .............................................. 187
Dust and Pollen Filter .............................. 542
Recirculation and Fresh Air Mode ............ 187
Sensors ................................................... 192
Synchronized Mode ................................ 189
Using Automatic Climate Control............ 186
Clock ......................................................... 108
Coat Hook ................................................ 176
Page 603 of 606
602
Index
L
Lane Keeping Assist System (LKAS)......... 454
Indicator .................................................... 84
LaneWatch
TM............................................. 472
Language (HFL) ................................. 338, 364
LATCH (Child Seats) .............................. 58, 63
Lights ................................................. 144, 523
Automatic ............................................... 145
Bed.......................................................... 184
Bulb Replacement .................................... 523
Daytime Running Lights ........................... 148
High Beam Indicator .................................. 78
Interior .................................................... 169
Light Switches ......................................... 144
Lights On Indicator .................................... 79
Turn Signals ............................................. 143
Load Limits ................................................ 399
Locking/Unlocking .................................... 109
Auto Door Locking/Unlocking .................. 122
Childproof Door Locks ............................. 121
From Inside .............................................. 119
From Outside ........................................... 112
Keys ........................................................ 109
Using a Key ............................................. 118
Lockout Prevention System ...................... 118
Low Battery Charge .................................. 571
Low Fuel Indicator ...................................... 75
Low Oil Pressure Indicator ................. 73, 571
Low Tire Pressure Indicator ........................ 78
Lower Anchors ...................................... 58, 63
Lubricant Specifications Chart ................. 587Luggage (Maximum Load Limit)
............. 399
Lumbar Support ....................................... 161M
Maintenance............................................. 503
Battery .................................................... 540
Brake Fluid .............................................. 522
Cleaning ................................................. 543
Climate Control System ........................... 542
Coolant ................................................... 519
Heating and Cooling System ................... 542
Maintenance Minder
TM............................ 507
Oil ........................................................... 515
Precautions ............................................. 504
Radiator .................................................. 520
Remote Transmitter ................................. 541
Replacing Light Bulbs .............................. 523
Safety...................................................... 505
Service Items ........................................... 509
Tires ........................................................ 531
Transmission Fluid ................................... 521
Under the Hood ...................................... 511
Malfunction Indicator Lamp .............. 73, 572
Map Lights ................................................ 170
Maximum Load Limit ............................... 399
Meters, Gauges ......................................... 101
Mirrors ...................................................... 159
Adjusting ................................................ 159
Door ....................................................... 160
Exterior ................................................... 160 Interior Rearview ..................................... 159
Modifications (and Accessories) .............. 549
Moonroof ................................................. 138
MP3 ........................................... 216, 259, 271
MP3/WMA/AAC ........................ 216, 259, 271
Multi-Information Display ....................... 102
Multi-View Rear Camera ......................... 496
N
Numbers (Identification)......................... 588
O
Odometer................................................. 103
Off-Highway Driving Guidelines ............. 416
Oil (Engine) .............................................. 514
Adding ................................................... 516
Checking ................................................ 515
Displaying Oil Life ................................... 507
Low Oil Pressure Indicator ................. 73, 571
Recommended Engine Oil ....................... 514
Viscosity.................................................. 514
Open Source Licenses .............................. 302
Opening/Closing Hood ...................................................... 512
Moonroof ............................................... 138
Power Windows...................................... 134
Tailgate................................................... 126
Trunk ...................................................... 128
Outside Temperature Display ................. 104
