4
Quick Reference Guide
Quick Reference Guide

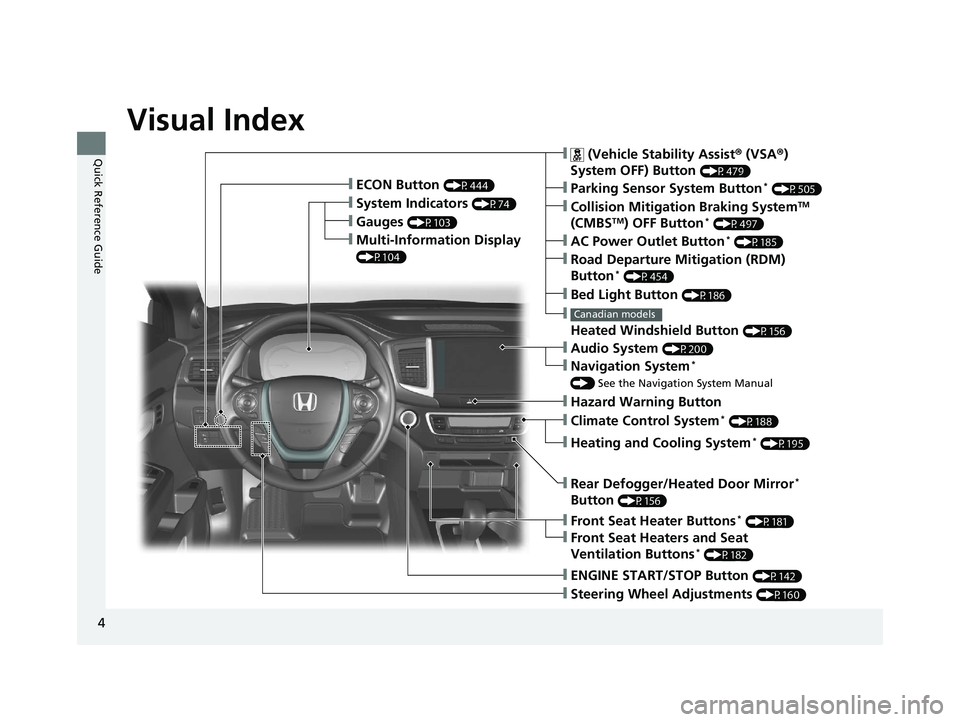

Visual Index
❙Gauges (P103)
❙Multi-Information Display
(P104)
❙System Indicators (P74)
❙ECON Button (P444)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P497)
❙
Heated Windshield Button (P156)
Canadian models
❙Parking Sensor System Button* (P505)
❙Steering Wheel Adjustments (P160)
❙ENGINE START/STOP Button (P142)
❙AC Power Outlet Button* (P185)
❙Road Departure Mitigation (RDM)
Button* (P454)
❙ (Vehicle Stability Assist ® (VSA ®)
System OFF) Button
(P479)
❙Bed Light Button (P186)
❙Audio System (P200)
❙Navigation System*
() See the Navigation System Manual
❙Front Seat Heater Buttons* (P181)
❙Front Seat Heaters and Seat
Ventilation Buttons* (P182)
❙Rear Defogger/Heated Door Mirror*
Button
(P156)
❙Heating and Cooling System* (P195)
❙Climate Control System* (P188)
❙Hazard Warning Button

Continued181
uuInterior Lights/Convenience Items uInterior Convenience Items
Controls

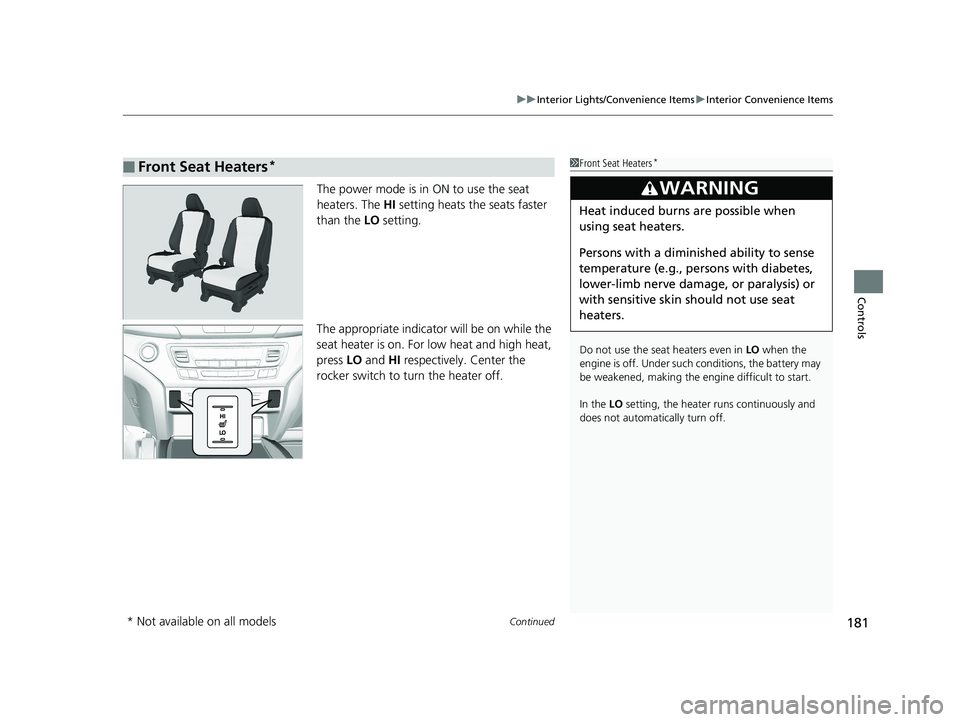

The power mode is in ON to use the seat
heaters. The HI setting heats the seats faster
than the LO setting.
The appropriate indicato r will be on while the
seat heater is on. For low heat and high heat,
press LO and HI respectively. Center the
rocker switch to tu rn the heater off.
■Front Seat Heaters*1Front Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
In the LO setting, the heater runs continuously and
does not automatically turn off.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models

uuInterior Lights/Convenience Items uInterior Convenience Items
182
Controls

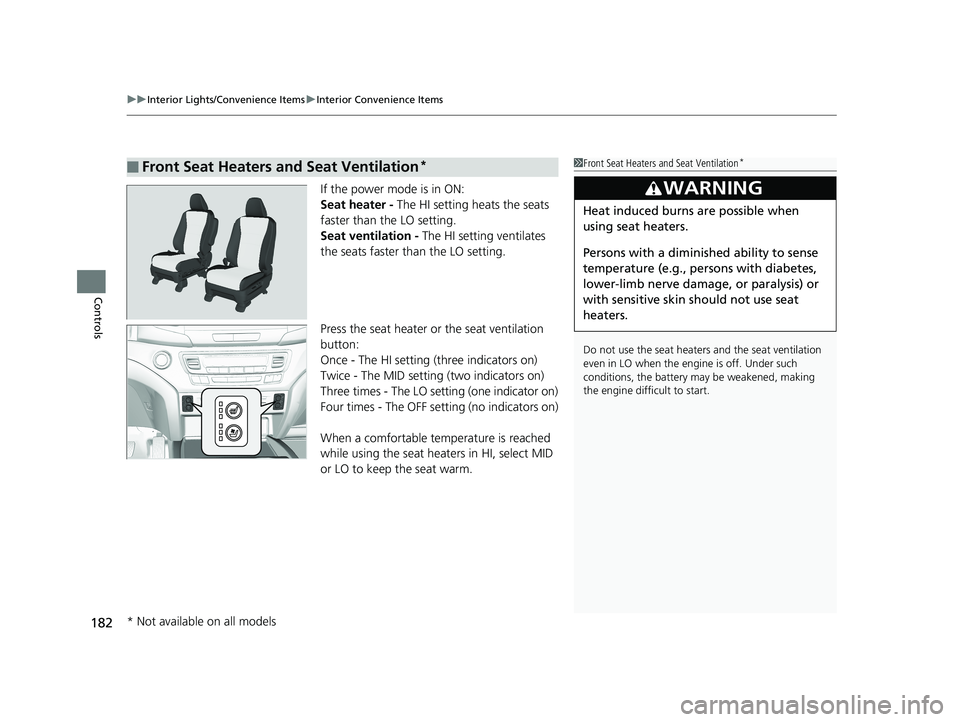

If the power mode is in ON:
Seat heater - The HI setting heats the seats
faster than the LO setting.
Seat ventilation - The HI setting ventilates
the seats faster than the LO setting.
Press the seat heater or the seat ventilation
button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
When a comfortable temperature is reached
while using the seat heaters in HI, select MID
or LO to keep the seat warm.
■Front Seat Heaters and Seat Ventilation*1 Front Seat Heaters and Seat Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models

183
uuInterior Lights/Convenience Items uInterior Convenience Items
Controls

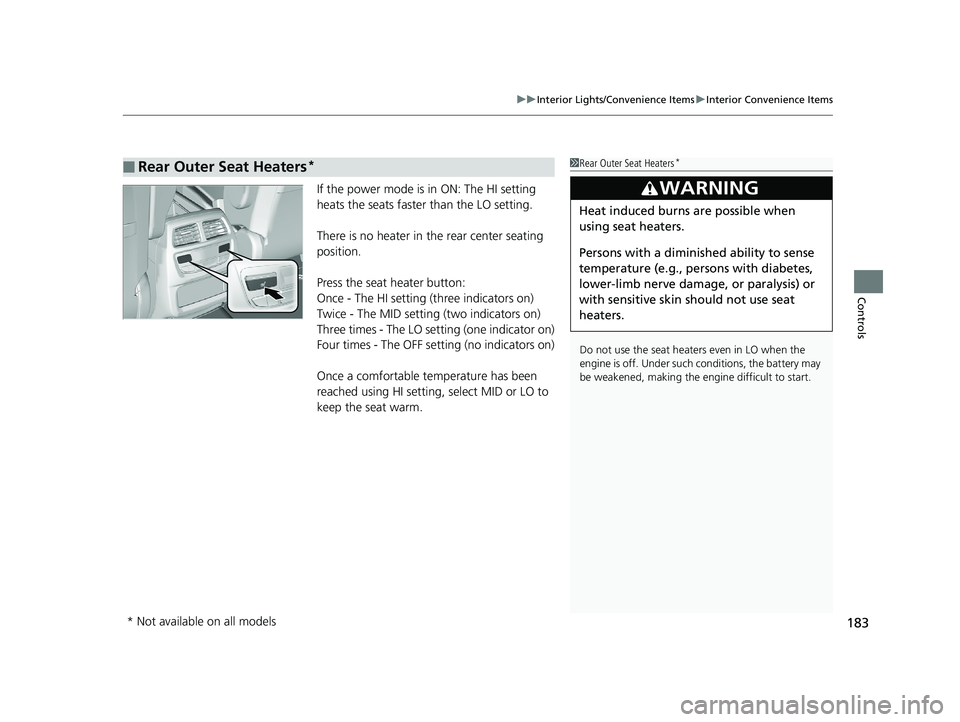

If the power mode is in ON: The HI setting
heats the seats faster than the LO setting.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
Once a comfortable temperature has been
reached using HI setting, select MID or LO to
keep the seat warm.
■Rear Outer Seat Heaters*1 Rear Outer Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models

uuHeating and Cooling System*uUsing Vents, Heating and A/C
196
Controls

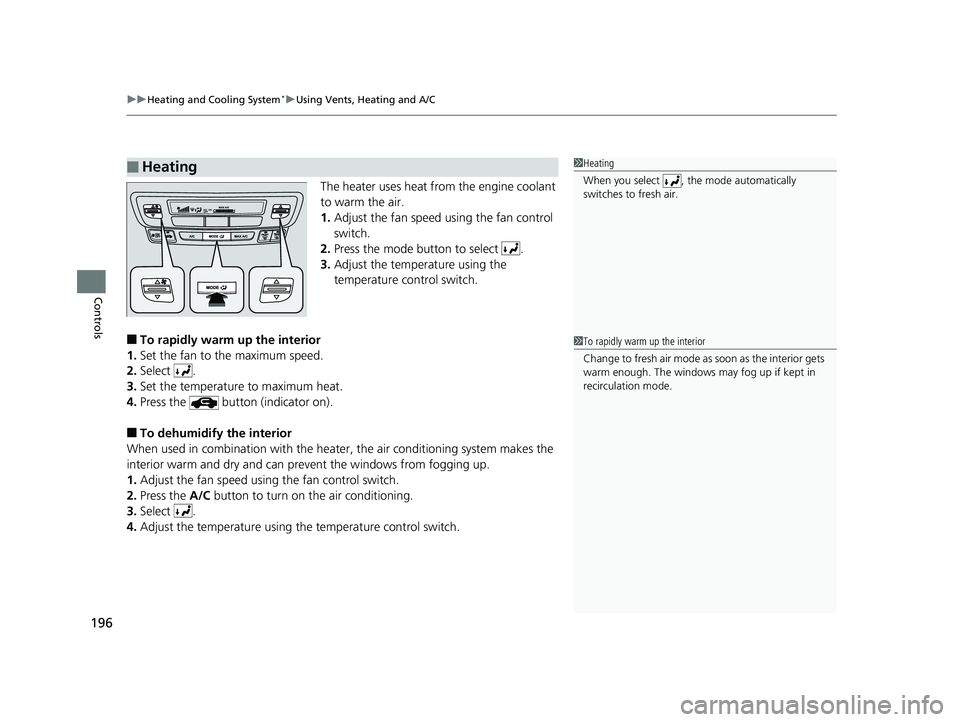

The heater uses heat from the engine coolant
to warm the air.
1. Adjust the fan speed using the fan control
switch.
2. Press the mode button to select .
3. Adjust the temperature using the
temperature control switch.
■To rapidly warm up the interior
1. Set the fan to the maximum speed.
2. Select .
3. Set the temperature to maximum heat.
4. Press the button (indicator on).
■To dehumidify the interior
When used in combination with the heater , the air conditioning system makes the
interior warm and dry and can pr event the windows from fogging up.
1. Adjust the fan speed using the fan control switch.
2. Press the A/C button to turn on the air conditioning.
3. Select .
4. Adjust the temperature using the temperature control switch.
■Heating1Heating
When you select , th e mode automatically
switches to fresh air.
1 To rapidly warm up the interior
Change to fresh air mode as soon as the interior gets
warm enough. The windows may fog up if kept in
recirculation mode.

434
Driving
When Driving

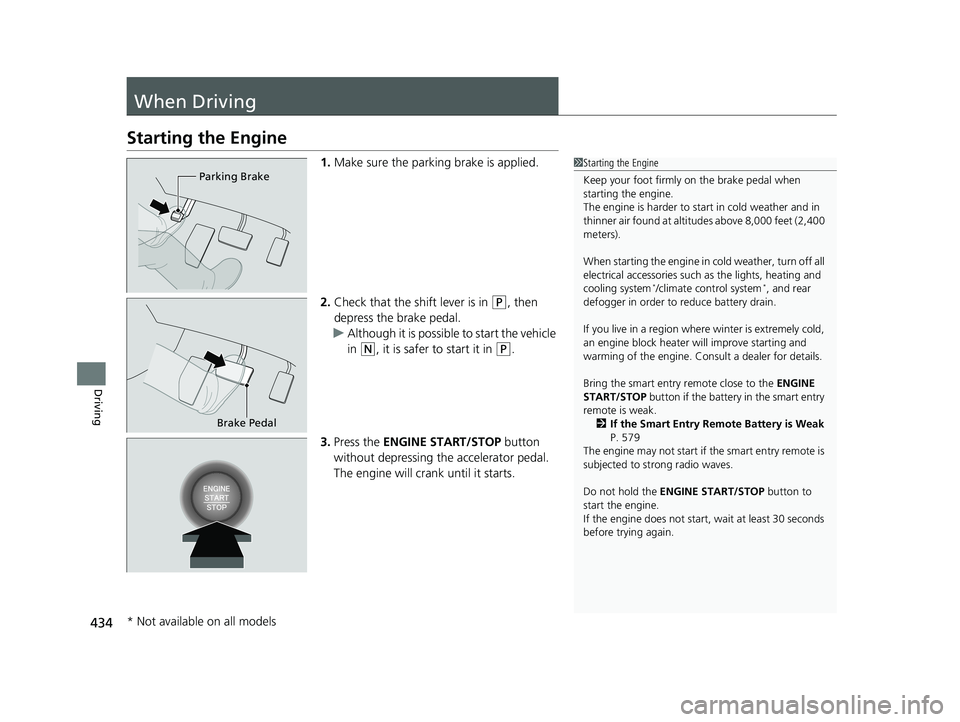

Starting the Engine
1.Make sure the parking brake is applied.
2. Check that the shift lever is in
(P, then
depress the brake pedal.
u Although it is possibl e to start the vehicle
in
(N, it is safer to start it in (P.
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.
The engine will crank until it starts.
1 Starting the Engine
Keep your foot firmly on the brake pedal when
starting the engine.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When starting the engine in cold weather, turn off all
electrical accessories such as the lights, heating and
cooling system
*/climate control system*, and rear
defogger in order to reduce battery drain.
If you live in a region where winter is extremely cold,
an engine block heater will improve starting and
warming of the engine. Cons ult a dealer for details.
Bring the smart entry remote close to the ENGINE
START/STOP button if the battery in the smart entry
remote is weak. 2 If the Smart Entry Remote Battery is Weak
P. 579
The engine may not start if the smart entry remote is
subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before trying again.
Parking Brake
Brake Pedal
* Not available on all models

uuWhen Driving uStarting the Engine
438
Driving

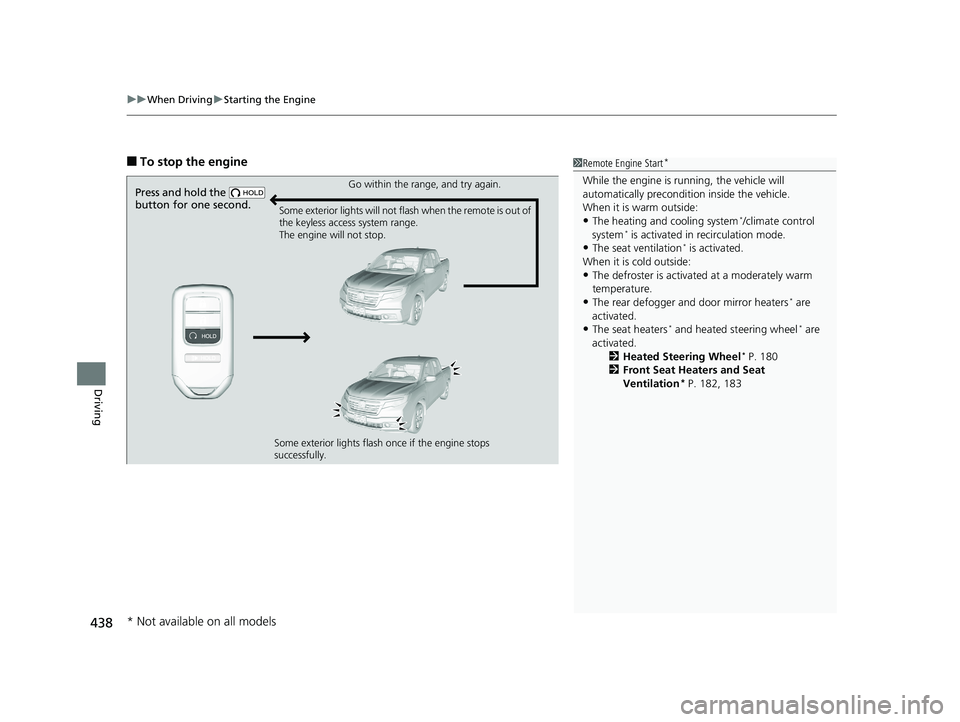

■To stop the engine1Remote Engine Start*
While the engine is running, the vehicle will
automatically preconditi on inside the vehicle.
When it is warm outside:
•The heating and cooling system*/climate control
system* is activated in recirculation mode.
•The seat ventilation* is activated.
When it is cold outside:
•The defroster is activated at a moderately warm
temperature.
•The rear defogger and door mirror heaters* are
activated.
•The seat heaters* and heated steering wheel* are
activated. 2Heated Steering Wheel
* P. 180
2 Front Seat Heaters and Seat
Ventilation
* P. 182, 183
Press and hold the
button for one second.Go within the range, and try again.
Some exterior lights will not flash when the remote is out of
the keyless access system range.
The engine will not stop.
Some exterior lights flash once if the engine stops
successfully.
* Not available on all models

594

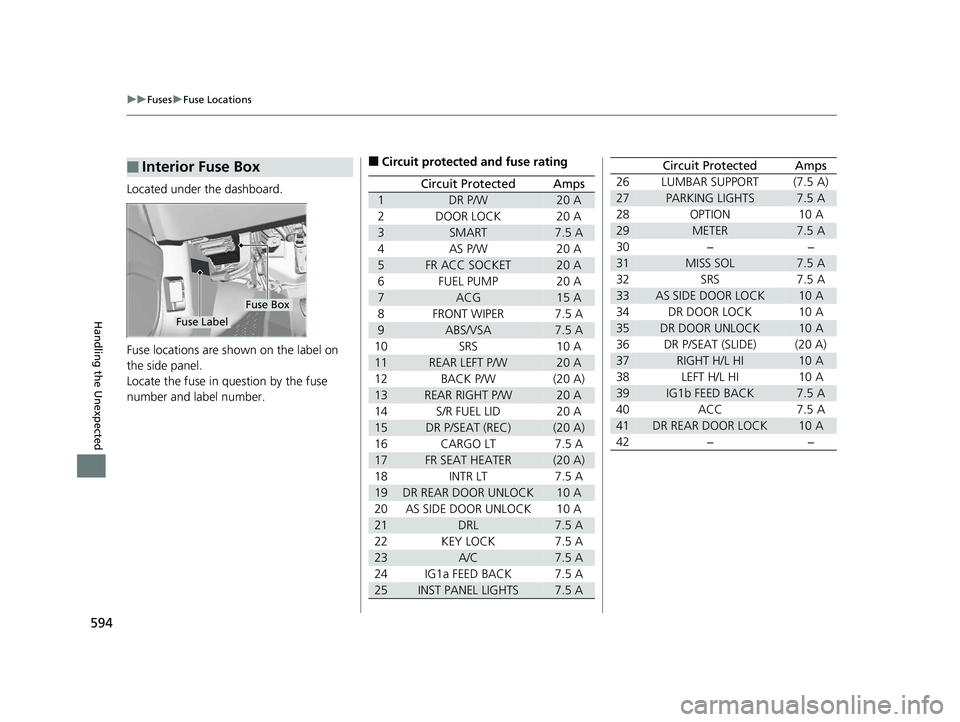

uuFuses uFuse Locations
Handling the Unexpected
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse Box
Fuse Label
■Circuit protected and fuse rating
Circuit ProtectedAmps
1DR P/W20 A
2DOOR LOCK20 A
3SMART7.5 A
4AS P/W20 A
5FR ACC SOCKET20 A
6FUEL PUMP20 A
7ACG15 A
8FRONT WIPER7.5 A
9ABS/VSA7.5 A
10SRS10 A
11REAR LEFT P/W20 A
12BACK P/W(20 A)
13REAR RIGHT P/W20 A
14S/R FUEL LID20 A
15DR P/SEAT (REC)(20 A)
16CARGO LT7.5 A
17FR SEAT HEATER(20 A)
18INTR LT7.5 A
19DR REAR DOOR UNLOCK10 A
20AS SIDE DOOR UNLOCK10 A
21DRL7.5 A
22KEY LOCK7.5 A
23A/C7.5 A
24IG1a FEED BACK7.5 A
25INST PANEL LIGHTS7.5 A
26LUMBAR SUPPORT(7.5 A)
27PARKING LIGHTS7.5 A
28OPTION10 A
29METER7.5 A
30−−
31MISS SOL7.5 A
32SRS7.5 A
33AS SIDE DOOR LOCK10 A
34DR DOOR LOCK10 A
35DR DOOR UNLOCK10 A
36DR P/SEAT (SLIDE)(20 A)
37RIGHT H/L HI10 A
38LEFT H/L HI10 A
39IG1b FEED BACK7.5 A
40ACC7.5 A
41DR REAR DOOR LOCK10 A
42−−
Circuit ProtectedAmps

616
Index
F
Features..................................................... 199
Filters Dust and Pollen ....................................... 558
Oil ........................................................... 533
Flat Tire ..................................................... 569
Floor Mats ................................................. 560
Fluids
Automatic Transmission ........................... 537
Brake ....................................................... 538
Engine Coolant ........................................ 535
Windshield Washer .................................. 538
FM/AM Radio .................................... 214, 250
Fog Lights .................................................. 149
Indicator .................................................... 81
Folding Up the Rear Seat ......................... 166
Foot Brake ................................................. 491
Front Airbags (SRS) ..................................... 45
Front Seats ................................................ 163
Adjusting ................................................. 163
Front Sensor Camera ................................ 450
Fuel ...................................................... 21, 514
Economy ................................................. 517
Gauge ..................................................... 103
Instant Fuel Economy ............................... 107
Low Fuel Indicator ..................................... 77
Range ...................................................... 107
Recommendation .................................... 514
Refueling ................................................. 514
Fuel Economy and CO
2 Emissions ............ 517 Fuel Fill Door
...................................... 21, 515
Unable to Unlock .................................... 597
Fuses .......................................................... 591
Inspecting and Changing......................... 595
Locations................................. 591, 593, 594
G
Gasoline (Fuel) Economy ................................................. 517
Gauge ..................................................... 103
Information ............................................. 514
Instant Fuel Economy .............................. 107
Low Fuel Indicator ..................................... 77
Refueling................................................. 514
Gauges ...................................................... 103
Glass (care) ................................................ 563
Glove Box .................................................. 173
H
Halogen Bulbs .......................................... 539
Handling the Unexpected ........................ 567
HandsFreeLink ® (HFL) ....................... 352, 377
Automatic Import of Cellular Phonebook and Call History .................................... 366, 390
Caller’s ID Information............................. 364
Displaying Messages................................ 404
HFL Buttons..................................... 352, 377
HFL Menus ...................................... 354, 380
HFL Status Display ........................... 353, 379 In Case of Emergency ............................. 408
Limitations for Manual Operation .... 353, 379
Making a Call ................................. 371, 398
Options During a Call...................... 376, 401
Phone Setup ................................... 358, 385
Phonebook Phonetic M
odification........... 394
Receiving a Call............................... 375, 401
Receiving a Text Message/E-mail ............. 402
Ring Tone ....................................... 364, 389
Selecting a Mail Account......................... 403
Speed Dial ...................................... 367, 391
To Clear the System ................................ 365
To Set Up a Text Message/E-mail Options ................................................. 388
Hazard Warning Button .............................. 4
Hazard Warning Indicator ......................... 80
HD Radio
TM............................................... 250
Head Restraints ................................ 168, 169
Headlights ................................................ 146
Aiming.................................................... 539
Auto High-Beam ..................................... 151
Automatic Operation .............................. 147
Dimming......................................... 146, 150
Operating ............................................... 146
Heated Door Mirrors ............................... 156
Heated Steering Wheel ........................... 180
Heated Windshield Button ...................... 156
Heater (Steering Wheel) .......................... 180
Heaters (Seat) ........................... 181, 182, 183

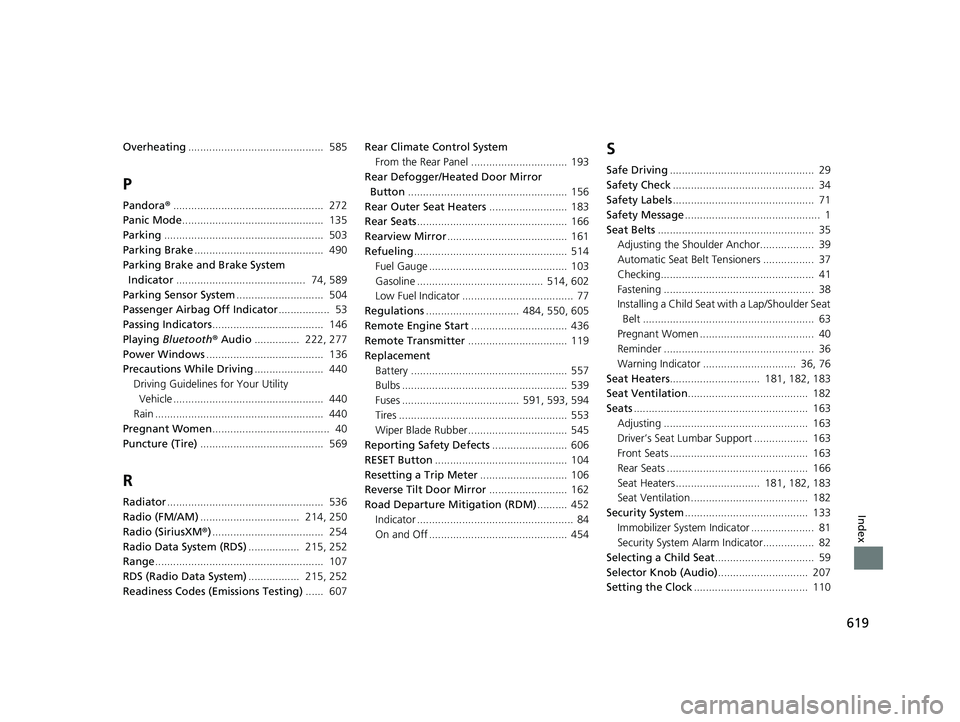

619
Index
Overheating............................................. 585
P
Pandora®.................................................. 272
Panic Mode ............................................... 135
Parking ..................................................... 503
Parking Brake ........................................... 490
Parking Brake and Brake System Indicator ........................................... 74, 589
Parking Sensor System ............................. 504
Passenger Airbag Off Indicator ................. 53
Passing Indicators ..................................... 146
Playing Bluetooth ® Audio ............... 222, 277
Power Windows ....................................... 136
Precautions While Driving ....................... 440
Driving Guidelines for Your Utility Vehicle .................................................. 440
Rain ........................................................ 440
Pregnant Women ....................................... 40
Puncture (Tire) ......................................... 569
R
Radiator.................................................... 536
Radio (FM/AM) ................................. 214, 250
Radio (SiriusXM ®)..................................... 254
Radio Data System (RDS) ................. 215, 252
Range ........................................................ 107
RDS (Radio Data System) ................. 215, 252
Readiness Codes (Emissions Testing) ...... 607Rear Climate Control System
From the Rear Panel ................................ 193
Rear Defogger/Heated Door Mirror Button ..................................................... 156
Rear Outer Seat Heaters .......................... 183
Rear Seats .................................................. 166
Rearview Mirror ........................................ 161
Refueling ................................................... 514
Fuel Gauge .............................................. 103
Gasoline .......................................... 514, 602
Low Fuel Indicator ..................................... 77
Regulations ............................... 484, 550, 605
Remote Engine Start ................................ 436
Remote Transmitter ................................. 119
Replacement Battery .................................................... 557
Bulbs ....................................................... 539
Fuses ....................................... 591, 593, 594
Tires ........................................................ 553
Wiper Blade Rubber ................................. 545
Reporting Safety Defects ......................... 606
RESET Button ............................................ 104
Resetting a Trip Meter ............................. 106
Reverse Tilt Door Mirror .......................... 162
Road Departure Mitigation (RDM) .......... 452
Indicator .................................................... 84
On and Off .............................................. 454
S
Safe Driving ................................................ 29
Safety Check ............................................... 34
Safety Labels ............................................... 71
Safety Message ............................................. 1
Seat Belts .................................................... 35
Adjusting the Shoulder Anchor.................. 39
Automatic Seat Belt Tensioners ................. 37
Checking................................................... 41
Fastening .................................................. 38
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 63
Pregnant Women ...................................... 40
Reminder .................................................. 36
Warning Indicator ............................... 36, 76
Seat Heaters .............................. 181, 182, 183
Seat Ventilation ........................................ 182
Seats .......................................................... 163
Adjusting ................................................ 163
Driver’s Seat Lumbar Support .................. 163
Front Seats .............................................. 163
Rear Seats ............................................... 166
Seat Heaters ............................ 181, 182, 183
Seat Ventilation ....................................... 182
Security System ......................................... 133
Immobilizer System Indicator ..................... 81
Security System Alarm Indicator................. 82
Selecting a Child Seat ................................. 59
Selector Knob (Audio) .............................. 207
Setting the Clock ...................................... 110
