HONDA RIDGELINE 2020 Navigation Manual (in English)

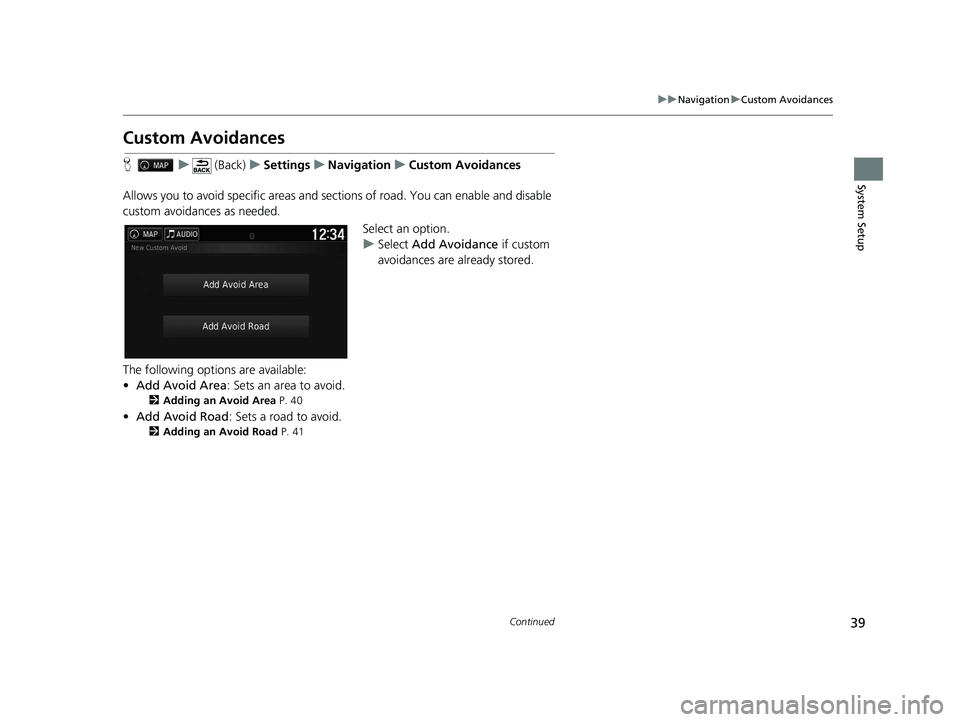

39
uuNavigation uCustom Avoidances
Continued
System Setup
Custom Avoidances
H u (Back) uSettings uNavigation uCustom Avoidances
Allows you to avoid specific areas and sect ions of road. You can enable and disable
custom avoidances as needed.
Select an option.
uSelect Add Avoidance if custom
avoidances are already stored.
The following options are available:
• Add Avoid Area: Sets an area to avoid.
2 Adding an Avoid Area P. 40
•Add Avoid Road : Sets a road to avoid.
2Adding an Avoid Road P. 41
18 RIDGELINE NAVI-31T6Z8100.book 39 ページ ２０１７年６月７日　水曜日　午後５時３７分

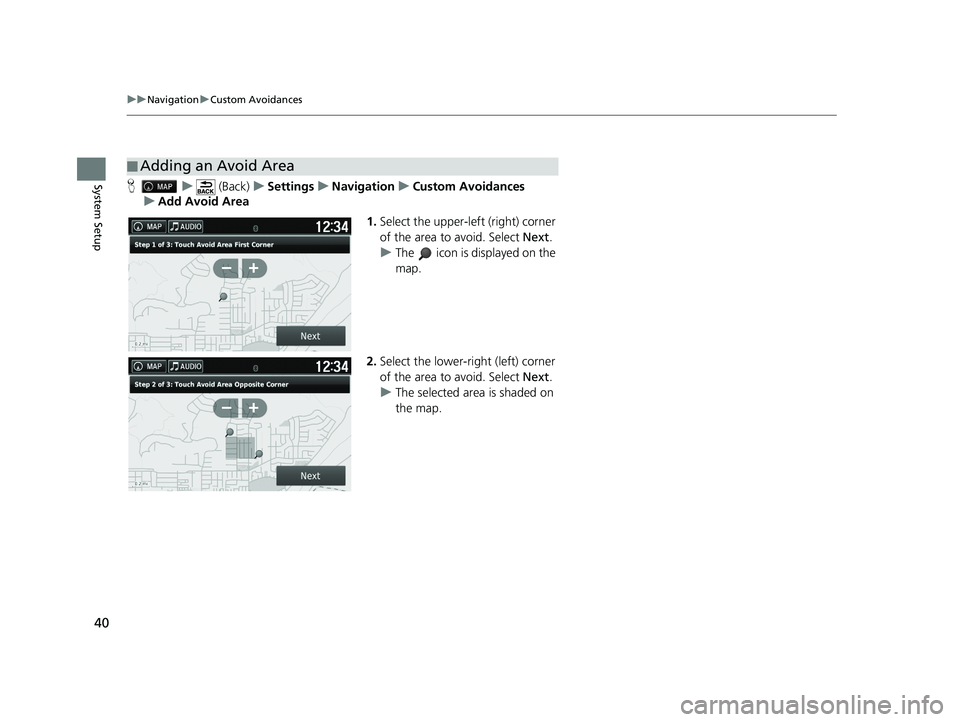

40
uuNavigation uCustom Avoidances
System SetupH u (Back) uSettings uNavigation uCustom Avoidances
u Add Avoid Area
1.Select the upper-left (right) corner
of the area to avoid. Select Next.
u The icon is displayed on the
map.
2. Select the lower-right (left) corner
of the area to avoid. Select Next.
u The selected area is shaded on
the map.
■Adding an Avoid Area
18 RIDGELINE NAVI-31T6Z8100.book 40 ページ ２０１７年６月７日　水曜日　午後５時３７分

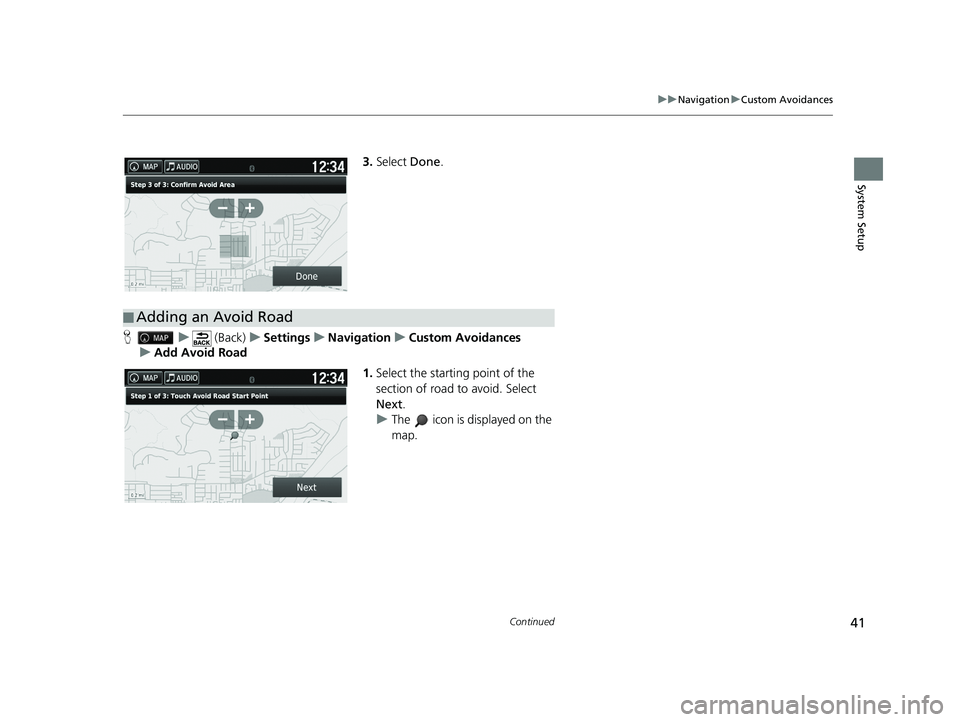

41
uuNavigation uCustom Avoidances
Continued
System Setup
3. Select Done.
H u (Back) uSettings uNavigation uCustom Avoidances
u Add Avoid Road
1.Select the starting point of the
section of road to avoid. Select
Next .
u The icon is displayed on the
map.
■Adding an Avoid Road
18 RIDGELINE NAVI-31T6Z8100.book 41 ページ ２０１７年６月７日　水曜日　午後５時３７分

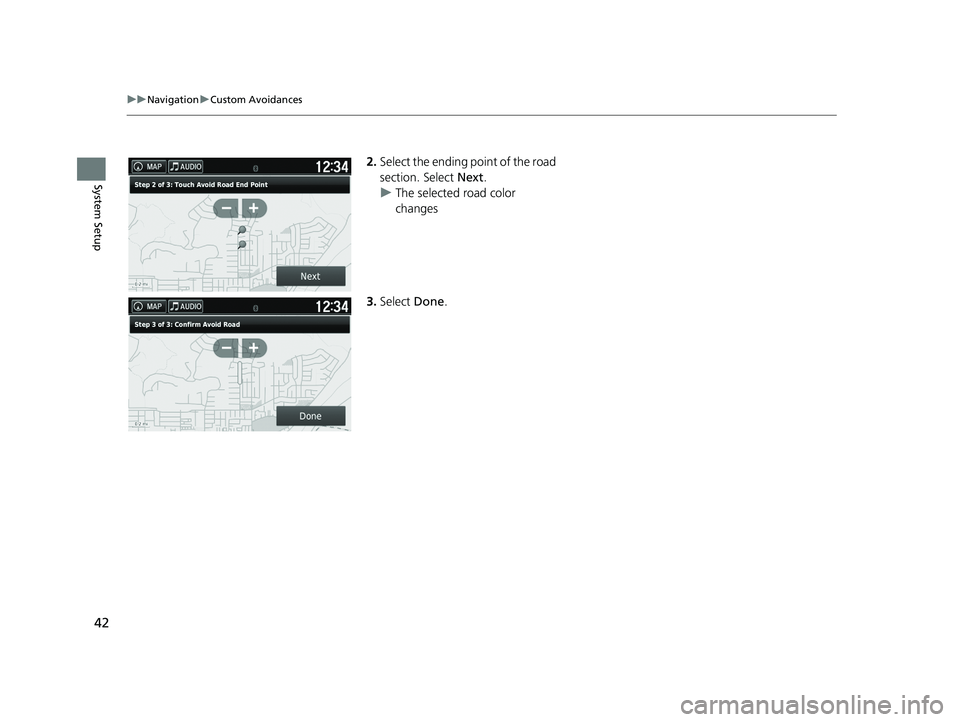

42
uuNavigation uCustom Avoidances
System Setup
2. Select the ending point of the road
section. Select Next.
u The selected road color
changes
3. Select Done.
18 RIDGELINE NAVI-31T6Z8100.book 42 ページ ２０１７年６月７日　水曜日　午後５時３７分

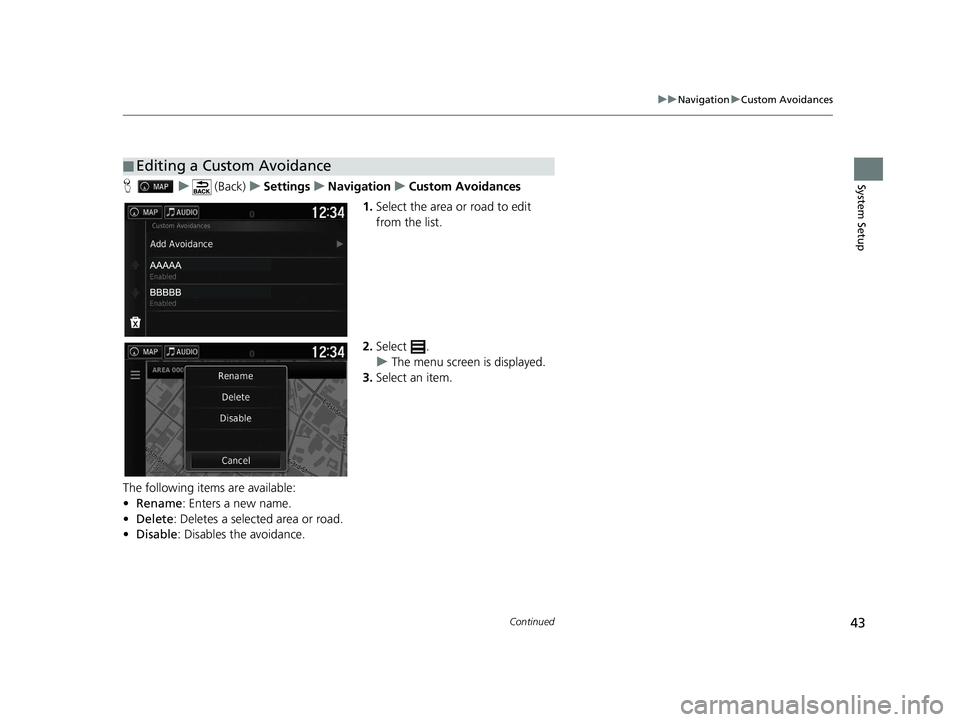

43
uuNavigation uCustom Avoidances
Continued
System SetupH u (Back) uSettings uNavigation uCustom Avoidances
1. Select the area or road to edit
from the list.
2. Select .
u The menu screen is displayed.
3. Select an item.
The following items are available:
• Rename: Enters a new name.
• Delete: Deletes a selected area or road.
• Disable : Disables the avoidance.
■Editing a Custom Avoidance
18 RIDGELINE NAVI-31T6Z8100.book 43 ページ ２０１７年６月７日　水曜日　午後５時３７分

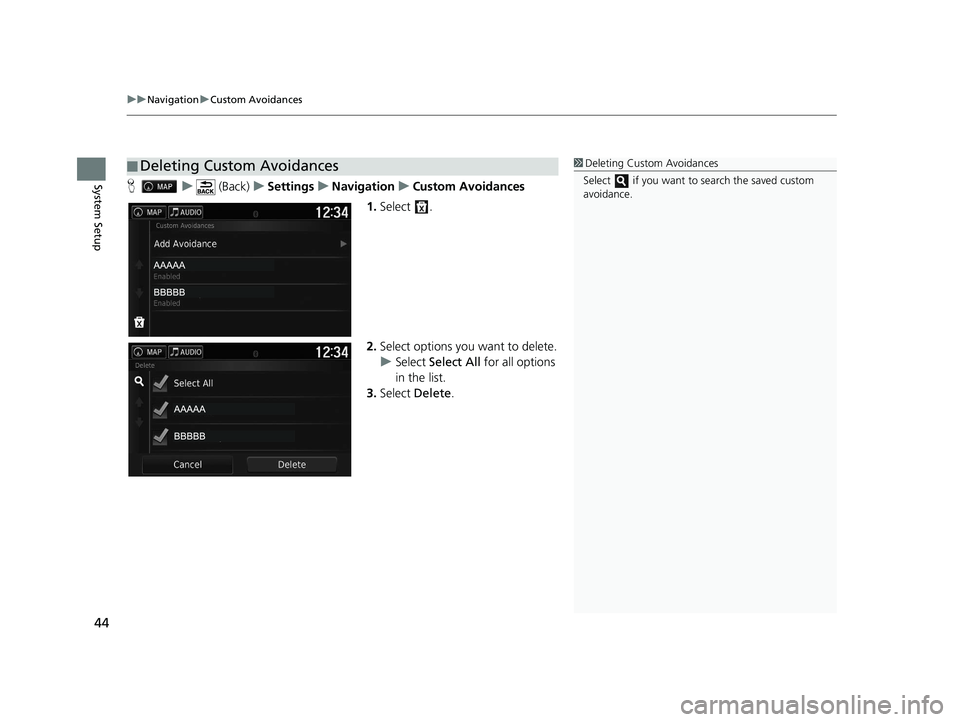

uuNavigation uCustom Avoidances
44
System SetupH u (Back) uSettings uNavigation uCustom Avoidances
1. Select .
2. Select options you want to delete.
u Select Select All for all options
in the list.
3. Select Delete.
■Deleting Custom Avoidances1
Deleting Custom Avoidances
Select if you want to search the saved custom
avoidance.
18 RIDGELINE NAVI-31T6Z8100.book 44 ページ ２０１７年６月７日　水曜日　午後５時３７分

45
System Setup
Traffic
Hu (Back) uSettings uTraffic
Sets the traffic feature. Select an option.
The following options are available:
• Traffic : Enables the traffic feature.
2Traffic Information P. 86
•Current Provider : Sets the traffic provider to use for traffic data.
• Subscriptions : Displays the lists of the current traffic subscriptions.
• Optimize Route : Sets whether to use optimized alternate routes On Request
(factory default) or Automatic.
18 RIDGELINE NAVI-31T6Z8100.book 45 ページ ２０１７年６月７日　水曜日　午後５時３７分

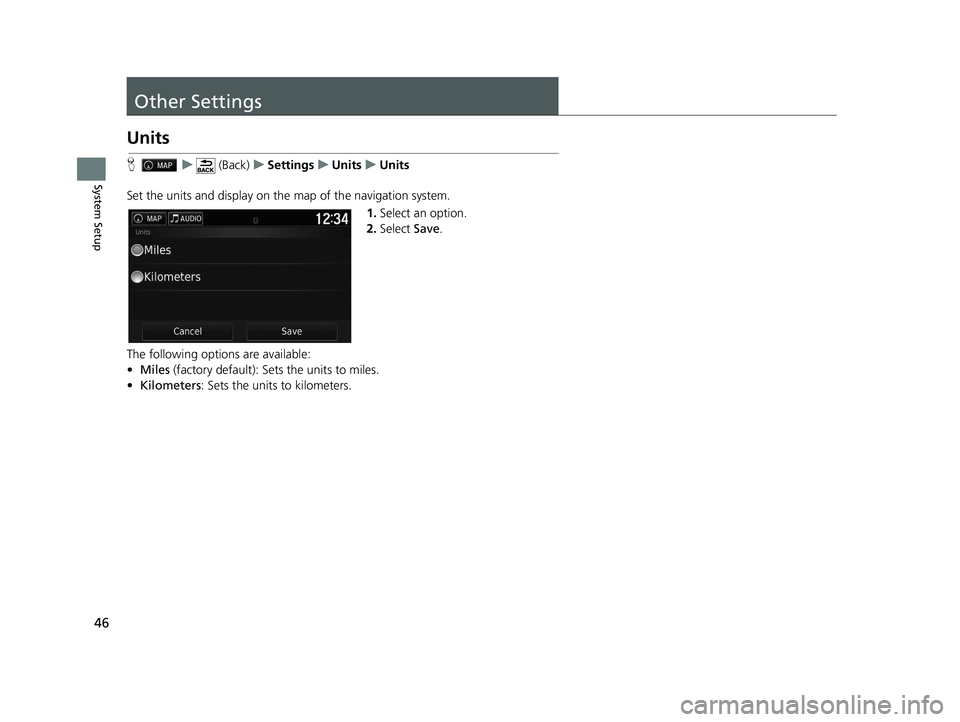

46
System Setup
Other Settings
Units
Hu (Back) uSettings uUnits uUnits
Set the units and display on the map of the navigation system. 1.Select an option.
2. Select Save.
The following options are available:
• Miles (factory default): Sets the units to miles.
• Kilometers : Sets the units to kilometers.
18 RIDGELINE NAVI-31T6Z8100.book 46 ページ ２０１７年６月７日　水曜日　午後５時３７分

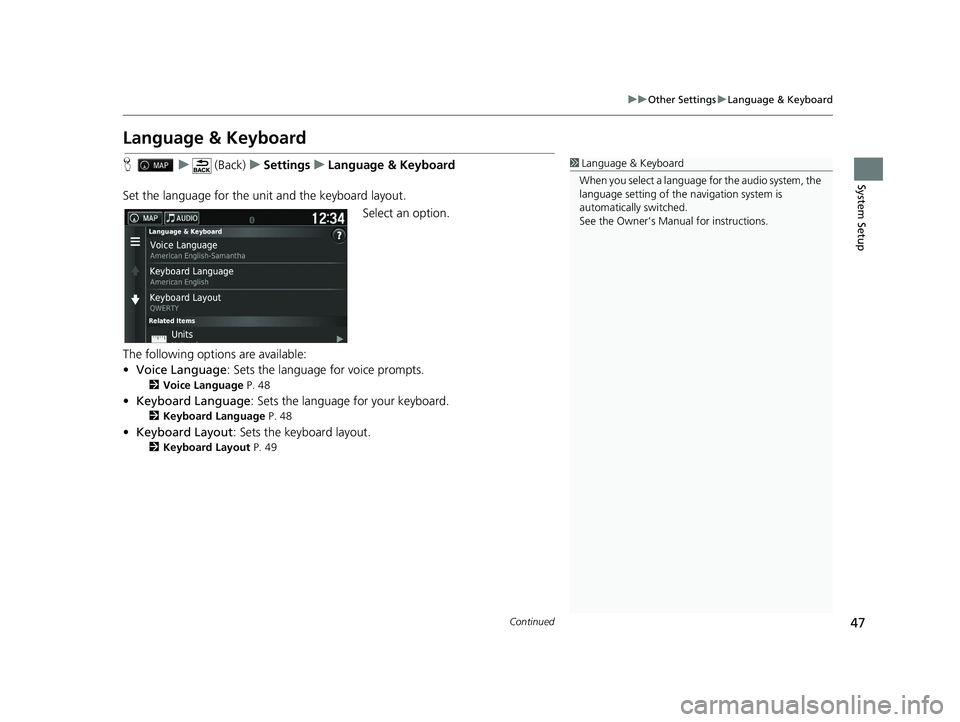

47
uuOther Settings uLanguage & Keyboard
Continued
System Setup
Language & Keyboard
H u (Back) uSettings uLanguage & Keyboard
Set the language for the uni t and the keyboard layout.
Select an option.
The following options are available:
• Voice Language : Sets the language for voice prompts.
2Voice Language P. 48
•Keyboard Language : Sets the language for your keyboard.
2Keyboard Language P. 48
•Keyboard Layout: Sets the keyboard layout.
2 Keyboard Layout P. 49
1Language & Keyboard
When you select a language for the audio system, the
language setting of the navigation system is
automatically switched.
See the Owner’s Manual for instructions.
18 RIDGELINE NAVI-31T6Z8100.book 47 ページ ２０１７年６月７日　水曜日　午後５時３７分

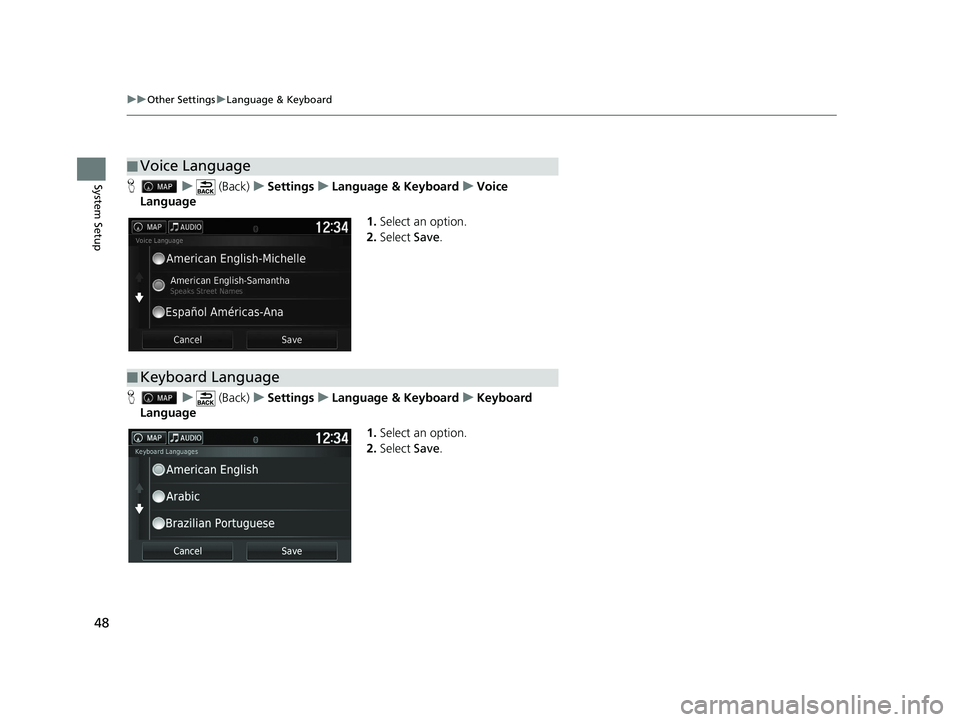

48
uuOther Settings uLanguage & Keyboard
System SetupH u (Back) uSettings uLanguage & Keyboard uVoice
Language
1.Select an option.
2. Select Save.
H u (Back) uSettings uLanguage & Keyboard uKeyboard
Language
1.Select an option.
2. Select Save.
■Voice Language
■Keyboard Language
18 RIDGELINE NAVI-31T6Z8100.book 48 ページ ２０１７年６月７日　水曜日　午後５時３７分
