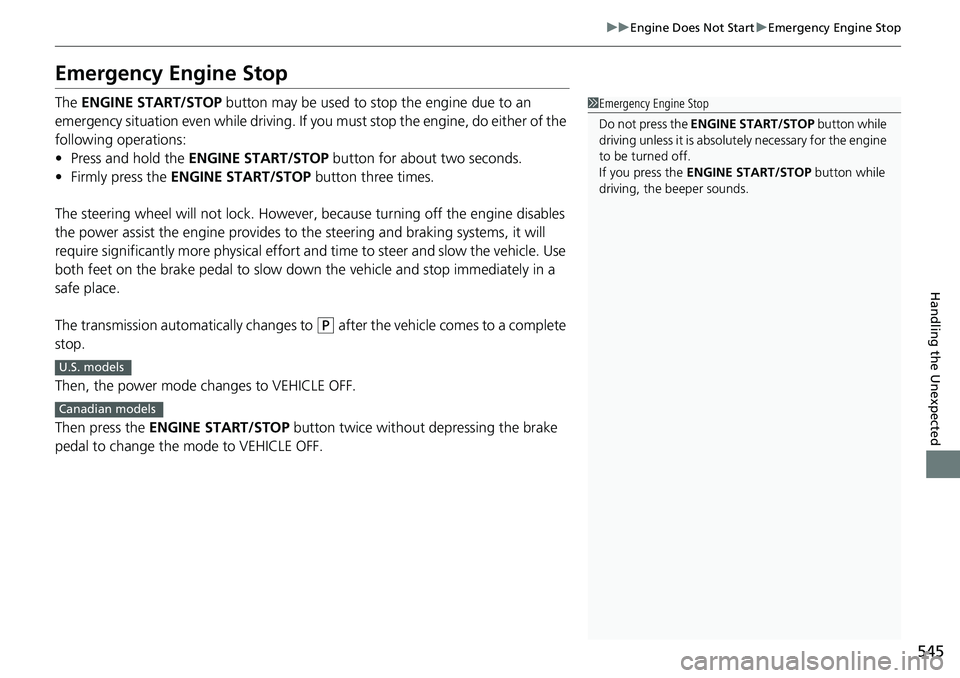

Page 547 of 591
545
uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The transmission automa tically changes to
(P after the vehicle comes to a complete
stop.
Then, the power mode changes to VEHICLE OFF.
Then press the ENGINE START/STOP button twice without depressing the brake
pedal to change the mode to VEHICLE OFF.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
U.S. models
Canadian models
Page 583 of 591
581
Index
Controls.................................................... 111
Conversation Mirror ................................ 177
Coolant (Engine) ...................................... 497
Adding to the Radiator ........................... 498
Adding to the Reserve Tank .................... 497
Overheating ............................................ 549
Creeping (Automatic Transmission) ........ 387
Cross Traffic Monitor ............................... 471
Cup Holders .............................................. 175
Customer Service Information ................ 578
Customized Features ............................... 295
D
Daytime Running Lights .......................... 149
Dead Battery ............................................ 546
Defaulting All the Settings ...................... 319
Defogger/Heated Door Mirror ................ 155
Defrosting the Windshield and Windows ................................................. 188
Devices that Emit Radio Waves ............... 571
Dimming Headlights .............................................. 145
Rearview Mirror ...................................... 160
Dipstick (Engine Oil) ................................ 493
Directional Signals (Turn Signal) ............. 144
Display Button .......................................... 204
Door Mirrors ............................................. 161
Doors ........................................................ 113
Auto Door Locking.................................. 126
Auto Door Unlocking .............................. 126 Door Open Message ............................ 34, 92
Key .......................................................... 113
Locking/Unlocking the Doors
from the Inside ................................ 14, 123
Locking/Unlocking the Doors
from the Outside ................................... 116
Lockout Prevention System ...................... 122
DOT Tire Quality Grading ........................ 512
Driving ....................................................... 357
Adaptive Cruise Control (ACC) ................ 432
Automatic Transmission ........................... 387
Braking .................................................... 462
Off-Highway Driving Guidelines ............... 377
Shifting ................................................... 388
Starting the Engine .................................. 379
Driving Guidelines for Your Utility Vehicle ..................................................... 385
Driving Position Memory System ............. 157
Dust and Pollen Filter ............................... 521
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 396
ECON Mode Indicator ................................ 88
Electric Power Steering (EPS) System Indicator ............................................ 81, 553
Electronic Stability Control (ESC) ............. 404
Emergency ................................................ 562
Emergency Trunk Opener ........................ 131
Emissions Testing (Readiness Codes) ....... 573Engine
Coolant ................................................... 497
Jump Starting .......................................... 546
Oil ........................................................... 492
Remote Engine Start................................ 381
Starting ................................................... 379
Engine Compartment Cover .................... 491
Engine Coolant ......................................... 497
Adding to the Radiator ............................ 498
Adding to the Reserve Tank..................... 497
Overheating ............................................ 549
Temperature Gauge ................................ 106
Engine Oil ................................................. 492
Adding .................................................... 494
Checking................................................. 493
Displaying Oil Life .................................... 485
Low Oil Pressure Indicator ................. 75, 551
Recommended Engine Oil ....................... 492
ENGINE START/STOP Button .................... 141
EPS (Electric Power Steering) System Indicator............................................ 81, 553
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 70
Exterior Care (Cleaning) ........................... 524
Exterior Mirrors ........................................ 161
Page 585 of 591
583
Index
HomeLink® Universal Transceiver ........... 320
Honda App License Agreement .............. 280
Honda Sensing ®........................................ 22
HondaLink ®............................................ 256
I
Identification Numbers ............................ 570
Engine and Transmission ......................... 570
Vehicle Identification............................... 570
Illumination Control ................................ 156
Button .................................................... 156
Immobilizer System .................................. 132
Indicator ................................................... 82
In-Bed Box ................................................ 183
Indicators .................................................... 74
Adaptive Cruise Control (ACC).................. 87
All-wheel drive (AWD)............................... 84
Anti-lock Brake System (ABS) .................... 78
Auto High-Beam ....................................... 82
Auto Idle Stop........................................... 85
Auto Idle Stop System ............................... 85
Bed Lights On ........................................... 91
Blind spot information System........... 88, 413
Brake System (Amber) ............................... 74
Charging System............................... 75, 551
Collision Mitigati on Braking System
TM
(CMBSTM) .......................................... 89, 90
ECON Mode ............................................. 88
Electric Power Steering (EPS)
System ............................................ 81, 553 Fog Lights .................................................. 82
High Beam ................................................ 81
Immobilizer System .................................... 82
Intelligent Traction Management ............... 91
Lane Keeping Assist System
(LKAS) ....................................... 87, 88, 447
Lights On ................................................... 82
Low Fuel .................................................... 78
Low Oil Pressure ................................ 75, 551
Low Tire Pressure/TPMS ..................... 81, 554
M (sequential mode)/Se quential Mode Gear
Selection.................................................. 76
Malfunction Indicator Lamp ............... 75, 552
Parking Brake and Brake System
(Red)................................................ 74, 553
Road Departure Mitigation (RDM) .............. 86
Seat Belt Reminder .............................. 36, 77
Security System Alarm ............................... 83
Shift Position ............................................. 76
Smart Entry System .................................... 84
Supplemental Restraint System ............ 52, 78
System Message ........................................ 83
Transmission System .................... 76, 77, 555
Turn Signal and Haza rd Warning ............... 81
Vehicle Stability Assist
TM (VSA ®) OFF ......... 405
Vehicle Stability AssistTM (VSA ®)
System............................................. 79, 404
Information ............................................... 567
Information Button .................................. 107
Instant Fuel Economy ............................... 110 Instrument Panel
........................................ 73
Brightness Control................................... 156
Intelligent Traction Management System ..................................................... 397
Indicator.................................................... 91
Intelligent Variable Torque Management (i-VTM4
TM) AWD System ......................... 407
Interior Lights ........................................... 171
Interior Rearview Mirror .......................... 160
iPhone ....................................................... 279
iPod ................................................... 242, 279
J
Jack (Wheel Nut Wrench) ........................ 537
Jump Starting ........................................... 546
K
Key............................................................ 113
Lockout Prevention.................................. 122
Number Tag ............................................ 114
Rear Door Won’t Open............................ 125
Remote Transmitter ................................. 121
Key Number Tag ....................................... 114
Keyless Lockout Prevention ..................... 122
Kickdown (Automatic Transmission) ....... 387
Page 588 of 591
586
Index
Security System......................................... 132
Immobilizer System Indicator ..................... 82
Security System Alarm Indicator ................. 83
Selecting a Child Seat ................................. 59
Sequential Mode ...................................... 394
Sequential Mode Operation .................... 395
Setting the Clock ...................................... 112
Shift Button......................................... 19, 388
Operation .......................................... 19, 390
Shift Position Indicator ....................... 76, 390
Shifting (Transmission) ....................... 19, 388
Shoulder Anchor ......................................... 39
Side Airbags ................................................ 49
Side Curtain Airbags ................................... 51
Siri Eyes Free ............................................. 263
SiriusXM ® Radio ........................................ 231
Smart Entry System ................................... 116
Smart Entry System Indicator ..................... 84
Snow Tires ................................................. 517
Song By Voice
TM (SBV) .............................. 245
Spare Tire .......................................... 533, 569
Spark Plugs ................................................ 568
Specifications ............................................ 568
Specified Fuel .................................... 477, 568
Speedometer ............................................. 106
SRS Airbags (Airbags) ................................. 45
Starting Assist Brake Function ................. 403
Starting the Engine .................................. 379
Does Not Start ......................................... 543
Jump Starting .......................................... 546
Remote Engine Start ................................ 381 Steering Wheel
......................................... 159
Adjusting ................................................ 159
Heater ..................................................... 179
Stopping ................................................... 466
Summer Tires ............................................ 517
Sunglasses Holder ..................................... 177
Supplemental Restraint System (SRS) ........ 45
Indicator.................................................... 78
Switches (Around the Steering Wheel) ........ 4, 5, 141
SYNC Mode ............................................... 190
System Message Indicator .......................... 83
T
Tachometer............................................... 106
Tailgate ..................................................... 127
Unable to Unlock .................................... 564
Temperature Gauge ..................................................... 106
Outside Temperature Display ................... 109
Temperature Gauge ................................. 106
Temperature Sensor ......................... 109, 193
Tie-down Anchors .................................... 185
Time (Setting) ........................................... 112
Tire Fill Assist .................................... 408, 554
Tires ........................................................... 509
Air Pressure ..................................... 510, 569
Checking and Maintaining ...................... 509
Inspection ............................................... 509
Labeling .................................................. 510 Puncture (Flat Tire) .................................. 533
Regulations ............................................. 512
Rotation.................................................. 516
Spare Tire ....................................... 533, 569
Summer .................................................. 517
Tire Chains.............................................. 517
Wear Indicators....................................... 514
Winter .................................................... 517
Tools ......................................................... 532
Towing a Trailer ....................................... 366
Equipment and Accessories ..................... 369
Load Limits ............................................. 366
Towing Your Vehicle ............................... 376
Emergency .............................................. 562
TPMS with Tire Fill Assist ......................... 408
Indicator ........................................... 81, 554
Tire Fill Assist .......................................... 554
Trailer Stability Assist ............................... 374
Transmission ............................... 19, 387, 388
Automatic................................. 19, 387, 388
Fluid ....................................................... 499
Number .................................................. 570
Sequential Mode..................................... 394
Shift Position Indicator ...................... 76, 390
Transmission System Indicator ................. 555
Trip Meter ................................................ 109
Troubleshooting ...................................... 531
Blown Fuse ..................... 556, 558, 559, 560
Brake Pedal Vibrates ................................. 25
Buzzer Sounds When Opening Door ......... 26
Emergency Towing ................................. 562
