display HONDA RIDGELINE 2020 Owner's Manual (in English)

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 29
For Safe Driving P. 30 Seat Belts P. 35 Airbags P. 42
2Instrument Panel P. 73
Indicators P. 74 Gauges and Multi-Information Display P. 106
2Controls P. 111
Clock P. 112 Locking and Unlocking the Doors P. 113
Security System P. 132 Opening and Closing the Windows P. 135
Adjusting the Mirrors P. 160 Adjusting the Seats P. 162
2Features P. 195
Audio System P. 196
General Information on the Audio System P. 276
HomeLink ® Universal Transceiver P. 320 Bluetooth® HandsFreeLink ® P. 323
2 Driving P. 357
Before Driving P. 358 Towing a Trailer P. 366
Braking P. 462Parking Your Vehicle P. 466
2Maintenance P. 481
Before Performing Maintenance P. 482 Maintenance MinderTM P. 485
Checking and Maintaining Wiper Blades P. 507
Climate Control System Maintenance P. 521
2Handling the Unexpected P. 531
Tools P. 532 If a Tire Goes Flat P. 533
Overheating P. 549 Indicator, Coming On/Blinking P. 551
When You Cannot Unlock the Fuel Fill Door P. 563
2 Information P. 567
Specifications P. 568 Identification Numbers P. 570
Emissions Testing P. 573 Warranty Coverages P. 575

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Gauges (P106)
❚Multi-Information Display
(P107)
❚System Indicators (P74)
❚ECON Button (P396)
❚Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P423)
❚
Heated Windshield Button (P155)
Canadian models
❚Parking Sensor System Button* (P468)
❚Steering Wheel Adjustments (P159)
❚ENGINE START/STOP Button (P141)
❚AC Power Outlet Button* (P184)
❚Road Departure Mitigation (RDM)
Button
(P456)
❚ (Vehicle Stability AssistTM (VSA ®)
System OFF) Button
(P405)
❚Bed Light Button (P185)
❚Audio System (P196)
❚Navigation System*
() See the Navigation System Manual
❚Front Seat Heaters and Seat
Ventilation Buttons* (P181)
❚Climate Control System (P187)
❚Hazard Warning Button
❚Rear Defogger/Heated Door Mirror*
Button
(P155)
❚Front Seat Heater Buttons* (P180)

10

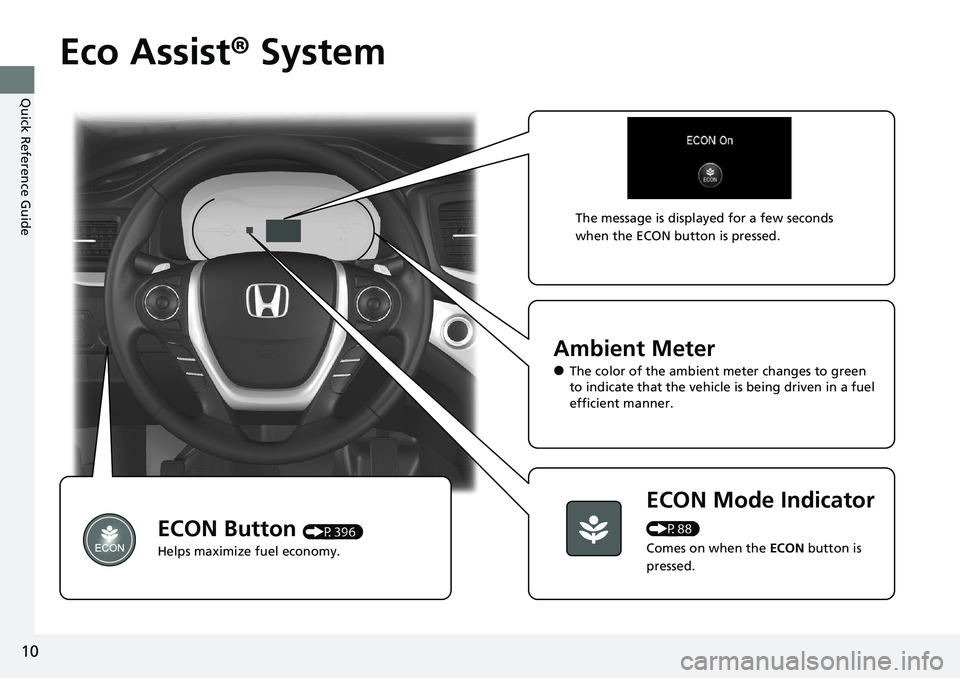

Quick Reference Guide
Eco Assist® System
Ambient Meter
●The color of the ambient meter changes to green
to indicate that the vehicle is being driven in a fuel
efficient manner.
ECON Mode Indicator
(P88)
Comes on when the ECON button is
pressed.ECON Button (P396)
Helps maximize fuel economy. The message is displayed for a few seconds
when the ECON button is pressed.

12

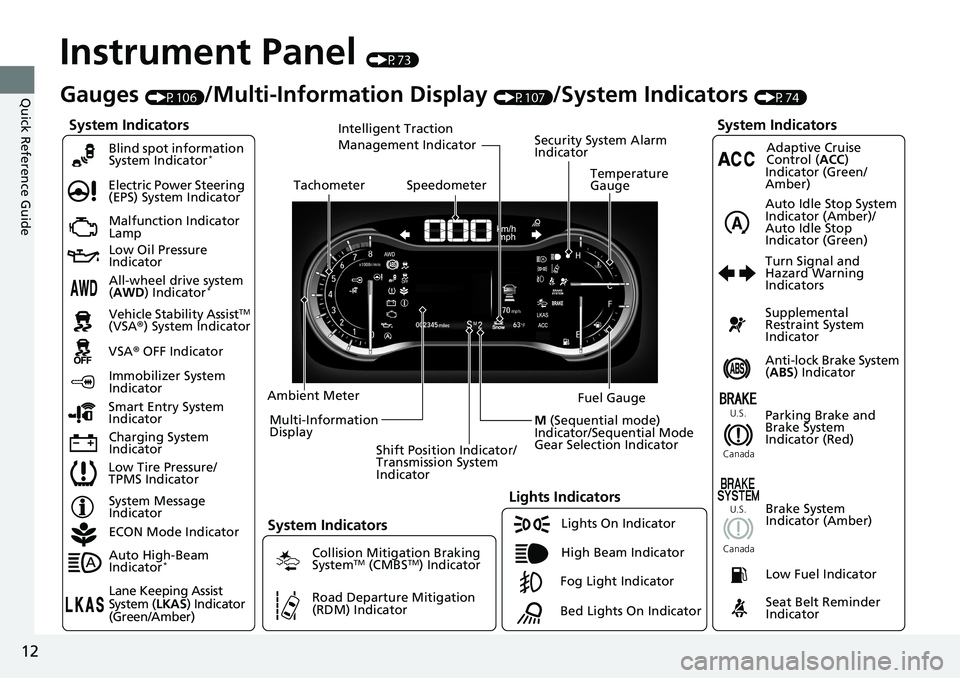

Quick Reference Guide
Instrument Panel (P73)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
TM
(VSA® ) System Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorParking Brake and
Brake System
Indicator (Red)Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P106)/Multi-Information Display (P107)/System Indicators (P74)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Smart Entry System
Indicator Ambient Meter
Shift Position Indicator/
Transmission System
Indicator Fuel Gauge
TachometerTemperature
GaugeSpeedometer
Multi-Information
Display
Brake System
Indicator (Amber)
All-wheel drive system
(AWD ) Indicator*
Blind spot information
System Indicator*
System Indicators
Collision Mitigation Braking
SystemTM (CMBSTM) Indicator
Road Departure Mitigation
(RDM) Indicator
Security System Alarm
Indicator
U.S.
Canada U.S.
Canada
Fog Light Indicator
ECON Mode Indicator
Auto High-Beam
Indicator
*
Lane Keeping Assist
System (
LKAS) Indicator
(Green/Amber)
Adaptive Cruise
Control ( ACC)
Indicator (Green/
Amber)
Intelligent Traction
Management Indicator
Bed Lights On Indicator
Auto Idle Stop System
Indicator (Amber)/
Auto Idle Stop
Indicator (Green)
M (Sequential mode)
Indicator/Sequential Mode
Gear Selection Indicator

17
Quick Reference Guide
Features (P195)
Audio system (P196)
/AUDIO (Power/Audio)
Icon
(Home) Icon
VOL (Volume) Icons
(Menu) Icon
(Back) Icon
(Day/night) Icon
Audio/Information Screen
Multi-Information Display
For navigation system operation () See the Navigation System Manual
(Eject) Button
Disc Slot
Canadian models
* Not available on all models

34
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors are closed and locked.
Locking the doors helps prevent an occupant from being ejected and an outsider
from unexpectedly opening a door.
2 Locking/Unlocking the Doors from the Inside P. 123
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Adjusting the Seats P. 162
•Adjust head restraints to the proper posi tion. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the front head restraint positions P. 167
•Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 38
•Protect children by using seat belts or child seats according to a child’s age, height
and weight.
2 Child Safety P. 55
1Safety Checklist
If the door, trunk and/or tailgate open message
appears on the multi-inform ation display (MID), the
door, the trunk and/or the ta ilgate is not completely
closed. Close all doors, th e trunk and the tailgate
tightly until the message disappears. 2 Multi-Information Display Warning and
Information Messages P. 92

uuAirbags uAirbag System Indicators
52
Safe Driving
■When side curtain airbags deploy in a frontal collision
One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.
Airbag System Indicators
If a problem occurs in the airbag syst em, the SRS indicator will come on and a
message appears on the multi-information display.
■When the power mo de is set to ON
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or
does not come on at all, have the system
checked by a dealer as so on as possible. If you
don’t, your airbags and seat belt tensioners
may not work properly when they are needed.
■Supplemental Restraint System (SRS) Indicator1Supplemental Restraint Sy stem (SRS) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if th e SRS indicator alerts
you to a possible problem.

73
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 74
Multi-Information Display Warning and Information Messages ...................... 92
Gauges and Multi-Information Display Gauges ............................................ 106
Multi-Information Display ................ 107

79
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Comes on for a few seconds
when you set the power mode to
ON, then goes off.
●Blinks when VSA ®, or trailer
stability assist is active.
●Comes on if there is a problem
with the VSA ® system, brake
assist system, hill start assist,
trailer stability assist or brake
lighting system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®), aka
Electronic Stability Control (ESC),
System P. 404
2 Trailer Stability Assist P. 374
2 Hill start assist system P. 384
●When Trailer Stability Assist Problem is
displayed on the multi-information display,
the VSA® does not activate.

83
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Security System
Alarm Indicator
●Blinks when the security system
alarm has been set.
2Security System Alarm P. 132—
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the multi-
information display appears at
the same time.●While the indicator is on, press the
(information) button to see the message
again.
●Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Respond to
the message accordingly.
●The multi-information display does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Indicator
