spark plugs HONDA RIDGELINE 2021 Owner's Manual (in English)

494
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the maintenance message in the
multi-information display, replace the brake fluid
every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder MessageSystem Message
Indicator
Sub Items
Main
Item
*1: If the message Maintenance Due Now does not appear more than 12 months after the display
is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty in the first column on page 581.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA ®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission
temperatures. This requires transmission fluid changes more frequently than recommended by the
Maintenance Minder
TM. If you regularly drive your vehicle under these conditions, have the transmission
fluid changed at every 30,000 miles (48,000 km) or 2 years.
*5: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under
-20°F, -29°C), or towing a trailer, replace every 60,000 miles (U.S.) / 100,000 km (Canada).
*6: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder
TM. If you regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer fluid*, *4
4●Replace spark plugs●Replace timing belt and inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *6
* Not available on all models

574
Information

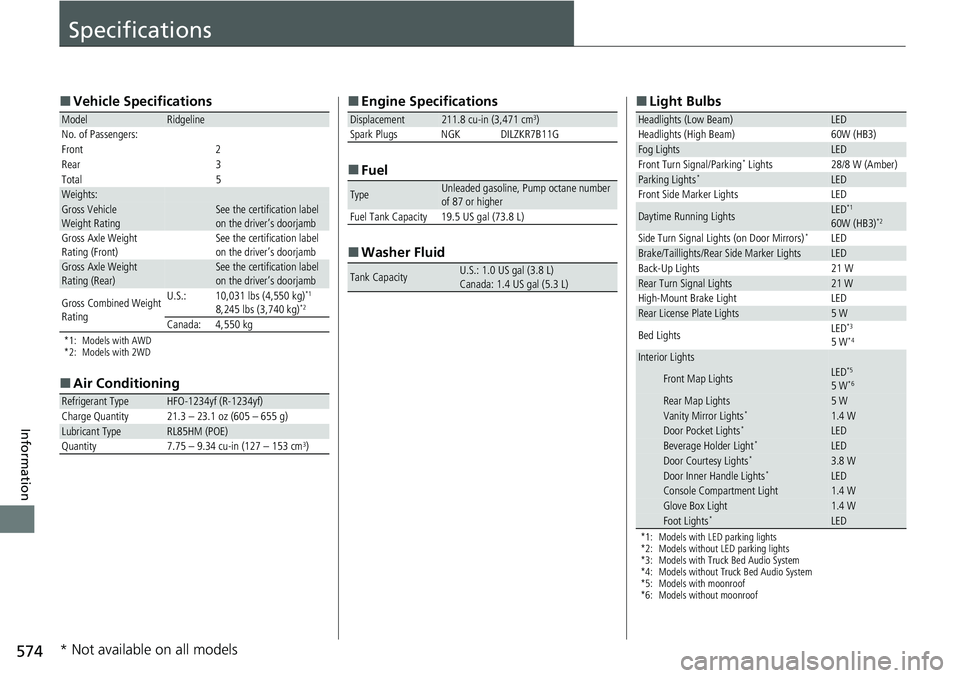

Specifications
■Vehicle Specifications
*1: Models with AWD
*2: Models with 2WD
■Air Conditioning
ModelRidgeline
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight RatingSee the certification label
on the driver’s doorjamb
Gross Axle Weight
Rating (Front)See the certification label
on the driver’s doorjamb
Gross Axle Weight
Rating (Rear)See the certification label
on the driver’s doorjamb
Gross Combined Weight
Rating U.S.: 10,031 lbs (4,550 kg)
*1
8,245 lbs (3,740 kg)*2
Canada: 4,550 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 21.3 – 23.1 oz (605 – 655 g)
Lubricant TypeRL85HM (POE)
Quantity 7.75 – 9.34 cu-in (127 – 153 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement211.8 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 1.0 US gal (3.8 L)
Canada: 1.4 US gal (5.3 L)
■ Light Bulbs
*1: Models with LED parking lights
*2: Models without LED parking lights
*3: Models with Truck Bed Audio System
*4: Models without Truck Bed Audio System
*5: Models with moonroof
*6: Models without moonroof
Headlights (Low Beam)LED
Headlights (High Beam) 60W (HB3)
Fog LightsLED
Front Turn Signal/Parking* Lights 28/8 W (Amber)Parking Lights*LED
Front Side Marker Lights LED
Daytime Running LightsLED*1
60W (HB3)*2
Side Turn Signal Lights (on Door Mirrors)*LEDBrake/Taillights/Rear Side Marker LightsLED
Back-Up Lights 21 W
Rear Turn Signal Lights21 W
High-Mount Brake Light LED
Rear License Plate Lights5 W
Bed Lights LED*3
5 W*4
Interior Lights
Front Map LightsLED*5
5 W*6
Rear Map Lights5 WVanity Mirror Lights*1.4 WDoor Pocket Lights*LEDBeverage Holder Light*LEDDoor Courtesy Lights*3.8 WDoor Inner Handle Lights*LEDConsole Compartment Light1.4 WGlove Box Light1.4 WFoot Lights*LED
* Not available on all models

594
Index
Spare Tire.......................................... 539, 575
Spark Plugs ................................................ 574
Specifications ............................................ 574
Specified Fuel .................................... 483, 574
Speedometer ............................................. 110
SRS Airbags (Airbags) ................................. 47
Starting Assist Brake Function ................. 411
Starting the Engine .................................. 385
Does Not Start ......................................... 549
If the Battery Is Dead ............................... 552
Remote Engine Start ................................ 387
Steering Wheel ......................................... 163
Adjusting ................................................. 163
Heater ..................................................... 187
Stopping .................................................... 472
Summer Tires ............................................ 524
Sunglasses Holder ..................................... 181
Supplemental Restraint System (SRS) ........ 47
Indicator .................................................... 82
Switches (Around the Steering Wheel) ......... 6, 7, 145
SYNC Mode ............................................... 198
System Message Indicator .......................... 87
T
Tachometer............................................... 110
Tailgate ..................................................... 131
Unable to Unlock ..................................... 570
Temperature
Gauge ..................................................... 110 Outside Temperature Display ................... 113
Temperature Gauge ................................. 110
Temperature Sensor ......................... 113, 201
Tie-down Anchors .................................... 193
Time (Setting) ........................................... 116
Tire Fill Assist .................................... 416, 560
Tires ........................................................... 516
Air Pressure ..................................... 517, 575
Checking and Maintaining ...................... 516
Inspection ............................................... 516
Labeling .................................................. 517
Puncture (Flat Tire) .................................. 539
Regulations ............................................. 519
Rotation .................................................. 523
Spare Tire ........................................ 539, 575
Summer .................................................. 524
Tire Chains .............................................. 524
Wear Indicators ....................................... 521
Winter..................................................... 524
Tools .......................................................... 538
Towing a Trailer ....................................... 372
Equipment and Accessories ..................... 375
Load Limits .............................................. 372
Towing Your Vehicle ................................ 382
Emergency .............................................. 568
TPMS with Tire Fill Assist ......................... 416
Indicator............................................ 85, 560
Tire Fill Assist ........................................... 560
Trailer Stability Assist ............................... 380
Transmission ............................... 21, 394, 395
Automatic ................................. 21, 394, 395 Fluid ....................................................... 506
Number .................................................. 576
Sequential Mode..................................... 401
Shift Position Indicator ...................... 80, 397
Transmission System Indicator ................. 561
Trip Meter ................................................ 113
Troubleshooting ...................................... 537
Blown Fuse ..................... 562, 564, 565, 566
Brake Pedal Vibrates ................................. 27
Buzzer Sounds When Opening Door ......... 28
Emergency Towing ................................. 568
Engine Won’t Start ................................. 549
Noise When Braking ................................. 28
Overheating ............................................ 555
Puncture/Flat Tire .................................... 539
Rear Door Won’t Open ..................... 27, 129
Warning Indicators.................................... 78
Truck Bed Audio ...................................... 277
Trunk ........................................................ 133
Lid .......................................................... 133
Main Switch............................................ 134
Turn Signals .............................................. 148
Indicators (Instru ment Panel) ..................... 85
Turn-by-Turn Directions .......................... 114U
Unlocking the Doors................................ 120
Unlocking the Front Doors from the Inside ................................. 16, 127
USB Flash Drives ............................... 256, 282
