HONDA S2000 2002 1.G Owners Manual

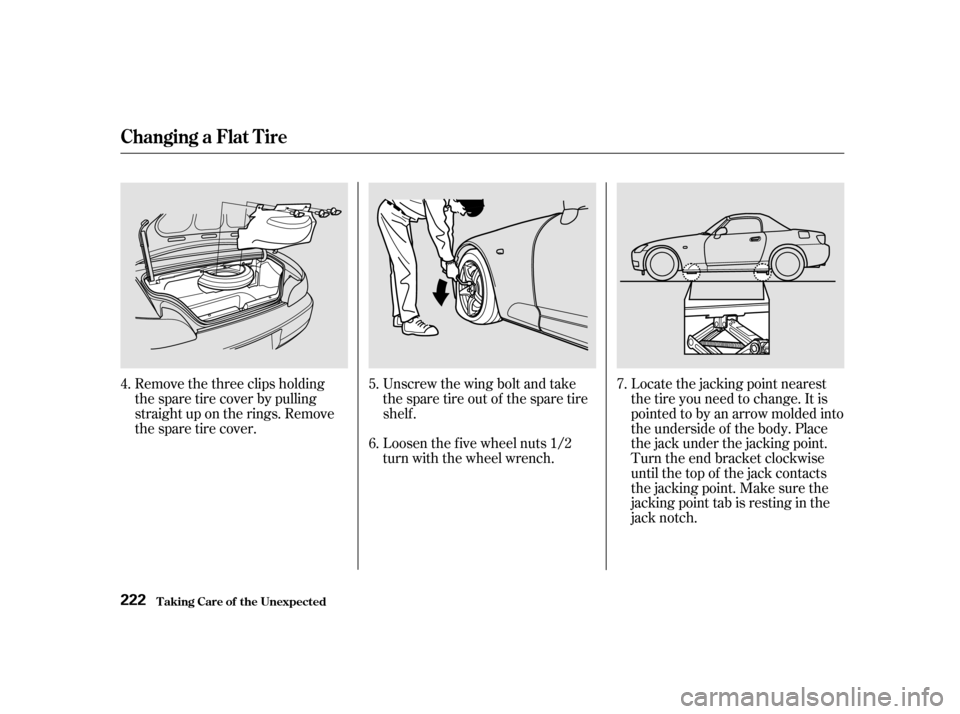

Unscrew the wing bolt and take
the spare tire out of the spare tire
shelf .
Remove the three clips holding
the spare tire cover by pulling
straight up on the rings. Remove
the spare tire cover.
Loosen the f ive wheel nuts 1/2
turn with the wheel wrench.Locate the jacking point nearest
the tire you need to change. It is
pointed to by an arrow molded into
the underside of the body. Place
the jack under the jacking point.
Turn the end bracket clockwise
until the top of the jack contacts
the jacking point. Make sure the
jacking point tab is resting in the
jack notch.
4.
5. 6.7.
Changing a Flat T ire
T aking Care of t he Unexpect ed
222

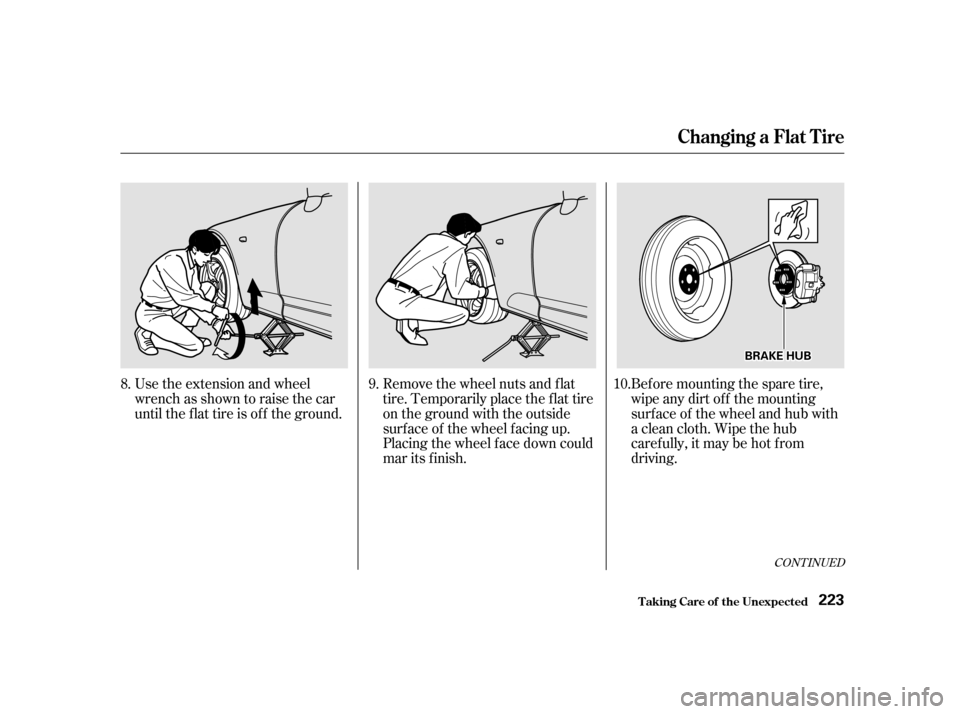

Use the extension and wheel
wrench as shown to raise the car
until the f lat tire is of f the ground.Remove the wheel nuts and f lat
tire. Temporarily place the f lat tire
on the ground with the outside
surf ace of the wheel f acing up.
Placing the wheel face down could
mar its f inish.Bef ore mounting the spare tire,
wipeanydirtoff themounting
surface of the wheel and hub with
a clean cloth. Wipe the hub
carefully,itmaybehotfrom
driving.
8.
9.10.
CONT INUED
Changing a Flat T ire
T aking Care of t he Unexpect ed223
BBRRAAKKEEHHUUBB

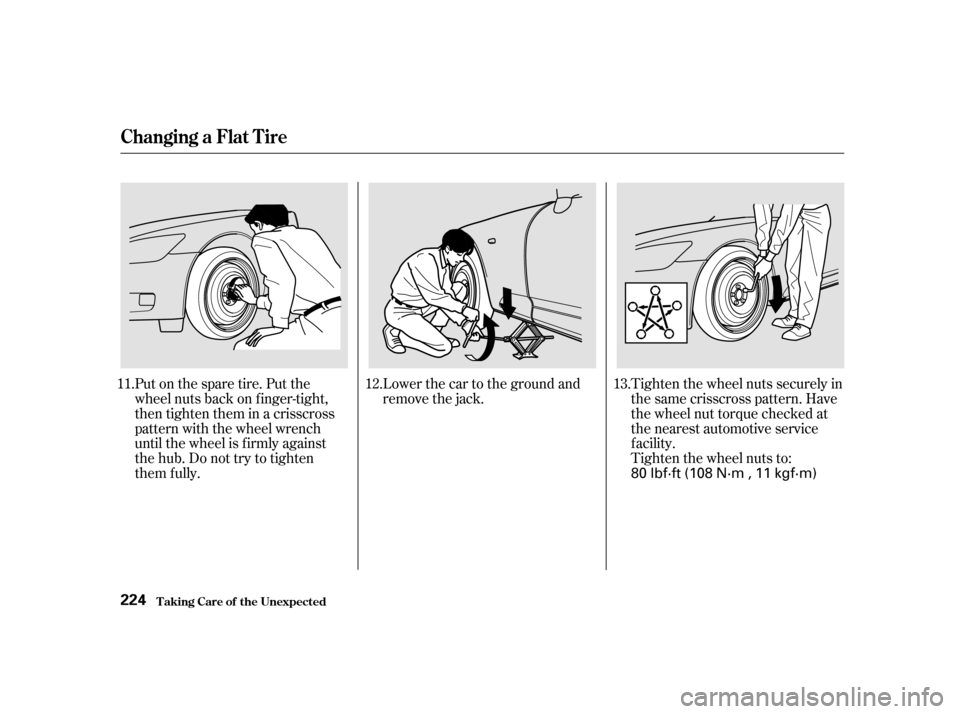

Put on the spare tire. Put the
wheel nuts back on f inger-tight,
then tighten them in a crisscross
pattern with the wheel wrench
until the wheel is f irmly against
the hub. Do not try to tighten
them f ully.Lower the car to the ground and
remove the jack.
Tighten the wheel nuts securely in
the same crisscross pattern. Have
the wheel nut torque checked at
the nearest automotive service
f acility.
Tighten the wheel nuts to:
13.
11. 12.
Changing a Flat T ire
T aking Care of t he Unexpect ed
224 80 lbf·ft (108 N·m , 11 kgf·m)

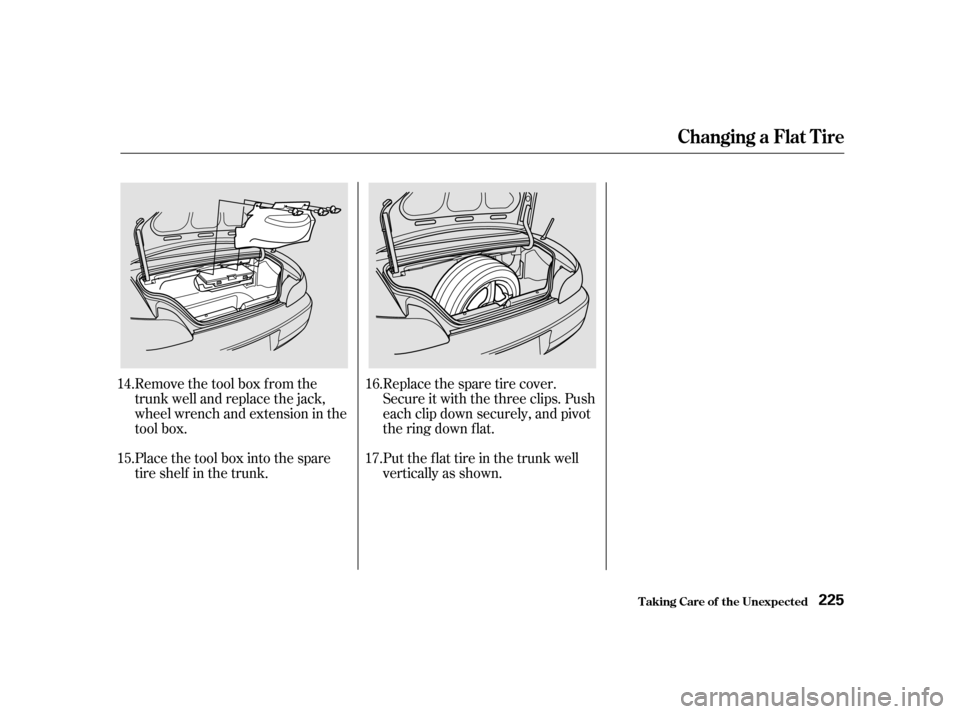

Remove the tool box f rom the
trunk well and replace the jack,
wheel wrench and extension in the
tool box.
Place the tool box into the spare
tire shelf in the trunk.Replacethesparetirecover.
Secure it with the three clips. Push
each clip down securely, and pivot
theringdownflat.
Put the flat tire in the trunk well
vertically as shown.
14.
15. 17.
16.
Changing a Flat T ire
T aking Care of t he Unexpect ed
225

You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.
You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
f aster than normal, but the engine
does not start up and run.Your car has the Immobilizer
System. You should use a
properly-coded master or valet key
to start the engine (see page ).
A key that is not properly coded
will cause the immobilizer system
indicator in the dash panel to blink
rapidly.
Check these things:
Diagnosing why your engine won’t
start f alls into two areas, depending
on what you hear when you press
the ENGINE START button.
When you press the ENGINE
START button, you do not hear the
normal noise of the engine trying to
start. You may hear a clicking sound
or series of clicks, or nothing at all. Turn the ignition switch to ON (II).
Turn on the headlights and check
their brightness. If the headlights
are very dim or don’t light at all,
the battery is discharged. See
on page .
Press the ENGINE START button,
then release it. If the headlights do
not dim, check the condition of the
fuses.If thefusesareOK,thereis
probably something wrong with
the electrical circuit f or the
ignition switch or starter motor.
You will need a qualif ied
technician to determine the
problem. (See on page .)
57 228
247
Nothing Happens or the Starter
Motor Operates Very Slowly
Jump Starting
Emergency
Towing
If Your Engine Won’t Start
T aking Care of t he Unexpect ed
226

There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
If youfindnothingwrong,youwill
need a qualif ied technician to f ind
the problem. See on page .
Do you have f uel? Turn the
ignition switch to ON (II) for a
minute and watch the f uel gauge.
The low f uel level warning light
may not be working, so you were
not reminded to f ill the tank.
Are you using the proper starting
procedure? Ref er to
on page .
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the car from a booster
battery (see page ).
In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you press the
ENGINE START button, but the
engine does not run.
183
228 241
247
137
T he Starter Operates Normally
Emergency
Towing
Starting the
Engine
If Your Engine Won’t Start
T aking Care of t he Unexpect ed 227

Open the hood and check the
physical condition of the battery
(see page ). In very cold
weather, check the condition of
the electrolyte. If it seems slushy
or like ice, do not try jump starting
until it thaws.
If your car’s battery has run down,
you may be able to start the engine
by using a booster battery. Although
this seems like a simple procedure,
you should take several precautions.
To jump start your car, f ollow these
directions closely: 1.
183
Jump Starting
T aking Care of t he Unexpect ed
228 A battery can explode if you do
not follow the correct procedure,
seriously injuring anyonenearby.
Keep all sparks, open flames,
and smoking materials away
from the battery.
If a battery sits in extreme cold, the
electrolyte inside can f reeze.
Attempting to jump start with a f rozen
battery can cause it to rupture.

µ
´
´
CONT INUED

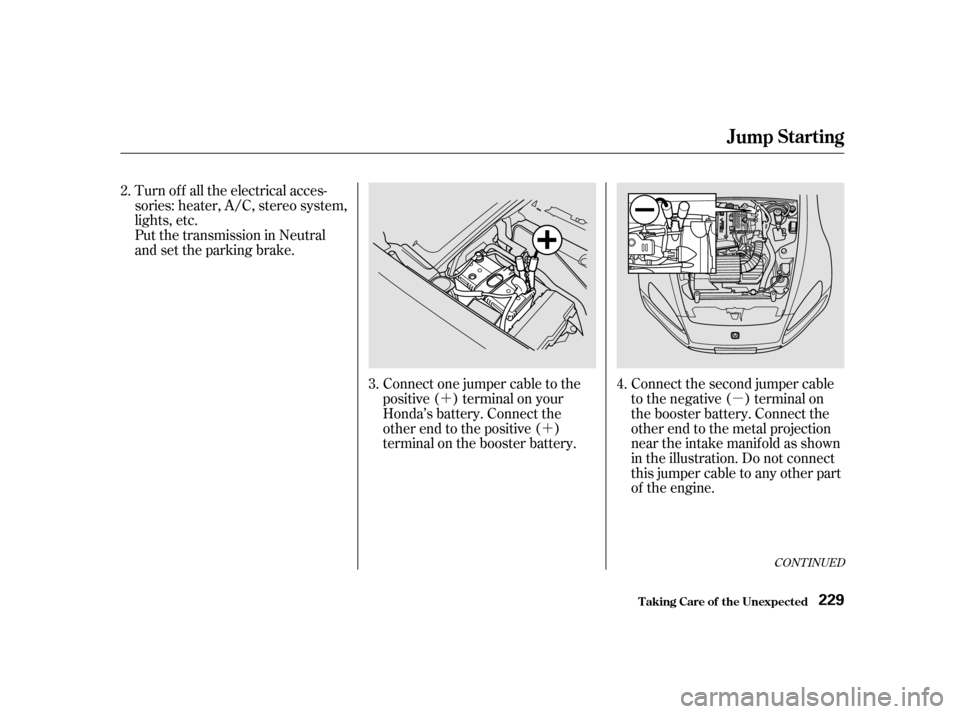

Connect the second jumper cable
to the negative ( ) terminal on
the booster battery. Connect the
other end to the metal projection
near the intake manifold as shown
in the illustration. Do not connect
this jumper cable to any other part
of the engine.
Connect one jumper cable to the
positive ( ) terminal on your
Honda’s battery. Connect the
other end to the positive ( )
terminal on the booster battery.
Turn of f all the electrical acces-
sories: heater, A/C, stereo system,
lights, etc.
Put the transmission in Neutral
and set the parking brake.
3. 4.
2.
Jump Starting
T aking Care of t he Unexpect ed
229

Start your car. If the starter motor
still operates slowly, check the
jumper cable connections to make
sure they have good metal-to-
metal contact.
Once your car is running, discon-
nectthenegativecablefromyour
car, then from the booster battery.
Disconnect the positive cable f rom
your car, then the booster battery.
Keep the ends of the jumper
cables away from each other and
any metal on the car until all are
disconnected. Otherwise, you may
cause an electrical short.

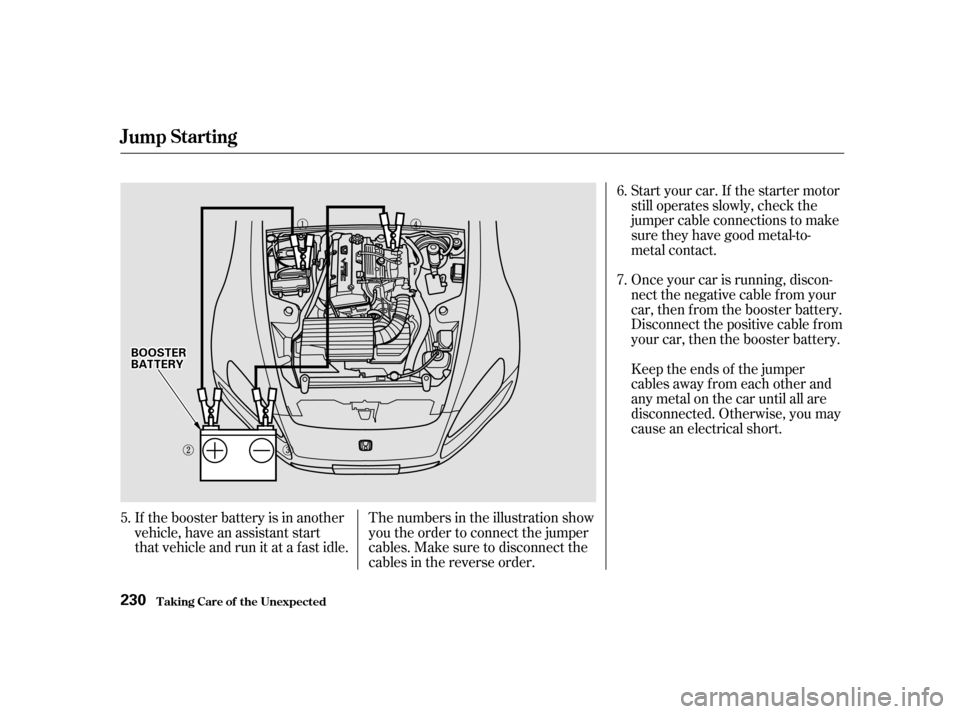

The numbers in the illustration show
you the order to connect the jumper
cables. Make sure to disconnect the
cables in the reverse order.
If the booster battery is in another
vehicle, have an assistant start
that vehicle and run it at a fast idle. 7.
6.
5.
Jump Starting
T aking Care of t he Unexpect ed
230
BBOOOOSSTTEERRBBAATTTTEERRYY

If the temperature gauge stays at
the red mark, turn of f the engine.
If you do not see steam or spray,
leave the engine running and
watch the temperature gauge. If
the high heat is due to overloading
(climbing a long, steep hill on a
hot day with the A/C running, f or
example), the engine should start
to cool down almost immediately.
If it does, wait until the tempera-
ture gauge comes down to the mid-
point then continue driving.
Your car can overheat f or several
reasons, such as lack of coolant or a
mechanical problem. The only
indicationmaybethetemperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming f rom under the car or
engine cover. In either case, you
should take immediate action.
The reading on your car’s
temperature gauge should stay in
the midrange under most conditions.
Itmaygohigherif youaredrivingup
a long steep hill on a very hot day. If
it climbs to the red mark, you should
determine the reason.
Saf ely pull to the side of the road.
Put the transmission in Neutral
and set the parking brake. Turn
of f the heating and cooling system
andallotheraccessories.Turnon
the hazard warning indicators.
If you see steam and/or spray
coming f rom under the hood, turn
of f the engine.Wait until you see no more signs
of steam or spray, then open thehood.
1. 3. 4. 5.
2.
CONT INUED
If Your Engine Overheats
T aking Care of t he Unexpect ed 231
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
reading at the red mark can cause
serious damage to your engine.
