HONDA S2000 2002 1.G Workshop Manual

´µ´µ
´´µµ Thedisplaydimswhentheparking
lights or headlights are turned on.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.

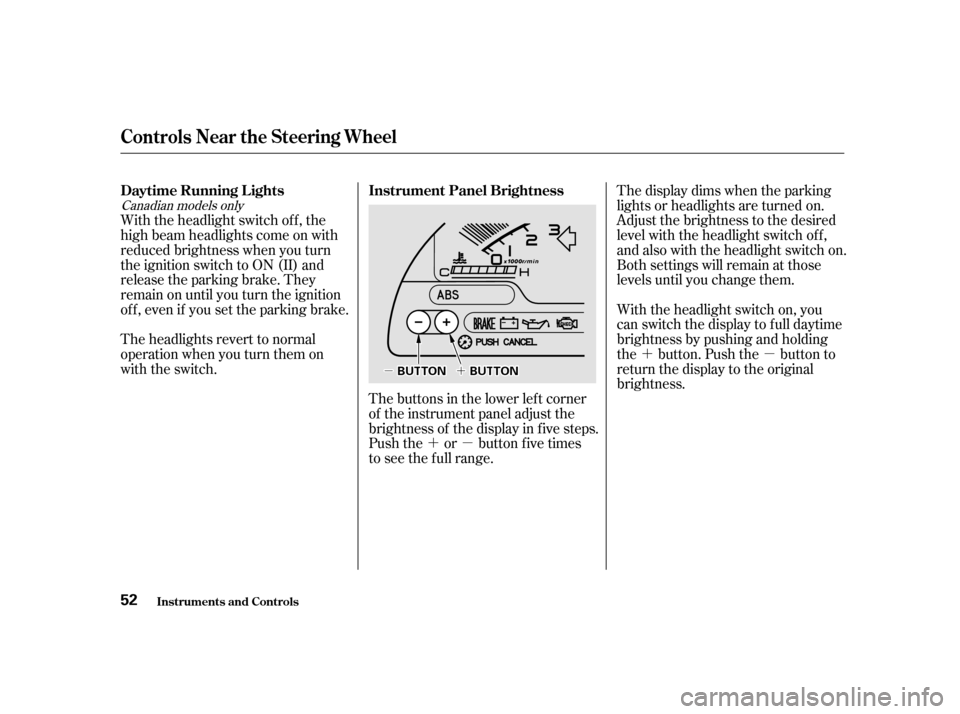

The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in f ive steps.
Push the or button five times

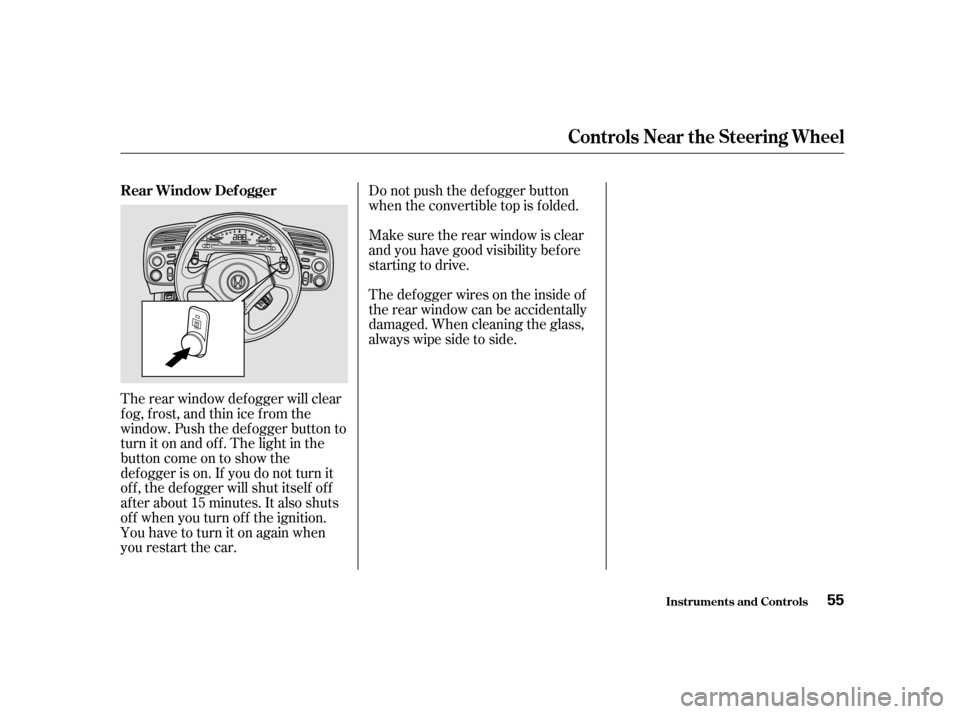

to see the f ull range. With the headlight switch on, you
can switch the display to f ull daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
of f , even if you set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
Canadian models only
Controls Near the Steering Wheel
Instrument Panel Brightness
Daytime Running L ights
Inst rument s and Cont rols
52
BBUUTTTTOONNBBUUTTTTOONN

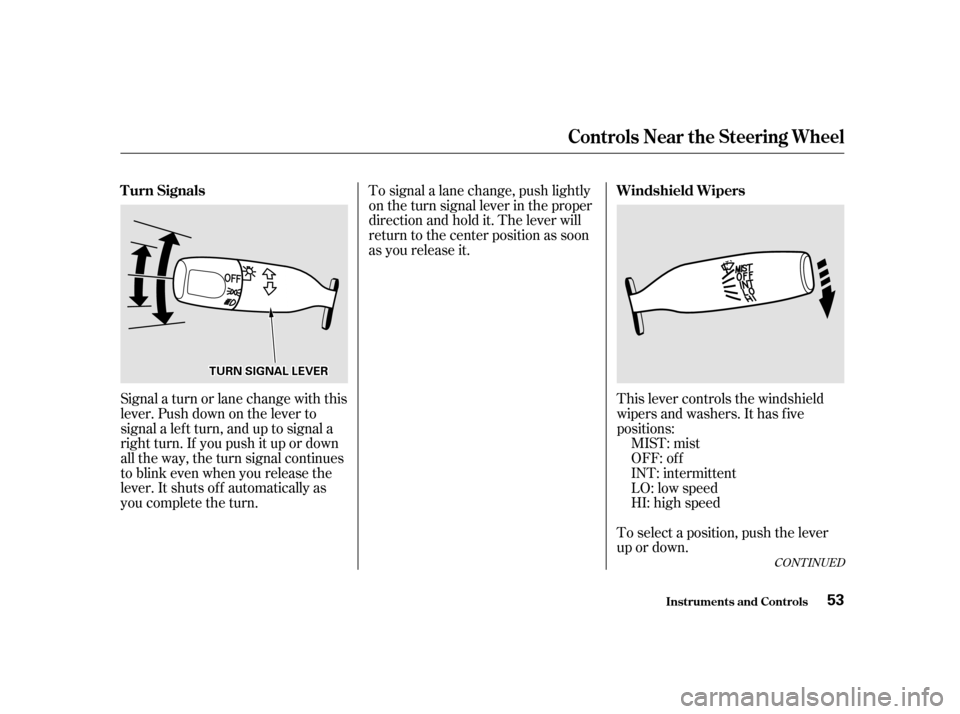

Signal a turn or lane change with this
lever. Push down on the lever to
signal a lef t turn, and up to signal a
right turn. If you push it up or down
all the way, the turn signal continues
to blink even when you release the
lever. It shuts off automatically as
you complete the turn.To signal a lane change, push lightly
on the turn signal lever in the proper
direction and hold it. The lever will
return to the center position as soon
as you release it.
This lever controls the windshield
wipers and washers. It has five
positions:MIST: mist
OFF: off
INT: intermittent
LO: low speed
HI: high speed
To select a position, push the lever
up or down.
CONT INUED
Controls Near the Steering Wheel
T urn Signals Windshield Wipers
Inst rument s and Cont rols 53
TTUURRNNSSIIGGNNAALLLLEEVVEERR

In intermittent, the wipers operate
every f ew seconds. In low speed and
high speed, the wipers run continu-

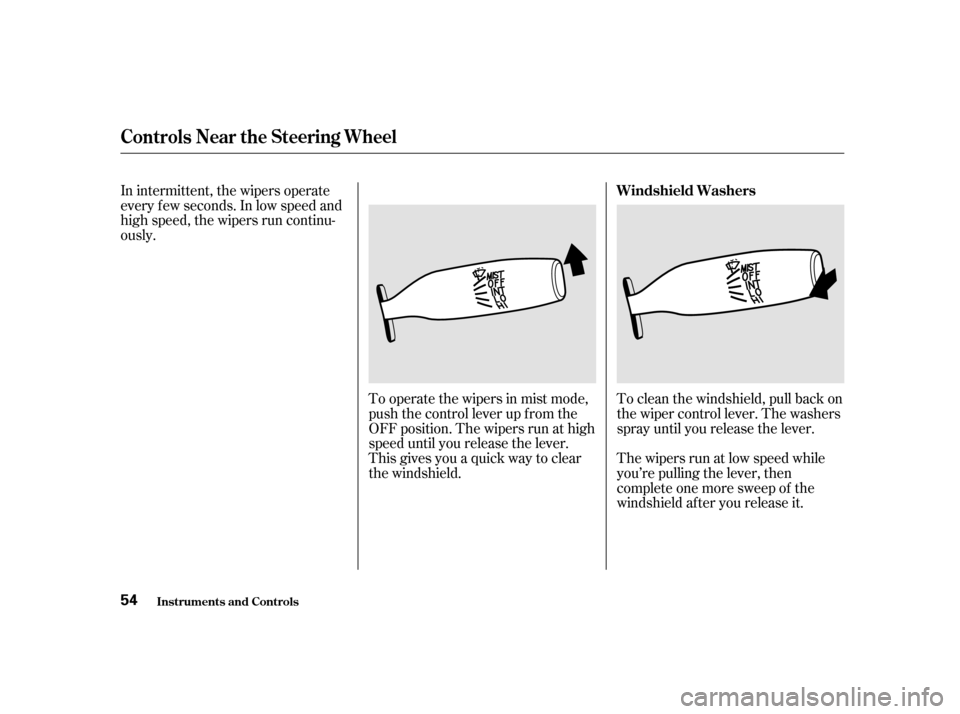

ously.To operate the wipers in mist mode,
push the control lever up f rom the
OFF position. The wipers run at high
speed until you release the lever.
This gives you a quick way to clear
the windshield.To clean the windshield, pull back on
the wiper control lever. The washers
spray until you release the lever.
The wipers run at low speed while
you’re pulling the lever, then
complete one more sweep of the
windshield af ter you release it.
Inst rument s and Cont rols
Controls Near the Steering Wheel
Windshield Washers
54

The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and of f . The light in the
buttoncomeontoshowthe
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition.
You have to turn it on again when
you restart the car.Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Do not push the def ogger button
when the convertible top is f olded.
Controls Near the Steering Wheel
Rear Window Def ogger
Inst rument s and Cont rols55

Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them immedi-
ately with a soft cloth.
The keys do not contain batteries.
Do not try to take them apart.
Your car comes with two master
keys and a valet key.
The master key fits all the locks on
your car:
 Ignition
 Doors
 Trunk
 Lower console compartment Youshouldhavereceivedakey
number plate with your keys. You
will need this key number if you ever
have to get a lost key replaced. Keep
the plate stored in a saf e place. If you
need to replace a key, use only
Honda-approved key blanks.
These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity. Your car also comes with two remote
transmitters; see page for an
explanation of the operation.
The valet key works only in the
ignition and the door locks. You can
keep the trunk and the lower console
compartment locked when you leave
your car and the valet key at a
parking f acility.
61
Keys
Remote Transmitter
Inst rument s and Cont rols
Keys and Locks
56
KKEEYYNNUUMMBBEERRPPLLAATTEE
MMAASSTTEERRKKEEYY((BBLLAACCKK))
VVAALLEETTKKEEYY((GGRREEYY))

The Immobilizer System protects
your car f rom thef t. A properly-
coded master or valet key must be
used in the ignition switch f or the
engine to start. If an improperly-
coded key (or other device) is used,
the engine’s f uel system is disabled.
When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.The Immobilizer System indicator
will also blink several times when
you turn the ignition switch f rom ON
(II) to ACCESSORY (I) or LOCK (0).
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your car undriveable.
If you have lost your key and you
cannot start the engine, contact your
Honda dealer.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object is near the
ignition switch when you insert the
key. To make sure the system
recognizes the key code:
Do not keep other immobilizer
keys on the same key ring.
Use a plastic or leather key f ob,
not metal.
Keep other keys away f rom your
vehicle’s key and the ignition
switch while trying to start the
engine.
If the system repeatedly does not
recognize the coding of your key,
contact your Honda dealer.
CONT INUED
Immobilizer System
Keys and Locks
Inst rument s and Cont rols 57

µYou can insert or
remove the key only in this position.
To switch f rom ACCESSORY to
LOCK, you must push the key in
slightly as you turn it. The anti-thef t
lock will lock the steering column
when you remove the key. If the
f ront wheels are turned, the anti-
theft lock may sometimes make it
difficult to turn the key from LOCK
to ACCESSORY. Firmly turn the
steering wheel to the lef t or to the
right as you turn the key.

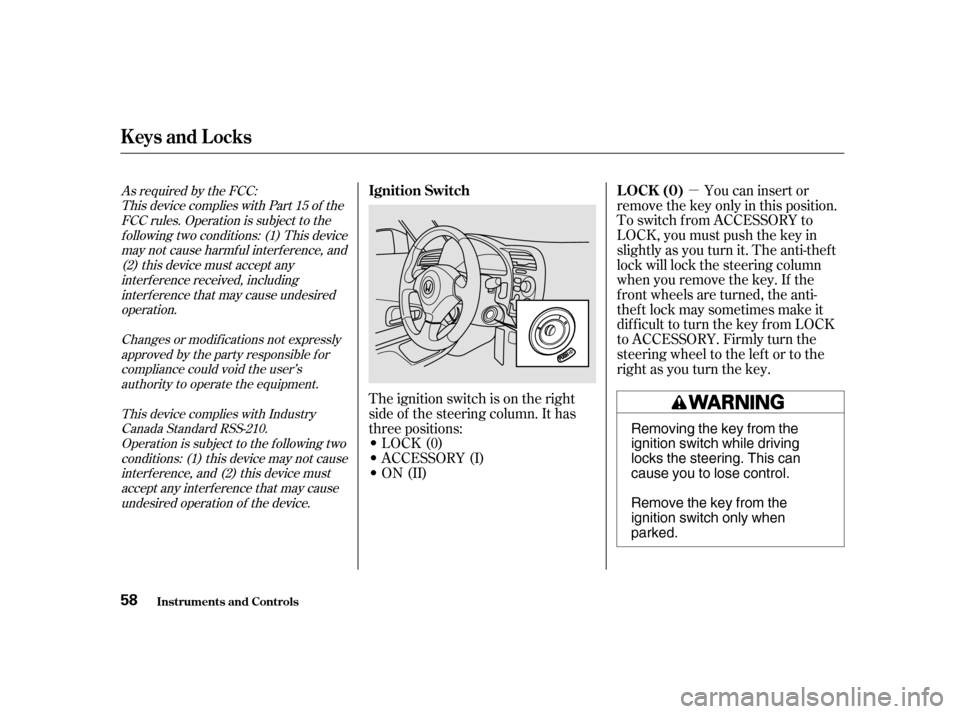

The ignition switch is on the right
side of the steering column. It has
three positions:
LOCK(0)
 ACCESSORY (I)
 ON (II)
Changes or modif ications not expressly approved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Inst rument s and Cont rols
Keys and Locks
LOCK (0)
Ignition Switch
58 Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only whenparked.

µ
µ In this position,
you can operate the audio system
and the accessory power socket. You will hear a reminder beeper if
you leave the key LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
This is the normal key
position when driving. All f eatures
and accessories on the car are usable.
Several of the lights on the instru-
ment panel come on as a test when
you turn the ignition switch f rom
ACCESSORY to ON.
The engine will not start if the
Immobilizer System does not
recognize the key’s coding (see page ).
The engine can be started with the
key in this position by pressing the
engine START button (see page
).
137
57
A CCESSORY (I)
ON (II)
Keys and Locks
Inst rument s and Cont rols
59

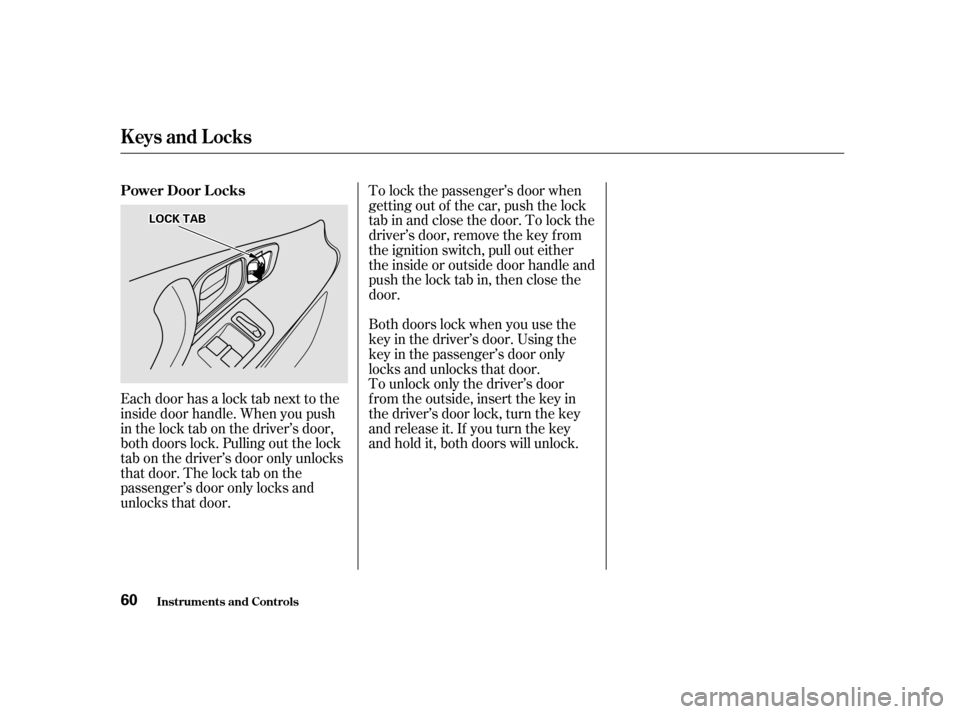

Each door has a lock tab next to the
inside door handle. When you push
in the lock tab on the driver’s door,
both doors lock. Pulling out the lock
tab on the driver’s door only unlocks
that door. The lock tab on the
passenger’s door only locks and
unlocks that door.To lock the passenger’s door when
getting out of the car, push the lock
tab in and close the door. To lock the
driver’s door, remove the key f rom
the ignition switch, pull out either
the inside or outside door handle and
push the lock tab in, then close the
door.
Both doors lock when you use the
key in the driver’s door. Using the
key in the passenger’s door only
locks and unlocks that door.
To unlock only the driver’s door
f rom the outside, insert the key in
the driver’s door lock, turn the key
and release it. If you turn the key
and hold it, both doors will unlock.
Inst rument s and Cont rols
Power Door L ocks
Keys and Locks
60
LLOOCCKKTTAABB

When you push the UNLOCK button
once, only the driver’s door unlocks.
The parking lights and taillights
f lash twice. The passenger’s door
unlocks when you push the button a
second time.
You can lock and unlock your car
with the remote transmitter. When
you push the LOCK button, both
doors lock. The side marker lights
and taillights f lash once. The horn will sound if you push the
LOCK button a second time within
f ive seconds of locking the doors.
To open the trunk, push and hold the
TRUNK RELEASE button f or
approximately one second.
The interior light (if the interior light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door, the light will go out in
about 30 seconds and the doors will
automatically relock. If you relock
the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go of f
immediately.
You cannot lock or unlock the doors
with the remote transmitter if either
door is not f ully closed or the key is
in the ignition switch.
CONT INUED
Remote TransmitterHorn Operat ion
Keys and Locks
Inst rument s and Cont rols
61
LLEEDD
PPAANNIICCBBUUTTTTOONN
LLOOCCKKBBUUTTTTOONN
TTRRUUNNKKRREELLEEAASSEEBBUUTTTTOONN
UUNNLLOOCCKKBBUUTTTTOONN
