HONDA S2000 2004 2.G Owners Manual

Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label at-
tached to the driver’s doorjamb, and
is stamped on the engine com-
partment bulkhead. The VIN is also
provided in bar code on the
Certif ication label.
Identif ication Numbers
T echnical Inf ormation178
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

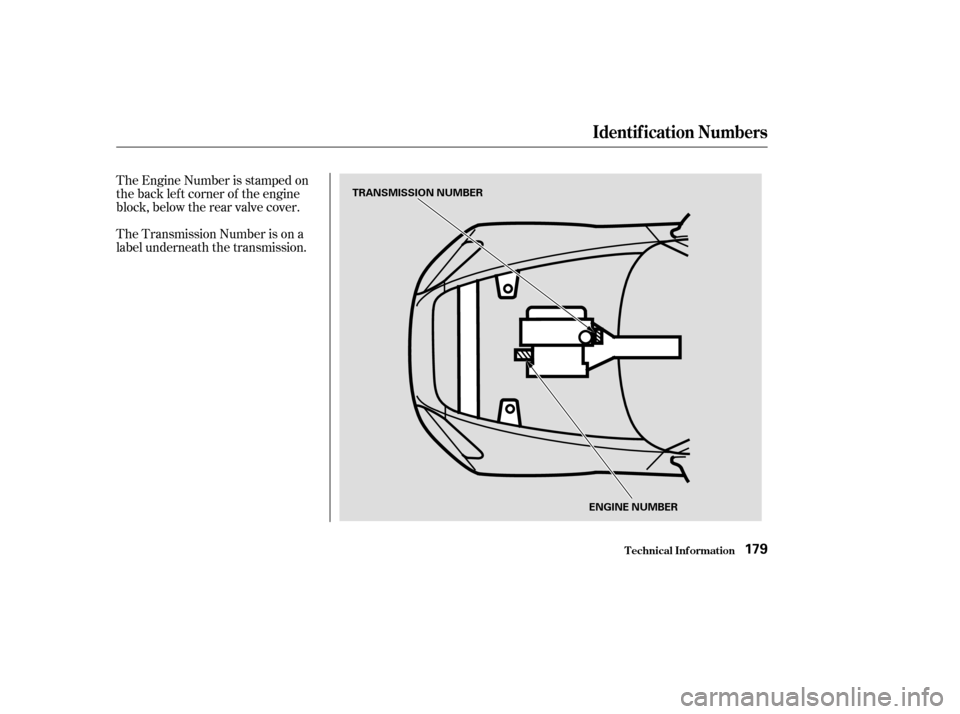

The Transmission Number is on a
label underneath the transmission. The Engine Number is stamped on
the back lef t corner of the engine
block, below the rear valve cover.
Identif ication Numbers
T echnical Inf ormation179
TRANSMISSION NUMBERENGINE NUMBER

Î
Î
´
µ
Î
Î
Specif ications
T echnical Inf ormation180
Dimensions
WeightsCapacities
Engine 162.0 in (4,115 mm)
68.9 in (1,750 mm)
50.6 in (1,285 mm)
94.5 in (2,400 mm)
57.9 in (1,470 mm)
59.4 in (1,510 mm)
13.2 US gal (50)
131.6 cu-in (2,157 cm
)
11.1 : 1 1.72 US gal (6.5
)
2.01 US gal (7.6)
5.1 US qt (4.8
)
5.1 US qt (4.8)
5.9 US qt (5.6)
1.7 US qt (1.6)
1.7 US qt (1.6)
0.78 US qt (0.74
)
0.81 US qt (0.77)
2.7 US qt (2.6)
4.4 US qt (4.2)
3.43 x 3.57 in (87.0 x 90.7 mm)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Fuel tank
Engine coolant
Engine oil
Manual
transmission
fluid
Differential
oil
Windshield
washer
reservoir
See the certification label attached
to the driver’s doorjamb.
Water cooled 4-stroke DOHC
VTEC 4-cylinder gasoline engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap
0.04 in (1.1 mm)PK22PR-L11S PFR7G-11S
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
0.16 US gal (0.6
)
Excluding the oil remaining in the engine.
Front
Rear
1:
2:
NGK :
DENSO : Change
Total
Change
Total
Change
Total
Change
Total
U.S. Vehicles
Canadian
Vehicles
0mm
0.1 mm
1
2
Including filter
Without filter

µ
µ
µµ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
T echnical Inf ormation181
Battery
Fuses
Alignment
Tires
Lights
Air conditioning
55 W
12 V 12 V 36 AH/5 HR
0.00 in (0.0 mm)
0.15 in (3.7 mm)0°30’
6°
215/45R17 87W
245/40R17 91W
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
T125/70D16 96M 1°30’
12 V 21 W 12 V 21 W
12 V 55 W(H1)
35 W
12 V Capacity
Under-hood
Interior
Toe
Camber
Caster
Size
PressureSee page
173or the fuse box
cover.
See page 172or the fuse label
attached to the inside of the fuse
box door under the dashboard.
Headlights
Daytime running lights
Front turn signal lights
Rear turn signal lights
Side marker lights
Back-up lights
License plate light
Interior light
Trunk light
Side turn signal lights
Refrigerant type
Charge quantity
Lubricant type
HFC-134a (R-134a)
19.4 21.2 oz (550 600 g) SP-10
12 V 5 W
12 V 21 W
12 V 5 W
12 V 5 W
12 V 5 W
5W
12 V Front
Rear
Front
Rear
Front in
Front
Rear
Spare Tire
Front
Rear
Spare Tire
High
Low
Front

µ
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear
Traction AA, A, B, C
182

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
DOT T ire Quality Grading (U.S. Vehicles)
T echnical Inf ormation
Temperature A,B,C
183

µ
µ
µ
µµ
µ
µ
µµ
µ µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. Following is an example
of tire size with an explanation of
what each component means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial). Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.Manuf acturer’s
identification mark.
Tire type code. Date of manuf acture.
P
R DOT
B97R
FW6X2202
245
40 17
91
W
Tire Labeling
T echnical Inf ormation
Tire Size
T ire Ident if icat ion Number
184
DOT B97R FW6X 2202
P245/40R17 91W

ÎÎ
The burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx) and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons. Con-
trolling the production of NOx, CO,
and HC is important to the environ-
ment. Under certain conditions of
sunlight and climate, NOx and HC
react to f orm photochemical ‘‘smog.’’
Carbon monoxide does not contri-
bute to smog creation, but it is a
poisonous gas.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specif ied in an
agreement with Environment
Canada, at the time they are
manuf actured.
Your vehicle has a Positive
Crankcase Ventilation System. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The Positive Crank- case Ventilation valve routes them
from the crankcase back to the
intake manif old. They are then
drawn into the engine and burned.
As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
123
Emissions Cont rols
T echnical Inf ormation
Crankcase Emissions Control
System Evaporative Emissions Control
System
The Clean Air Act
185

The exhaust emissions controls
include f our systems: PGM-FI,
Ignition Timing Control, Secondary
Air Injection System, and Three Way
Catalytic Converter. These four
systems work together to control the
engine’s combustion and minimize
the amount of HC, CO, and NOx that
comes out the tailpipe. The exhaust
emissions control systems are
separate f rom the crankcase and
evaporative emissions control
systems.
The PGM-FI System uses sequential
multiport f uel injection.
It has three subsystems: Air Intake,
Engine Control, and Fuel Control.
The Engine Control Module (ECM)
uses various sensors to determine
how much air is going into the
engine. It then controls how much
f uel to inject under all operating con-
ditions.During engine warm-up, air is
pumped into the exhaust to reduce
emissions when the engine is cold.
The three way catalytic converter is
in the exhaust system. Through
chemical reactions, it converts HC,
CO, and NOx in the engine’s exhaust
to carbon dioxide (CO ), nitrogen
(N ), and water vapor.
The emissions control systems are
designed and certif ied to work to-
gether in reducing emissions to
levels that comply with the Clean Air
Act. To make sure the emissions
remain low, you should use only new
Honda replacement parts or their
equivalent f or repairs. Using lower
qualitypartsmayincreasethe
emissions f rom your vehicle.
The emissions control systems are
covered by warranties separate from
the rest of your vehicle. Read your
warranty manual f or more informa-
tion.
The Onboard Ref ueling Vapor
Recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
This system constantly adjusts the
ignition timing, reducing the amount
of HC, CO, and NOx produced.
2
2
Emissions Cont rols
T echnical Inf ormation
Exhaust Emissions Controls
Onboard Ref ueling Vapor
Recovery Replacement Parts
PGM-FI Syst emSecondary A ir Inject ion Syst em
Three Way Catalytic Converter
Ignit ion T iming Cont rol Syst em
186

The three way catalytic converter
contains precious metals that serve
as catalysts, promoting chemical
reactions to convert the exhaust
gasses without af f ecting the metals.
The catalytic converter is ref erred to
as a three-way catalyst, since it acts
on HC, CO, and NOx. A replacement
unit must be an original Honda part
or its equivalent.
The three way catalytic converter
must operate at a high temperature
for the chemical reactions to take
place. It can set on f ire any com-
bustible materials that come near it.
Parkyourvehicleawayfromhigh
grass, dry leaves, or other f lamma-
bles.A defective three way catalytic
converter contributes to air pollution,
and can impair your engine’s per-
f ormance. Follow these guidelines to
protect your vehicle’s three way
catalytic converter.
Always use unleaded gasoline.
Even a small amount of leaded
gasoline can contaminate the
catalyst metals, making the three
way catalytic converter inef f ective. Keep the engine tuned-up.
Have your vehicle diagnosed and
repaired if it is misf iring, back-
f iring, stalling, or otherwise not
running properly.
Three Way Catalytic Converter
T echnical Inf ormation187
THREE WAY CATALYTIC CONVERTER
