If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required. If your vehicle gets stuck in sand,
mud, or snow, call a towing service
to pull it out (see the previous
column).
For very short distances, such as
f reeing the vehicle, you can use the
detachable towing hook that mounts
on the anchors in the front and rear
bumpers.To use the towing hook:

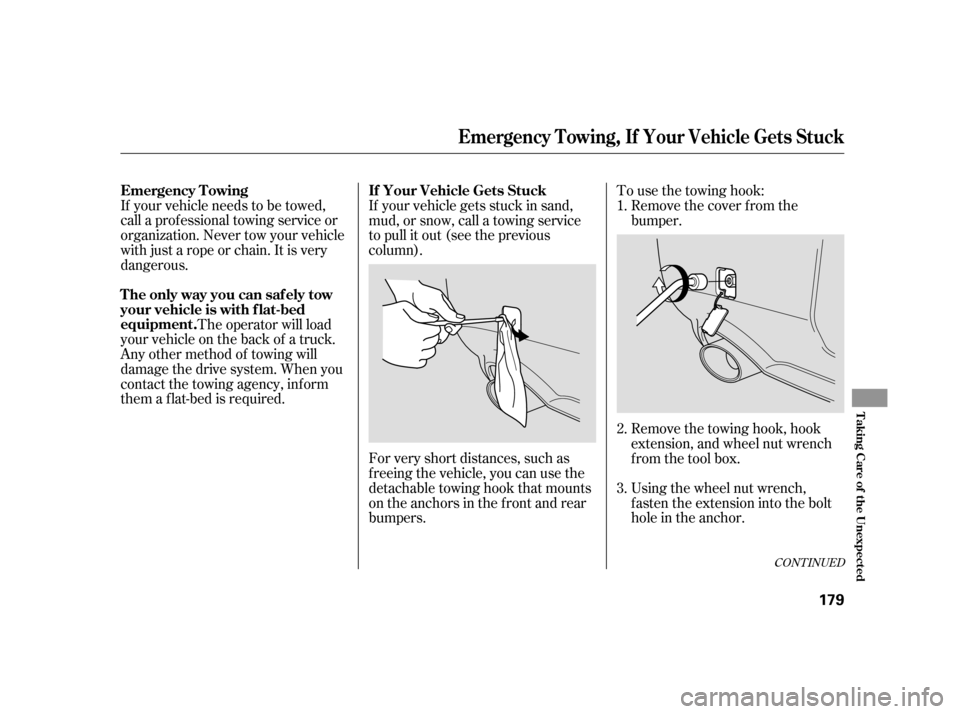

Remove the cover f rom the
bumper.
Using the wheel nut wrench,
fasten the extension into the bolt
hole in the anchor. Remove the towing hook, hook
extension, and wheel nut wrench
f rom the tool box.
1.
2.
3.
CONT INUED
Emergency Towing, If Your Vehicle Gets Stuck
Emergency T owing
The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.
If Your Vehicle Gets Stuck
T aking Care of t he Unexpect ed
179
Page 182 of 209
Screw the towing hook into the
extension and tighten it securely
by hand.
4.
If Your Vehicle Gets Stuck
180
To avoid damage to your vehicle, use
the towing hook f or straight, f lat
ground towing only. Do not tow at an
angle. The tow hook should not be used
to tow the vehicle onto a f lat bed. Do
not use it as a tie down.
Page 183 of 209
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle, and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers . 182
................................
Specif ications .184
DOT Tire Quality Grading ......................
(U.S. Vehicles) .186
Unif orm Tire Quality ..................................
Grading .186
.................................
Treadwear .186
......................................
Traction .186
.............................
Temperature .187
.................................
Tire Labeling .188 .......................
Emissions Controls .189
.....................
The Clean Air Act .189
Crankcase Emissions Control ....................................
System .189
Evaporative Emissions Control ....................................
System .189
Onboard Ref ueling Vapor ................................
Recovery .189
...
Exhaust Emissions Controls . 190
....................
PGM-FI System .190
Ignition Timing Control ................................
System .190
Secondary Air Injection ................................
System .190
Three Way Catalytic ...........................
Converter .190
....................
Replacement Parts . 190
..
Three Way Catalytic Converter . 191
..............
State Emissions Testing . 192
T echnical Inf ormat ion
T echnical Inf ormation
181
Page 184 of 209
Your vehicle has several identif ying
numbers located in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the Certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
Certif ication label.
Identif ication Numbers
182

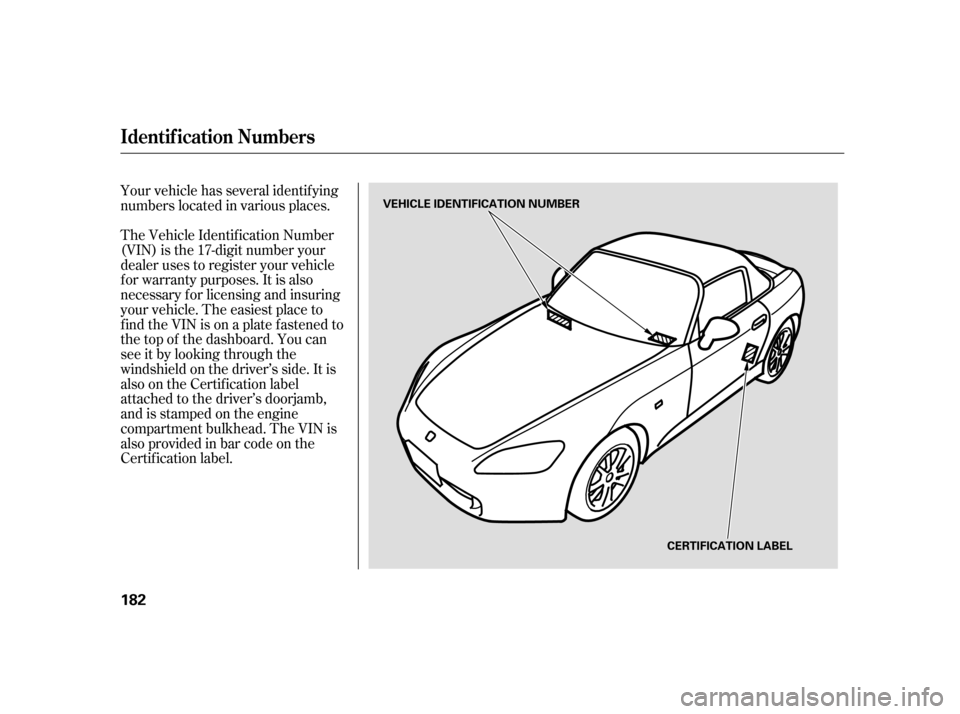

VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
Page 185 of 209
The Transmission Number is on a
label underneath the transmission. The Engine Number is stamped on
the f ront right corner of the engine
block, below the valve cover.
Identif ication Numbers
T echnical Inf ormation
183

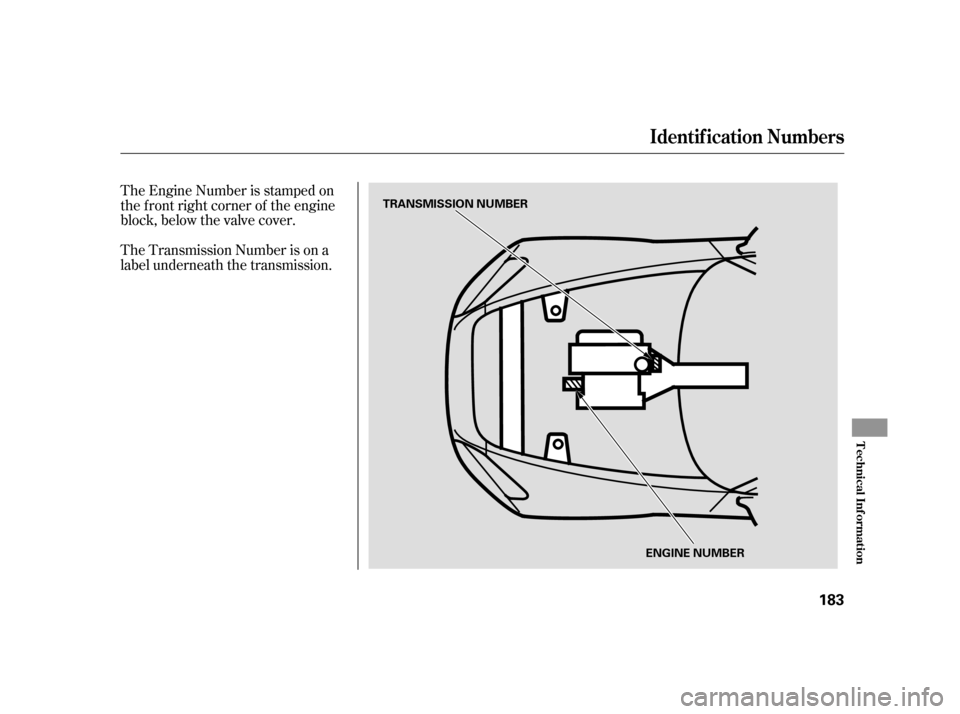

TRANSMISSION NUMBERENGINE NUMBER
Page 186 of 209
Î
Î
´
µ
Î
Î
Specif ications
184
Dimensions
Engine WeightsCapacities
162.0 in (4,115 mm)
68.9 in (1,750 mm)
50.6 in (1,285 mm)
94.5 in (2,400 mm)
57.9 in (1,470 mm)
59.4 in (1,510 mm) 13.2 US gal (50)
132 cu-in (2,157 cm
)
11.1 : 1 1.72 US gal (6.5
)
2.01 US gal (7.6)
5.1 US qt (4.8
)
5.1 US qt (4.8)
5.9 US qt (5.6)
1.7 US qt (1.6)
1.7 US qt (1.6)
0.78 US qt (0.74
)
0.81 US qt (0.77)
2.6 US qt (2.5)
6.3 US qt (6.0)
3.43 x 3.57 in (87.0 x 90.7 mm)
Length
Width
Height
Wheelbase
Track
See the certification label attached
to the driver’s doorjamb.Water cooled 4-stroke DOHC
VTEC 4-cylinder gasoline engine
Type
BorexStroke
Displacement
Compression ratio
Spark plugs
Spark Plug Gap
0.04 in (1.1 mm)PK22PR-L11S PFR7G-11S
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
0.16 US gal (0.6
)
Excluding the oil remaining in the engine.
Gross vehicle weight rating
(GVWR)
Fuel tank
Engine coolant
Engine oil
Manual
transmission
fluid
Differential
fluid
Windshield
washer
reservoir
Front
Rear
1:
2:
NGK :
DENSO : Change
Total
Change
Total
Change
Total
Change
Total
U.S. Vehicles
Canadian
Vehicles
0mm
0.1 mm
1
2
Including filter
Without filter
Page 187 of 209
µ
µ
µµ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Specif ications
T echnical Inf ormation
185
Battery
Fuses
Alignment
Tires
Lights
Air conditioning
55 W
12 V 12 V 36 AH/5 HR
0.00 in (0.0 mm)
0.15 in (3.7 mm)0°30’
6°
215/45R17 87W
245/40R17 91W
32 psi (220 kPa , 2.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
T125/70D16 96M 1°30’
12 V 21 W 12 V 21 W
12 V 55 W(H1)
35 W
12 V Capacity
Under-hood
Interior
Toe
Camber
Caster
Size
Pressure
12 V 5 W
12 V 12 V
12 V 12 V
12 V
5W 5W
5W
5W
21 W
Headlights
Daytime running lights
Front turn signal lights
Rear turn signal lights
Front side marker/
parking lights
Back-up lights
License plate light
Interior light
Trunk light
Side turn signal lights See page
178or the fuse box
cover.
See page 177or the fuse label
attached to the inside of the fuse
box door under the dashboard.
Refrigerant type
Charge quantity
Lubricant type SP-10
19.4 21.2 oz (550 600 g) HFC-134a (R-134a) Front
Rear
Front
Rear
Front
in
Front
Rear
Spare Tire
Front
Rear
Spare Tire
: High voltage discharge type High
Low
(H1)
Page 188 of 209
µ
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
DOT T ire Quality Grading (U.S. Vehicles)
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear
Traction AA, A, B, C
186
Page 189 of 209
µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
DOT T ire Quality Grading (U.S. Vehicles)
Temperature A,B,C
T echnical Inf ormation
187
Page 190 of 209
µ
µ
µ µ
µ
µ
µ
µ
µ
µ µ
µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Whenever tires are replaced, they
should be replaced with tires of the
same size. The f ollowing is an
exampleof tiresizewithan
explanation of what each component
means. Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.Manuf acturer’s
identification mark.
Tire type code.
Date of manufacture. Max Press The maximum air
pressurethetirecanhold.
Max Load The maximum load the
tire can carry at maximum air
pressure.
Rim diameter in inches. Tire construction code (R
indicates radial). Aspect ratio (the tire’s section
height as a percentage of its
width). Tire width in millimeters.
R DOT
B97R
FW6X
2202
245
40
17 91
W
Tire Labeling
Tire Size
T ire Ident if icat ion NumberMaximum T ire Pressure
Maximum T ire L oad
188
DOT B97R FW6X 2202
245/40R17 91W
