The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in f ive steps.
Push the or button five times
to see the f ull range. To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to
or .
Push the red button next to the
parking brake to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signals and both indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.
With the headlight switch on, you
can switch the display to f ull daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
Instrument Panel Brightness, Hazard Warning Button
Instrument Panel Brightness
Hazard Warning Button
Inst rument s and Cont rols
49

Do not push the def ogger button
when the convertible top is f olded.
Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side to side.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle.
Rear Window Def ogger
50

The valet key works only in the
ignition and the door locks. You can
keep the trunk and the lower console
compartment locked when you leave
your vehicle and the valet key at a
parking f acility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a key replaced. Use only
Honda-approved key blanks.These keys contain electronic
circuits that are activated by the
Immobilizer System. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart.
The master key fits all the locks on
your vehicle.
Keys and Locks
Inst rument s and Cont rols
51
VALET KEY
(GREY)
KEY
NUMBER
TAG
MASTER KEYS
(BLACK)

When you turn the ignition switch to
ON (II), the Immobilizer System
indicator should come on f or a f ew
seconds, then go out. If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to
LOCK (0), remove the key, reinsert
it, and turn the switch to ON (II)
again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
f ob) is near the ignition switch when
you insert the key.If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle undriveable.
If you have lost your key and cannot
start your engine, contact your
dealer.
The Immobilizer System protects
your vehicle f rom thef t. If an
improperly-coded key (or other
device) is used, the engine’s f uel
system is disabled.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer Syst em
52

µµ
µ
The ignition switch has three
positions: LOCK (0), ACCESSORY
(I), and ON (II). This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom ACCESSORY
(I) to ON (II).
The engine can be started with the
key in this position by pressing the
engine START button (see page ).
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper. You can
operate the audio system and the
accessory power socket in this
position.
You can insert or
remove the key only in this position.
To turn the key, push it in slightly.
If the f ront wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key. 114
Ignition Switch
ON (II) A CCESSORY (I)
LOCK (0)Inst rument s and Cont rols
53
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control.
Remove the key from the
ignition switch only when
parked.

Each door has a lock tab next to the
inside door handle. When you push
in the lock tab on the driver’s door,
both doors lock. Pulling out the lock
tab on the driver’s door only unlocks
that door. The lock tab on the
passenger’s door only locks and
unlocks that door.To lock the passenger’s door when
getting out of the vehicle, push the
lock tab in and close the door. To
lock the driver’s door, remove the
key f rom the ignition switch, pull out
either the inside or outside door
handle and push the lock tab in, then
close the door.
Both doors lock when you use the
key in the driver’s door. Using the
key in the passenger’s door only
locks and unlocks that door.
To unlock only the driver’s door
f rom the outside, insert the key in
the driver’s door lock, turn the key
and release it. If you turn the key
and hold it, both doors will unlock.
To open the trunk, press the trunk
release button in the lower console
compartment. To protect items in
the trunk when you need to give the
key to someone else, lock the lower
console compartment with the
master key, and give the other
person the valet key.
To close the trunk, press down on
the trunk lid.
Power Door L ocks
T runk
Power Door L ocks, T runk
54
LOCK TAB
TRUNK RELEASE BUTTONPush

You can also use the master key to
open the trunk lock.
To open the trunk with the remote
transmitter, press and hold the
TRUNK RELEASE button f or about
1second(seepage ).Keep the trunk lid closed at all times
while driving to avoid damaging the
lid, and to prevent exhaust gas f rom
getting into the interior. See
on page.
As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom the
inside. To open the trunk, push the
release lever to the lef t.
Parents should decide if their
children should be shown how to use
this f eature. For more inf ormation
about child saf ety, see page .
56 35
26
Emergency T runk Opener
Carbon
Monoxide Hazard
Trunk
Inst rument s and Cont rols
55
MASTER KEY

µ
µ
µ
µ
Press this button once
to unlock the driver’s door. Push it
twice to also unlock the passenger’s
door. Press this button once to
lock both doors. Some exterior lights
will f lash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doors are
locked.
The interior light (if the interior light switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door within 30 seconds, the
light goes out. If you relock the
doors with the remote transmitter
bef ore 30 seconds have elapsed, the
light will go of f immediately.
If you do not open either door within
30 seconds, the doors automatically
relock.
You cannot lock or unlock the doors
with the remote transmitter if either
door is not f ully closed or the key is
in the ignition switch.
Pressthisbuttonfor
about 1 second to open the trunk.
You cannot open the trunk if the key
is in the ignition switch.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
Do not immerse the transmitter in
any liquid. Protect the transmitter from
extreme temperature. Avoid dropping or throwing the
transmitter.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.

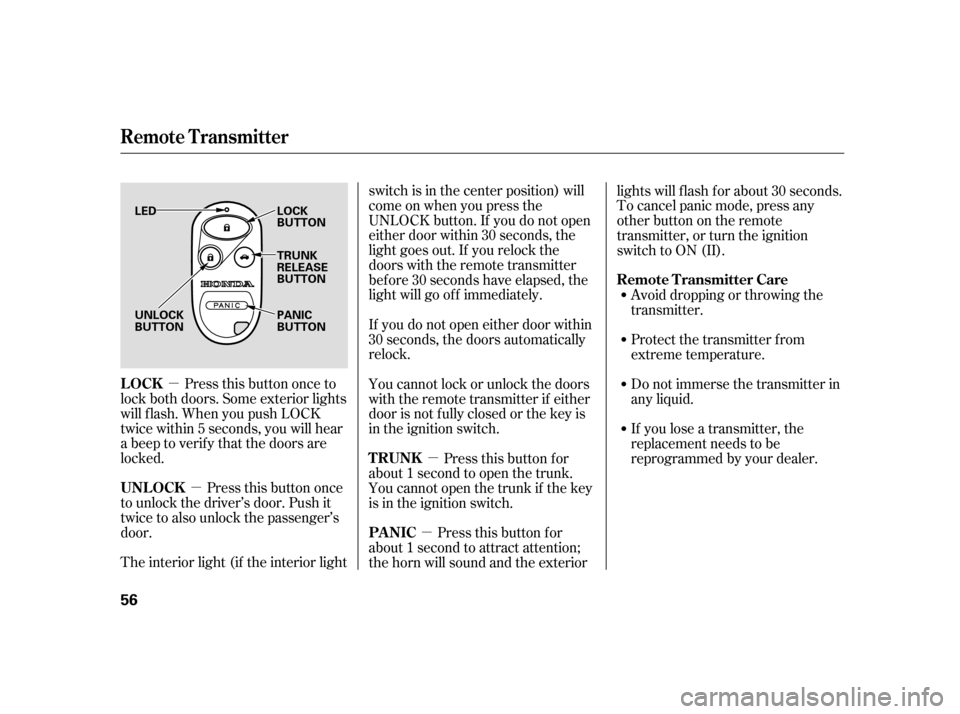

Remote Transmitter
UNL OCK LOCK TRUNK
PA NICRemote Transmitter Care
56
LED
UNLOCK
BUTTON
TRUNK
RELEASE
BUTTON
PANIC
BUTTON LOCK
BUTTON

´
Õ Ü
To replace the battery, remove the
round cover on the back of the
transmitter by turning it
counterclockwise with a coin. Insert
a new battery with the side facing
up. Align the mark on the cover
with the mark on the
transmitter. Set the cover in place,
andturnitclockwise.
If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Battery type: CR2025
As required by the FCC: This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Remote Transmitter
Replacing the Transmitter
Battery
Inst rument s and Cont rols
57
BATTERY ROUND
COVER

µ

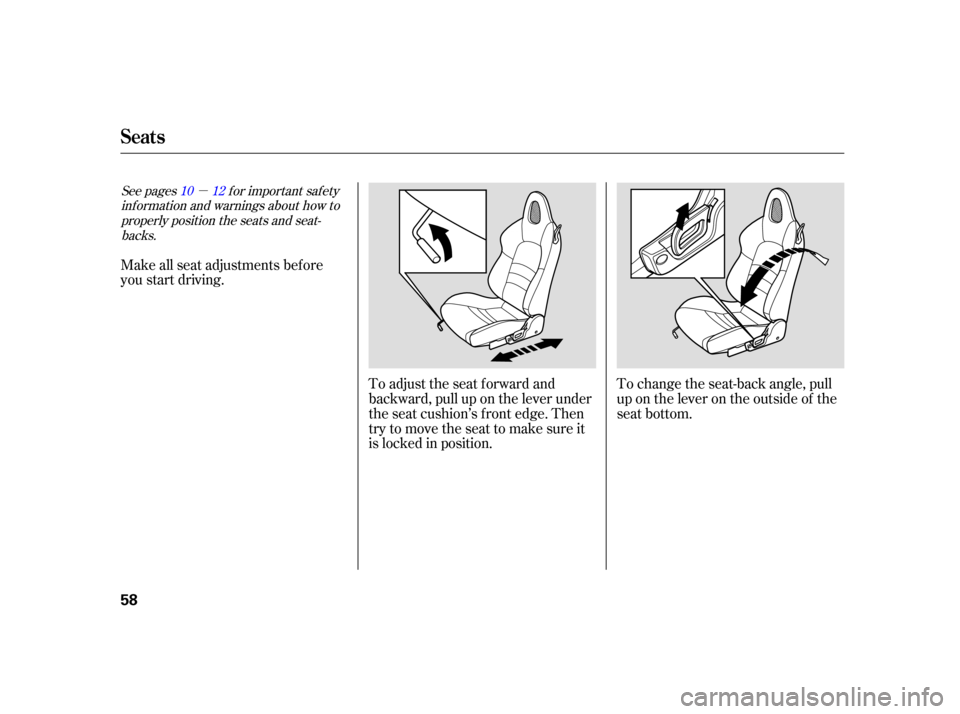

To adjust the seat forward and
backward, pull up on the lever under
the seat cushion’s f ront edge. Then
trytomovetheseattomakesureit
is locked in position.To change the seat-back angle, pull
up on the lever on the outside of the
seat bottom.
Make all seat adjustments bef ore
you start driving.
See pages f or important saf ety
inf ormation and warnings about how toproperly position the seats and seat-backs. 10 12
Seats
