Engine HONDA S2000 2006 2.G Owner's Guide

To eliminate potential hazards, read
the instructions bef ore you begin,
and make sure you have the tools
and skills required. All service items not detailed in this
section should be perf ormed by a
certif ied technician or other qualif ied
mechanic.Make sure your vehicle is parked
on level ground, the parking brake
is set, and the engine is of f .
To clean parts, use a commercially
available degreaser or parts
cleaner, not gasoline.
To reduce the possibility of f ire or
explosion, keep cigarettes, sparks,
and flames away from the battery
and all f uel-related parts.
Wear eye protection and
protective clothing when working
with the battery or compressed air. Be sure
there is adequate ventilation
whenever you operate the
engine.
Let the
engine and exhaust system cool
bef ore touching any parts. Do
not run the engine unless
instructed to do so.
Some of the most important saf ety
precautions are given here.
However, we cannot warn you of
every conceivable hazard that can
arise in performing maintenance.
Only you can decide whether or
not you should perf orm a given
task.
Maintenance Saf ety
Important Saf ety Precautions Potential Vehicle HazardsCarbon Monoxide poison
f rom engine exhaust.
Burns f rom hot parts. Injury f rom moving parts.
132
Improperly maintaining this
vehicle or failing to correct a
problem before driving can
cause a crash in which you can
be seriously hurt or killed.
Always follow the inspection,
maintenance recommendations,
and schedules in this owner’s
manual.
Failure to properly follow
maintenance instructions and
precautions can cause you to
be seriously hurt or killed.
Always follow the procedures
and precautions in this owner’s
manual.
——y
y
(y
y

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ µ
µ
CONT INUED
Calculated Engine Oil Lif e (%)
100 % 91 % 90 % 81 %
80 % 71 %
70 % 61 %
60 % 51 %
50 % 41 %
40 % 31 %
30 % 21 %
20 % 16 %
15 % 11 %10 % 6 % 5% 1% 0% Displayed
Engine Oil Lif e (%) 100 %90 %
80 %
70 %
60 %
50 %
40 %
30 %
20 %
15 %
10 %5%
0%
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage. The remaining engine oil lif e is
displayed on the engine oil lif e
display according to this table:
To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and push and release
the TRIP button repeatedly until the
engine oil lif e display appears (see
page ).
Your vehicle displays engine oil lif e
and maintenance service items on
the inf ormation display to show you
when you should have your dealer
perf orm engine oil replacement and
indicated maintenance service.
51
Maintenance Minder
Engine Oil L if e Indicator
Maint enance
133
ENGINE OIL LIFE DISPLAYTRIP BUTTON
——y
y
(y
y

When the remaining engine oil lif e is
5 to 1 percent, you will see a
‘‘SERVICE OIL LIFE’’ message
along with the same maintenance
item code(s), every time you turn the
ignition switch to the ON (II)
position.
The maintenance item code or codes
indicate the main and sub items
required at the time of the oil change
(see page ).
If the remaining engine oil lif e is 15
to 6 percent, you will see the engine
oil lif e indicator every time you turn
the ignition switch to the ON (II)
position. The maintenance minder
indicator will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
next to the engine oil lif e indicator. 140
Maintenance Minder
134
MAINTENANCE MINDER INDICATOR
MAINTENANCE ITEM CODE(S) ENGINE OIL LIFE INDICATOR
——y
y
(y
y

µ

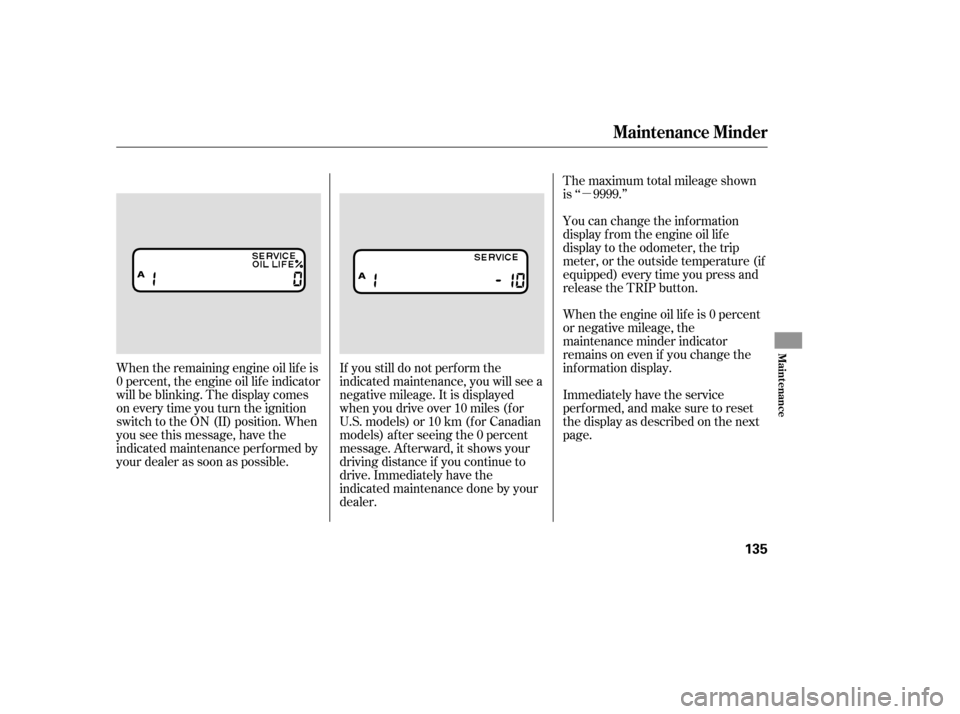

When the remaining engine oil lif e is
0 percent, the engine oil lif e indicator
will be blinking. The display comes
oneverytimeyouturntheignition
switch to the ON (II) position. When
you see this message, have the
indicated maintenance perf ormed by
your dealer as soon as possible. If you still do not perf orm the
indicated maintenance, you will see a
negative mileage. It is displayed
when you drive over 10 miles (f or
U.S. models) or 10 km (f or Canadian
models) af ter seeing the 0 percent
message.Afterward,itshowsyour
driving distance if you continue to
drive. Immediately have the
indicated maintenance done by your
dealer.The maximum total mileage shown
is ‘‘ 9999.’’
When the engine oil lif e is 0 percent
or negative mileage, the
maintenance minder indicator
remainsonevenif youchangethe
inf ormation display. You can change the inf ormation
display f rom the engine oil lif e
display to the odometer, the trip
meter, or the outside temperature (if
equipped) every time you press and
release the TRIP button.
Immediately have the service
perf ormed, and make sure to reset
the display as described on the next
page.
Maintenance Minder
Maint enance
135
——y
y
(y
y

Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100 %’’ on the odometer/
trip meter display the next time you
turn the ignition switch to the ON
(II) position.
When the vehicle needs
maintenance, maintenance codes
appear on the inf ormation display.
For an explanation of the
maintenance codes, see page . Turn the ignition switch to the ON
(II) position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:

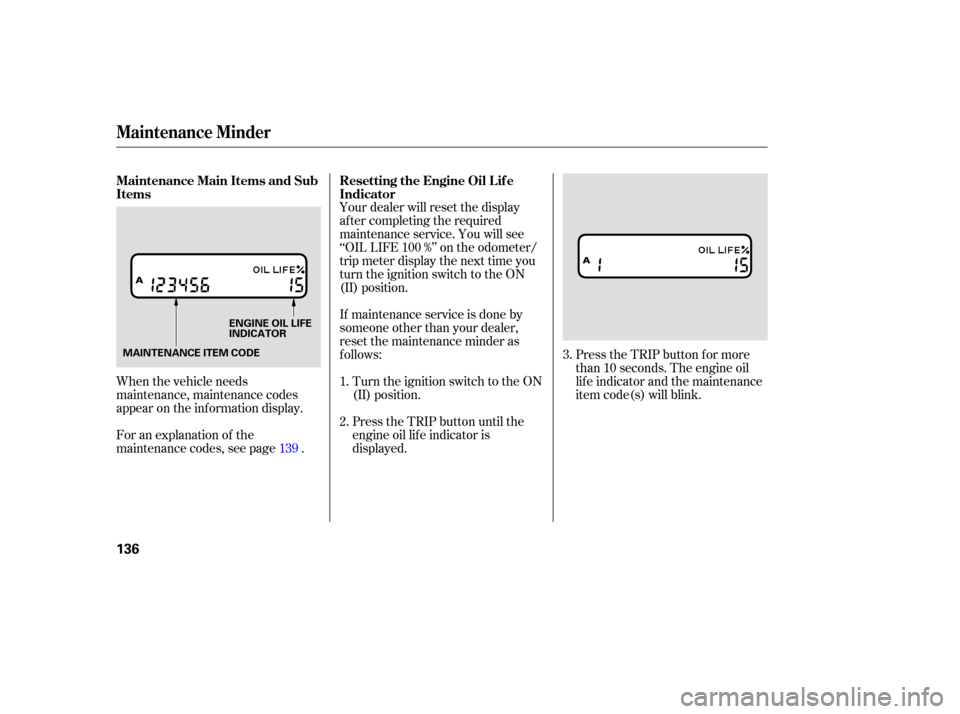

Press the TRIP button until the
engine oil lif e indicator is
displayed. Press the TRIP button for more
than 10 seconds. The engine oil
lif e indicator and the maintenance
item code(s) will blink.
3.
1.
2.
139 Resetting the Engine Oil Lif e
Indicator
Maintenance Main Items and Sub
Items
Maintenance Minder
136
ENGINE OIL LIFE
INDICATOR
MAINTENANCE ITEM CODE
——y
y
(y
y

If you have the required service
done but do not reset the display, or
reset the display without doing the
service, the system will not show the
proper maintenance intervals. This
canleadtoseriousmechanical
problems because you will no longer
have an accurate record of when
maintenance is needed.
Your authorized Honda dealer
knows your vehicle best and can
provide competent, ef f icient service.However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Make sure to
have the service f acility or person
reset the display as previously
described. Keep all receipts as proof
of completion, and have the person
who does the work fill out the
maintenance record. Check your
warranty booklet f or more
inf ormation.
Press the TRIP button for more
than 5 seconds. The maintenance
items code(s) will disappear, and
the engine oil lif e will reset to ‘‘100.’’ We recommend using Honda parts
and fluids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their performance and durability.
4.
CONT INUED
Important Maintenance
Precautions
Maintenance Minder
Maint enance
137
——y
y
(y
y

µµ
µ
µ µ
Ì
U.S. Vehicles:
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Brakes and clutch Check the
f luid level monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page . Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, all
maintenance services should be
perf ormed in accordance with the
intervals indicated by the
inf ormation display. 111
112
151
161 152
Maintenance Minder
Maintenance, replacement, or
repair of emissions control
devices and systems may be done
by any automotive repair
establishment or individual using
parts that are ‘‘certif ied’’ to EPA
standards.
Owner’s Maintenance Checks
138
——y


y
(y

y

Î
Ì Ì
Ì
Î
Maintenance Minder
139
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections Maintenance Sub Items
Check tire inflation and condition
Replace air cleaner element
Replace dust and pollen filter
Inspect drive belt
Replace transmission fluid
Replace spark plugs
Inspect valve clearance
Replace engine coolant
Replace rear differential fluid
:
A
B
Symbol
Symbol
1
2
3
4
5
61
If the message ‘‘SERVICE DUE NOW’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
Inspect idle speed every 160,000 miles (256,000 km). Independent of the maintenance minder messages, replace the brake fluid
every 3 years.
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
See information on maintenance and emissions warranty on page .
NOTE: 1:
138
If you drive in dusty conditions, replace every 15,000
miles (24,000 km).
If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Driving in mountainous areas results in higher level
of mechanical (shear) stress to fluid. This requires
differential fluid changes more frequently than
recommended by the maintenance minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed every 15,000 miles
(24,000 km).
Maintenance Minder
——y

y
(y
y

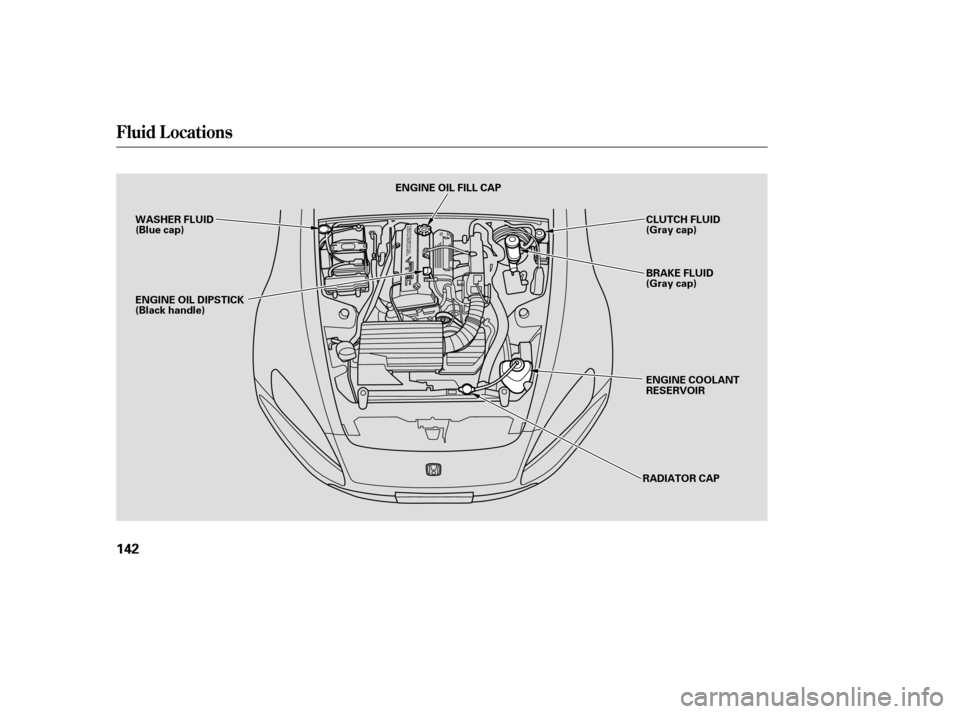

Fluid Locations
142
WASHER FLUID
(Blue cap)ENGINE OIL FILL CAP
CLUTCH FLUID
(Gray cap)
BRAKE FLUID
(Gray cap)
ENGINE COOLANT
RESERVOIR
ENGINE OIL DIPSTICK
(Black handle)
RADIATOR CAP
——y
y
(y
y

CONT INUED
Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’
Oil is major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda motor oil in your vehicle f or
as long as you own it.
Unscrew and remove the engine oil
fill cap on top of the valve cover.
Pour in the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.
Install the engine oil f ill cap, and
tighten it securely. Wait a f ew
minutes, and recheck the oil level.
Do not f ill above the upper mark; you
could damage the engine.
A dding Engine Oil
Recommended Engine Oil
Maint enance
143
API CERTIFICATION SEAL
——y
y
(y
y
