HONDA S2000 2009 2.G Owners Manual

The CD player/changer has a
sophisticated and delicate
mechanism. If you insert a damaged
CDasindicatedinthissection,it
maybecomestuckinsideand
damage the audio unit.
Examples of these CDs are shown to
the right:Bubbled, wrinkled, labeled, and excessively thick CDs
Damaged CDs
Poor quality CDs
1.
2.
3.
Additional Inf ormation of
Recommended CDs
Protecting Your CDs
118
Sealed
Warped Burrs
Chipped/
Cracked With Label/
Sticker
With Plastic
Ring
Using Printer
Label Kit
Bubbled/
Wrinkled
2009 S2000

CD-R or CD-RW may not play due
to the recording conditions.

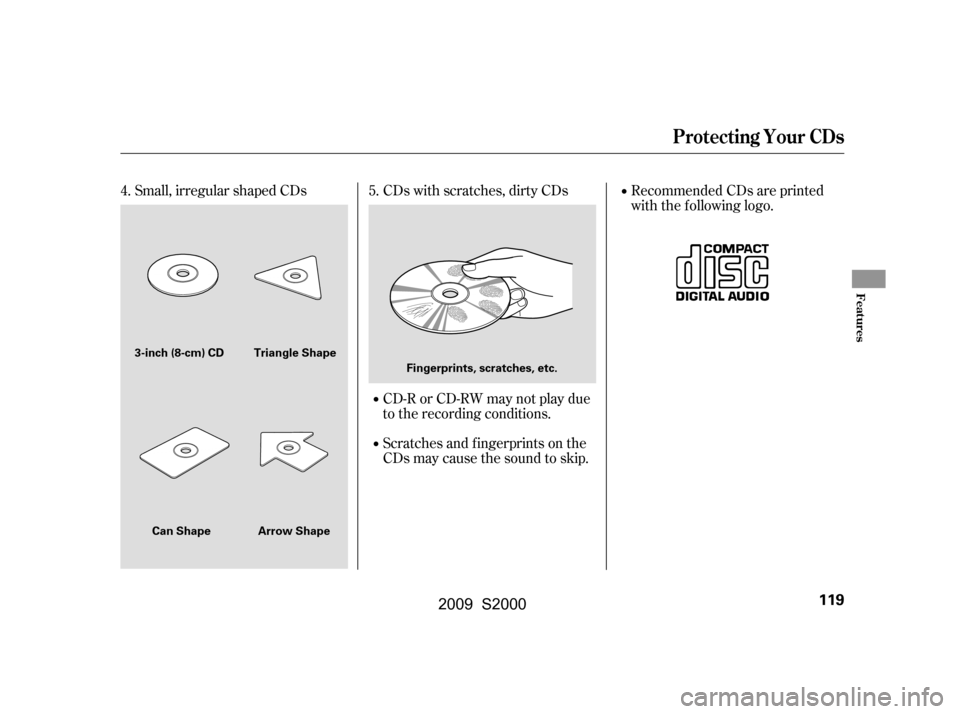

Small, irregular shaped CDs CDs with scratches, dirty CDs
Scratches and f ingerprints on the
CDs may cause the sound to skip.Recommended CDs are printed
with the f ollowing logo.
4.
5.
Protecting Your CDs
Features
119
Fingerprints, scratches, etc.
3-inch (8-cm) CD Triangle Shape
Arrow Shape
Can Shape
2009 S2000

Î
Î
Î
Î
Î
Î
Î
Î
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
For additional information on
damaged discs, see page .
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Cause
Error
Message Solution
118
FOCUS Error
Mechanical Error
High temperature Press the EJECT button, and pull out the CD.
Check if the CD is inserted correctly in the CD
player.
Make sure the CD is not scratched or damaged.
For more information, see page118.
Press the EJECT button, and pull out the CD.
Check the CD for damage or deformation.
For more information, see page118.
If the CD cannot be pulled out or the error
message does not disappear after the CD is
ejected, see your dealer.
Do not try to force the disc out of the player.
Will disappear when the temperature returns to
normal.
1:U.S.model
2 : Canadian model2
1
1
2
2
1
CD Player Error Messages
120
2009 S2000

Î
Î
ÎÎ Î
Î
Î
Î
Î Î
Cause
Solution
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.
If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
For additional information on
damaged discs, see page .
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer. Error
Message
118
FOCUS Error
No CD in the CD
magazine
Mechanical Error
High temperature
No CD magazine in the
CD changer Press the magazine eject button, pull out the
magazine, and check for an error message.
Insertthemagazineagain.Iftheerrormessage
does not disappear or the magazine cannot be
pulled out, see your dealer.
Insert CD.
Press the magazine eject button, and pull it out.
Check f or an error message, and insert the
magazine again. If the error message does not
disappear or the magazine cannot be pulled out,
see your dealer.
Will disappear when the temperature returns to
normal.
Insert CD magazine.
1:U.S.model
2 : Canadian model
2
2 1
2
1
1
1 2
CD Changer Error Messages
Features
121
2009 S2000

´
µ If you want to mute the sound
temporarily, push the MUTE button.
The indicator in the button will come
on to indicate the mute f unction is on.
Press the button again to cancel
mute.
The AUDIO CONTROL button
changes the mode. Pressing the
button repeatedly selects FM1, FM2,
AM,CD(if aCDisloaded),CD
changer (if you have the optional CD
changer), or XM1 and XM2 (if you
have the optional satellite radio
f eature).
The CHANNEL button has two
f unctions, depending on whether you
are listening to the radio, or playing a
CD.
If you are listening to the radio, use
the CHANNEL button to change
stations. Each time you press this
button, the system advances to the
next preset station on the band you are listening to. You will see the
number of the selected preset button
in the audio system display.
If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the
CHANNEL button.
These controls work only with the
f actory-installed audio system. They
will not f unction if you install any
non-Honda system.

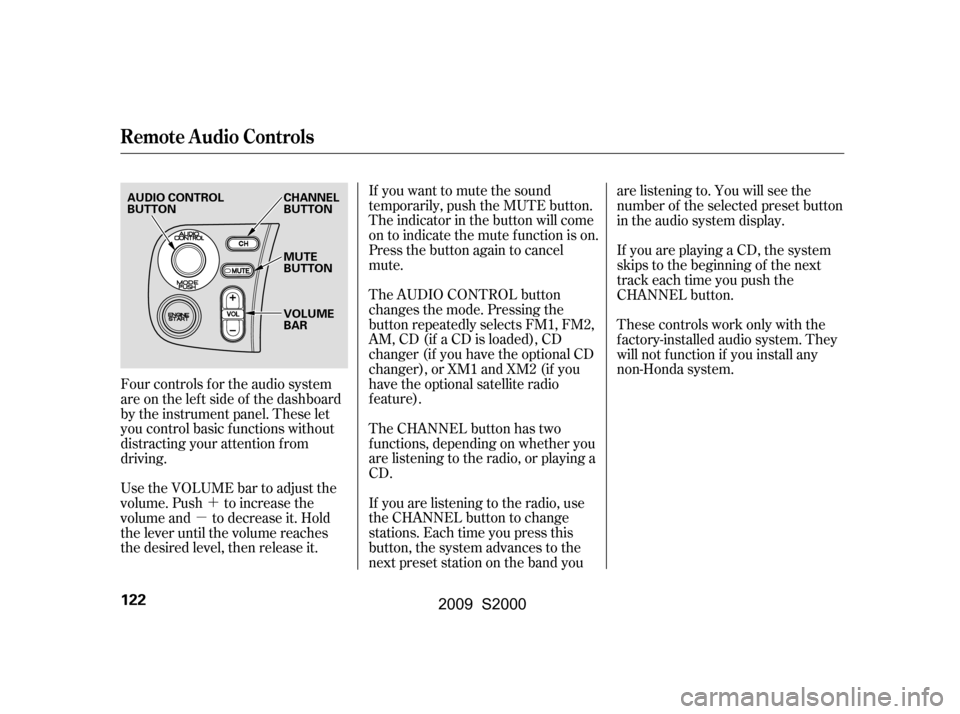

Four controls f or the audio system
areontheleftsideof thedashboard
by the instrument panel. These let
you control basic f unctions without
distracting your attention f rom
driving.
Use the VOLUME bar to adjust the
volume. Push to increase the
volume and to decrease it. Hold
the lever until the volume reaches
the desired level, then release it.
Remote Audio Controls
122
AUDIO CONTROL
BUTTON CHANNEL
BUTTON
MUTE
BUTTON
VOLUME
BAR
2009 S2000

You may have to store your favorite
stations in the preset buttons after
the system begins working. Your
original settings may be lost when
the power is disconnected.
If your vehicle’s battery is
disconnected or goes dead, or the
radio f use is removed, the audio
system will disable itself . If this
happens, you will see ‘‘CODE’’ (U.S.
model) or ‘‘Code’’ (Canadian model)
inthefrequencydisplaythenext
timeyouturnonthesystem.Usethe
preset buttons to enter the five-digit
code. The code is on the radio code
card included in your owner’s
manual kit. When it is entered
correctly, the radio will start playing.
If you make a mistake entering the
code, do not start over; complete the
f ive-digit sequence, then enter the
correct code. You have ten tries to
enter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for 1
hour bef ore trying again.
Youshouldhavereceivedacardthat
lists your audio system’s code and
serial numbers. It is best to store this
card in a saf e place at home. In
addition, you should write the audio
system’s serial number in this owner’s
manual.
Your vehicle’s audio system will
disable itself if it is disconnected
f rom electrical power f or any reason.
To make it work again, you must
enter a specif ic f ive-digit code in the
preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible.
If you lose the card, you must obtain
the code number f rom a dealer. To
do this, you will need the system’s
serial number.If equipped
Radio T hef t Protection
Features
123
2009 S2000

Cruise control allows you to maintain
asetspeedabove25mph(40km/h)
without keeping your f oot on the
accelerator pedal. It should be used
f or cruising on straight, open
highways. It is not recommended f or
city driving, winding roads, slippery
roads, heavy rain, or bad weather.Press and release the SET/decel
buttononthesteeringwheel.The
indicator on the instrument panel
comes on to show the system is
now activated.
Accelerate to the desired cruising
speedabove25mph(40km/h).
Push in the CRUISE button. The
indicator over the button comes on.
1.
2. 3.
Cruise Control
Using the Cruise Control
124
CANCEL BUTTON
SET/decel
RESUME/accel
CRUISE BUTTON
Improper use of the cruise
control can lead to a crash.
Use the cruise control only
when traveling on open
highways in good weather.
2009 S2000

You can increase the set cruising
speed in any of these ways:Press and hold the RESUME/
accel button. When you reach the
desired cruising speed, release the
button.
Push on the accelerator pedal.
Accelerate to the desired cruising
speed, and press the SET/decel
button. You can decrease the set cruising
speed in any of these ways:
Press and hold the SET/decel
button. Release the button when
you reach the desired speed.
To slow down in very small
amounts, tap the SET/decel
button. Each time you do this,
your vehicle will slow down about
1 mph (1.6 km/h).
Tap the brake or clutch pedal
lightly with your f oot. The
CRUISE CONTROL indicator on
the instrument panel goes out.
When the vehicle slows to the
desired speed, press the SET/
decel button.
Cruise control may not hold the
set speed when you are going up
and down hills. If your speed
increases going down a hill, use
the brakes to slow down. This will
cancelthecruisecontrol.To
resume the set speed, press the
RESUME/accel button. The
indicator on the instrument panel
will come back on.
To increase the speed in very
small amounts, tap the RESUME/
accel button. Each time you do
this, your vehicle speeds up about
1 mph (1.6 km/h).
CONT INUED
Changing the Set Speed
Cruise Control
Features
125
2009 S2000

Even with the cruise control turned
on, you can still use the accelerator
pedal to speed up f or passing. Af ter
completing the pass, take your foot
of f the accelerator pedal. The vehicle
will return to the set cruising speed.
Resting your f oot on the brake or
clutch pedal causes the cruise
control to cancel.You can cancel cruise control in any
of these ways:
Tap the brake or clutch pedal.
Push the CANCEL button on the
steering wheel.
Push the CRUISE button. When you push the CANCEL button,
or tap the brake or clutch pedal, the
system will remember the previously
set cruising speed. To return to that
speed, accelerate to above 25 mph
(40 km/h), then press and release
the RESUME/accel button. The
CRUISE CONTROL indicator comes
on. The vehicle will accelerate to the
same cruising speed as bef ore.
Pressing the CRUISE button turns
the system off and erases the
previous cruising speed.
Canceling Cruise Control
Resuming the Set Speed
Cruise Control
126
2009 S2000

Bef ore you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important f luids. You also
need to know how to properly store
luggage or packages. The
inf ormation in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first..............................
Break-in Period .128
.................
Fuel Recommendation .128
.........
Service Station Procedures .129
....................................
Ref ueling .129
OpeningandClosingthe .......................................
Hood .130
...................................
Oil Check .131
.............
Engine Coolant Check .132
...............................
Fuel Economy .133
...
Accessories and Modif ications .136
.............................
Carrying Cargo .138
Bef ore Driving
Bef ore Driving
127
2009 S2000
