turn signal bulb HUMMER H2 2006 Owners Manual

An arrow on the instrument
panel cluster will ash in
the direction of the
turn or lane change.
As you signal a turn or a lane change, if the arrows ash
more quickly than normal, a signal bulb may be burned
out and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don’t go on at all when you signal
a turn, check for burned-out bulbs and a blown fuse.
SeeInstrument Panel Fuse Block on page 5-116
andUnderhood Fuse Block on page 5-119.
Turn Signal On Chime
If your turn signal is left on for more than 3/4 of a mile
(1.2 km), a chime will sound at each ash of the turn
signal and the message TURN SIGNAL ON will also
appear in the DIC. SeeDIC Warnings and Messages on
page 3-48. To turn the chime and message off, move the
turn signal lever to the off position.
Headlamp High/Low-Beam Changer
53(Headlamp High/Low Beam Changer):To
change the headlamps from low to high beam, push the
lever toward the instrument panel. To return to
low-beam headlamps, pull the multifunction lever toward
you. Then release it.
When the high beams are
on, this indicator light on
the instrument panel
cluster will also be on.
Flash-to-Pass
This feature lets you use your high-beam headlamps to
signal a driver in front of you that you want to pass. It
works even if your headlamps are in the automatic
position.
To use it, pull the turn signal lever toward you, then
release it.
If your headlamps are in the automatic position or on
low beam, your high-beam headlamps will turn on.
They’ll stay on as long as you hold the lever toward you.
The high-beam indicator on the instrument panel
cluster will come on. Release the lever to return to
normal operation.
3-8

Backing Up
Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if possible,
have someone guide you.
Making Turns
Notice:Making very sharp turns while trailering
could cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.
When you’re turning with a trailer, make wider turns than
normal. Do this so your trailer won’t strike soft shoulders,
curbs, road signs, trees or other objects. Avoid jerky or
sudden maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
The arrows on your instrument panel will ash whenever
you signal a turn or lane change. Properly hooked up,
the trailer lamps will also ash, telling other drivers
you’re about to turn, change lanes or stop.
When towing a trailer, the arrows on your instrument
panel will ash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It’s
important to check occasionally to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower gearbeforeyou start
down a long or steep downgrade. If you don’t shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.
You can tow in DRIVE (D). You may want to shift the
transmission to THIRD (3) or, if necessary, a lower gear
selection if the transmission shifts too often (e.g.,
under heavy loads and/or hilly conditions).
You may also want to activate the tow/haul mode if
the transmission shifts too often. See “Tow/Haul
Mode” earlier.
When towing at high altitude on steep uphill grades,
consider the following: Engine coolant will boil at a lower
temperature than at normal altitudes. If you turn your
engine off immediately after towing at high altitude
on steep uphill grades, your vehicle may show signs
similar to engine overheating. To avoid this, let the
engine run while parked (preferably on level ground)
with the automatic transmission in PARK (P) for a
few minutes before turning the engine off. If you do get
the overheat warning, seeEngine Overheating on
page 5-27.
4-72

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-3
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
Your Vehicle..............................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuels in Foreign Countries...............................5-7
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-10
Hood Release..............................................5-11
Engine Compartment Overview.......................5-12
Engine Oil...................................................5-14
Engine Oil Life System..................................5-17
Engine Air Cleaner/Filter................................5-19
Automatic Transmission Fluid.........................5-22
Engine Coolant.............................................5-24
Coolant Surge Tank Pressure Cap..................5-26
Engine Overheating.......................................5-27
Overheated Engine Protection
Operating Mode........................................5-28Cooling System............................................5-29
Power Steering Fluid.....................................5-33
Windshield Washer Fluid................................5-34
Brakes........................................................5-35
Battery........................................................5-38
Jump Starting...............................................5-39
Rear Axle.......................................................5-43
Four-Wheel Drive............................................5-44
Front Axle......................................................5-45
Bulb Replacement..........................................5-46
Halogen Bulbs..............................................5-46
Headlamps..................................................5-47
Front Turn Signal and Parking Lamps..............5-48
Daytime Running Lamps (DRL).......................5-48
Roof Marker Lamps......................................5-49
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-50
Replacement Bulbs.......................................5-51
Windshield Wiper Blade Replacement..............5-52
Tires..............................................................5-53
Tire Sidewall Labeling...................................5-54
Tire Terminology and Denitions.....................5-57
Ination - Tire Pressure.................................5-59
Tire Inspection and Rotation...........................5-61
When It Is Time for New Tires.......................5-62
Section 5 Service and Appearance Care
5-1

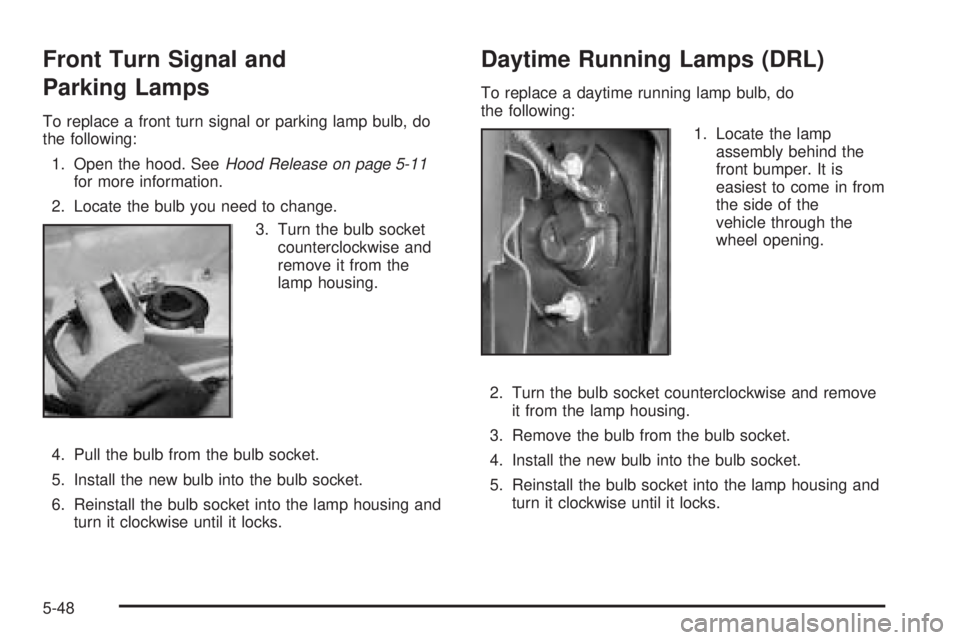

Front Turn Signal and
Parking Lamps
To replace a front turn signal or parking lamp bulb, do
the following:
1. Open the hood. SeeHood Release on page 5-11
for more information.
2. Locate the bulb you need to change.
3. Turn the bulb socket
counterclockwise and
remove it from the
lamp housing.
4. Pull the bulb from the bulb socket.
5. Install the new bulb into the bulb socket.
6. Reinstall the bulb socket into the lamp housing and
turn it clockwise until it locks.
Daytime Running Lamps (DRL)
To replace a daytime running lamp bulb, do
the following:
1. Locate the lamp
assembly behind the
front bumper. It is
easiest to come in from
the side of the
vehicle through the
wheel opening.
2. Turn the bulb socket counterclockwise and remove
it from the lamp housing.
3. Remove the bulb from the bulb socket.
4. Install the new bulb into the bulb socket.
5. Reinstall the bulb socket into the lamp housing and
turn it clockwise until it locks.
5-48

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
A. Stoplamp/Taillamp
B. Turn Signal Lamp
C. Back-Up Lamp
To replace one of these bulbs, do the following:
1. Open the liftgate or tailgate. SeeLiftgate (SUV) on
page 2-11orTailgate/Spare Tire Carrier on
page 2-14for more information.
2. If your vehicle is equipped with a taillamp guard,
you will need to remove it in order to access the
taillamp. To do this, remove the four screws
retaining the taillamp guard making sure not to
remove the plastic retainers.3. Remove the two
screws from the rear
lamp assembly
and remove the rear
lamp assembly.
4. Turn the bulb socket counterclockwise to remove it
from the taillamp housing.
5. Pull the bulb straight out from the socket.
6. Press a new bulb into the socket, insert it into the
taillamp housing and turn the socket
counterclockwise until it is locked in place.
7. Reinstall the rear lamp assembly and tighten
the screws.
8. Reinstall the taillamp guard by lining up the guard
with the holes in vehicle. Then install and tighten
the four screws.
5-50

Your vehicle may have a taillamp in the bumper. To
replace it, do the following:
1. Locate the affected
taillamp which is
behind and under
the bumper.
2. Turn the bulb socket counterclockwise and remove
it from the lamp housing.
3. Remove the bulb from the bulb socket.
4. Install the new bulb into the bulb socket.
5. Reinstall the bulb socket into the lamp housing and
turn it clockwise to lock it.Replacement Bulbs
Exterior Lamp Bulb Number
Back-up Lamp 3156
Daytime Running Lamp (DRL) 4114K
Front Turn Signal and
Parking Lamp4157K or 3157KX
Low-Beam and High-Beam
Headlamps9007
Rear Taillamp and Stoplamp 3057
Rear Taillamp in Bumper 3057
Rear Turn Signal Lamp 3156
Roof Marker Lamp 168
For replacement bulbs not listed here, contact
your dealer.
5-51

Audio System(s) (cont.)
Navigation/Radio System, see Navigation
Manual...................................................3-88
Radio with Cassette and CD.........................3-63
Radio with Six-Disc CD................................3-76
Rear Seat Audio (RSA)...............................3-108
Setting the Time..........................................3-62
Theft-Deterrent Feature...............................3-109
Understanding Radio Reception...................3-111
XM™ Satellite Radio Antenna System...........3-114
Automatic Headlamp System............................3-16
Automatic Transmission
Fluid..........................................................5-22
Operation...................................................2-27
B
Battery..........................................................5-38
Run-Down Protection...................................3-18
Before Leaving on a Long Trip.........................4-43
Bench Seat, Split (60/40)................................... 1-6
Brake
Anti-Lock Brake System (ABS)........................ 4-7
Emergencies................................................ 4-8
Parking......................................................2-34
System Warning Light..................................3-35
Brakes..........................................................5-35
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-8Break-In, New Vehicle.....................................2-24
Bulb Replacement...........................................5-46
Daytime Running Lamps...............................5-48
Front Turn Signal and Parking Lamps.............5-48
Halogen Bulbs............................................5-46
Headlamps.................................................5-47
Replacement Bulbs......................................5-51
Roof Marker Lamps.....................................5-49
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps........................................5-50
Buying New Tires...........................................5-63
C
California Fuel.................................................. 5-6
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Specications..........................5-124
Carbon Monoxide . . . 2-11, 2-12, 2-14, 2-37, 4-46, 4-63
Care of
Safety Belts..............................................5-108
Your Cassette Tape Player..........................3-111
Your CD and DVD Player...........................3-113
Your CDs and DVDs..................................3-113
Cargo Area, All-Weather..................................2-58
Cargo Tie Downs............................................2-58
Center Console Storage Area...........................2-54
Center Overhead Console................................2-54
Chains, Tire...................................................5-67
2

G
Gage
Engine Coolant Temperature.........................3-37
Fuel..........................................................3-44
Oil Pressure...............................................3-41
Speedometer..............................................3-31
Tachometer.................................................3-31
Transmission Temperature.............................3-37
Voltmeter Gage...........................................3-34
Garage Door Opener.......................................2-50
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5
Glove Box.....................................................2-54
GM Mobility Reimbursement Program.................. 7-5
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-5
Headlamps....................................................5-47
Automatic Headlamp System.........................3-16
Bulb Replacement.......................................5-46
Daytime Running Lamps.......................3-15, 5-48
Flash-to-Pass............................................... 3-8
Front Turn Signal and Parking Lamps.............5-48Headlamps (cont.)
Halogen Bulbs............................................5-46
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-15
Roof Marker Lamps.....................................5-49
Heated Seats................................................... 1-3
Heater...........................................................3-22
Highbeam On Light.........................................3-43
Highway Hypnosis...........................................4-43
Hill and Mountain Roads..................................4-44
Hood
Checking Things Under................................5-10
Release.....................................................5-11
Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-19
I
Ignition Positions.............................................2-24
Infants and Young Children, Restraints...............1-35
Ination - Tire Pressure...................................5-59
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-17
Cluster.......................................................3-30
6
