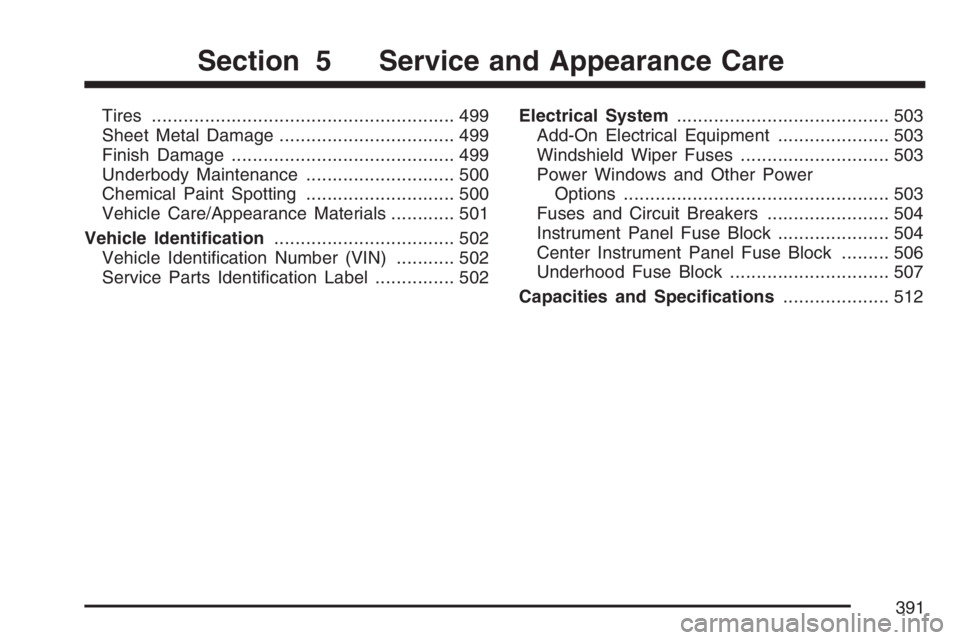

fuse HUMMER H2 2007 User Guide

Tires......................................................... 499
Sheet Metal Damage................................. 499
Finish Damage.......................................... 499
Underbody Maintenance............................ 500
Chemical Paint Spotting............................ 500
Vehicle Care/Appearance Materials............ 501
Vehicle Identication.................................. 502
Vehicle Identication Number (VIN)........... 502
Service Parts Identication Label............... 502Electrical System........................................ 503
Add-On Electrical Equipment..................... 503
Windshield Wiper Fuses............................ 503
Power Windows and Other Power
Options.................................................. 503
Fuses and Circuit Breakers....................... 504
Instrument Panel Fuse Block..................... 504
Center Instrument Panel Fuse Block......... 506
Underhood Fuse Block.............................. 507
Capacities and Specications.................... 512
Section 5 Service and Appearance Care
391

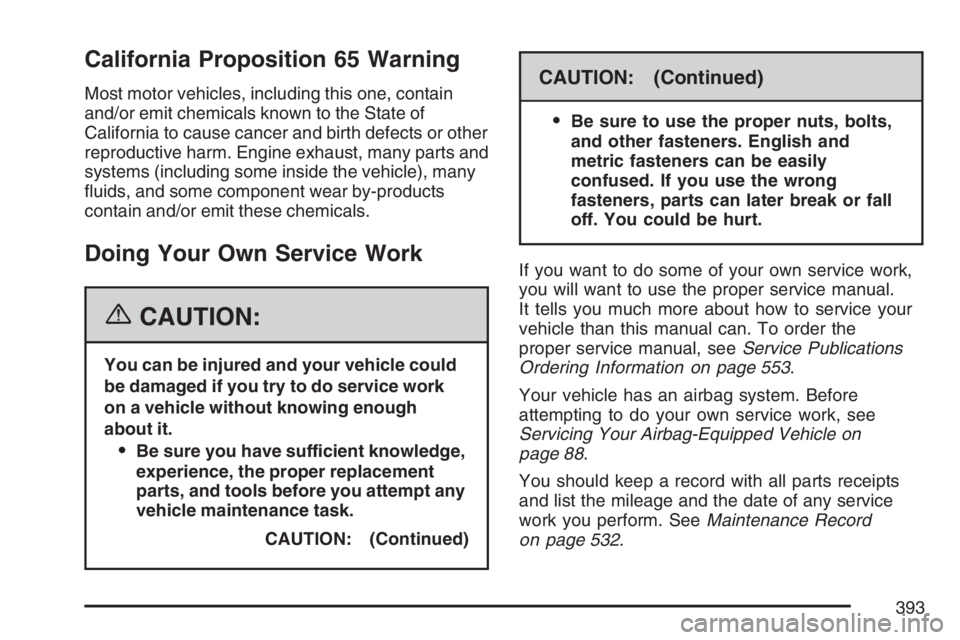

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Engine exhaust, many parts and
systems (including some inside the vehicle), many
uids, and some component wear by-products
contain and/or emit these chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
CAUTION: (Continued)
CAUTION: (Continued)

Be sure to use the proper nuts, bolts,
and other fasteners. English and
metric fasteners can be easily
confused. If you use the wrong
fasteners, parts can later break or fall
off. You could be hurt.
If you want to do some of your own service work,
you will want to use the proper service manual.
It tells you much more about how to service your
vehicle than this manual can. To order the
proper service manual, seeService Publications
Ordering Information on page 553.
Your vehicle has an airbag system. Before
attempting to do your own service work, see
Servicing Your Airbag-Equipped Vehicle on
page 88.
You should keep a record with all parts receipts
and list the mileage and the date of any service
work you perform. SeeMaintenance Record
on page 532.
393

A. Coolant Surge Tank. SeeCooling System on
page 420andCoolant Surge Tank Pressure
Cap on page 418.
B. Engine Air Cleaner/Filter and Air Filter
Restriction Indicator (If Equipped). SeeEngine
Air Cleaner/Filter on page 409.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 426.
D. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 404.
E. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 404.
F. Automatic Transmission Fluid Dipstick.
See “Checking the Fluid Level” underAutomatic
Transmission Fluid on page 412.G. Engine Cooling Fan. SeeCooling System on
page 420.
H. Remote Negative (−) Terminal (GND).
SeeJump Starting on page 432.
I. Power Steering Fluid Reservoir (Out of View).
SeePower Steering Fluid on page 425.
J. Remote Positive (+) Terminal. SeeJump
Starting on page 432.
K. Brake Fluid Reservoir. See “Brake Fluid” under
Brakes on page 427.
L. Underhood Fuse Block. SeeUnderhood Fuse
Block on page 507.
M. Battery. SeeBattery on page 431.
403

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 88.
Windshield Wiper Fuses
The windshield wiper motor is protected by an
internal circuit breaker and a fuse. If the motor
overheats due to heavy snow, etc., the wiper will
stop until the motor cools. If the overload is
caused by some electrical problem and not snow,
etc., be sure to get it xed.
Power Windows and Other Power
Options
Circuit breakers protect the power windows and
other power accessories. When the current load is
too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem is xed
or goes away.
503

Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses,
circuit breakers and fusible thermal links.
This greatly reduces the chance of res
caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the identical size and rating.
If you ever have a problem on the road and
don’t have a spare fuse, you can borrow one
that has the same amperage. Just pick some
feature of your vehicle that you can get along
without – like the radio or cigarette lighter – and
use its fuse, if it is the correct amperage.
Replace it as soon as you can.
Instrument Panel Fuse Block
The fuse block access
door is located on the
driver’s side edge of
the instrument panel.
Pull off the cover to
access the fuse block.
To remove fuses if you don’t have a fuse extractor,
hold the end of the fuse between your thumb
and index nger and pull straight out.
You may have spare fuses located behind the
fuse block access door. These can be used
to replace a bad fuse. However, make sure it is
of the correct amperage.
504

Fuses Usage
RR Wiper Rear Window Wiper Switch
SEO ACCYSpecial Equipment Option
Accessory
WS WPR Windshield Wipers
TBC ACCYTruck Body Controller
Accessory
IGN 3 Rear Heated Seats Module
Fuses Usage
4WDFour-Wheel Drive Switch, Air
Suspension Switch/Module
HTR A/C Not Used
LOCKPower Door Lock Relay
(Lock Function)
HVAC 1Inside Rearview Mirror,
Climate Control System
L DOORDriver’s Door Harness
Connection
CRUISE Cruise Control
UNLOCKPower Door Lock Relay
(Unlock Function)
RR FOG LP Not Used
BRAKE Brake Switch
DRIVER UNLOCKPower Door Lock Relay
(Driver’s Door Unlock
Function)
IGN 0Brake Transmission Shift
Interlock, Powertrain Control
Module, Transmission
TBC IGN 0 Truck Body Controller
VEH CHMSLVehicle and Trailer High
Mounted Stoplamp
LT TRLR ST/TRN Left Turn Signal/Stop Trailer
505

Fuses Usage
LT TRNLeft Turn Signals and
Sidemarkers
VEH STOPVehicle Stoplamps, Brake
Module, Electronic Throttle
Control Module
RT TRLR ST/TRN Right Turn Signal/Stop Trailer
RT TRNRight Turn Signals and
Sidemarkers
BODY Harness Connector
DDM Driver Door Module
LOCKSRear Doors and Liftgate
Power Lock Relay Feed
ECC Liftgate
TBC 2C Truck Body Controller
FLASH Flasher Module
CB LT DOORSLeft Rear Power Window
Circuit Breaker and Driver
Door Module
TBC 2B Truck Body Controller
TBC 2A Truck Body Controller
Circuit Breaker Usage
AUX PWR 2 Midgate Controller (SUT Only)
Center Instrument Panel Fuse Block
The center instrument panel utility block is
located underneath the instrument panel, to the
left of the steering column.
Device Usage
SEO Special Equipment Option
TRAILERTrailer Brake Wiring,
Off-Road Lamps Harness
Connector
UPFIT Uptter (Not Used)
SL RIDE Ride Control (Not Used)
HDLR 2Headliner Wiring
Connector 2
506

Device Usage
BODY Body Wiring Connector
DEFOG Rear Defogger Relay
HDLNR 1 Headliner Wiring Connector 1
SPARE RELAY Not Used
CB SEATDriver and Passenger Seat
Module Circuit Breaker
CB RT DOORRear Right Power Window,
Passenger Door Module
SPARE Not Used
INFO Not UsedUnderhood Fuse Block
The underhood fuse block in the engine
compartment is located on the driver’s side of
the vehicle near the battery. Lift the cover for
access to the fuse/relay block.
To remove fuses if you don’t have a fuse extractor,
hold the end of the fuse between your thumb
and index nger and pull straight out.
SeeEngine Compartment Overview on page 402
for more information on its location.
507

*1— Gasoline Engine and Fuel Injection Rail #2.
*2— Gasoline Engine and Fuel Injection Rail
#1.
*3— Gasoline Engine; Oxygen Sensors.
*4— Gasoline Engine; Oxygen Sensors.
*5— Ignition 1
*6— Powertrain Control Module, Fuel Pump.
*7— Supplemental Brake Assist.
*8— Sunroof.
Fuses Usage
GLOW PLUG Not Used
CUST FEED Gasoline Accessory Power
HYBRID Not Used
WSW/HTRHeated Windshield Washer
(Special Edition Only)
STUD #1Accessory Power/Trailer
Wiring
MBEC 1Mid Bussed Electrical Center
Power Feed, Front Seats,
Right Doors
Fuses Usage
BLWR Front Climate Control Fan
LBEC 2Left Bussed Electrical Center,
Door Modules, Door Locks,
Auxiliary Power Outlet—Rear
Cargo Area and Instrument
Panel
STUD #2*Accessory Power/Trailer
Wiring Brake Feed
ABS Anti-lock Brakes
VSES/ECASElectronically Controlled Air
Suspension
IGN A Ignition Switch
IGN B Ignition Switch
LBEC 1Left Bussed Electrical Center,
Left Doors, Truck Body
Controller, Flasher Module
TRL PARK Parking Lamps Trailer Wiring
RR PARKPassenger’s Side Rear
Parking and Sidemarker
Lamps
LR PARKDriver’s Side Rear Parking
and Sidemarker Lamps
509

Fuses Usage
PARK LP Parking Lamps Relay
STRTR Starter Relay
INTPARK Roof Marker Lamps
STOP LP Stoplamps
TBC BATTTruck Body Controller
Battery Feed
SEO B2 Off-Road Lamps
4WS Not Used
AUX PWRInstrument Panel Outlets,
Rear Cargo Area Power
Outlets, Console
PCM 1 Powertrain Control Module
ETC/ECMElectronic Throttle Control,
Electronic Brake Controller
IGN EInstrument Panel Cluster,
Air Conditioning Relay, Turn
Signal/Hazard Switch, Starter
Relay, Electronic Brake
Controller TC2 Mode Switch
RTDElectronic Brake Controller
Battery FeedFuses Usage
TRL B/U Backup Lamps Trailer Wiring
F/PMP Fuel Pump (Relay)
B/U LPBack-up Lamps, Automatic
Transmission Shift Lock
Control System
RR DEFOG Rear Window Defogger
HDLP-HI Headlamp High Beam Relay
PRIME Not Used
AIRBAGSupplemental Inatable
Restraint System
FRT PARKFront Parking Lamps,
Sidemarker Lamps
DRLDaytime Running Lamps
(Relay)
SEO IGN Rear Defog Relay
TBC IGN1 Truck Body Controller Ignition
HI HDLP-LTDriver’s Side High Beam
Headlamp
LH HID Not Used
DRL Daytime Running Lamps
510
