open gas tank HUMMER H2 2008 Owners Manual

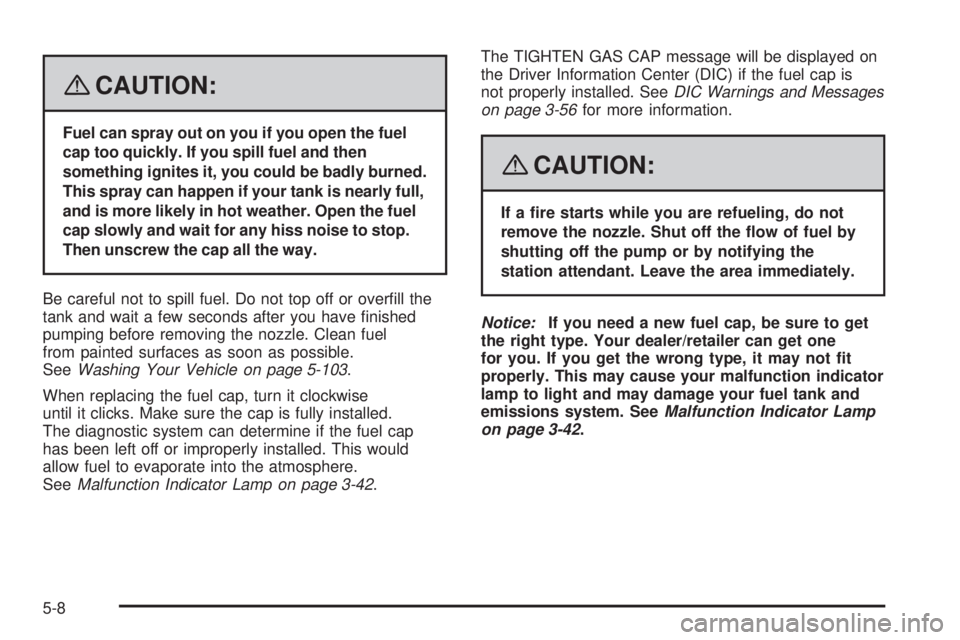

{CAUTION:
Fuel can spray out on you if you open the fuel
cap too quickly. If you spill fuel and then
something ignites it, you could be badly burned.
This spray can happen if your tank is nearly full,
and is more likely in hot weather. Open the fuel
cap slowly and wait for any hiss noise to stop.
Then unscrew the cap all the way.
Be careful not to spill fuel. Do not top off or overll the
tank and wait a few seconds after you have nished
pumping before removing the nozzle. Clean fuel
from painted surfaces as soon as possible.
SeeWashing Your Vehicle on page 5-103.
When replacing the fuel cap, turn it clockwise
until it clicks. Make sure the cap is fully installed.
The diagnostic system can determine if the fuel cap
has been left off or improperly installed. This would
allow fuel to evaporate into the atmosphere.
SeeMalfunction Indicator Lamp on page 3-42.The TIGHTEN GAS CAP message will be displayed on
the Driver Information Center (DIC) if the fuel cap is
not properly installed. SeeDIC Warnings and Messages
on page 3-56for more information.
{CAUTION:
If a re starts while you are refueling, do not
remove the nozzle. Shut off the ow of fuel by
shutting off the pump or by notifying the
station attendant. Leave the area immediately.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer/retailer can get one
for you. If you get the wrong type, it may not t
properly. This may cause your malfunction indicator
lamp to light and may damage your fuel tank and
emissions system. SeeMalfunction Indicator Lamp
on page 3-42.
5-8

Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-5
Filling a Portable Fuel Container..................... 5-9
Filling the Tank............................................. 5-7
Fuels in Foreign Countries.............................. 5-6
Gage.........................................................3-47
Gasoline Octane........................................... 5-5
Gasoline Specications.................................. 5-5
Low Warning Light.......................................3-48
Fuses
Center Instrument Panel Fuse Block.............5-112
Fuses and Circuit Breakers.........................5-110
Instrument Panel Fuse Block.......................5-111
Underhood Fuse Block...............................5-113
Windshield Wiper.......................................5-110
G
Gage
Engine Coolant Temperature.........................3-40
Fuel..........................................................3-47
Oil Pressure...............................................3-45
Speedometer..............................................3-33
Tachometer.................................................3-33
Voltmeter Gage...........................................3-37
Garage Door Opener.......................................2-57
Gasoline
Octane........................................................ 5-5
Specications............................................... 5-5Glove Box.....................................................2-64
GM Mobility Reimbursement Program.................. 7-6
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-7
Headlamps....................................................5-48
Bulb Replacement.......................................5-48
Daytime Running Lamps.......................3-17, 5-50
Exterior Lamps............................................3-15
Flash-to-Pass............................................... 3-9
Front Turn Signal and Parking Lamps.............5-49
Halogen Bulbs............................................5-48
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-17
Roof Marker Lamps.....................................5-50
Heated Seats................................................... 1-4
Heater...........................................................3-22
Highbeam On Light.........................................3-47
Highway Hypnosis...........................................4-34
Hill and Mountain Roads..................................4-35
Hood
Checking Things Under.................................. 5-9
Release.....................................................5-10
Horn............................................................... 3-6
How to Wear Safety Belts Properly...................1-22
6
