Front Seats
Power Seats
On a vehicle with power seats, the controls used to
operate them are located on the outboard side of the
seats. To adjust the seat, do any of the following:
Move the seat forward or rearward by sliding the
control forward or rearward.
Raise or lower the front part of the seat cushion by
moving the front of the control up or down.
Raise or lower the rear part of the seat cushion by
moving the rear of the control up or down.
Raise or lower the entire seat by moving the entire
control up or down.
On seats with power reclining seatbacks, the control is
located behind the power seat control on the outboard
side of the seats. See “Power Reclining Seatbacks”
underPower Reclining Seatbacks on page 1-8.
A vehicle with a memory function allows seat settings to
be saved and recalled. SeeMemory Seat and Mirrors
on page 1-6for more information.
Driver Seat with Power Seat Control, Power Recline,
and Power Lumbar shown
1-4

Power LumbarIf the seats have power lumbar, the controls used to
operate this feature are located on the outboard side of
the seats.
To increase lumbar support, press and hold the
front of the control.
To decrease lumbar support, press and hold the
rear of the control.
To raise the height of the lumbar support, press
and hold the top of the control.
To lower the height of the lumbar support, press
and hold the bottom of the control.
Release the control when the lower seatback reaches
the desired level of lumbar support.
The vehicle may have a memory function which allows
seat settings to be saved and recalled. SeeMemory
Seat and Mirrors on page 1-6for more information.
Keep in mind that as the seating position changes, as it
may during long trips, so should the position of the
lumbar support. Adjust the seat as needed.
1-5

Heated Seats
On vehicles with heated front seats, the controls are
located on the driver and passenger doors.
I(Heated Seatback):Press to turn on the heated
seatback.
J(Heated Seat and Seatback):Press to turn on the
heated seat and seatback.
The light on the button will come on to indicate that the
feature is working. Press the button to cycle through the
temperature settings of high, medium, and low and to turn
the heat to the seat off. Indicator lights will show the level
of heat selected: three for high, two for medium, and one
for low.
The heated seats will be canceled 10 seconds after the
ignition is turned off. To use the heated seat feature
after restarting the vehicle, press the heated seat
or seatback button again.
Memory Seat and Mirrors
If the vehicle has this feature, the controls for the
memory function are located on the driver door.
1:Saves the seating position for driver 1.
2:Saves the seating position for driver 2.
S:Programs and recalls the easy exit position.
These buttons are used to program and recall memory
settings for the driver seat and both the driver and
passenger outside mirrors. The settings for these
features can be saved for up to two drivers.
1-6

To store the memory settings:
1. While the vehicle is in P (Park), adjust the driver
seat, including the seatback recliner, lumbar, and
side wing area, and both outside mirrors to a
comfortable position.
2. Press and hold button 1 until a double chime
sounds to let you know that the position has
been stored.
A second seating and mirror position can be programmed
by repeating Steps 1 and 2 and pressing button 2.
To recall the memory positions, the vehicle must be in
P (Park). Press and release either button 1 or button 2
corresponding to the desired driving position. A single
chime will sound and the memory position will be
recalled.
To stop recall movement of the memory seat feature at
any time, press one of the memory buttons or power
seat controls.Easy Exit Seat
To store the seat exit position:
1. Press and release the button 1. The seat will move
to the stored memory position.
2. Adjust the seat to the desired exit position.
3. Press and hold the exit button until a double chime
sounds to let you know that the position has been
stored.
A second seat exit position can be programmed by
repeating Steps 1 through 3 and pressing button 2.
B(Easy Exit Seat):To use the seat exit position:
Press the exit button on the memory control.
If this feature is activated in the DIC, removing the
key from the ignition will move the seat to the exit
position.
See “Easy Exit Seat” underDIC Vehicle Customization
on page 3-64for more information on activating this
feature in the DIC.
1-7

Keys...............................................................2-3
Remote Keyless Entry (RKE) System................2-4
Remote Keyless Entry (RKE) System
Operation...................................................2-5
Remote Vehicle Start......................................2-7
Doors and Locks............................................2-10
Door Locks..................................................2-10
Power Door Locks........................................2-11
Delayed Locking...........................................2-11
Programmable Automatic Door Locks..............2-11
Rear Door Security Locks..............................2-12
Lockout Protection........................................2-12
Liftgate (SUV)..............................................2-13
Midgate
®(SUT) ............................................2-14
Tailgate/Spare Tire Carrier.............................2-16
Windows........................................................2-19
Power Windows............................................2-20
Sun Visors...................................................2-23
Theft-Deterrent Systems..................................2-23
Content Theft-Deterrent.................................2-24
PASS-Key
®III+ Electronic Immobilizer.............2-25
PASS-Key®III+ Electronic Immobilizer
Operation.................................................2-26Starting and Operating Your Vehicle................2-27
New Vehicle Break-In....................................2-27
Ignition Positions..........................................2-28
Retained Accessory Power (RAP)...................2-29
Starting the Engine.......................................2-29
Engine Coolant Heater..................................2-31
Automatic Transmission Operation...................2-32
Tow/Haul Mode............................................2-36
Full-Time Four-Wheel Drive............................2-37
Parking Brake..............................................2-42
Shifting Into Park..........................................2-43
Shifting Out of Park......................................2-44
Parking Over Things That Burn.......................2-45
Engine Exhaust............................................2-45
Running the Vehicle While Parked..................2-46
Mirrors...........................................................2-47
Automatic Dimming Rearview Mirror................2-47
Outside Power Foldaway Mirrors.....................2-47
Outside Automatic Dimming Mirror..................2-48
Park Tilt Mirrors............................................2-48
Outside Convex Mirror...................................2-49
Outside Heated Mirrors..................................2-49
Object Detection Systems...............................2-50
Rear Vision Camera (RVC)............................2-50
Section 2 Features and Controls
2-1

Mirrors
Automatic Dimming Rearview Mirror
The vehicle has an automatic dimming rearview
mirror. It may also have an OnStar®system. OnStar
control buttons are located at the bottom of the mirror.
SeeOnStar
®System on page 2-54for more
information about the services OnStar provides.
O(On/Off):Press to turn the automatic dimming
feature on or off.
Your vehicle may also have a Rear Vision Camera.
SeeRear Vision Camera (RVC) on page 2-50for more
information.
Cleaning the Mirror
Do not spray glass cleaner directly on the mirror.
Use a soft towel dampened with water.
Outside Power Foldaway Mirrors
If your vehicle has outside
power foldaway mirrors,
the controls are located on
the driver’s door armrest.
Mirror Adjustment
1. Press (A) or (B) to select the driver or passenger

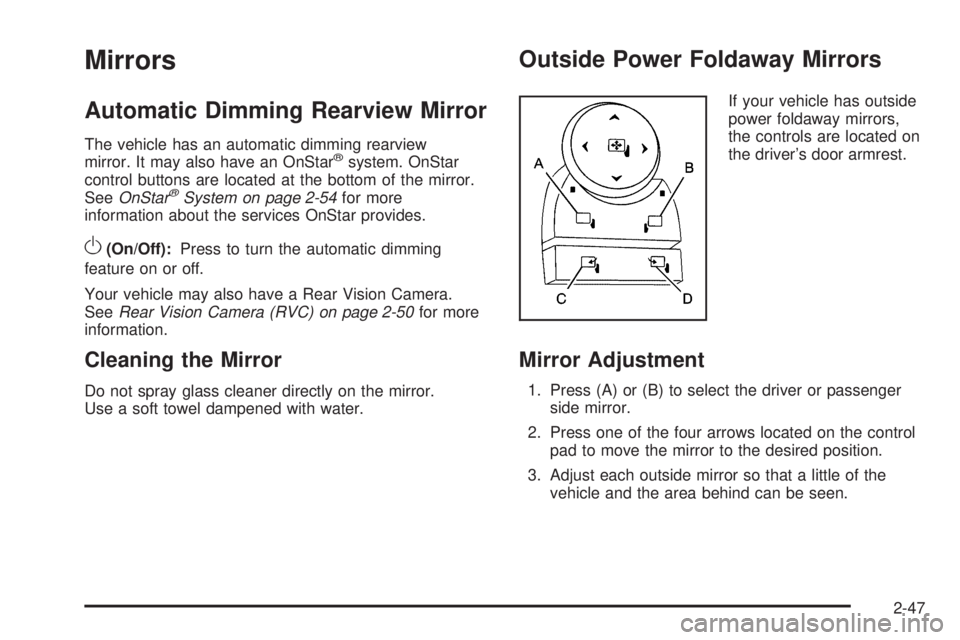

side mirror.
2. Press one of the four arrows located on the control
pad to move the mirror to the desired position.
3. Adjust each outside mirror so that a little of the
vehicle and the area behind can be seen.
2-47

4. Press (C), to fold the mirrors out to the driving
position.
5. Press (D) to fold the mirrors in to the folded
position.
If the mirrors are accidentally folded/unfolded manually,
they may shake or utter at normal driving speeds
and may not stay in the unfolded position. If this
happens, you will need to reset the mirrors.
See “Resetting the Power Foldaway Mirrors” next.
Resetting the Power Foldaway Mirrors
You will need to reset the power foldaway mirrors if the
following occurs:
The mirrors are accidentally obstructed while
folding.
They are accidentally manually folded/unfolded.
The mirrors will not stay in the unfolded position.
The mirrors shake and utter at normal driving
speeds.
To reset the power foldaway mirrors, fold and unfold
them three times using the mirror controls. This will reset
them to their normal position.
Outside Automatic Dimming Mirror
If the vehicle has this feature, the driver outside
mirror adjusts for the glare of the headlamps behind
you. SeeAutomatic Dimming Rearview Mirror on
page 2-47for more information.
Park Tilt Mirrors
The vehicle’s outside mirrors can also perform a park tilt
function. This causes the passenger and/or driver’s mirror
to tilt to a preselected position when the vehicle is in
R (Reverse). This feature may be useful in viewing the
curb when parallel parking.
When the vehicle is shifted out of R (Reverse) and a
short delay has occurred, the passenger and/or driver’s
mirror will return to its original position.
To change the preselected tilt position, adjust the
mirrors to the desired position while the vehicle is
in R (Reverse). When the vehicle is shifted out of
R (Reverse), this new position is saved in memory
as the tilt position.
This feature can be enabled/disabled through the Driver
Information Center. SeeDIC Vehicle Customization
on page 3-64for more information.
2-48

The recirculation mode cannot be used with oor, defog,
or defrost modes. If recirculation is selected with one of
those modes, the indicator light ashes three times and
then turns off. The air conditioning compressor also
comes on when this mode is activated. While in
recirculation mode the windows may fog when the
weather is cold and damp. To clear the fog, select either
the defog or defrost mode and increase the fan speed.
The recirculation mode can also be turned off by turning
off the ignition.
;(Outside Air, If Equipped):Press to turn on the
outside air mode. An indicator light comes on to show that
outside air is on. Air from outside is circulated throughout
the vehicle. The outside air mode can be used with all
modes, but it cannot be used with the recirculation mode.
REAR:For vehicles with the rear heat and air
conditioning controls. Press to turn the rear climate
control system on or off. SeeRear Air Conditioning
and Heating System and Electronic Climate Controls
on page 3-28.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<(Rear Window Defogger):Press to turn the rear
window defogger on or off. It automatically turns off
several minutes after it has been activated. The defogger
can also be turned off by turning off the engine. Do not
drive the vehicle until all the windows are clear.
Notice:Do not use a razor blade or sharp object to
clear the inside rear window. Do not adhere anything
to the defogger grid lines in the rear glass. These
actions may damage the rear defogger. Repairs
would not be covered by your warranty.
Heated Mirrors:For vehicles with heated outside
rearview mirrors, the mirrors heat to help clear fog or
frost from the surface of the mirror when the rear window
defog button is pressed. SeeOutside Heated Mirrors
on page 2-49.
3-26

Locks
Delayed Locking..........................................2-11
Door ..........................................................2-10
Lockout Protection.......................................2-12
Power Door ................................................2-11
Programmable Automatic Door Locks.............2-11
Rear Door Security Locks.............................2-12
Loss of Control...............................................4-13
Low Fuel Warning Light...................................3-46
Lower Anchors and Tethers for Children.............1-51
Luggage Carrier..............................................2-65
Lumbar
Power Controls............................................. 1-5
M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill........................................... 6-9
At Least Once a Month................................6-10
At Least Once a Year..................................6-10
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-17
Maintenance Replacement Parts....................6-15
Maintenance Requirements............................. 6-2
Owner Checks and Services........................... 6-9Maintenance Schedule (cont.)
Recommended Fluids and Lubricants.............6-13
Scheduled Maintenance................................. 6-4
Using.......................................................... 6-3
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Lamp...............................3-40
Memory Seat and Mirrors.................................. 1-6
Message
DIC Warnings and Messages........................3-56
Midgate
®.......................................................2-14
Mirrors
Automatic Dimming Rearview........................2-47
Outside Automatic Dimming Mirror.................2-48
Outside Convex Mirror.................................2-49
Outside Heated Mirrors................................2-49
Outside Power Foldaway Mirrors....................2-47
Park Tilt.....................................................2-48
MP3 .....................................................3-94, 3-99
MyGMLink.com................................................ 7-5
N
Navigation System, Privacy..............................7-18
Navigation/Radio System,
see Navigation Manual...............................3-107
New Vehicle Break-In......................................2-27
8
