power steering fluid HUMMER H2 2009 Owners Manual

Vehicle Symbol Chart
Here are some additional symbols that may be found on
the vehicle and what they mean. For more information
on the symbol, refer to the index.
9:Airbag Readiness Light
#:Air Conditioning
!:Antilock Brake System (ABS)
g:Audio Steering Wheel Controls or OnStar®
$:Brake System Warning Light
":Charging System
I:Cruise Control
B:Engine Coolant Temperature
O:Exterior Lamps
#:Fog Lamps
.:Fuel Gage
+:Fuses
i:Headlamp High/Low-Beam Changer
j:LATCH System Child Restraints
*:Malfunction Indicator Lamp
::Oil Pressure
}:Power
/:Remote Vehicle Start
>:Safety Belt Reminders
7:Tire Pressure Monitor
_:Tow/Haul Mode
F:Traction Control
M:Windshield Washer Fluid
iv

Service............................................................5-3
Accessories and Modications..........................5-3
California Proposition 65 Warning.....................5-4
California Perchlorate Materials Requirements.....5-4
Doing Your Own Service Work.........................5-4
Adding Equipment to the Outside of
the Vehicle.................................................5-5
Fuel................................................................5-5
Gasoline Octane............................................5-5
Gasoline Specications....................................5-5
California Fuel...............................................5-6
Additives.......................................................5-6
Fuel E85 (85% Ethanol)..................................5-7
Fuels in Foreign Countries...............................5-8
Filling the Tank..............................................5-8
Filling a Portable Fuel Container.....................5-10
Checking Things Under the Hood....................5-11
Hood Release..............................................5-12
Engine Compartment Overview.......................5-14
Engine Oil...................................................5-15
Engine Oil Life System..................................5-18
Engine Air Cleaner/Filter................................5-20
Automatic Transmission Fluid.........................5-23
Cooling System............................................5-27
Engine Coolant.............................................5-31
Engine Overheating.......................................5-33Overheated Engine Protection
Operating Mode.........................................5-35
Power Steering Fluid.....................................5-36
Windshield Washer Fluid................................5-37
Brakes........................................................5-38
Battery........................................................5-41
Jump Starting...............................................5-42
Rear Axle.......................................................5-47
Four-Wheel Drive............................................5-48
Front Axle......................................................5-49
Bulb Replacement..........................................5-50
Halogen Bulbs..............................................5-50
Headlamps..................................................5-51
Front Turn Signal and Parking Lamps..............5-52
Daytime Running Lamps (DRL).......................5-52
Roof Marker Lamps......................................5-53
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps.........................................5-54
Replacement Bulbs.......................................5-55
Windshield Wiper Blade Replacement..............5-56
Tires..............................................................5-57
Tire Sidewall Labeling...................................5-58
Tire Terminology and Denitions.....................5-60
Ination - Tire Pressure.................................5-63
Tire Pressure Monitor System.........................5-64

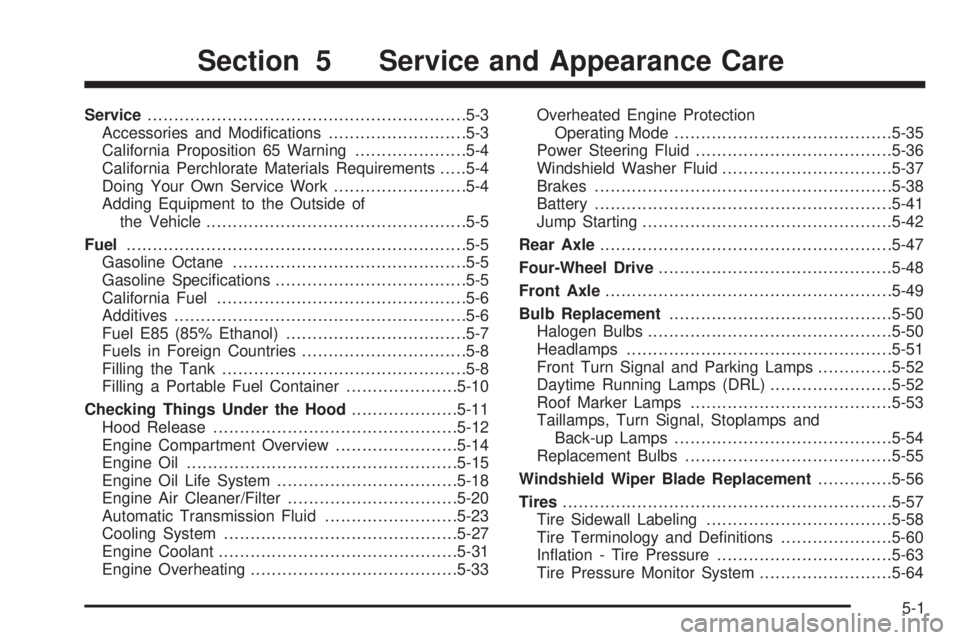

Section 5 Service and Appearance Care
5-1

A. Coolant Surge Tank. SeeCooling System on
page 5-27.
B. Engine Air Cleaner/Filter and Air Filter Restriction
Indicator (If Equipped). SeeEngine Air Cleaner/Filter
on page 5-20.
C. Windshield Washer Fluid Reservoir. See “Adding
Washer Fluid” underWindshield Washer Fluid
on page 5-37.
D. Engine Oil Fill Cap. See “When to Add Engine Oil”
underEngine Oil on page 5-15.
E. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 5-15.
F. Air Filter Restriction Indicator (If Equipped).
SeeEngine Air Cleaner/Filter on page 5-20.
G. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid on page 5-23.
H. Engine Cooling Fan. SeeCooling System on
page 5-27.
I. Remote Negative (−) Terminal (GND). SeeJump
Starting on page 5-42.
J. Power Steering Fluid Reservoir (Out of View).
SeePower Steering Fluid on page 5-36.K. Remote Positive (+) Terminal. SeeJump Starting on
page 5-42.
L. Brake Fluid Reservoir. See “Brake Fluid” under
Brakes on page 5-38.
M.Underhood Fuse Block on page 5-113.
N.Battery on page 5-41.
Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil level at each
fuel ll. In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The engine oil dipstick handle is a yellow loop. See
Engine Compartment Overview on page 5-14for
the location of the engine oil dipstick.
1. Turn off the engine and give the oil several minutes
to drain back into the oil pan. If this is not done, the
oil dipstick might not show the actual level.
2. Pull out the dipstick and clean it with a paper towel
or cloth, then push it back in all the way. Remove it
again, keeping the tip down, and check the level.
5-15

Power Steering Fluid
SeeEngine Compartment
Overview on page 5-14for
reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering uid
unless you suspect there is a leak in the system or
you hear an unusual noise. A uid loss in this system
could indicate a problem. Have the system inspected
and repaired.
How to Check Power Steering Fluid
To check the power steering uid:
1. Turn the key off and let the engine compartment
cool down.
2. Wipe the cap and the top of the reservoir clean.
3. Unscrew the cap and wipe the dipstick with a
clean rag.
4. Replace the cap and completely tighten it.
5. Remove the cap again and look at the uid level on
the dipstick.
The level should be at the FULL COLD mark. If
necessary, add only enough uid to bring the level
up to the mark.
What to Use
To determine what kind of uid to use, see
Recommended Fluids and Lubricants on page 6-13.
Always use the proper uid.
Notice:Use of the incorrect uid may damage the
vehicle and the damages may not be covered by
the vehicle’s warranty. Always use the correct uid
listed inRecommended Fluids and Lubricants
on page 6-13.
5-36

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number, or specication can be obtained from your
dealer/retailer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. To determine the
proper viscosity for your vehicle’s
engine, seeEngine Oil on
page 5-15.
Engine Coolant50/50 mixture of clean, drinkable
water and use only DEX-COOL
®
Coolant. SeeEngine Coolant on
page 5-31.
Hydraulic Brake
SystemDelco
®Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
WasherOptikleen
®Washer Solvent.
Usage Fluid/Lubricant
Power Steering
SystemGM Power Steering Fluid
(GM Part No. U.S. 89021184,
in Canada 89021186).
Automatic
TransmissionDEXRON
®-VI Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241,
in Canada 10953474).
Chassis
LubricationChassis Lubricant
(GM Part No. U.S. 12377985,
in Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Front and
Rear AxleSAE 75W-90
Synthetic Axle Lubricant
(GM Part No. U.S. 89021677,
in Canada 89021678) meeting
GM Specication 9986115.
Transfer CaseDEXRON
®-VI Automatic
Transmission Fluid.
6-13

Electrical System (cont.)
Power Windows and Other Power Options....5-110
Underhood Fuse Block...............................5-113
Windshield Wiper Fuses.............................5-110
Electronic Immobilizer
PASS-Key
®III+...........................................2-25
Electronic Immobilizer Operation
PASS-Key
®III+...........................................2-26
Electronically Controlled Air Suspension System . . . 4-53
Engine
Air Cleaner/Filter.........................................5-20
Check and Service Engine Soon Lamp...........3-40
Coolant......................................................5-31
Coolant Heater............................................2-31
Coolant Temperature Gage...........................3-39
Drive Belt Routing.......................................6-16
Engine Compartment Overview......................5-14
Exhaust.....................................................2-45
Oil .............................................................5-15
Oil Life System...........................................5-18
Overheated Protection Operating Mode...........5-35
Overheating................................................5-33
Starting......................................................2-29
Entry/Exit Lighting...........................................3-18
Event Data Recorders.....................................7-17
Extender, Safety Belt.......................................1-39
Exterior Lamps...............................................3-15
F
Filter
Engine Air Cleaner......................................5-20
Finish Damage.............................................5-108
First Aid Kit....................................................4-42
Fixed Mast Antenna.......................................3-130
Flashers, Hazard Warning.................................. 3-6
Flash-to-Pass................................................... 3-9
Flat Tire........................................................5-79
Flat Tire, Changing.........................................5-80
Flat Tire, Storing.....................................5-95, 5-98
Fluid
Automatic Transmission................................5-23
Power Steering...........................................5-36
Windshield Washer......................................5-37
Folding Rear Seat...........................................1-11
Four-Wheel Drive............................................5-48
Four-Wheel Drive, Full-Time.............................2-37
Front Axle......................................................5-49
Front Mounted Receiver...................................4-43
Fuel............................................................... 5-5
Additives...................................................... 5-6
California Fuel.............................................. 5-6
Driving for Better Economy............................. 4-2
E85 (85% Ethanol)........................................ 5-7
Filling a Portable Fuel Container....................5-10
5

O
Odometer......................................................3-31
Odometer, Trip...............................................3-31
Off-Road Driving.............................................4-15
Off-Road Recovery..........................................4-13
Oil
Engine.......................................................5-15
Pressure Gage............................................3-42
Pressure Light.............................................3-43
Oil, Engine Oil Life System..............................5-18
Older Children, Restraints................................1-40
Online Owner Center........................................ 7-5
OnStar, Privacy..............................................7-18
OnStar
®System, see OnStar®Manual...............2-54
Operation, Universal Home Remote System........2-58
Outlet Adjustment............................................3-27
Outlets
Accessory Power.........................................3-20
Outside
Automatic Dimming Mirror.............................2-48
Convex Mirror.............................................2-49
Heated Mirrors............................................2-49
Power Foldaway Mirrors...............................2-47
Overheated Engine Protection Operating Mode . . . 5-35
Owner Checks and Services.............................. 6-9
Owners, Canadian............................................... ii
P
Paint, Damage..............................................5-108
Park
Shifting Into................................................2-43
Shifting Out of............................................2-44
Park Aid........................................................2-50
Park Brake....................................................2-42
Park Tilt Mirrors..............................................2-48
Parking
Over Things That Burn.................................2-45
Passing.........................................................4-13
PASS-Key
®III+ Electronic Immobilizer...............2-25
PASS-Key®III+ Electronic Immobilizer
Operation...................................................2-26
Perchlorate Materials Requirements, California...... 5-4
Phone
Bluetooth
®................................................3-107
Power
Door Locks.................................................2-11
Electrical System.......................................5-110
Lumbar Controls........................................... 1-5
Reclining Seatbacks...................................... 1-8
Retained Accessory.....................................2-29
Seat............................................................ 1-4
Steering Fluid.............................................5-36
Windows....................................................2-20
9
