Page 361 of 480

8. Turn the vertical aiming screw until the
headlamp beam is aimed to the horizontal
tape line. If you turn it clockwise, it will raise
the beam and if you turn it counterclockwise, it
will lower the beam.
The top edge of the cut-off should be positioned
at the bottom edge of the horizontal tape line.
9. Repeat Steps 7 and 8 for the opposite
headlamp.
Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 365.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas
inside and can burst if you drop or
scratch the bulb. You or others could be
injured. Be sure to read and follow the
instructions on the bulb package.
361
Page 362 of 480

Headlamps
To replace a headlamp bulb, do the following:
1. Open the hood. SeeHood Release on
page 321for more information.
2. Reach in and access the headlamp bulb
socket from inside the engine compartment.
3. Turn the bulb socket counterclockwise to
remove it from the headlamp assembly
and pull it straight out.4. Unplug the electrical connector by pushing
the release tab and pulling the bulb
socket out.
5. Replace with a new bulb socket.
6. Reinstall the electrical connector.
7. Reinstall the new bulb socket into the
headlamp assembly and turn it clockwise
to secure.
8. Close the hood.
362
Page 363 of 480

Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
A. Stoplamp,
Taillamp and Turn
Signal Lamp
B. Back-up LampTo replace one of these bulbs in the taillamp
assembly, do the following:
1. Open the swing-gate. SeeSwing-gate on
page 95for more information.
2. Remove the
two screws from the
taillamp assembly.
Passenger’s Side
Shown
363
Page 364 of 480

3. Pull the taillamp assembly away from the
vehicle.
4. Turn the bulb socket counterclockwise to
remove it from the taillamp assembly.
5. Holding the socket, pull the old bulb to
release it from the socket.
6. Push the new bulb into the socket until it
clicks.
7. Insert the bulb socket into the taillamp
assembly and turn it clockwise to secure.
8. Reinstall the taillamp assembly by lining up
the locator pins with the retainers in the
vehicle’s body.
9. Reinstall the two screws and tighten.
10. Close the swing-gate.License Plate Lamp
To replace one of these bulbs, do the following:
1. Reach under the bumper for the bulb socket.
2. Remove the two screws holding the license
plate lamp.
3. Pull the license plate lamp away from the
fascia.
364

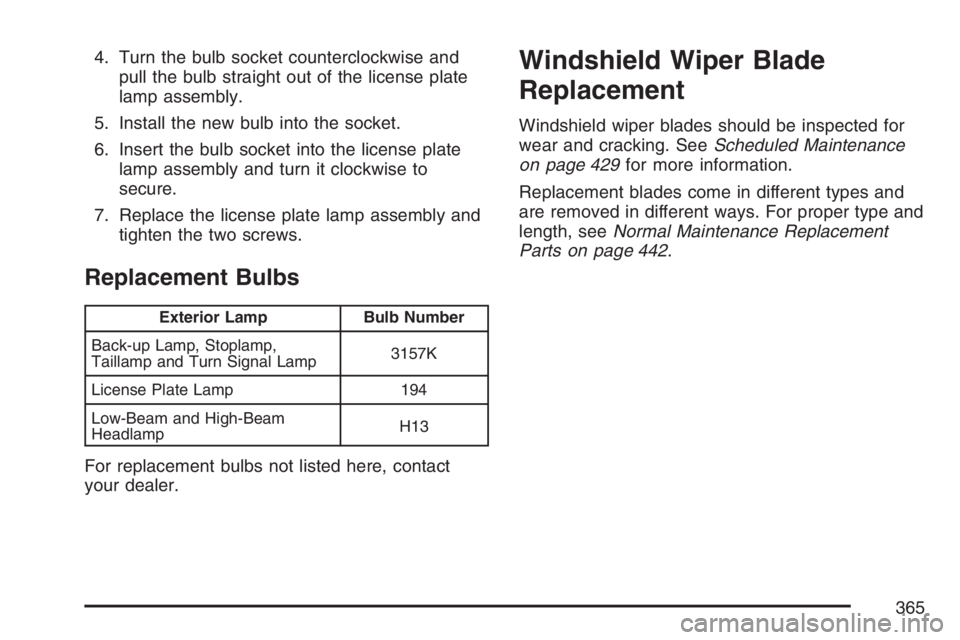

Page 365 of 480

4. Turn the bulb socket counterclockwise and
pull the bulb straight out of the license plate
lamp assembly.
5. Install the new bulb into the socket.
6. Insert the bulb socket into the license plate
lamp assembly and turn it clockwise to
secure.
7. Replace the license plate lamp assembly and
tighten the two screws.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-up Lamp, Stoplamp,
Taillamp and Turn Signal Lamp3157K
License Plate Lamp 194
Low-Beam and High-Beam
HeadlampH13
For replacement bulbs not listed here, contact
your dealer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected for
wear and cracking. SeeScheduled Maintenance
on page 429for more information.
Replacement blades come in different types and
are removed in different ways. For proper type and
length, seeNormal Maintenance Replacement
Parts on page 442.
365
Page 366 of 480

To replace the windshield wiper blade assembly
do the following:
1. Lift the wiper arm away from the windshield.2. Push the release lever (B) to disengage the
hook and push the wiper arm (A) out of the
blade (C).
3. Push the new wiper blade securely on the
wiper arm until you hear the release lever
click into place.
To replace the rear wiper blade, follow the steps
listed above.
366

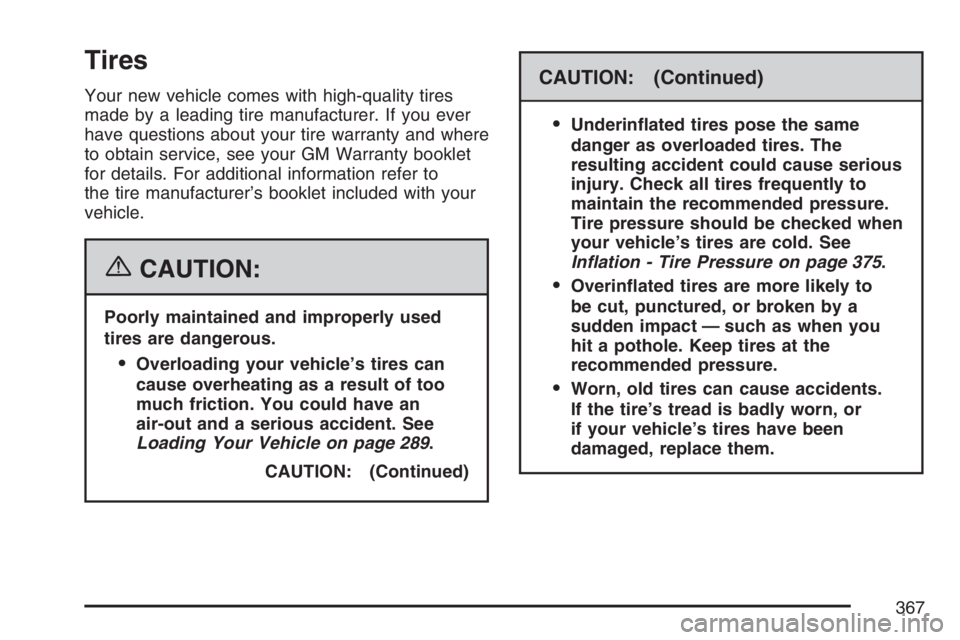

Page 367 of 480

Tires
Your new vehicle comes with high-quality tires
made by a leading tire manufacturer. If you ever
have questions about your tire warranty and where
to obtain service, see your GM Warranty booklet
for details. For additional information refer to
the tire manufacturer’s booklet included with your
vehicle.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your vehicle’s tires can
cause overheating as a result of too
much friction. You could have an
air-out and a serious accident. See
Loading Your Vehicle on page 289.
CAUTION: (Continued)
CAUTION: (Continued)
Underin ated tires pose the same
danger as overloaded tires. The
resulting accident could cause serious
injury. Check all tires frequently to
maintain the recommended pressure.
Tire pressure should be checked when
your vehicle’s tires are cold. See
Inflation - Tire Pressure on page 375.
Overin ated tires are more likely to
be cut, punctured, or broken by a
sudden impact — such as when you
hit a pothole. Keep tires at the
recommended pressure.
Worn, old tires can cause accidents.
If the tire’s tread is badly worn, or
if your vehicle’s tires have been
damaged, replace them.
367
Page 368 of 480

Tire Sidewall Labeling
Useful information about a tire is molded into the
sidewall. The following illustrations are examples
of a typical P-Metric and a LT-Metric tire sidewall.(A) Tire Size:The tire size code is a combination
of letters and numbers used to de ne a particular
tire’s width, height, aspect ratio, construction
type, and service description. See the “Tire Size”
illustration later in this section for more detail.
(B) TPC Spec (Tire Performance Criteria
Speci cation):Original equipment tires designed
to GM’s speci c tire performance criteria have
a TPC speci cation code molded onto the sidewall.
GM’s TPC speci cations meet or exceed all
federal safety guidelines.
(C) DOT (Department of Transportation):
The Department of Transportation (DOT) code
indicates that the tire is in compliance with the
U.S. Department of Transportation Motor Vehicle
Safety Standards.
(D) Tire Identi cation Number (TIN):The letters
and numbers following DOT code are the Tire
Identi cation Number (TIN). The TIN shows
the manufacturer and plant code, tire size, and
date the tire was manufactured. The TIN is molded
onto both sides of the tire, although only one
side may have the date of manufacture.
Passenger (P-Metric) Tire
368
Page 369 of 480

(E) Tire Ply Material:The type of cord and
number of plies in the sidewall and under
the tread.
(F) Uniform Tire Quality Grading (UTQG):
Tire manufacturers are required to grade
tires based on three performance factors:
treadwear, traction, and temperature resistance.
For more information, seeUniform Tire Quality
Grading on page 386.
(G) Maximum Cold In ation Load Limit:
Maximum load that can be carried and the
maximum pressure needed to support that load.
For information on recommended tire pressure
seeIn ation - Tire Pressure on page 375
andLoading Your Vehicle on page 289.
(A) Tire Size:The tire size code is a combination
of letters and numbers used to de ne a particular
tire’s width, height, aspect ratio, construction
type, and service description. See the “Tire Size”
illustration later in this section for more detail.

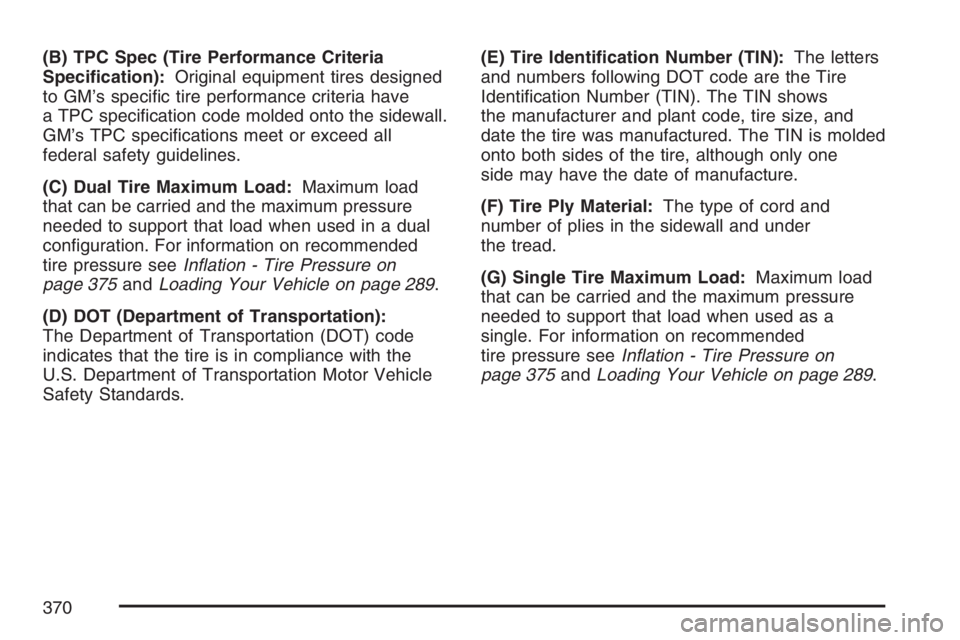

Light Truck (LT-Metric) Tire
369
