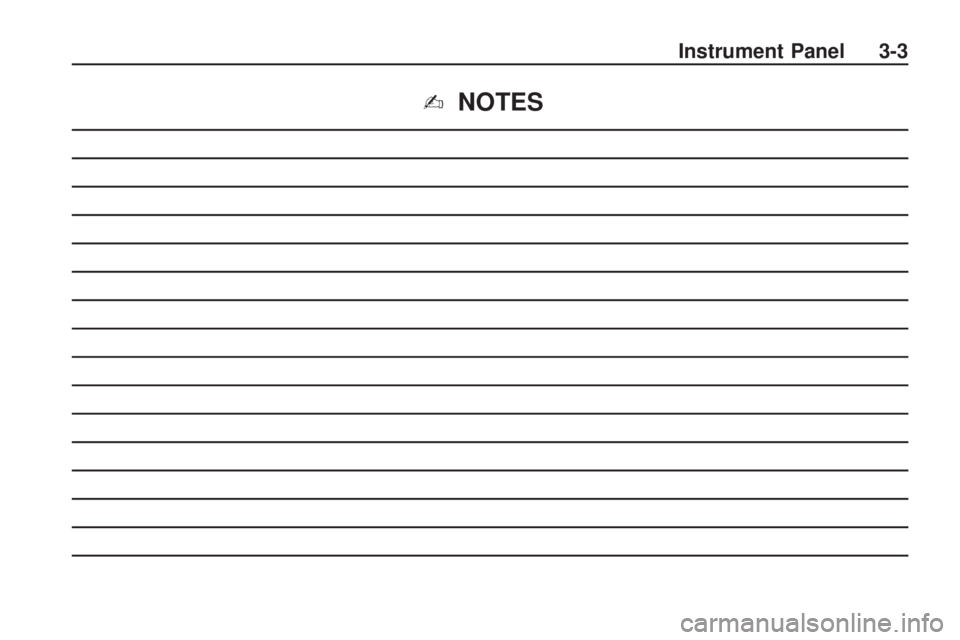

✍NOTES
Instrument Panel 3-3

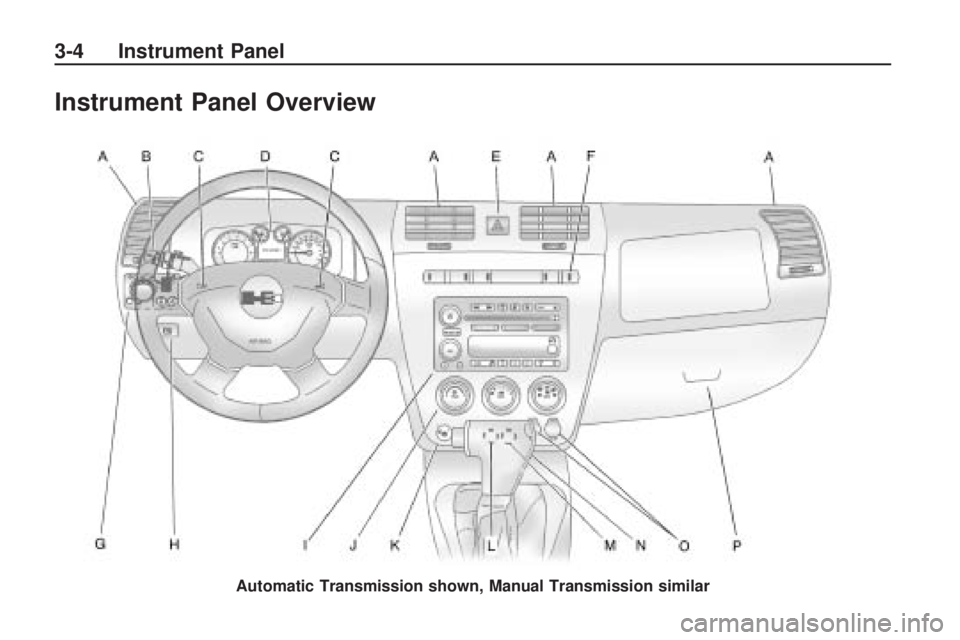

Instrument Panel Overview
Automatic Transmission shown, Manual Transmission similar
3-4 Instrument Panel

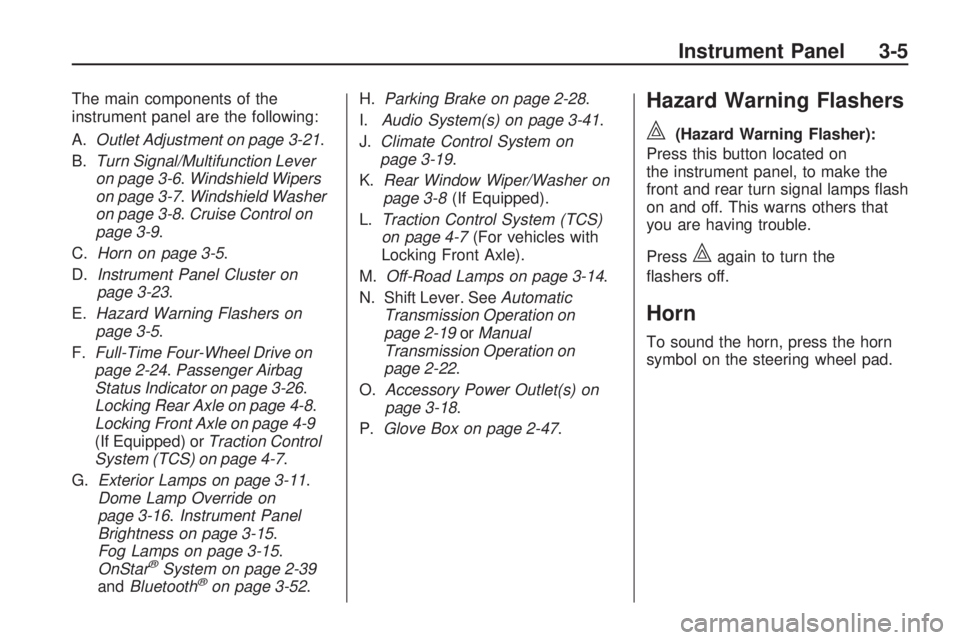

The main components of the
instrument panel are the following:
A.Outlet Adjustment on page 3-21.
B.Turn Signal/Multifunction Lever
on page 3-6.Windshield Wipers
on page 3-7.Windshield Washer
on page 3-8.Cruise Control on
page 3-9.
C.Horn on page 3-5.
D.Instrument Panel Cluster on
page 3-23.
E.Hazard Warning Flashers on
page 3-5.
F.Full-Time Four-Wheel Drive on
page 2-24.Passenger Airbag
Status Indicator on page 3-26.
Locking Rear Axle on page 4-8.
Locking Front Axle on page 4-9
(If Equipped) orTraction Control
System (TCS) on page 4-7.
G.Exterior Lamps on page 3-11.
Dome Lamp Override on
page 3-16.Instrument Panel
Brightness on page 3-15.
Fog Lamps on page 3-15.
OnStar
®System on page 2-39
andBluetooth®on page 3-52.H.Parking Brake on page 2-28.
I.Audio System(s) on page 3-41.
J.Climate Control System on
page 3-19.
K.Rear Window Wiper/Washer on
page 3-8(If Equipped).
L.Traction Control System (TCS)
on page 4-7(For vehicles with
Locking Front Axle).
M.Off-Road Lamps on page 3-14.
N. Shift Lever. SeeAutomatic
Transmission Operation on
page 2-19orManual
Transmission Operation on
page 2-22.
O.Accessory Power Outlet(s) on
page 3-18.
P.Glove Box on page 2-47.
Hazard Warning Flashers
|
(Hazard Warning Flasher):
Press this button located on
the instrument panel, to make the
front and rear turn signal lamps ash
on and off. This warns others that
you are having trouble.
Press
|again to turn the
ashers off.
Horn
To sound the horn, press the horn
symbol on the steering wheel pad.
Instrument Panel 3-5

Tilt Wheel
A tilt wheel allows the steering
wheel to be adjusted.
The tilt lever is located on the left
side of the steering column.
To tilt, hold the steering wheel and
pull the tilt lever toward you.
Raise or lower the wheel to a
comfortable level, then release the
tilt lever to lock the wheel in
place.
Do not adjust the steering wheel
while driving.
Turn Signal/Multifunction
Lever
The lever on the left side of the
steering column includes the
following:
G: Turn and Lane Change
Signals
53: Headlamp High/Low-Beam
Changer
N: Windshield Wipers
L: Windshield Washer
J: Cruise Control
Flash-to-Pass.
Information for these features is on
the pages following.
Turn and Lane-Change
Signals
An arrow on the instrument panel
cluster ashes in the direction of the
turn or lane change.
Move the lever all the way up or
down to signal a turn.
Raise or lower the lever until the
arrow starts to ash to signal a lane
change. Hold it there until the
change is completed.
The lever returns to its starting
position whenever it is released.
If after signaling a turn or a
lane change the arrow ashes
rapidly or does not come on,
a signal bulb may be burned out.
3-6 Instrument Panel

Have the bulbs replaced. If the bulb
is not burned out, check the fuse.
For bulb replacement, see
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps (H3) on
page 5-42orTaillamps, Turn Signal,
Stoplamps and Back-up Lamps
(H3T) on page 5-42. For a blown
fuse or circuit breaker, see
Fuses and Circuit Breakers on
page 5-91.
Turn Signal On Chime
If a turn signal is left on for more
than 3/4 of a mile (1.2 km), a chime
will sound at each ash of the
turn signal and the message TURN
SIGNAL will also appear in the
DIC. To turn the chime and
message off, move the turn signal
lever to the off position.
See “TURN SIGNAL” underDIC
Warnings and Messages on
page 3-37DIC Warnings and
Messages for more information.Headlamp
High/Low-Beam Changer
23
Headlamp High/Low
Beam Changer:Push the turn
signal/multifunction lever away from
you to turn the high beams on.
Pull the lever towards you to return
to low beams.
This indicator light turns on in the
instrument panel cluster when
the high beam headlamps are on.
Flash-to-Pass
This feature lets you use the
high-beam headlamps to signal a
driver in front of you that you want to
pass. It works even if the headlamps
are in the automatic position.
To use it, pull the turn signal lever
toward you, then release it.If the headlamps are in the
automatic position or on low beam,
the high-beam headlamps will
turn on. They will stay on as long as
the lever is held toward you. The
high-beam indicator on the
instrument panel cluster will come
on. Release the lever to return
to normal operation.

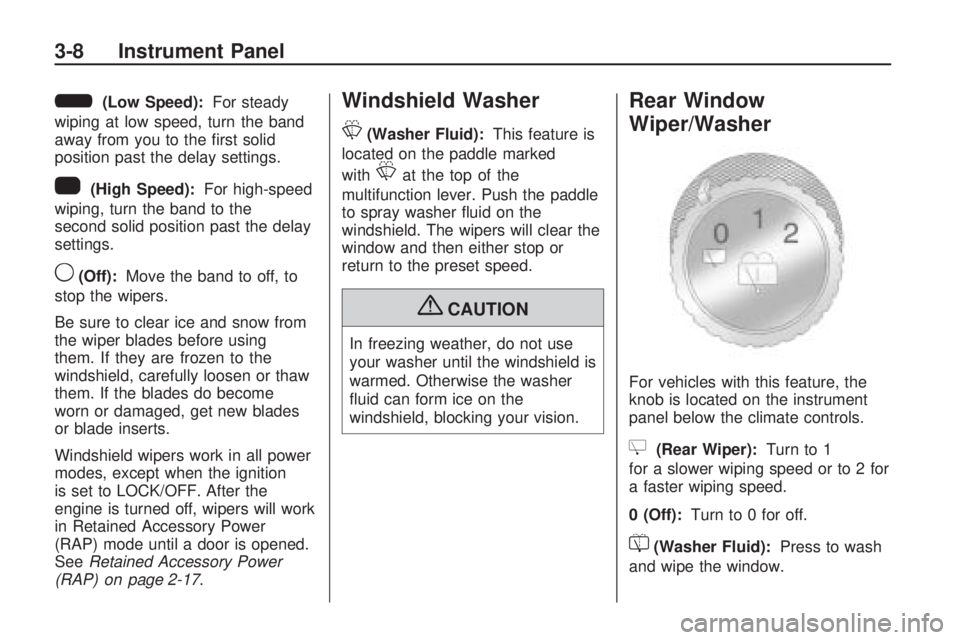

Windshield Wipers
The windshield wipers are controlled
by turning the band with
Non it.
8(Mist):Turn to mist for a single
wiping cycle. Hold it there until
the wipers start. Then let go. The
wipers will stop after one wipe. Hold
the band on mist longer, if more
wipes are needed.
N(Delay):The wiper speed can
be set for long or short delays
between wipes. This can be very
useful in light rain or snow. Turn the
band to choose the delay time.
The closer to the top of the lever,
the shorter the delay.
Instrument Panel 3-7

6(Low Speed):For steady
wiping at low speed, turn the band
away from you to the rst solid
position past the delay settings.
1(High Speed):For high-speed
wiping, turn the band to the
second solid position past the delay
settings.
9(Off):Move the band to off, to
stop the wipers.
Be sure to clear ice and snow from
the wiper blades before using
them. If they are frozen to the
windshield, carefully loosen or thaw
them. If the blades do become
worn or damaged, get new blades
or blade inserts.
Windshield wipers work in all power
modes, except when the ignition
is set to LOCK/OFF. After the
engine is turned off, wipers will work
in Retained Accessory Power
(RAP) mode until a door is opened.
SeeRetained Accessory Power
(RAP) on page 2-17.
Windshield Washer
L
(Washer Fluid):This feature is
located on the paddle marked
with
Lat the top of the
multifunction lever. Push the paddle
to spray washer uid on the
windshield. The wipers will clear the
window and then either stop or
return to the preset speed.
{CAUTION
In freezing weather, do not use
your washer until the windshield is
warmed. Otherwise the washer
uid can form ice on the
windshield, blocking your vision.
Rear Window
Wiper/Washer
For vehicles with this feature, the
knob is located on the instrument
panel below the climate controls.
Z(Rear Wiper):Turn to 1
for a slower wiping speed or to 2 for
a faster wiping speed.
0 (Off):Turn to 0 for off.
=(Washer Fluid):Press to wash
and wipe the window.
3-8 Instrument Panel

The rear window washer uses the
same uid bottle as the windshield
washer. Check the uid level if
the windshield can be washed, but
the rear windows cannot.

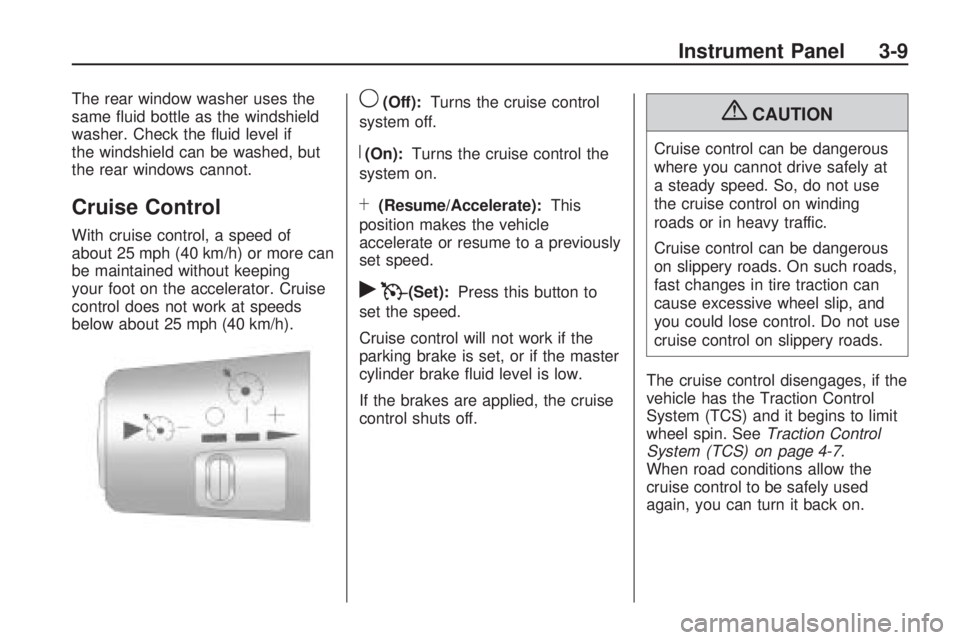

Cruise Control
With cruise control, a speed of
about 25 mph (40 km/h) or more can
be maintained without keeping
your foot on the accelerator. Cruise
control does not work at speeds
below about 25 mph (40 km/h).
9(Off):Turns the cruise control
system off.
R(On):Turns the cruise control the
system on.
S(Resume/Accelerate):This
position makes the vehicle
accelerate or resume to a previously
set speed.
rT(Set):Press this button to
set the speed.
Cruise control will not work if the
parking brake is set, or if the master
cylinder brake uid level is low.
If the brakes are applied, the cruise
control shuts off.
{CAUTION
Cruise control can be dangerous
where you cannot drive safely at
a steady speed. So, do not use
the cruise control on winding
roads or in heavy traffic.
Cruise control can be dangerous
on slippery roads. On such roads,
fast changes in tire traction can
cause excessive wheel slip, and
you could lose control. Do not use
cruise control on slippery roads.
The cruise control disengages, if the
vehicle has the Traction Control
System (TCS) and it begins to limit
wheel spin. SeeTraction Control
System (TCS) on page 4-7.
When road conditions allow the
cruise control to be safely used
again, you can turn it back on.
Instrument Panel 3-9

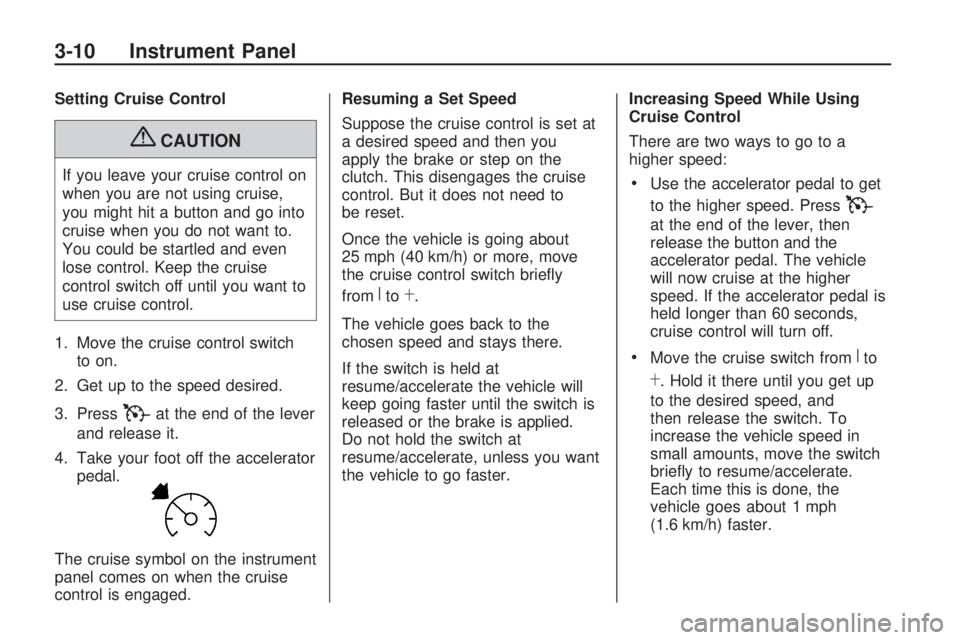

Setting Cruise Control
{CAUTION
If you leave your cruise control on
when you are not using cruise,
you might hit a button and go into
cruise when you do not want to.
You could be startled and even
lose control. Keep the cruise
control switch off until you want to
use cruise control.
1. Move the cruise control switch
to on.
2. Get up to the speed desired.
3. Press
Tat the end of the lever
and release it.
4. Take your foot off the accelerator
pedal.
The cruise symbol on the instrument
panel comes on when the cruise
control is engaged.Resuming a Set Speed
Suppose the cruise control is set at
a desired speed and then you
apply the brake or step on the
clutch. This disengages the cruise
control. But it does not need to
be reset.
Once the vehicle is going about
25 mph (40 km/h) or more, move
the cruise control switch briey
from
RtoS.
The vehicle goes back to the
chosen speed and stays there.
If the switch is held at
resume/accelerate the vehicle will
keep going faster until the switch is
released or the brake is applied.
Do not hold the switch at
resume/accelerate, unless you want
the vehicle to go faster.Increasing Speed While Using
Cruise Control
There are two ways to go to a
higher speed:
Use the accelerator pedal to get
to the higher speed. Press
T
at the end of the lever, then
release the button and the
accelerator pedal. The vehicle
will now cruise at the higher
speed. If the accelerator pedal is
held longer than 60 seconds,
cruise control will turn off.
Move the cruise switch fromRto
S. Hold it there until you get up
to the desired speed, and
then release the switch. To
increase the vehicle speed in
small amounts, move the switch
briey to resume/accelerate.
Each time this is done, the
vehicle goes about 1 mph
(1.6 km/h) faster.
3-10 Instrument Panel

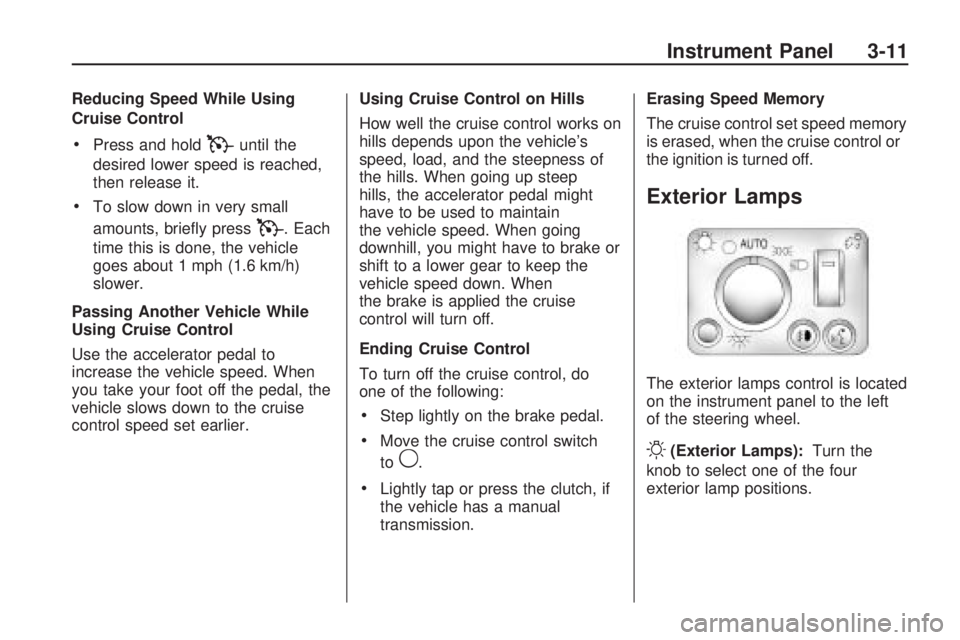

Reducing Speed While Using
Cruise Control
Press and holdTuntil the
desired lower speed is reached,
then release it.
To slow down in very small
amounts, briey press
T. Each
time this is done, the vehicle
goes about 1 mph (1.6 km/h)
slower.
Passing Another Vehicle While
Using Cruise Control
Use the accelerator pedal to
increase the vehicle speed. When
you take your foot off the pedal, the
vehicle slows down to the cruise
control speed set earlier.Using Cruise Control on Hills
How well the cruise control works on
hills depends upon the vehicle’s
speed, load, and the steepness of
the hills. When going up steep
hills, the accelerator pedal might
have to be used to maintain
the vehicle speed. When going
downhill, you might have to brake or
shift to a lower gear to keep the
vehicle speed down. When
the brake is applied the cruise
control will turn off.
Ending Cruise Control
To turn off the cruise control, do
one of the following:
Step lightly on the brake pedal.
Move the cruise control switch
to
9.
Lightly tap or press the clutch, if
the vehicle has a manual
transmission.Erasing Speed Memory
The cruise control set speed memory
is erased, when the cruise control or
the ignition is turned off.
Exterior Lamps
The exterior lamps control is located
on the instrument panel to the left
of the steering wheel.
O(Exterior Lamps):Turn the
knob to select one of the four
exterior lamp positions.
Instrument Panel 3-11

9(Off):Turns all exterior lamps
and the Daytime Running Lamps
(DRL) off. This is a momentary
control that returns to AUTO when
released. The DRL does not
turn off on vehicles rst sold in
Canada, unless the following
conditions are met:
The vehicle has an automatic
transmission.
The gear position is in P (Park).
The headlamp switch is turned
to
9.
AUTO (Automatic):Turns the
headlamps on and off automatically,
together with the following:
Sidemarker Lamps
Taillamps
Parking Lamps
Instrument Panel Lights
Due to the momentary control, the
automatic headlamps may be
disabled even if the control is in the
AUTO position.To enable automatic lighting, do any
of the following:
Turn the headlamp control from
AUTO to off and release the
control. It returns to the AUTO
position by itself.
Turn the headlamp control from
the parking lamp or headlamp
position to AUTO.
To disable automatic lighting, do
any of the following:
Turn the headlamp control from
AUTO to off and release the
control. It returns back to
the AUTO position by itself.
Turn the headlamp control from
AUTO to the parking lamp or
headlamp position.
SeeAutomatic Headlamp System
on page 3-14for more information.
Vehicles rst sold in Canada with an
automatic transmission cannot turn
off automatic headlamps unless the
gear position is in P (Park) and the
headlamp switch is turned to
O.Vehicles rst sold in Canada with a
manual transmission can turn off the
automatic headlamps with the
headlamp control; however, the
parking lamps will remain on.
;(Parking Lamps):Turns on the
parking lamps, together with the
following:
Sidemarker Lamps
Taillamps
License Plate Lamps
Instrument Panel Lights
2(Headlamps):Turns on the
headlamps together with the
previously listed lamps and lights.
The headlamps can be switched
from low to high beam by pushing
the turn signal/multifunction
lever toward the instrument panel.
3-12 Instrument Panel
