RFA 3:This mode ashes the
parking lamps and sounds the horn
when you press the lock or
unlock buttons on the RKE
transmitter.
RFA 4:This mode disables RKE
feedback. There will be no feedback
when you press the lock or unlock
buttons on the RKE transmitter.
DIC Warnings and
Messages
Messages are displayed on the DIC
to notify the driver that the status
of the vehicle has changed and that
some action may be needed by
the driver to correct the condition.
Multiple messages may appear one
after another. The messages are
displayed for several seconds each.
Some messages may not require
immediate action, but you should
press and release the trip odometer
reset stem to acknowledge that
you received the messages and toclear them from the display. Each
message must be acknowledged
individually.
Some messages cannot be cleared
from the DIC display because
they are more urgent. These
messages require action before they
can be cleared. You should take
any messages that appear on
the display seriously and remember
that clearing the messages only
makes the messages disappear, not
correct the problem.
The following are the possible
messages that can be displayed
and some information about them.
AC (Air Conditioning) OFF
This message displays when
the engine coolant temperature is
too high and the air conditioning
in the vehicle needs to be turned off.
SeeEngine Overheating on
page 5-27andClimate Control
System on page 3-19for more
information. This message displays
along with the ENG HOT message.
ABS (Antilock Brake System)
FAULT
This message displays if there is a
problem with the Antilock Brake
System (ABS). Check the ABS as
soon as possible and have the
vehicle serviced by your
dealer/retailer. SeeBrakes on
page 5-30andAntilock Brake
System (ABS) Warning Light on
page 3-28for more information.
Press and release the reset stem to
acknowledge the message and
clear it from the display.
BRAKES
This message displays if there is a
problem with the brakes. Check
the brakes as soon as possible and
have the vehicle serviced by
your dealer/retailer. SeeBrakes on
page 5-30andBrake System
Warning Light on page 3-27for
more information. Press and release
the reset stem to acknowledge
the message and clear it from the
display.
Instrument Panel 3-37

CHANGE OIL
This message displays when the oil
needs to be changed. Check the
oil in the vehicle as soon as possible
and have the vehicle serviced by
your dealer/retailer. SeeEngine Oil
on page 5-13andScheduled
Maintenance on page 6-4for more
information. Press and release
the reset stem to acknowledge the
message and clear it from the
display.
DOORS
This message displays when one or
more of the doors is ajar. Check
all the doors on the vehicle to make
sure they are closed. The message
clears from the display after all
of the doors are closed.
ENG (Engine) HOT
This message displays when the
engine coolant temperature is
hot. Check the engine coolant
temperature gage. SeeEngine
Coolant Temperature Gage
on page 3-29. Have the vehicleserviced by your dealer/retailer as
soon as possible if you suspect
the engine is overheating. See
Engine Overheating on page 5-27
for more information.
FLUID
This message displays if the brake
uid is low. Check the brake
uid as soon as possible and have
the vehicle serviced by your
dealer/retailer. SeeBrakes on
page 5-30for more information.
Press and release the reset stem to
acknowledge the message and
clear it from the display.
FUEL CAP
This message displays if the
vehicle’s fuel cap is either off or
loose. Pull over as soon as possible
and check to see if the fuel cap is
secure. You may also see the check
engine light on the instrument
panel cluster. If the check engine
light does come on when the
fuel cap was loose, it may take a
few driving trips before the lightturns off. SeeMalfunction Indicator
Lamp on page 3-30for more
information if the light still remains
on. Press and release the reset
stem to acknowledge the message
and clear it from the display.
HSA (Hill Start Assist) ON
This message displays when the Hill
Start Assist is enabled. See
Braking on page 4-3for more
information.
LOW FUEL
This message displays if the level of
fuel in the vehicle is low. Also
check the fuel gage. SeeFuel Gage
on page 3-33for more information.
Rell the fuel tank as soon as
possible.
LOW TIRE
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays if a low tire
pressure is detected in any of the
vehicle’s tires. Press and release the
reset stem to acknowledge the
3-38 Instrument Panel

message and clear it from the
display. The message appears at
each ignition cycle until the tires are
inated to the correct ination
pressure. SeeTires on page 5-44
andInflation - Tire Pressure on
page 5-51for more information on
tires and the correct ination
pressures.
OIL
This message displays when the oil
pressure is low. SeeOil Pressure
Light on page 3-32andEngine
Oil on page 5-13for more
information.
PARK BRK (Brake)
This message displays when the
parking brake is set. SeeParking
Brake on page 2-28andBrake
System Warning Light on page 3-27
for more information. The message
clears from the display after the
parking brake is released or by
pressing and releasing the
reset stem.
REDUCED POWER
This message displays when the
vehicle’s engine power is reduced.
Reduced engine power can
affect the vehicle’s ability to
accelerate. If this message is on,
but there is no reduction in
performance, proceed to your
destination. The performance may
be reduced the next time the vehicle
is driven. The vehicle may be
driven at a reduced speed while this
message is on, but acceleration
and speed may be reduced. Anytime
this message stays on, the vehicle
should be taken to your
dealer/retailer for service as soon as
possible. Press and release the
reset stem to acknowledge
the message and clear it from the
display.
SERV (Service) 4WD
(Four-Wheel Drive)
This message displays when there
is a problem with the transfer
case control system. Check the
transfer case on the vehicleand have it serviced by your
dealer/retailer. SeeFull-Time
Four-Wheel Drive on page 2-24for
more information about the
transfer case. Press and release the
reset stem to acknowledge the
message and clear it from the
display.
SERV (Service) TPM
(Tire Pressure Monitor)
On vehicles with the Tire Pressure
Monitor System (TPMS), this
message displays if a part on the
TPMS is not working properly.
The tire pressure light also ashes
and then remains on during the
same ignition cycle. SeeTire
Pressure Light on page 3-30.
Several conditions may cause this
message to appear. SeeTire
Pressure Monitor Operation on
page 5-54for more information. If
the warning comes on and stays on,
there may be a problem with the
TPMS. See your dealer/retailer.
Instrument Panel 3-39

Antilock Brake
System (ABS)
This vehicle has the Antilock Brake
System (ABS), an advanced
electronic braking system that will
help prevent a braking skid.
When the engine is started and the
vehicle begins to drive away,
ABS checks itself. A momentary
motor or clicking noise might
be heard while this test is going on.
This is normal.
If there is a problem with ABS, this
warning light stays on. See
Antilock Brake System (ABS)
Warning Light on page 3-28.Let us say the road is wet and you
are driving safely. Suddenly, an
animal jumps out in front of you. You
slam on the brakes and continue
braking. Here is what happens
with ABS:
A computer senses that the wheels
are slowing down. If one of the
wheels is about to stop rolling, the
computer will separately work
the brakes at each wheel.
ABS can change the brake pressure
to each wheel, as required, faster
than any driver could. This can help
the driver steer around the
obstacle while braking hard.
As the brakes are applied, the
computer keeps receiving updates
on wheel speed and controls braking
pressure accordingly.Remember: ABS does not change
the time needed to get a foot
up to the brake pedal or always
decrease stopping distance. If you
get too close to the vehicle in
front of you, there will not be enough
time to apply the brakes if that
vehicle suddenly slows or stops.
Always leave enough room up
ahead to stop, even with ABS.
Using ABS
Do not pump the brakes. Just hold
the brake pedal down rmly and
let antilock work. The brakes might
vibrate or some noise might be
heard, but this is normal.
Driving Your Vehicle 4-5

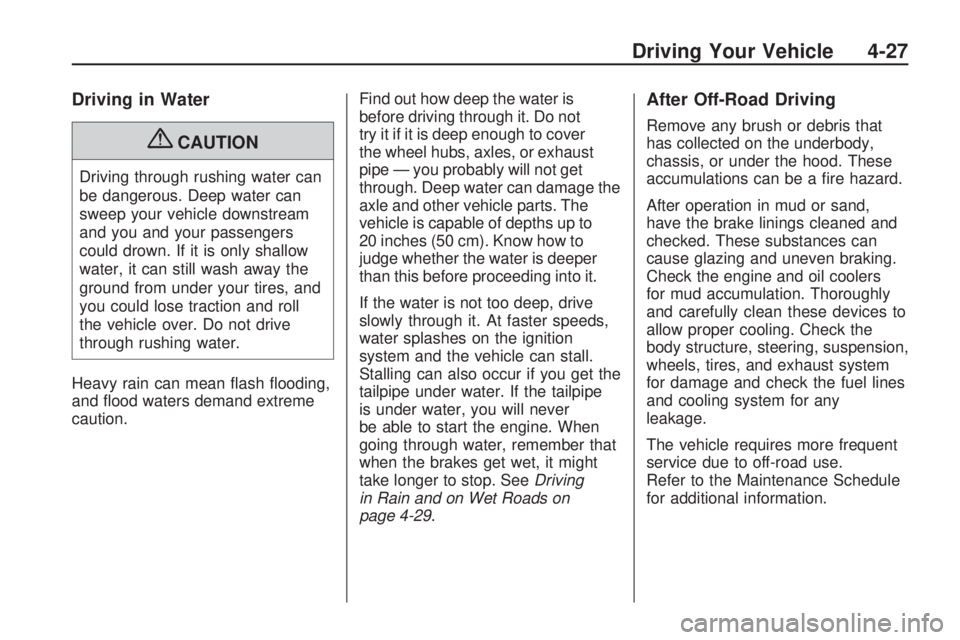

Driving in Water
{CAUTION
Driving through rushing water can
be dangerous. Deep water can
sweep your vehicle downstream
and you and your passengers
could drown. If it is only shallow
water, it can still wash away the
ground from under your tires, and
you could lose traction and roll
the vehicle over. Do not drive
through rushing water.
Heavy rain can mean ash ooding,
and ood waters demand extreme
caution.Find out how deep the water is
before driving through it. Do not
try it if it is deep enough to cover
the wheel hubs, axles, or exhaust
pipe — you probably will not get
through. Deep water can damage the
axle and other vehicle parts. The
vehicle is capable of depths up to
20 inches (50 cm). Know how to
judge whether the water is deeper
than this before proceeding into it.
If the water is not too deep, drive
slowly through it. At faster speeds,
water splashes on the ignition
system and the vehicle can stall.
Stalling can also occur if you get the
tailpipe under water. If the tailpipe
is under water, you will never
be able to start the engine. When
going through water, remember that
when the brakes get wet, it might
take longer to stop. SeeDriving
in Rain and on Wet Roads on
page 4-29.
After Off-Road Driving
Remove any brush or debris that
has collected on the underbody,
chassis, or under the hood. These
accumulations can be a re hazard.
After operation in mud or sand,
have the brake linings cleaned and
checked. These substances can
cause glazing and uneven braking.
Check the engine and oil coolers
for mud accumulation. Thoroughly
and carefully clean these devices to
allow proper cooling. Check the
body structure, steering, suspension,
wheels, tires, and exhaust system
for damage and check the fuel lines
and cooling system for any
leakage.
The vehicle requires more frequent
service due to off-road use.
Refer to the Maintenance Schedule
for additional information.
Driving Your Vehicle 4-27

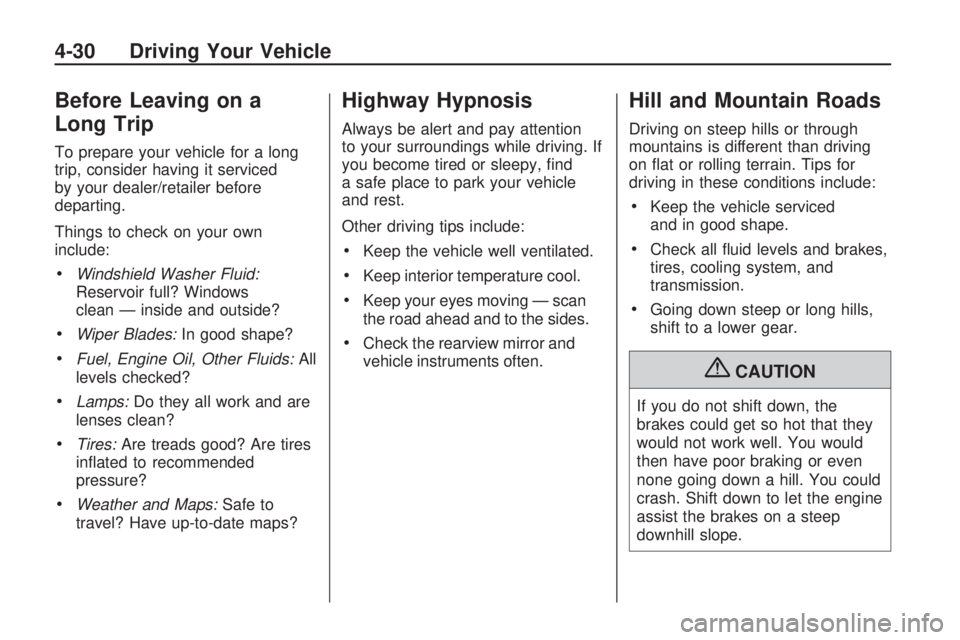

Before Leaving on a
Long Trip
To prepare your vehicle for a long
trip, consider having it serviced
by your dealer/retailer before
departing.
Things to check on your own
include:
Windshield Washer Fluid:
Reservoir full? Windows
clean — inside and outside?
Wiper Blades:In good shape?
Fuel, Engine Oil, Other Fluids:All
levels checked?
Lamps:Do they all work and are
lenses clean?
Tires:Are treads good? Are tires
inated to recommended
pressure?
Weather and Maps:Safe to
travel? Have up-to-date maps?
Highway Hypnosis
Always be alert and pay attention
to your surroundings while driving. If
you become tired or sleepy, nd
a safe place to park your vehicle
and rest.
Other driving tips include:
Keep the vehicle well ventilated.
Keep interior temperature cool.
Keep your eyes moving — scan
the road ahead and to the sides.
Check the rearview mirror and
vehicle instruments often.
Hill and Mountain Roads
Driving on steep hills or through
mountains is different than driving
on at or rolling terrain. Tips for
driving in these conditions include:
Keep the vehicle serviced
and in good shape.
Check all uid levels and brakes,
tires, cooling system, and
transmission.
Going down steep or long hills,
shift to a lower gear.
{CAUTION
If you do not shift down, the
brakes could get so hot that they
would not work well. You would
then have poor braking or even
none going down a hill. You could
crash. Shift down to let the engine
assist the brakes on a steep
downhill slope.
4-30 Driving Your Vehicle

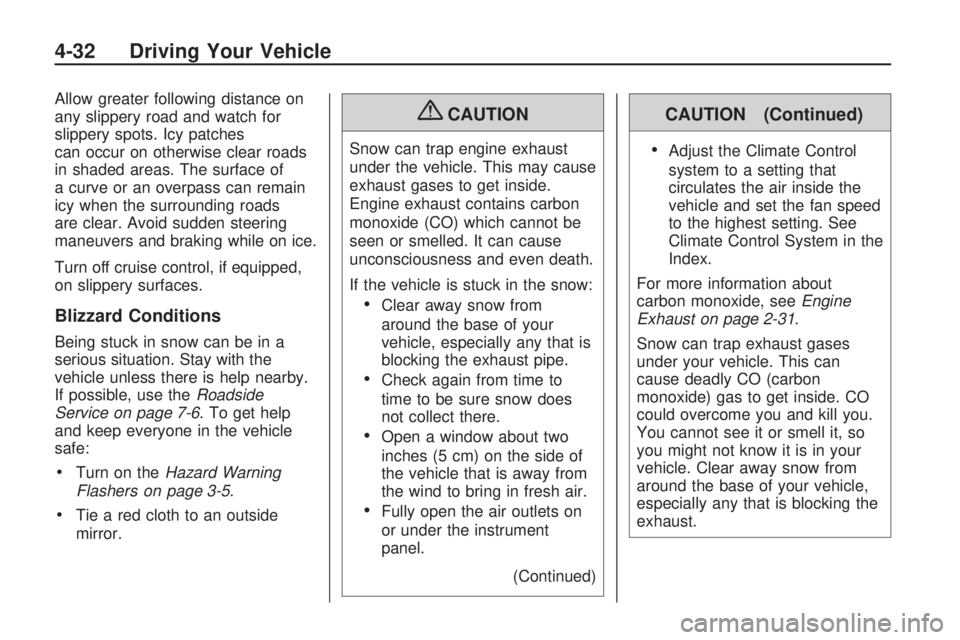

Allow greater following distance on
any slippery road and watch for
slippery spots. Icy patches
can occur on otherwise clear roads
in shaded areas. The surface of
a curve or an overpass can remain
icy when the surrounding roads
are clear. Avoid sudden steering
maneuvers and braking while on ice.
Turn off cruise control, if equipped,
on slippery surfaces.
Blizzard Conditions
Being stuck in snow can be in a
serious situation. Stay with the
vehicle unless there is help nearby.
If possible, use theRoadside
Service on page 7-6. To get help
and keep everyone in the vehicle
safe:
Turn on theHazard Warning
Flashers on page 3-5.
Tie a red cloth to an outside
mirror.
{CAUTION
Snow can trap engine exhaust
under the vehicle. This may cause
exhaust gases to get inside.
Engine exhaust contains carbon
monoxide (CO) which cannot be
seen or smelled. It can cause
unconsciousness and even death.
If the vehicle is stuck in the snow:
Clear away snow from
around the base of your
vehicle, especially any that is
blocking the exhaust pipe.
Check again from time to
time to be sure snow does
not collect there.
Open a window about two
inches (5 cm) on the side of
the vehicle that is away from
the wind to bring in fresh air.
Fully open the air outlets on
or under the instrument
panel.
(Continued)
CAUTION (Continued)
Adjust the Climate Control
system to a setting that
circulates the air inside the
vehicle and set the fan speed
to the highest setting. See
Climate Control System in the
Index.
For more information about
carbon monoxide, seeEngine
Exhaust on page 2-31.
Snow can trap exhaust gases
under your vehicle. This can
cause deadly CO (carbon
monoxide) gas to get inside. CO
could overcome you and kill you.
You cannot see it or smell it, so
you might not know it is in your
vehicle. Clear away snow from
around the base of your vehicle,
especially any that is blocking the
exhaust.
4-32 Driving Your Vehicle

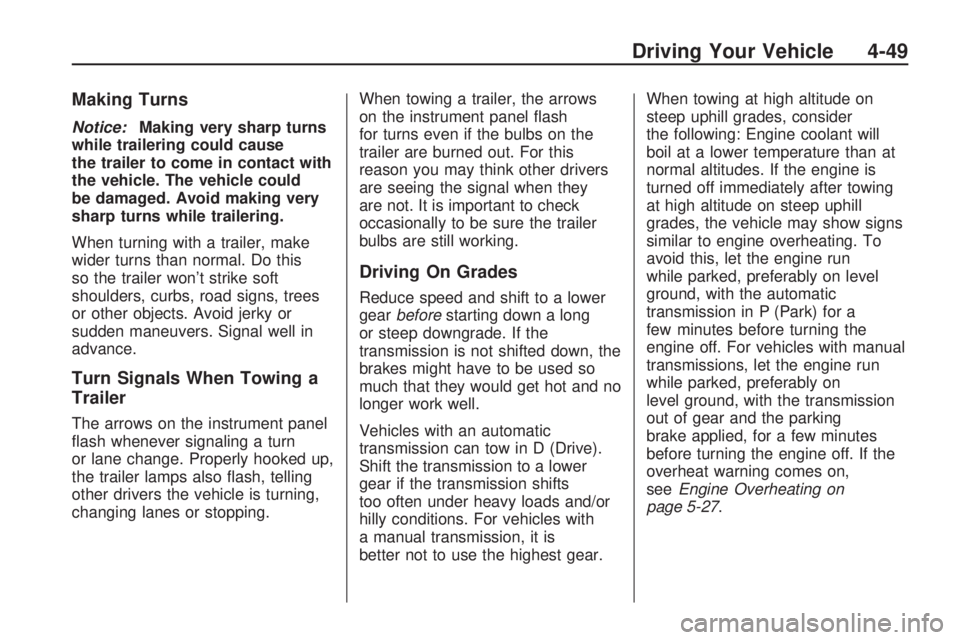

Making Turns
Notice:Making very sharp turns
while trailering could cause
the trailer to come in contact with
the vehicle. The vehicle could
be damaged. Avoid making very
sharp turns while trailering.
When turning with a trailer, make
wider turns than normal. Do this
so the trailer won’t strike soft
shoulders, curbs, road signs, trees
or other objects. Avoid jerky or
sudden maneuvers. Signal well in
advance.
Turn Signals When Towing a
Trailer
The arrows on the instrument panel
ash whenever signaling a turn
or lane change. Properly hooked up,
the trailer lamps also ash, telling
other drivers the vehicle is turning,
changing lanes or stopping.When towing a trailer, the arrows
on the instrument panel ash
for turns even if the bulbs on the
trailer are burned out. For this
reason you may think other drivers
are seeing the signal when they
are not. It is important to check
occasionally to be sure the trailer
bulbs are still working.
Driving On Grades
Reduce speed and shift to a lower
gearbeforestarting down a long
or steep downgrade. If the
transmission is not shifted down, the
brakes might have to be used so
much that they would get hot and no
longer work well.
Vehicles with an automatic
transmission can tow in D (Drive).
Shift the transmission to a lower
gear if the transmission shifts
too often under heavy loads and/or
hilly conditions. For vehicles with
a manual transmission, it is
better not to use the highest gear.When towing at high altitude on
steep uphill grades, consider
the following: Engine coolant will
boil at a lower temperature than at
normal altitudes. If the engine is
turned off immediately after towing
at high altitude on steep uphill
grades, the vehicle may show signs
similar to engine overheating. To
avoid this, let the engine run
while parked, preferably on level
ground, with the automatic
transmission in P (Park) for a
few minutes before turning the
engine off. For vehicles with manual
transmissions, let the engine run
while parked, preferably on
level ground, with the transmission
out of gear and the parking
brake applied, for a few minutes
before turning the engine off. If the
overheat warning comes on,
seeEngine Overheating on
page 5-27.
Driving Your Vehicle 4-49

Maintenance When Trailer
Towing
The vehicle needs service more
often when pulling a trailer. See this
manual’s Maintenance Schedule
or Index for more information.
Things that are especially important
in trailer operation are automatic
transmission uid, engine oil,
axle lubricant, belts, cooling system
and brake system. It is a good
idea to inspect these before and
during the trip.
Check periodically to see that all
hitch nuts and bolts are tight.
Trailer Wiring Harness
Light-Duty Trailer Wiring Package
If the vehicle does not have a
trailer towing package, the chassis
harness will contain the following
blunt cut circuits:
Yellow: Left Stop/Turn Signal
Dark Green: Right Stop/Turn
Signal
White: Ground
Brown: Tail Lamps
To add a trailer towing wiring
package, have it installed by your
dealer/retailer or a qualied
service center. Also, seeAdd-On
Electrical Equipment on page 5-91
for more information.Heavy-Duty Trailer Wiring
Package
If the vehicle has a trailer towing
package, the rear bumper harness
will have a seven-pin universal
heavy-duty trailer connector
attached to a bracket on the hitch
platform.
Driving Your Vehicle 4-51

Service and
Appearance Care
Service
Service...............................5-3
Accessories and
Modications.....................5-3
California Proposition
65 Warning.......................5-4
California Perchlorate
Materials Requirements.....5-4
Doing Your Own
Service Work....................5-4
Adding Equipment to the
Outside of the Vehicle........5-5
Fuel
Fuel....................................5-5
Gasoline Octane.................5-5
Gasoline Specications.......5-5
California Fuel....................5-5
Additives.............................5-6
Fuels in Foreign
Countries..........................5-7
Filling the Tank...................5-7
Filling a Portable Fuel
Container..........................5-8
Checking Things Under
the Hood
Checking Things Under
the Hood..........................5-9
Hood Release.....................5-9
Engine Compartment
Overview.........................5-10
Engine Oil.........................5-13
Engine Oil Life System.....5-15
Engine Air Cleaner/Filter. . .5-17
Automatic Transmission
Fluid................................5-18
Manual Transmission
Fluid................................5-20
Hydraulic Clutch................5-21
Cooling System.................5-22
Engine Coolant.................5-23
Engine Overheating...........5-27
Engine Fan Noise.............5-28
Power Steering Fluid.........5-29
Windshield Washer Fluid. . .5-30
Brakes..............................5-30
Battery..............................5-33
Jump Starting...................5-34
Rear Axle
Rear Axle.........................5-38
Four-Wheel Drive
Four-Wheel Drive..............5-38
Front Axle
Front Axle.........................5-39
Headlamp Aiming
Headlamp Aiming..............5-39
Bulb Replacement
Bulb Replacement.............5-41
Halogen Bulbs..................5-41
Headlamps........................5-41
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps (H3)
.....................5-42
Taillamps, Turn Signal,
Stoplamps and Back-up
Lamps (H3T)
...................5-42
License Plate Lamp..........5-43
Replacement Bulbs...........5-43
Service and Appearance Care 5-1
