HUMMER H3 2009 Owners Manual

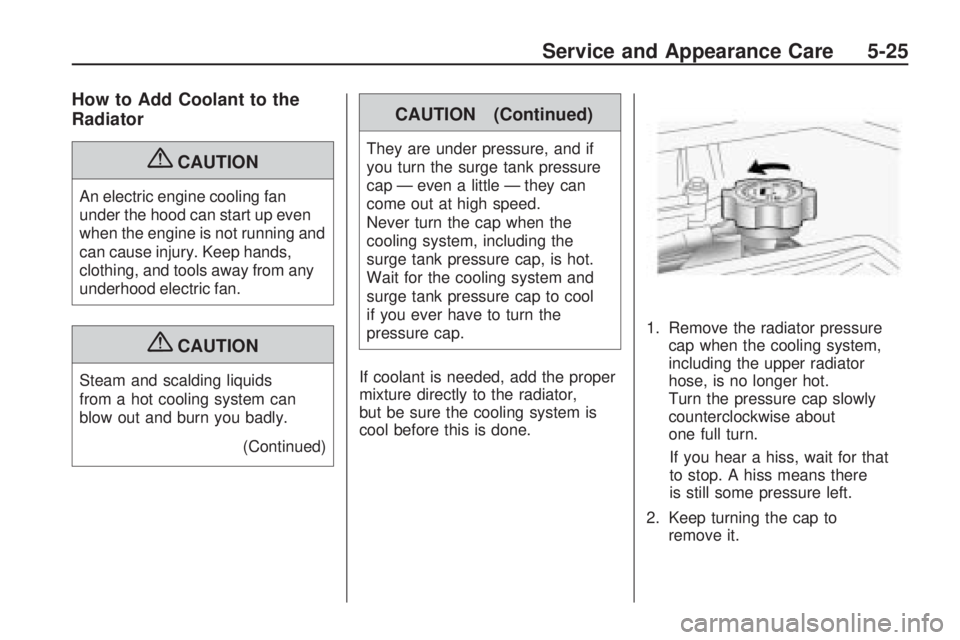

How to Add Coolant to the
Radiator
{CAUTION
An electric engine cooling fan
under the hood can start up even
when the engine is not running and
can cause injury. Keep hands,
clothing, and tools away from any
underhood electric fan.
{CAUTION
Steam and scalding liquids
from a hot cooling system can
blow out and burn you badly.
(Continued)
CAUTION (Continued)
They are under pressure, and if
you turn the surge tank pressure
cap — even a little — they can
come out at high speed.
Never turn the cap when the
cooling system, including the
surge tank pressure cap, is hot.
Wait for the cooling system and
surge tank pressure cap to cool
if you ever have to turn the
pressure cap.
If coolant is needed, add the proper
mixture directly to the radiator,
but be sure the cooling system is
cool before this is done.1. Remove the radiator pressure
cap when the cooling system,
including the upper radiator
hose, is no longer hot.
Turn the pressure cap slowly
counterclockwise about
one full turn.
If you hear a hiss, wait for that
to stop. A hiss means there
is still some pressure left.
2. Keep turning the cap to
remove it.
Service and Appearance Care 5-25

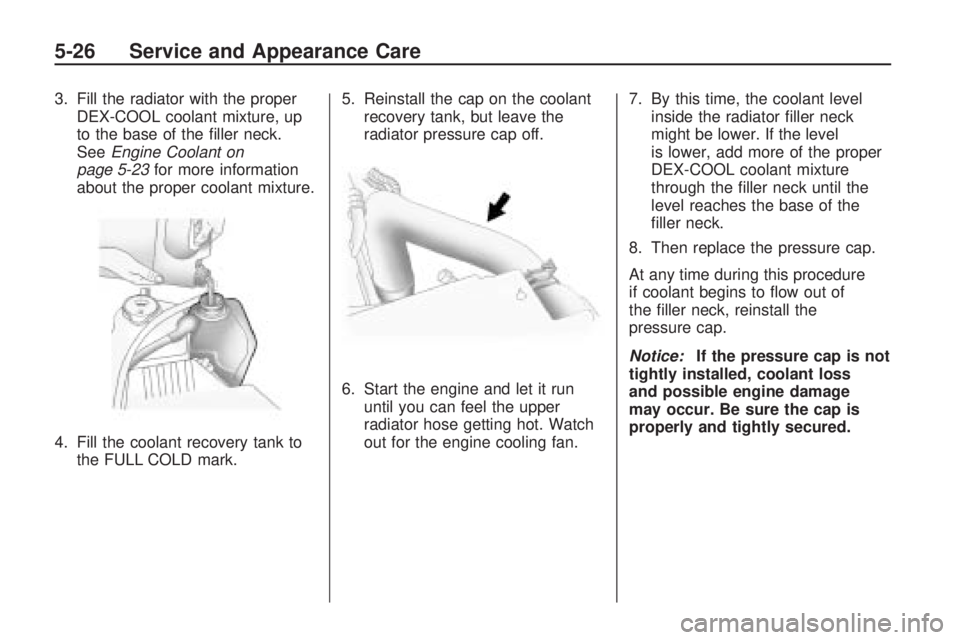

3. Fill the radiator with the proper
DEX-COOL coolant mixture, up
to the base of the ller neck.
SeeEngine Coolant on
page 5-23for more information
about the proper coolant mixture.
4. Fill the coolant recovery tank to
the FULL COLD mark.5. Reinstall the cap on the coolant
recovery tank, but leave the
radiator pressure cap off.
6. Start the engine and let it run
until you can feel the upper
radiator hose getting hot. Watch
out for the engine cooling fan.7. By this time, the coolant level
inside the radiator ller neck
might be lower. If the level
is lower, add more of the proper
DEX-COOL coolant mixture
through the ller neck until the
level reaches the base of the
ller neck.
8. Then replace the pressure cap.
At any time during this procedure
if coolant begins to ow out of
the ller neck, reinstall the
pressure cap.
Notice:If the pressure cap is not
tightly installed, coolant loss
and possible engine damage
may occur. Be sure the cap is
properly and tightly secured.
5-26 Service and Appearance Care

Engine Overheating
The vehicle has an indicator to warn
of engine overheating.
A coolant temperature gage is
displayed on the instrument panel.
SeeEngine Coolant Temperature
Gage on page 3-29.
You may decide not to lift the hood
when this warning appears, but
instead get service help right away.
SeeRoadside Service on page 7-6.
If you do decide to lift the hood,
make sure the vehicle is parked on
a level surface.
Then check to see if the engine
cooling fans are running. If the
engine is overheating, both fans
should be running. If they are not, do
not continue to run the engine and
have the vehicle serviced.The air conditioning might stop
working if the engine is too hot.
This is normal and helps cool the
engine.
Notice:Engine damage from
running the engine without
coolant is not covered by the
warranty.
Notice:If the engine catches re
because of being driven with
no coolant, your vehicle can be
badly damaged. The costly
repairs would not be covered by
the vehicle warranty.
If Steam Is Coming From The
Engine Compartment
{CAUTION
Steam from an overheated engine
can burn you badly, even if you
just open the hood. Stay away
from the engine if you see or hear
steam coming from it. Just turn it
off and get everyone away from
the vehicle until it cools down.
Wait until there is no sign of
steam or coolant before you
open the hood.
If you keep driving when your
engine is overheated, the liquids
in it can catch re. You or others
could be badly burned. Stop your
engine if it overheats, and get
out of the vehicle until the engine
is cool.
Service and Appearance Care 5-27

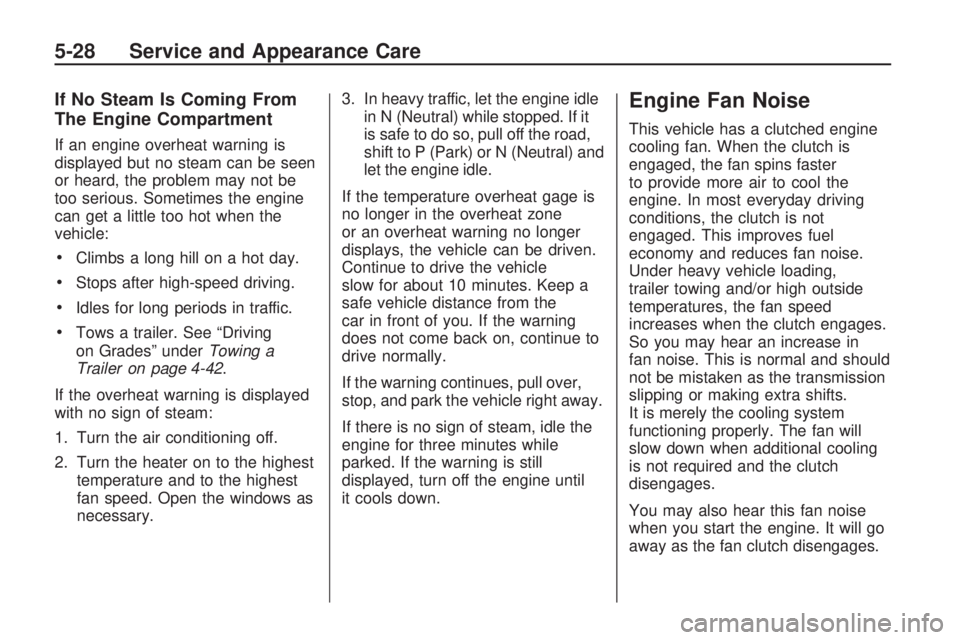

If No Steam Is Coming From
The Engine Compartment
If an engine overheat warning is
displayed but no steam can be seen
or heard, the problem may not be
too serious. Sometimes the engine
can get a little too hot when the
vehicle:
Climbs a long hill on a hot day.
Stops after high-speed driving.
Idles for long periods in traffic.
Tows a trailer. See “Driving
on Grades” underTowing a
Trailer on page 4-42.
If the overheat warning is displayed
with no sign of steam:
1. Turn the air conditioning off.
2. Turn the heater on to the highest
temperature and to the highest
fan speed. Open the windows as
necessary.3. In heavy traffic, let the engine idle
in N (Neutral) while stopped. If it
is safe to do so, pull off the road,
shift to P (Park) or N (Neutral) and
let the engine idle.
If the temperature overheat gage is
no longer in the overheat zone
or an overheat warning no longer
displays, the vehicle can be driven.
Continue to drive the vehicle
slow for about 10 minutes. Keep a
safe vehicle distance from the
car in front of you. If the warning
does not come back on, continue to
drive normally.
If the warning continues, pull over,
stop, and park the vehicle right away.
If there is no sign of steam, idle the
engine for three minutes while
parked. If the warning is still
displayed, turn off the engine until
it cools down.
Engine Fan Noise
This vehicle has a clutched engine
cooling fan. When the clutch is
engaged, the fan spins faster
to provide more air to cool the
engine. In most everyday driving
conditions, the clutch is not
engaged. This improves fuel
economy and reduces fan noise.
Under heavy vehicle loading,
trailer towing and/or high outside
temperatures, the fan speed
increases when the clutch engages.
So you may hear an increase in
fan noise. This is normal and should
not be mistaken as the transmission
slipping or making extra shifts.
It is merely the cooling system
functioning properly. The fan will
slow down when additional cooling
is not required and the clutch
disengages.
You may also hear this fan noise
when you start the engine. It will go
away as the fan clutch disengages.
5-28 Service and Appearance Care

Power Steering Fluid
SeeEngine Compartment Overview
on page 5-10for reservoir location.
When to Check Power
Steering Fluid
It is not necessary to regularly
check power steering uid unless a
leak in the system is suspected
or an unusual noise is heard. A uid
loss in this system could indicate
a problem. Have the system
inspected and repaired.
How to Check Power
Steering Fluid
1. Turn the key off and let the
engine compartment cool down.
2. Wipe the cap and the top of the
reservoir clean.
3. Unscrew the cap and wipe the
dipstick with a clean rag.
4. Replace the cap and completely
tighten it.
5. Then remove the cap again and
look at the uid level on the
dipstick.
The level should be between the
ADD and FULL marks. If necessary,
add only enough uid to bring the
level up to the proper range.
What to Use
To determine what kind of uid to
use, seeRecommended Fluids and
Lubricants on page 6-12. Always
use the proper uid.
Notice:Use of the incorrect uid
may damage the vehicle and
the damages may not be covered
by the vehicle’s warranty.
Always use the correct uid
listed inRecommended Fluids
and Lubricants on page 6-12.
Service and Appearance Care 5-29

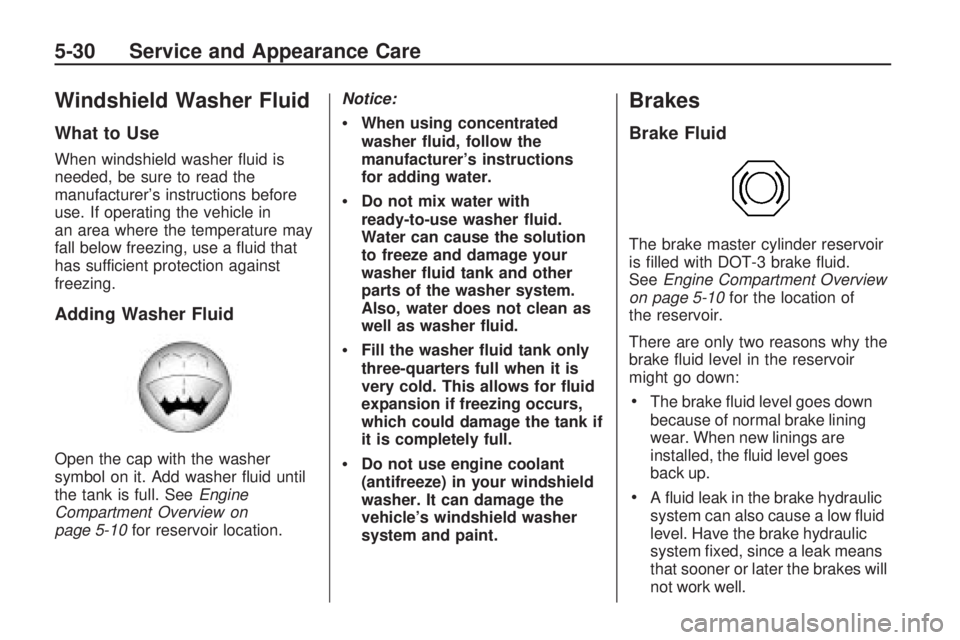

Windshield Washer Fluid
What to Use
When windshield washer uid is
needed, be sure to read the
manufacturer’s instructions before
use. If operating the vehicle in
an area where the temperature may
fall below freezing, use a uid that
has sufficient protection against
freezing.
Adding Washer Fluid
Open the cap with the washer
symbol on it. Add washer uid until
the tank is full. SeeEngine
Compartment Overview on
page 5-10for reservoir location.Notice:
When using concentrated
washer uid, follow the
manufacturer’s instructions
for adding water.
Do not mix water with
ready-to-use washer uid.
Water can cause the solution
to freeze and damage your
washer uid tank and other
parts of the washer system.
Also, water does not clean as
well as washer uid.
Fill the washer uid tank only
three-quarters full when it is
very cold. This allows for uid
expansion if freezing occurs,
which could damage the tank if
it is completely full.
Do not use engine coolant
(antifreeze) in your windshield
washer. It can damage the
vehicle’s windshield washer
system and paint.
Brakes
Brake Fluid
The brake master cylinder reservoir
is lled with DOT-3 brake uid.
SeeEngine Compartment Overview
on page 5-10for the location of
the reservoir.
There are only two reasons why the
brake uid level in the reservoir
might go down:
The brake uid level goes down
because of normal brake lining
wear. When new linings are
installed, the uid level goes
back up.
A uid leak in the brake hydraulic
system can also cause a low uid
level. Have the brake hydraulic
system xed, since a leak means
that sooner or later the brakes will
not work well.
5-30 Service and Appearance Care

Do not top off the brake uid. Adding
uid does not correct a leak. If uid is
added when the linings are worn,
there will be too much uid when new
brake linings are installed. Add or
remove brake uid, as necessary,
only when work is done on the brake
hydraulic system.
{CAUTION
If too much brake uid is added,
it can spill on the engine and
burn, if the engine is hot enough.
You or others could be burned,
and the vehicle could be
damaged. Add brake uid only
when work is done on the brake
hydraulic system. See “Checking
Brake Fluid” in this section.
Refer to the Maintenance Schedule
to determine when to check the
brake uid. SeeScheduled
Maintenance on page 6-4.
Checking Brake Fluid
Check brake uid by looking at the
brake uid reservoir. SeeEngine
Compartment Overview on
page 5-10.
The uid level should be above
MIN. If it is not, have the brake
hydraulic system checked to see
if there is a leak.
After work is done on the brake
hydraulic system, make sure the
level is above the MIN but not over
the MAX mark.
What to Add
Use only new DOT-3 brake uid
from a sealed container. See
Recommended Fluids and
Lubricants on page 6-12.
Always clean the brake uid
reservoir cap and the area around
the cap before removing it. This
helps keep dirt from entering
the reservoir.{CAUTION
With the wrong kind of uid in the
brake hydraulic system, the brakes
might not work well. This could
cause a crash. Always use the
proper brake uid.
Notice:
Using the wrong uid can badly
damage brake hydraulic system
parts. For example, just a few
drops of mineral-based oil,
such as engine oil, in the brake
hydraulic system can damage
brake hydraulic system parts so
badly that they will have to be
replaced. Do not let someone
put in the wrong kind of uid.
If brake uid is spilled on the
vehicle’s painted surfaces, the
paint nish can be damaged.
Be careful not to spill brake uid
on the vehicle. If you do, wash it
off immediately. SeeWashing
Your Vehicle on page 5-86.
Service and Appearance Care 5-31

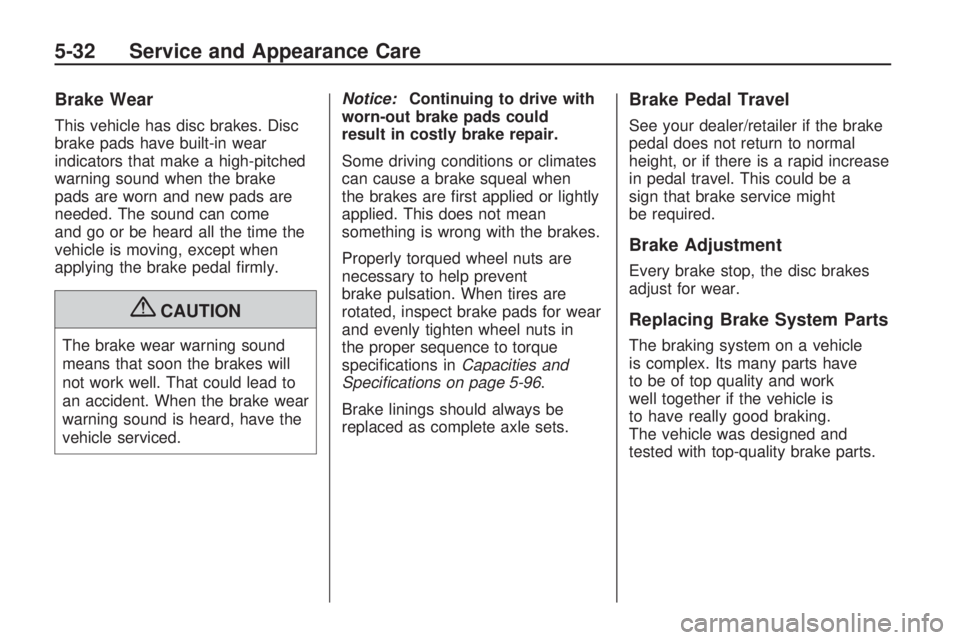

Brake Wear
This vehicle has disc brakes. Disc
brake pads have built-in wear
indicators that make a high-pitched
warning sound when the brake
pads are worn and new pads are
needed. The sound can come
and go or be heard all the time the
vehicle is moving, except when
applying the brake pedal rmly.
{CAUTION
The brake wear warning sound
means that soon the brakes will
not work well. That could lead to
an accident. When the brake wear
warning sound is heard, have the
vehicle serviced.Notice:Continuing to drive with
worn-out brake pads could
result in costly brake repair.
Some driving conditions or climates
can cause a brake squeal when
the brakes are rst applied or lightly
applied. This does not mean
something is wrong with the brakes.
Properly torqued wheel nuts are
necessary to help prevent
brake pulsation. When tires are
rotated, inspect brake pads for wear
and evenly tighten wheel nuts in
the proper sequence to torque
specications inCapacities and
Specifications on page 5-96.
Brake linings should always be
replaced as complete axle sets.
Brake Pedal Travel
See your dealer/retailer if the brake
pedal does not return to normal
height, or if there is a rapid increase
in pedal travel. This could be a
sign that brake service might
be required.
Brake Adjustment
Every brake stop, the disc brakes
adjust for wear.
Replacing Brake System Parts
The braking system on a vehicle
is complex. Its many parts have
to be of top quality and work
well together if the vehicle is
to have really good braking.
The vehicle was designed and
tested with top-quality brake parts.
5-32 Service and Appearance Care

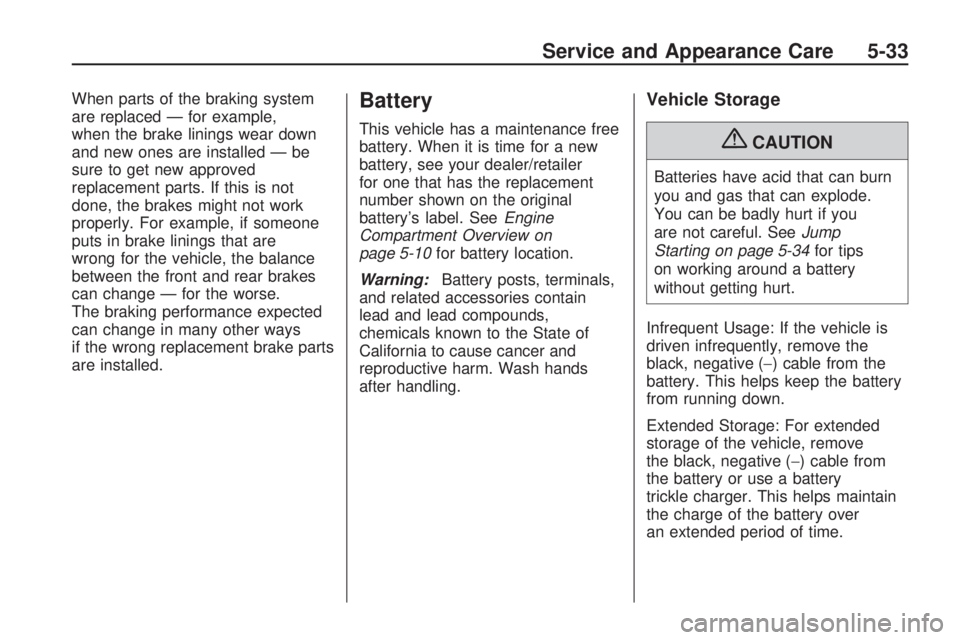

When parts of the braking system
are replaced — for example,
when the brake linings wear down
and new ones are installed — be
sure to get new approved
replacement parts. If this is not
done, the brakes might not work
properly. For example, if someone
puts in brake linings that are
wrong for the vehicle, the balance
between the front and rear brakes
can change — for the worse.
The braking performance expected
can change in many other ways
if the wrong replacement brake parts
are installed.Battery
This vehicle has a maintenance free
battery. When it is time for a new
battery, see your dealer/retailer
for one that has the replacement
number shown on the original
battery’s label. SeeEngine
Compartment Overview on
page 5-10for battery location.
Warning:Battery posts, terminals,
and related accessories contain
lead and lead compounds,
chemicals known to the State of
California to cause cancer and
reproductive harm. Wash hands
after handling.
Vehicle Storage
{CAUTION
Batteries have acid that can burn
you and gas that can explode.
You can be badly hurt if you
are not careful. SeeJump
Starting on page 5-34for tips
on working around a battery
without getting hurt.
Infrequent Usage: If the vehicle is
driven infrequently, remove the
black, negative (−) cable from the
battery. This helps keep the battery
from running down.
Extended Storage: For extended
storage of the vehicle, remove
the black, negative (−) cable from
the battery or use a battery
trickle charger. This helps maintain
the charge of the battery over
an extended period of time.
Service and Appearance Care 5-33

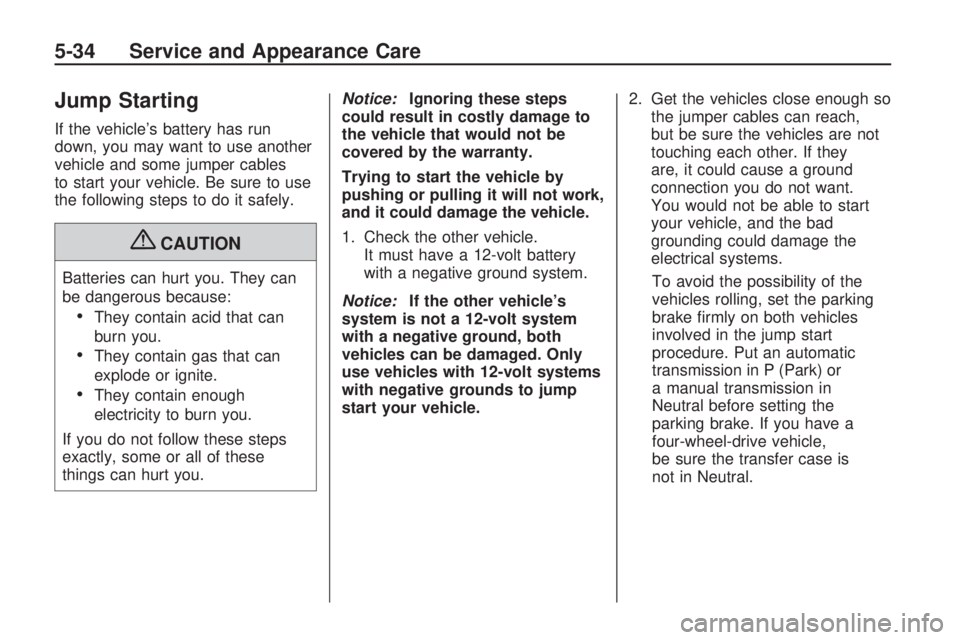

Jump Starting
If the vehicle’s battery has run
down, you may want to use another
vehicle and some jumper cables
to start your vehicle. Be sure to use
the following steps to do it safely.
{CAUTION
Batteries can hurt you. They can
be dangerous because:
They contain acid that can
burn you.
They contain gas that can
explode or ignite.
They contain enough
electricity to burn you.
If you do not follow these steps
exactly, some or all of these
things can hurt you.Notice:Ignoring these steps
could result in costly damage to
the vehicle that would not be
covered by the warranty.
Trying to start the vehicle by
pushing or pulling it will not work,
and it could damage the vehicle.
1. Check the other vehicle.
It must have a 12-volt battery
with a negative ground system.
Notice:If the other vehicle’s
system is not a 12-volt system
with a negative ground, both
vehicles can be damaged. Only
use vehicles with 12-volt systems
with negative grounds to jump
start your vehicle.2. Get the vehicles close enough so
the jumper cables can reach,
but be sure the vehicles are not
touching each other. If they
are, it could cause a ground
connection you do not want.
You would not be able to start
your vehicle, and the bad
grounding could damage the
electrical systems.
To avoid the possibility of the
vehicles rolling, set the parking
brake rmly on both vehicles
involved in the jump start
procedure. Put an automatic
transmission in P (Park) or
a manual transmission in
Neutral before setting the
parking brake. If you have a
four-wheel-drive vehicle,
be sure the transfer case is
not in Neutral.
5-34 Service and Appearance Care
