10-70 Vehicle Care

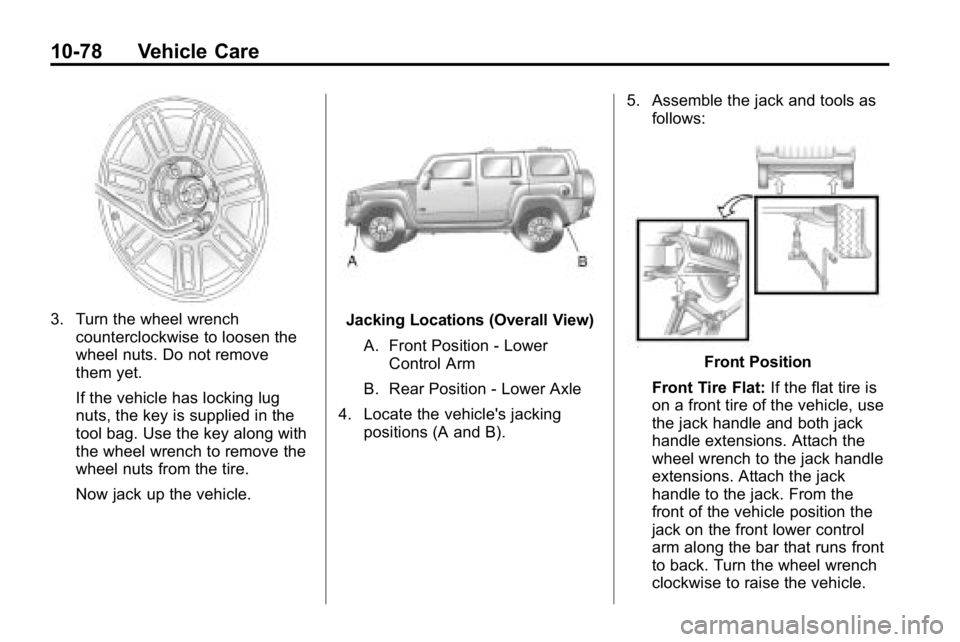

Jacking Locations (Overall View)A. Front Position - Lower Control Arm
B. Rear Position - Lower Axle
4. Locate the vehicle's jacking positions (A and B). 5. Assemble the jack and tools as
follows:
Front Position
Front Tire Flat: If the flat tire
is on a front tire of the vehicle,
use the jack handle and both
jack handle extensions. Attach
the wheel wrench to the jack
handle extensions. Attach
the jack handle to the jack. From the front of the vehicle
position the jack on the front
lower control arm along the bar
that runs front to back. Turn the
wheel wrench clockwise to raise
the vehicle. Raise the vehicle far
enough off the ground so there
is enough room for the spare tire
to clear the ground.
Rear Positions
Refer to the graphic above to
locate the placement of the jack
if the flat tire is on the rear of the
vehicle.

10-78 Vehicle Care
3. Turn the wheel wrenchcounterclockwise to loosen the
wheel nuts. Do not remove
them yet.
If the vehicle has locking lug
nuts, the key is supplied in the
tool bag. Use the key along with
the wheel wrench to remove the
wheel nuts from the tire.

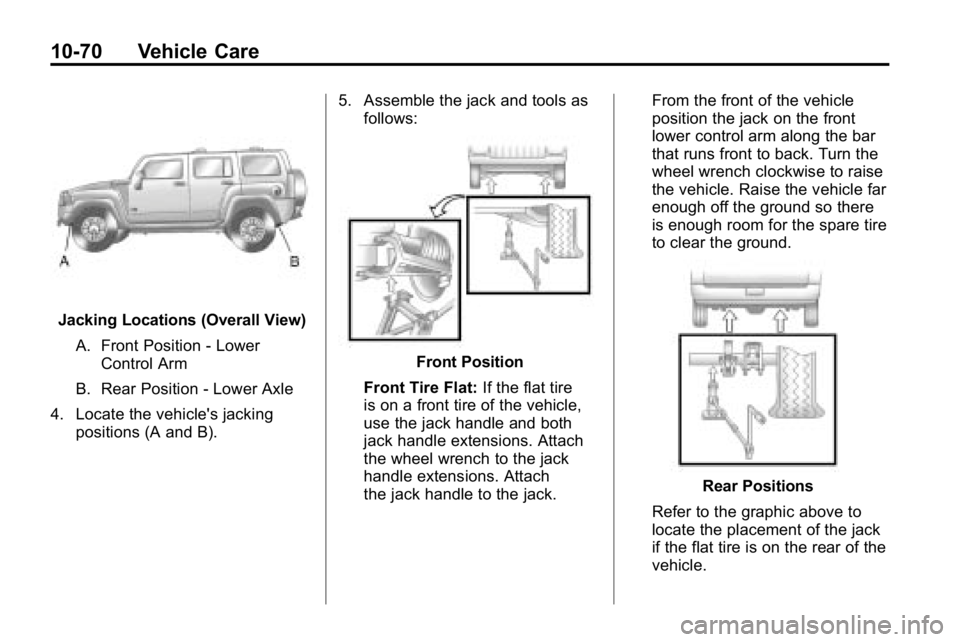

Now jack up the vehicle.Jacking Locations (Overall View)
A. Front Position - Lower Control Arm
B. Rear Position - Lower Axle
4. Locate the vehicle's jacking positions (A and B). 5. Assemble the jack and tools as
follows:
Front Position
Front Tire Flat: If the flat tire is
on a front tire of the vehicle, use
the jack handle and both jack
handle extensions. Attach the
wheel wrench to the jack handle
extensions. Attach the jack
handle to the jack. From the
front of the vehicle position the
jack on the front lower control
arm along the bar that runs front
to back. Turn the wheel wrench
clockwise to raise the vehicle.
