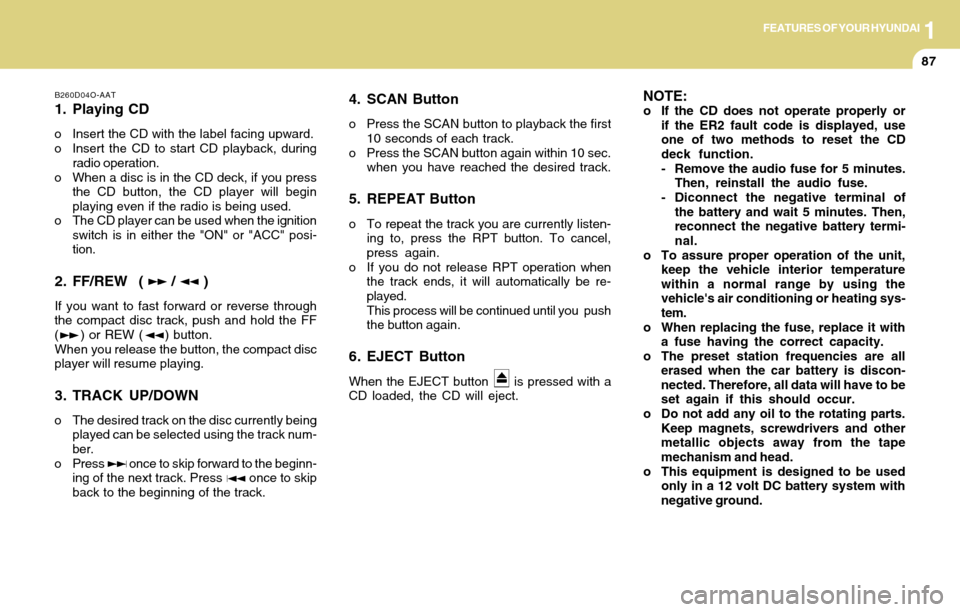

1FEATURES OF YOUR HYUNDAI
87
B260D04O-AAT
1. Playing CD
o Insert the CD with the label facing upward.
o Insert the CD to start CD playback, during
radio operation.
o When a disc is in the CD deck, if you press
the CD button, the CD player will begin
playing even if the radio is being used.
o The CD player can be used when the ignition
switch is in either the "ON" or "ACC" posi-
tion.
2. FF/REW ( / )
If you want to fast forward or reverse through
the compact disc track, push and hold the FF
( ) or REW ( ) button.
When you release the button, the compact disc
player will resume playing.
3. TRACK UP/DOWN
o The desired track on the disc currently being
played can be selected using the track num-
ber.
o Press once to skip forward to the beginn-
ing of the next track. Press once to skip
back to the beginning of the track.
4. SCAN Button
o Press the SCAN button to playback the first
10 seconds of each track.
o Press the SCAN button again within 10 sec.
when you have reached the desired track.
5. REPEAT Button
o To repeat the track you are currently listen-
ing to, press the RPT button. To cancel,
press again.
o If you do not release RPT operation when
the track ends, it will automatically be re-
played.
This process will be continued until you push
the button again.
6. EJECT Button
When the EJECT button is pressed with a
CD loaded, the CD will eject.
NOTE:o If the CD does not operate properly or
if the ER2 fault code is displayed, use
one of two methods to reset the CD
deck function.
- Remove the audio fuse for 5 minutes.
Then, reinstall the audio fuse.
- Diconnect the negative terminal of
the battery and wait 5 minutes. Then,
reconnect the negative battery termi-
nal.
o To assure proper operation of the unit,
keep the vehicle interior temperature
within a normal range by using the
vehicle's air conditioning or heating sys-
tem.
o When replacing the fuse, replace it with
a fuse having the correct capacity.
o The preset station frequencies are all
erased when the car battery is discon-
nected. Therefore, all data will have to be
set again if this should occur.
o Do not add any oil to the rotating parts.
Keep magnets, screwdrivers and other
metallic objects away from the tape
mechanism and head.
o This equipment is designed to be used
only in a 12 volt DC battery system with
negative ground.

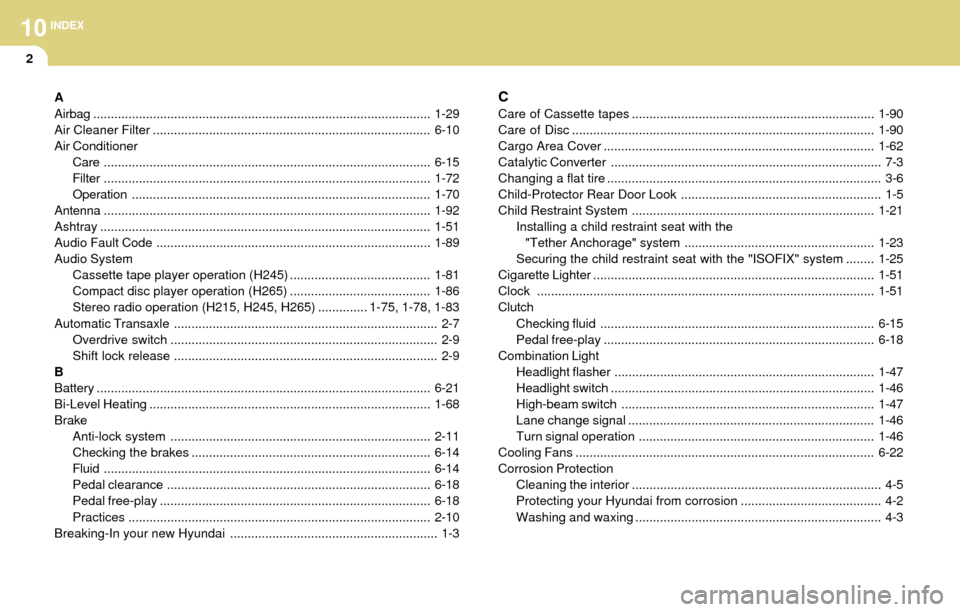

10INDEX
2
C
Care of Cassette tapes .....................................................................1-90
Care of Disc ......................................................................................1-90
Cargo Area Cover .............................................................................1-62
Catalytic Converter............................................................................. 7-3
Changing a flat tire .............................................................................. 3-6
Child-Protector Rear Door Look ......................................................... 1-5
Child Restraint System.....................................................................1-21
Installing a child restraint seat with the
"Tether Anchorage" system ......................................................1-23
Securing the child restraint seat with the "ISOFIX" system ........1-25
Cigarette Lighter................................................................................1-51
Clock ................................................................................................1-51
Clutch
Checking fluid..............................................................................6-15
Pedal free-play .............................................................................6-18
Combination Light
Headlight flasher ..........................................................................1-47
Headlight switch...........................................................................1-46
High-beam switch........................................................................1-47
Lane change signal ......................................................................1-46
Turn signal operation ...................................................................1-46
Cooling Fans.....................................................................................6-22
Corrosion Protection
Cleaning the interior....................................................................... 4-5
Protecting your Hyundai from corrosion........................................ 4-2
Washing and waxing...................................................................... 4-3 A
Airbag................................................................................................1-29
Air Cleaner Filter...............................................................................6-10
Air Conditioner
Care.............................................................................................6-15
Filter.............................................................................................1-72
Operation.....................................................................................1-70
Antenna.............................................................................................1-92
Ashtray ..............................................................................................1-51
Audio Fault Code ..............................................................................1-89
Audio System
Cassette tape player operation (H245)........................................1-81
Compact disc player operation (H265)........................................1-86
Stereo radio operation (H215, H245, H265) .............. 1-75, 1-78, 1-83
Automatic Transaxle ........................................................................... 2-7
Overdrive switch............................................................................ 2-9
Shift lock release........................................................................... 2-9
B
Battery...............................................................................................6-21
Bi-Level Heating ................................................................................1-68
Brake
Anti-lock system..........................................................................2-11
Checking the brakes ....................................................................6-14
Fluid .............................................................................................6-14
Pedal clearance...........................................................................6-18
Pedal free-play .............................................................................6-18
Practices ......................................................................................2-10
Breaking-In your new Hyundai ........................................................... 1-3
