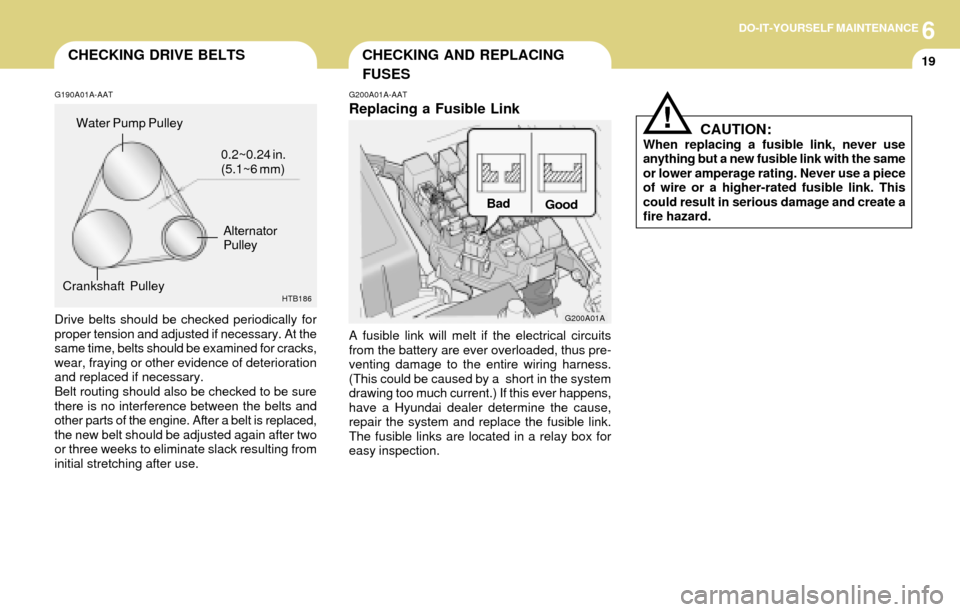

Page 168 of 205
6DO-IT-YOURSELF MAINTENANCE
19CHECKING AND REPLACING
FUSESCHECKING DRIVE BELTS
G190A01A-AAT
Drive belts should be checked periodically for
proper tension and adjusted if necessary. At the
same time, belts should be examined for cracks,
wear, fraying or other evidence of deterioration
and replaced if necessary.
Belt routing should also be checked to be sure
there is no interference between the belts and
other parts of the engine. After a belt is replaced,
the new belt should be adjusted again after two
or three weeks to eliminate slack resulting from
initial stretching after use.
Water Pump Pulley
Alternator
Pulley
Crankshaft Pulley0.2~0.24 in.
(5.1~6 mm)
HTB186
G200A01A-AAT
Replacing a Fusible Link
A fusible link will melt if the electrical circuits
from the battery are ever overloaded, thus pre-
venting damage to the entire wiring harness.
(This could be caused by a short in the system
drawing too much current.) If this ever happens,
have a Hyundai dealer determine the cause,
repair the system and replace the fusible link.
The fusible links are located in a relay box for
easy inspection.
G200A01A
Bad
Good
CAUTION:When replacing a fusible link, never use
anything but a new fusible link with the same
or lower amperage rating. Never use a piece
of wire or a higher-rated fusible link. This
could result in serious damage and create a
fire hazard.
!

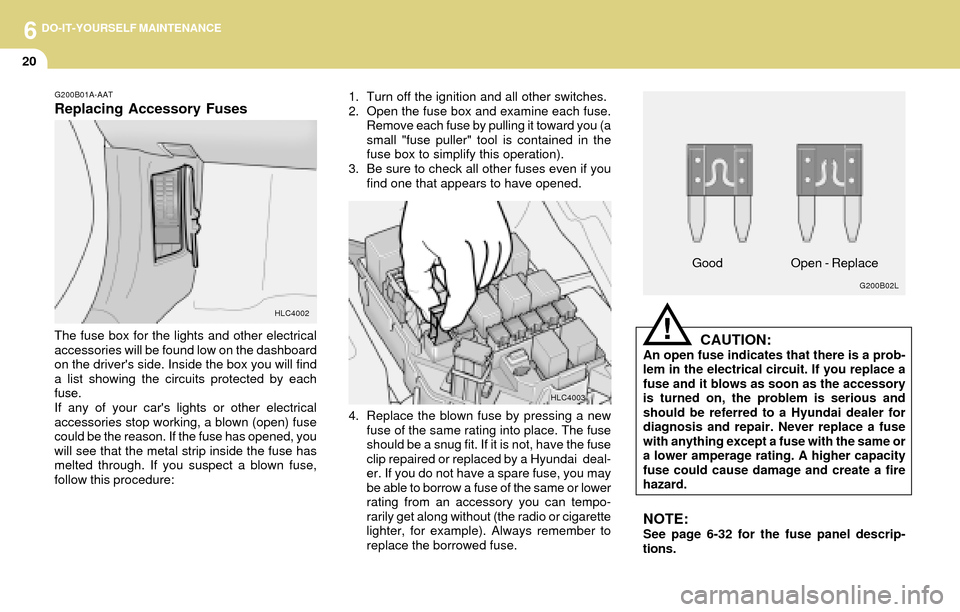

Page 169 of 205
6DO-IT-YOURSELF MAINTENANCE
20
CAUTION:An open fuse indicates that there is a prob-
lem in the electrical circuit. If you replace a
fuse and it blows as soon as the accessory
is turned on, the problem is serious and
should be referred to a Hyundai dealer for
diagnosis and repair. Never replace a fuse
with anything except a fuse with the same or
a lower amperage rating. A higher capacity
fuse could cause damage and create a fire
hazard.
G200B02L
!
GoodOpen - Replace
G200B01A-AAT
Replacing Accessory Fuses
The fuse box for the lights and other electrical
accessories will be found low on the dashboard
on the driver's side. Inside the box you will find
a list showing the circuits protected by each
fuse.
If any of your car's lights or other electrical
accessories stop working, a blown (open) fuse
could be the reason. If the fuse has opened, you
will see that the metal strip inside the fuse has
melted through. If you suspect a blown fuse,
follow this procedure:
HLC4002
1. Turn off the ignition and all other switches.
2. Open the fuse box and examine each fuse.
Remove each fuse by pulling it toward you (a
small "fuse puller" tool is contained in the
fuse box to simplify this operation).
3. Be sure to check all other fuses even if you
find one that appears to have opened.
HLC4003
4. Replace the blown fuse by pressing a new
fuse of the same rating into place. The fuse
should be a snug fit. If it is not, have the fuse
clip repaired or replaced by a Hyundai deal-
er. If you do not have a spare fuse, you may
be able to borrow a fuse of the same or lower
rating from an accessory you can tempo-
rarily get along without (the radio or cigarette
lighter, for example). Always remember to
replace the borrowed fuse.
NOTE:See page 6-32 for the fuse panel descrip-
tions.

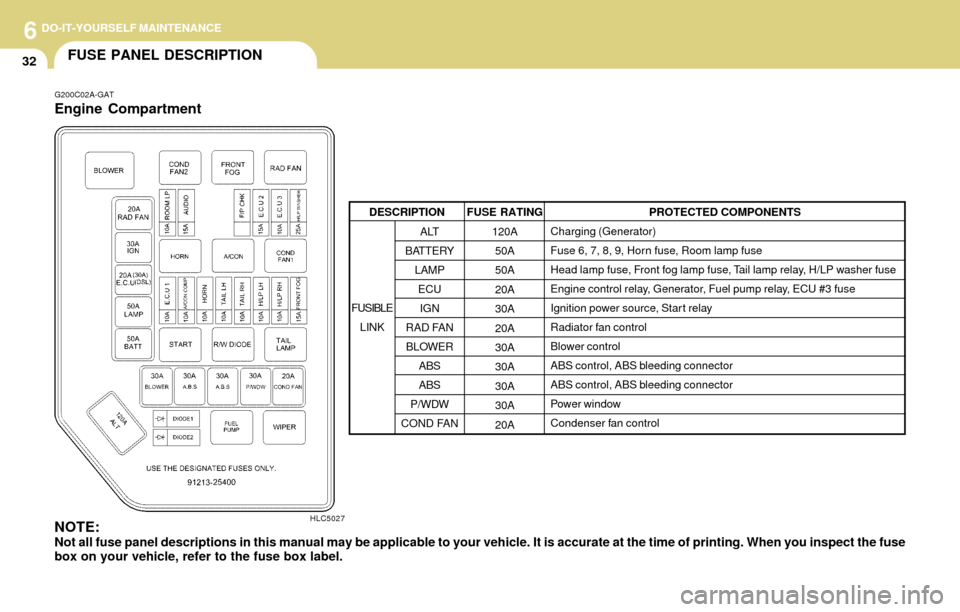

Page 181 of 205
6DO-IT-YOURSELF MAINTENANCE
32FUSE PANEL DESCRIPTION
G200C02A-GAT
Engine Compartment
HLC5027NOTE:Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse
box on your vehicle, refer to the fuse box label.
FUSE RATING
120A
50A
50A
20A
30A
20A
30A
30A
30A
30A
20APROTECTED COMPONENTS
Charging (Generator)
Fuse 6, 7, 8, 9, Horn fuse, Room lamp fuse
Head lamp fuse, Front fog lamp fuse, Tail lamp relay, H/LP washer fuse
Engine control relay, Generator, Fuel pump relay, ECU #3 fuse
Ignition power source, Star t relay
Radiator fan control
Blower control
ABS control, ABS bleeding connector
ABS control, ABS bleeding connector
Power window
Condenser fan control
ALT
BATTERY
LAMP
ECU
IGN
RAD FAN
BLOWER
ABS
ABS
P/WDW
COND FAN FUSIBLE
LINK
DESCRIPTION

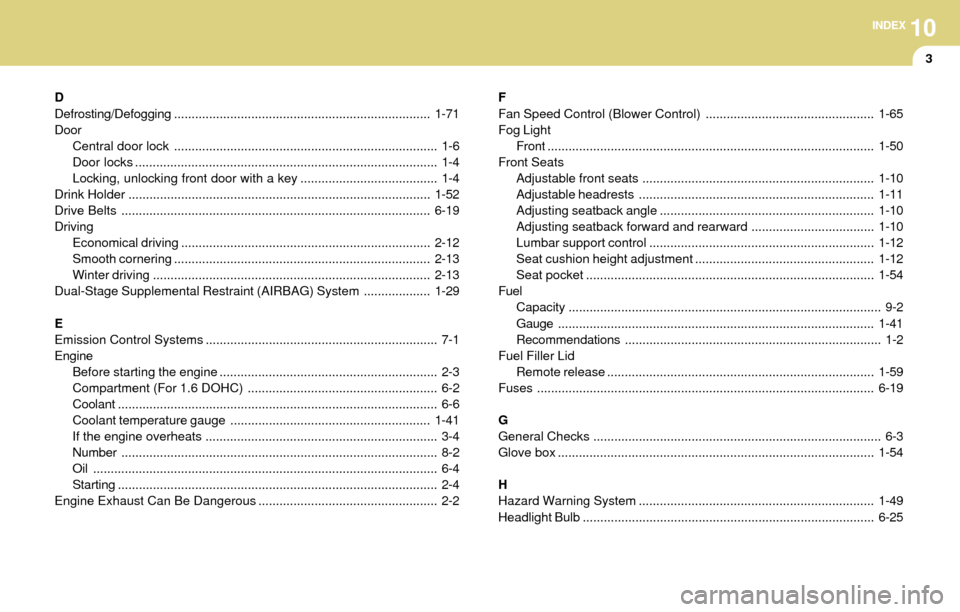

Page 202 of 205
10INDEX
3
D
Defrosting/Defogging.........................................................................1-71
Door
Central door lock........................................................................... 1-6
Door locks ...................................................................................... 1-4
Locking, unlocking front door with a key ....................................... 1-4
Drink Holder......................................................................................1-52
Drive Belts........................................................................................6-19
Driving
Economical driving.......................................................................2-12
Smooth cornering .........................................................................2-13
Winter driving...............................................................................2-13
Dual-Stage Supplemental Restraint (AIRBAG) System...................1-29
E
Emission Control Systems.................................................................. 7-1
Engine
Before starting the engine .............................................................. 2-3
Compartment (For 1.6 DOHC) ...................................................... 6-2
Coolant........................................................................................... 6-6
Coolant temperature gauge .........................................................1-41
If the engine overheats .................................................................. 3-4
Number.......................................................................................... 8-2
Oil .................................................................................................. 6-4
Starting........................................................................................... 2-4
Engine Exhaust Can Be Dangerous................................................... 2-2F
Fan Speed Control (Blower Control)................................................1-65
Fog Light
Front.............................................................................................1-50
Front Seats
Adjustable front seats..................................................................1-10
Adjustable headrests ...................................................................1-11
Adjusting seatback angle .............................................................1-10
Adjusting seatback forward and rearward...................................1-10
Lumbar support control ................................................................1-12
Seat cushion height adjustment...................................................1-12
Seat pocket ..................................................................................1-54
Fuel
Capacity......................................................................................... 9-2
Gauge..........................................................................................1-41
Recommendations......................................................................... 1-2
Fuel Filler Lid
Remote release ............................................................................1-59
Fuses ................................................................................................6-19
G
General Checks.................................................................................. 6-3
Glove box ..........................................................................................1-54
H
Hazard Warning System ...................................................................1-49
Headlight Bulb ...................................................................................6-25
