Hyundai Accent 2008 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
991
FEATURES OF YOUR HYUNDAI
99
!

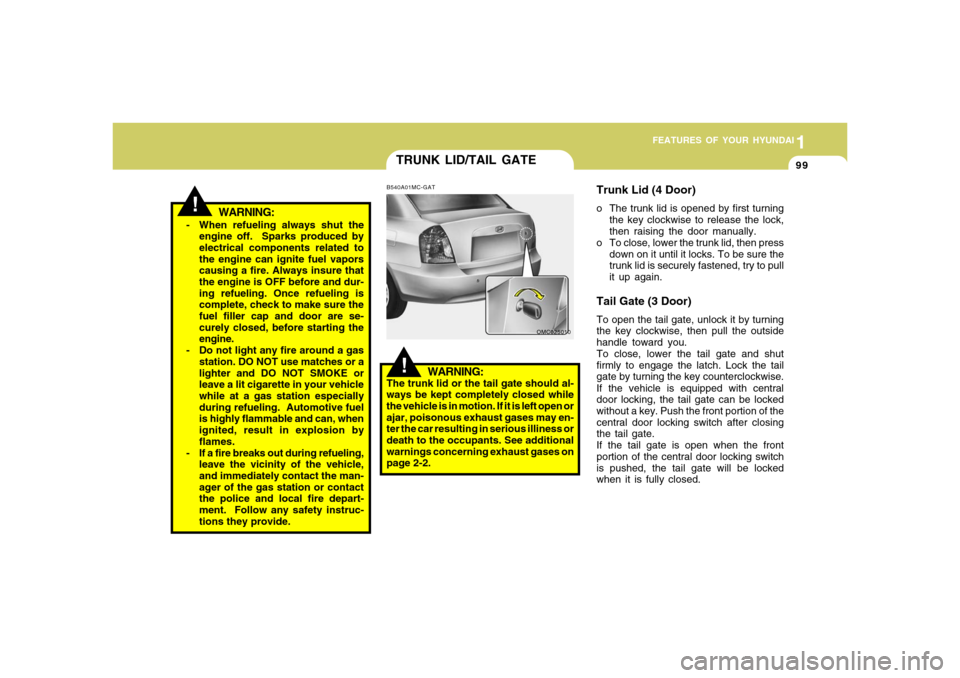

WARNING:
- When refueling always shut the
engine off. Sparks produced by
electrical components related to
the engine can ignite fuel vapors
causing a fire. Always insure that
the engine is OFF before and dur-
ing refueling. Once refueling is
complete, check to make sure the
fuel filler cap and door are se-
curely closed, before starting the
engine.
- Do not light any fire around a gas
station. DO NOT use matches or a
lighter and DO NOT SMOKE or
leave a lit cigarette in your vehicle
while at a gas station especially
during refueling. Automotive fuel
is highly flammable and can, when
ignited, result in explosion by
flames.
- If a fire breaks out during refueling,
leave the vicinity of the vehicle,
and immediately contact the man-
ager of the gas station or contact
the police and local fire depart-
ment. Follow any safety instruc-
tions they provide.
!TRUNK LID/TAIL GATEB540A01MC-GAT
WARNING:
The trunk lid or the tail gate should al-
ways be kept completely closed while
the vehicle is in motion. If it is left open or
ajar, poisonous exhaust gases may en-
ter the car resulting in serious illiness or
death to the occupants. See additional
warnings concerning exhaust gases on
page 2-2.
Trunk Lid (4 Door)o The trunk lid is opened by first turning
the key clockwise to release the lock,
then raising the door manually.
o To close, lower the trunk lid, then press
down on it until it locks. To be sure the
trunk lid is securely fastened, try to pull
it up again.Tail Gate (3 Door)To open the tail gate, unlock it by turning
the key clockwise, then pull the outside
handle toward you.
To close, lower the tail gate and shut
firmly to engage the latch. Lock the tail
gate by turning the key counterclockwise.
If the vehicle is equipped with central
door locking, the tail gate can be locked
without a key. Push the front portion of the
central door locking switch after closing
the tail gate.
If the tail gate is open when the front
portion of the central door locking switch
is pushed, the tail gate will be locked
when it is fully closed.
OMC025010

1FEATURES OF YOUR HYUNDAI
100
OMC025013 B540B02MC-AAT
Trunk Lid Emergency Latch Release
(4 Door)Your vehicle is equipped with a glow-in-
the dark emergency trunk release lever
located inside the trunk. It will glow after
the trunk is closed. When pulled, this
lever will release the trunk latch mecha-
nism and open the trunk.
!
WARNING:
The trunk lid should always be kept com-
pletely closed while the vehicle is in
motion. If it is left open or ajar, exhaust
gases may enter the car and serious
illness may result.
B540D01MC-GATRemote Trunk Lid Release
(4 Door)
OMC025011
To open the trunk lid without using the
key, pull up the lid release lever.
To close, lower the trunk lid, then press
down on it until it locks. To be sure the
trunk lid is securely fastened, check by
trying to pull it up again.

1
FEATURES OF YOUR HYUNDAI
1011
FEATURES OF YOUR HYUNDAI
101
!
WARNING:
o If a person becomes locked in the
trunk, pull the emergency trunk re-
lease lever of the inside panel in the
trunk to open the trunk lid.
o Keep cars locked and keys out of the
reach of children. HYUNDAI recom-
mends parents teach children about
the emergency trunk release lever
in their vehicle and how to open the
trunk lid if they are accidentally
locked in the trunk.
!
CAUTION:
To prevent damage to the goods or the
vehicle, care should be taken when car-
rying fragile or bulky objects in the lug-
gage compartment.
!
WARNING:
Avoid eye injury. DO NOT overstretch
the luggage net. ALWAYS keep your
face and body out of its recoil path. DO
NOT use when the luggage net straps
have visible signs of wear or damage. When loading the objects in the luggage
compartment, use the four rings located
in the luggage compartment to attach the
luggage net as shown illustration. This
will help prevent the objects from sliding.
LUGGAGE NETB540D02O-AAT(If Installed)
1JBA3113B540D01MC
Type AType B

1FEATURES OF YOUR HYUNDAI
102
SUN VISORB580A02MC-AAT
B580A01MC
Your Hyundai is equipped with sun visors
to give the driver and front passenger
either frontal or sideward shade. To re-
duce glare or to shut out direct rays of the
sun, turn the sun visor down.Ticket holders and vanity mirrors are pro-
vided on the back of the sun visor for the
driver and the front passenger (If Installed).
NOTE:The Supplemental Restraint System
(SRS) label containing useful informa-
tion can be found on the topside of sun
visor.
B580A02MC
CARGO AREA COVERB650A01A-GAT(3 Door)Nothing should be carried on top of the
luggage cover. Loose materials could
result in injury to vehicle occupants dur-
ing sudden braking.
B650A01MC

1
FEATURES OF YOUR HYUNDAI
1031
FEATURES OF YOUR HYUNDAI
103
!
WARNING:
o Do not place the sun visor in such a
manner that it obscures visibility of
the roadway, traffic or other objects.
o Do not move the sun visor out to
cover the side window if there is an
item attended to it such as a garage
door remote control, pens, air fresh-
eners or the like. These objects could
cause injury if the curtain airbag is
deployed.
B500B01B-GATIlluminated Vanity Mirror
(If Installed)Opening the lid of the vanity mirror will
automatically turn on the mirror light.
OMC025100B580C01JM-AAT
Sun Visor Extender (If Installed)Your vehicle is equipped with sun visor
extenders that may be used when the
visor is in the side glass position.
B580C01MC

1FEATURES OF YOUR HYUNDAI
104
!STEERING WHEEL TILT
LEVERB600A01A-AAT(If Installed)To Adjust the Steering Wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, securely tighten the
lever by pulling it upward.
WARNING:
Do not attempt to adjust the steering
wheel while driving as this may result in
loss of control of the vehicle which may
cause serious injury or death.
OMC025045
HORNB610B01L-GATPress the pad on the steering wheel to
sound the horn.
OMC025046
AUX OUTLET(If Installed)You can use an aux outlet to connect an
audio device.NOTE:When using a portable audio device con-
nected to the power outlet, noise may
occur during playback. If this happens,
use the power source of the portable
audio device.
OMC028033A

1
FEATURES OF YOUR HYUNDAI
1051
FEATURES OF YOUR HYUNDAI
105
HEATING AND COOLING CONTROLB710A01TB-GAT(If Installed)1. Side Defroster Nozzle
2. Side Ventilator
3. Windshield Defroster Nozzle
4. Center Ventilator
B710B01MC-AATCenter Ventilator/Side Ventilator
B710A01MC
B710B01MC
The center ventilators are located in the
middle of the dashboard. The side venti-
lators are located on each side of dash-
board. To change the direction of the air
flow, move the knob in the center of the
vent up-and-down and side-to-side.
The vents are opened when the vent
knob is moved to "
" position. The
vents are closed when the vent knob is
moved to "
". Keep these vents clear of
any obstructions.

1FEATURES OF YOUR HYUNDAI
106
HEATING AND VENTILA-
TIONB670A02A-GAT(If Installed)1. Temperature control
2. Air conditioning switch (If Installed)
3. Air intake control switch
4. Air flow control
5. Fan speed control
B670B01A-AATFan Speed Control
(Blower Control)This is used to turn the blower fan on or
off and to select the fan speed.
This blower fan speed, and therefore the
volume of air delivered from the system,
may be controlled manually by setting the
blower control between the "1" and "4"
positions.
B670A02MC
B670B01MCB670C03A-AAT
Air Intake Control
B670C03MC-1
This is used to select fresh outside air or
recirculating inside air.
Fresh
Recirculation
With the "
" mode selected, air enters
the vehicle from outside and is heated or
cooled according to the other functions
selected.
With the "" mode selected, air from
within the passenger compartment is
drawn through the heating system and
heated or cooled according to the other
functions selected.

1
FEATURES OF YOUR HYUNDAI
1071
FEATURES OF YOUR HYUNDAI
107
NOTE:It should be noted that prolonged opera-
tion of the intake air system in "
"
mode will give rise to misting of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition prolonged use
of the air conditioning with the ""
mode selected may result in the air within
the passenger compartment becoming
excessively dry.
B670D04O-AATAir Flow ControlThis is used to turn the blower fan on/off
and to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to
represent Face, Bi-Level, Floor, Floor-
Defrost and Defrost air position.
The MAX A/C mode is used to cool the
inside of the vehicle faster. The "OFF"
mode is used to turn the blower fan off.
B670D09MC
Face-Level
Selecting the "Face" mode will cause air
to be discharged through the face level
vents.
B670D02MC

1FEATURES OF YOUR HYUNDAI
108
Bi-Level
Air is discharged through the face vents
and the floor vents. This makes it possible
to have cooler air from the dashboard
vents and warmer air from the floor out-
lets at the same time.
Floor-Level
Air is discharged through the floor vents,
windshield defroster nozzle, side defroster
nozzle and side ventilator.
If the "Floor" mode is selected, the "Fresh"
mode will be activated.
Floor-Defrost Level
Air is discharged through the windshield
defroster nozzle, the floor vents, side
defroster nozzle and side ventilator.
If the "Floor-Defrost" mode is selected,
the A/C will turn on automatically and
"Fresh" mode will be activated.
B670D03MC
B670D04MCB670D05MC
