Hyundai Accent 2011 - RHD (UK. Australia) Owners Manual

1FEATURES OF YOUR HYUNDAI
80REMOTE FUEL-FILLER LID RELEASE
B560A01MC-DAT The fuel filler lid may be opened from inside the vehicle by pulling up on the fuel filler lid opener located on the frontfloor area on the right side of the car. NOTE: If the fuel filler lid will not open because ice has formed around it, tap lightly or push on the lid tobreak the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze), or move the vehicle to a warm place and allowthe ice to melt.
OMC025017R
Before closing the bonnet, return the support rod to its clip to prevent it fromrattling. Lower the bonnet until it is about 30 cm (1 ft.) above the closed position and let it drop. Make sure thatit locks into place.
!
CAUTION:
Make sure that the support rod has been released prior to closing the bonnet.
!WARNING:
o Always double check to be sure that the bonnet is firmly latched before driving away. If it is not latched, the bonnet could fly open while the vehicle is being driven,causing a total loss of visibility, which might result in an acci- dent.
o The support rod must be inserted completely into the hole providedin the bonnet whenever you in-spect the engine compartment. This will prevent the bonnet from falling and possibly injuring you.
o Do not move the vehicle with the bonnet in the raised position, asvision is obstructed and the bon-net could fall or be damaged.

1

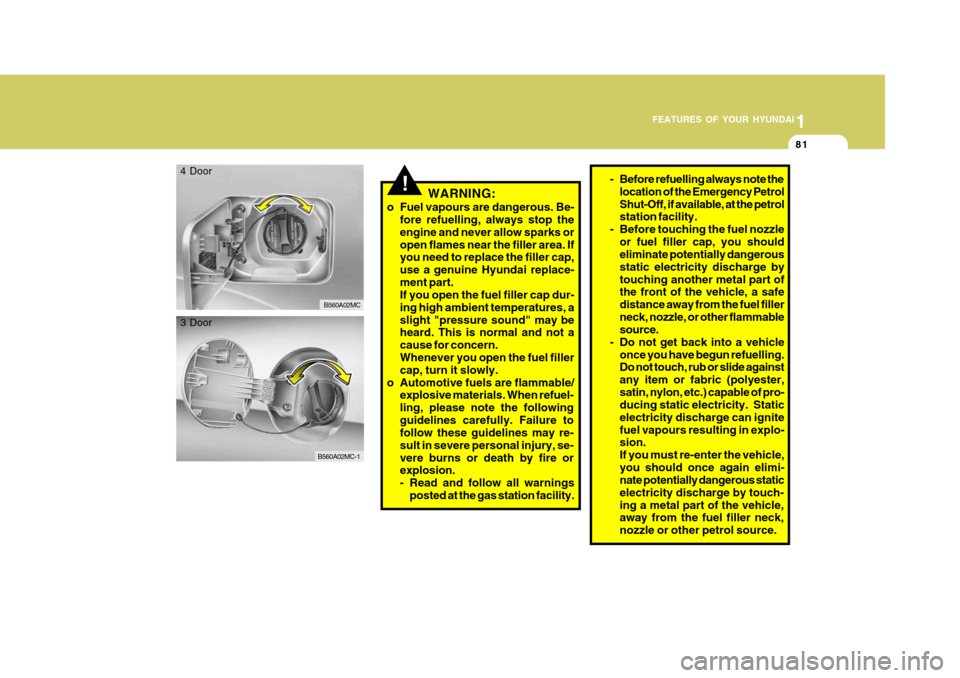

FEATURES OF YOUR HYUNDAI
81
!WARNING:
o Fuel vapours are dangerous. Be- fore refuelling, always stop the engine and never allow sparks oropen flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replace-ment part. If you open the fuel filler cap dur- ing high ambient temperatures, aslight "pressure sound" may be heard. This is normal and not a cause for concern. Whenever you open the fuel filler cap, turn it slowly.
o Automotive fuels are flammable/ explosive materials. When refuel-ling, please note the followingguidelines carefully. Failure to follow these guidelines may re- sult in severe personal injury, se-vere burns or death by fire or explosion.
- Read and follow all warnings
posted at the gas station facility.
B560A02MC
4 Door
B560A02MC-1
3 Door
- Before refuelling always note the
location of the Emergency Petrol Shut-Off, if available, at the petrol station facility.
- Before touching the fuel nozzle or fuel filler cap, you shouldeliminate potentially dangerous static electricity discharge bytouching another metal part of the front of the vehicle, a safe distance away from the fuel fillerneck, nozzle, or other flammable source.
- Do not get back into a vehicle
once you have begun refuelling.Do not touch, rub or slide against any item or fabric (polyester,satin, nylon, etc.) capable of pro- ducing static electricity. Static electricity discharge can ignitefuel vapours resulting in explo- sion. If you must re-enter the vehicle,you should once again elimi- nate potentially dangerous static electricity discharge by touch-ing a metal part of the vehicle, away from the fuel filler neck, nozzle or other petrol source.

1FEATURES OF YOUR HYUNDAI
82
!

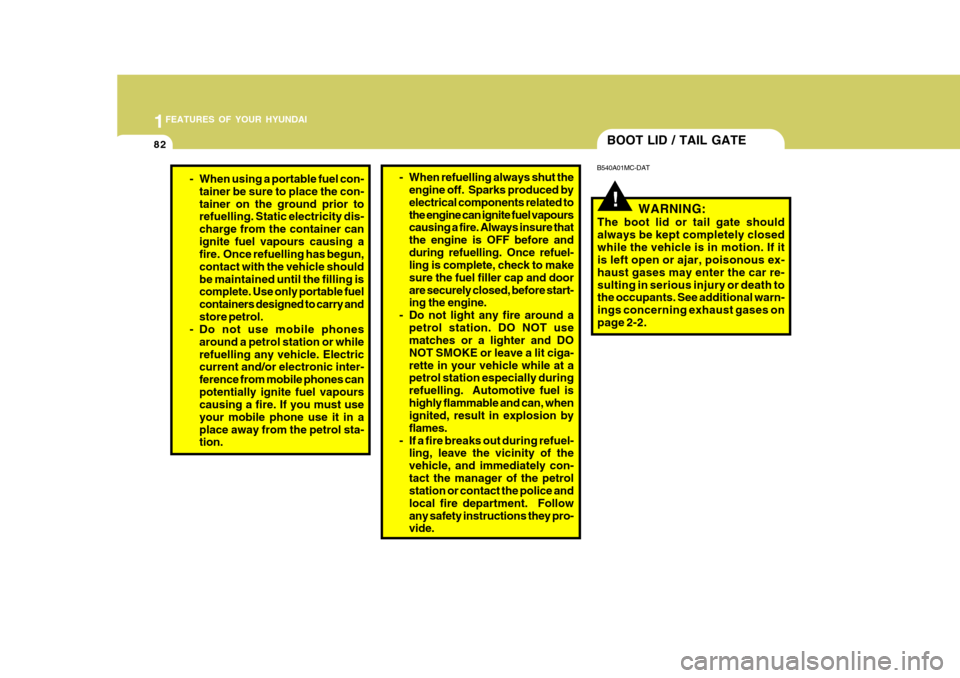

BOOT LID / TAIL GATE
B540A01MC-DAT
WARNING:
The boot lid or tail gate should always be kept completely closedwhile the vehicle is in motion. If it is left open or ajar, poisonous ex- haust gases may enter the car re-sulting in serious injury or death to the occupants. See additional warn- ings concerning exhaust gases onpage 2-2.
- When using a portable fuel con- tainer be sure to place the con- tainer on the ground prior to refuelling. Static electricity dis- charge from the container canignite fuel vapours causing a fire. Once refuelling has begun, contact with the vehicle shouldbe maintained until the filling is complete. Use only portable fuel containers designed to carry andstore petrol.
- Do not use mobile phones
around a petrol station or whilerefuelling any vehicle. Electric current and/or electronic inter- ference from mobile phones canpotentially ignite fuel vapours causing a fire. If you must use your mobile phone use it in aplace away from the petrol sta- tion.- When refuelling always shut theengine off. Sparks produced by electrical components related tothe engine can ignite fuel vapours causing a fire. Always insure that the engine is OFF before andduring refuelling. Once refuel- ling is complete, check to make sure the fuel filler cap and doorare securely closed, before start- ing the engine.
- Do not light any fire around a petrol station. DO NOT usematches or a lighter and DO NOT SMOKE or leave a lit ciga-rette in your vehicle while at a petrol station especially during refuelling. Automotive fuel ishighly flammable and can, when ignited, result in explosion by flames.
- If a fire breaks out during refuel- ling, leave the vicinity of thevehicle, and immediately con-tact the manager of the petrol station or contact the police and local fire department. Followany safety instructions they pro- vide.

1
FEATURES OF YOUR HYUNDAI
83
OMC025010
Boot Lid (4 Door)
B540D01MC-DAT Remote Boot Lid Release (4 Door) (If Installed)
To open the boot lid without using the key, pull up the lid release lever. To close, lower the boot lid, then press down on it until it locks. To be sure theboot lid is securely fastened, check by trying to pull it up again.
OMC025011R
!WARNING:
The boot lid should always be kept completely closed while the vehicle is in motion. If it is left open or ajar, exhaust gases may enter the car andserious illness may result.
o The boot lid is opened by first turning
the key clockwise to release the lock, then raising the door manually.
o To close, lower the boot lid, then
press down on it until it locks. To besure the boot lid is securely fas- tened, try to pull it up again. Tail Gate (3 Door)
o To open the tail gate, unlock it by
turning the key clockwise, then pull the outside handle toward you.
o To close, lower the tail gate and shut firmly to engage the latch. Lock thetail gate by turning the key counter-clockwise.
o If the vehicle is equipped with central
door locking, the tail gate can belocked without a key. Push the front portion of the central door locking switch after closing the tail gate.
o If the tail gate is open when the front portion of the central door lockingswitch is pushed, the tail gate will belocked when it is fully closed.
OMC025010-1

1FEATURES OF YOUR HYUNDAI
84
!
CAUTION:
To prevent damage to goods or the vehicle, care should be taken when carrying fragile or bulky objects inthe luggage compartment.!
WARNING:
Avoid eye injury. DO NOT overstretch the luggage net. ALWAYS keep your face and body out of its recoil path. DO NOT use when the strap hasvisible signs of wear or damage.
When loading objects in the luggage compartment, use the four rings lo-cated in the luggage compartment to attach the luggage net as shown in the illustration. This will help prevent theobjects from sliding.
LUGGAGE NET
B540D02O-DAT (If Installed)
Type A
Type B
1JBA3113
B540D01MC
CARGO AREA COVER
B650A01A-GAT (3 Door)
Nothing should be carried on top of the luggage cover. Loose materials could result in injury to vehicle occupantsduring sudden braking.
B650A01MC

1
FEATURES OF YOUR HYUNDAI
85SUN VISOR
Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade.To reduce glare or to shut out direct rays of the sun, turn the sun visor down. Ticket holders and vanity mirrors areprovided on the back of the sun visor forthe driver and the front passenger (If Installed). NOTE: The Supplemental Restraint Sys- tem (SRS) label containing usefulinformation can be found on the topside of the sun visor.
B580A02MC-AAT
B580A01MCB580A02MCR
FLOOR MAT ANCHOR(S)
B571A03Y-AAT (If Installed)
When using a floor mat on the front floor carpet, make sure it attaches to the floor mat anchor(s) in your vehicle. This keeps the floor mat from sliding forward.
OCM039200N
!WARNING:
o Make sure the floor mat is properly placed on the floor carpet. If the floor mat slips and interferes with the movement of the pedals during driving, it may cause an accident.
o Don't put an additional floor mat on the top of the anchored floormat, otherwise the additional matmay slide forward and interfere with the movement of the pedals.

1FEATURES OF YOUR HYUNDAI
86
B580C01JM-AAT Sun Visor Extender (If Installed) Your vehicle is equipped with sun visor extenders that may be used when the visor is in the side glass position.
B580C01MCR
B500B01B-GAT Illuminated Vanity Mirror (If Installed) Opening the lid of the vanity mirror will automatically turn on the mirror light.
OMC025100
!WARNING:
o Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other objects.
o Do not move the sun visor out to
cover the side window if there isan item attended to it such as a garage door remote control, pens, air fresheners or the like. Theseobjects could cause injury if the curtain airbag is deployed.

1
FEATURES OF YOUR HYUNDAI
87HORN
B610B01L-GAT
Press the pad of the steering wheel to sound the horn.
OMC025046
!
STEERING WHEEL TILT LE- VER
B600A01A-AAT
To Adjust the Steering Wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward.
WARNING:
Do not attempt to adjust the steeringwheel while driving as this may re-sult in loss of control of the vehicle which may cause serious injury or death.
OMC025045R
AUDIO REMOTE CONTROL SWITCH
B610A02MC-GAT (If Installed) The steering wheel audio remote con- trol switch is installed to promote safe driving. NOTE: Do not operate audio remote control switches simultaneously. MODE Switch Each press of the switch changes the display as follows: * : if installed OMC029110

RADIO (FM1
FM2 AM) TAPE* CD* CDC*
AUX*

1FEATURES OF YOUR HYUNDAI
88
3. CD (Compact Disc)/CDC(Compact Disc Changer)/ AUX mode
o Press the upper portion SEEK once to skip forward to the beginning of the next track.
o Press the lower portion SEEK once to skip back to the beginning of thetrack.
VOL Switch
o Press the upper portion VOL switch to increase volume.
o Press the lower portion VOL switch
to decease volume.
NOTE: o If there is no TAPE, CD or the
auxiliary device is not connected, the mode cannot be converted tothe TAPE, CD, CDC or AUX mode.
o The TAPE, CD, CDC or AUX mode
is not available for some audiomodels.
SEEK Switch Press the SEEK switch 1 sec. or more.
1. RADIO mode When the upper portion SEEK is pressed, the unit will automatically tuneto the next higher frequency and when the lower portion SEEK is pressed, it will automatically tune to the next lowerfrequency.
2. TAPE mode
o Pressing the upper portion SEEK will play the beginning of the next music segment.
o Pressing the lower portion SEEK will start replay at the beginning ofthe music just listened to.

1
FEATURES OF YOUR HYUNDAI
89HEATING AND COOLING CONTROL
B710A01TB-DAT (If Installed)
1. Side Demister Nozzle
2. Side Ventilator
3. Windshield Demister Ventilator
4. Centre Ventilator
B710A01MCR B710B01MC-DAT Centre Ventilator/Side Ventilator The centre ventilators are located in the middle of the dashboard. The side ven-tilators are located on each side of dashboard. To change the direction of the air flow, move the knob in the centreof the vent up-and-down and side-to- side. The vents are opened when the vent knob is moved to "
" position.
The vents are closed when the vent knob is moved to "
". Keep these
vents clear of any obstructions.
