Hyundai Accent 2013 Owner's Manual

Maintenance
20 7

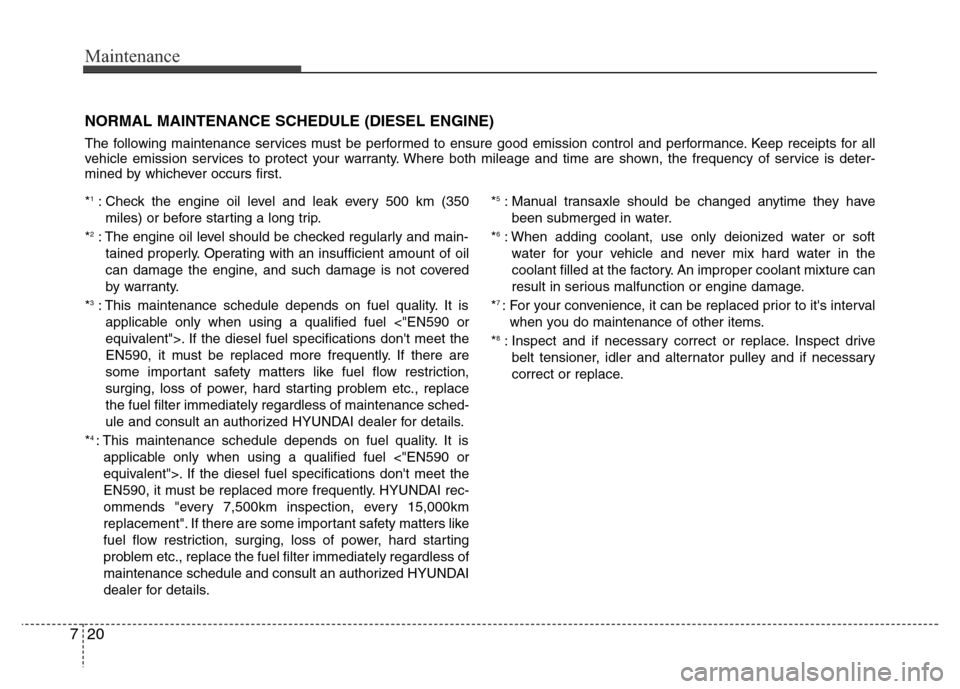

NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE)
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all
vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is deter-
mined by whichever occurs first.
*
1: Check the engine oil level and leak every 500 km (350
miles) or before starting a long trip.
*
2: The engine oil level should be checked regularly and main-
tained properly. Operating with an insufficient amount of oil
can damage the engine, and such damage is not covered
by warranty.
*
3: This maintenance schedule depends on fuel quality. It is
applicable only when using a qualified fuel <"EN590 or
equivalent">. If the diesel fuel specifications don't meet the
EN590, it must be replaced more frequently. If there are
some important safety matters like fuel flow restriction,
surging, loss of power, hard starting problem etc., replace
the fuel filter immediately regardless of maintenance sched-
ule and consult an authorized HYUNDAI dealer for details.
*
4 : This maintenance schedule depends on fuel quality. It is
applicable only when using a qualified fuel <"EN590 or
equivalent">. If the diesel fuel specifications don't meet the
EN590, it must be replaced more frequently. HYUNDAI rec-
ommends "every 7,500km inspection, every 15,000km
replacement". If there are some important safety matters like
fuel flow restriction, surging, loss of power, hard starting
problem etc., replace the fuel filter immediately regardless of
maintenance schedule and consult an authorized HYUNDAI
dealer for details.*
5: Manual transaxle should be changed anytime they have
been submerged in water.
*
6: When adding coolant, use only deionized water or soft
water for your vehicle and never mix hard water in the
coolant filled at the factory. An improper coolant mixture can
result in serious malfunction or engine damage.
*
7 : For your convenience, it can be replaced prior to it's interval
when you do maintenance of other items.
*
8: Inspect and if necessary correct or replace. Inspect drive
belt tensioner, idler and alternator pulley and if necessary
correct or replace.

721
Maintenance

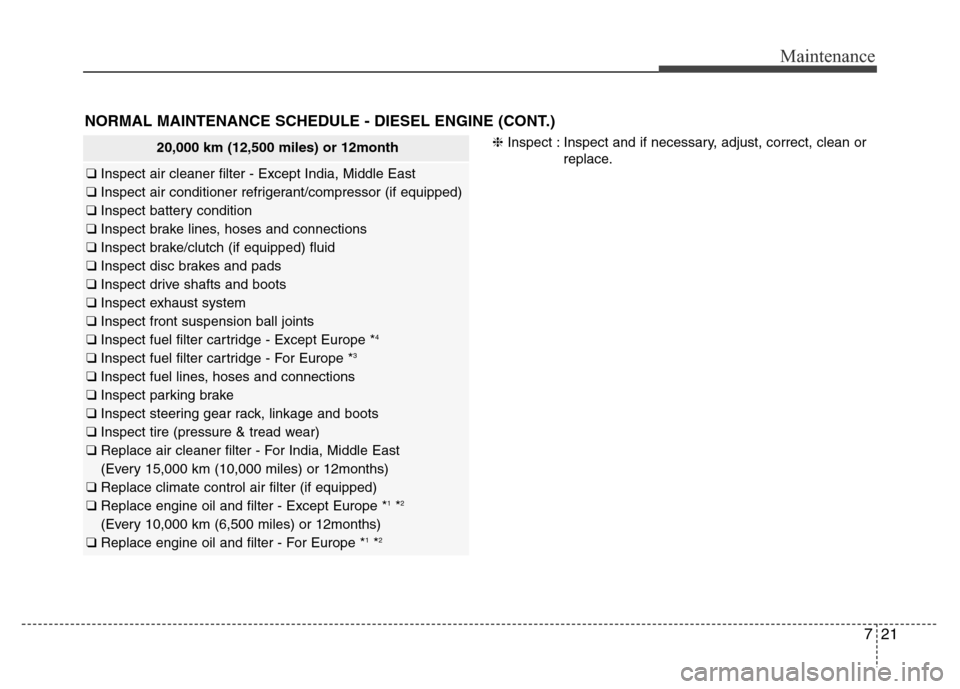

NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.20,000 km (12,500 miles) or 12month
❑Inspect air cleaner filter - Except India, Middle East
❑Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch (if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge - Except Europe *
4
❑ Inspect fuel filter cartridge - For Europe *3
❑ Inspect fuel lines, hoses and connections
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2

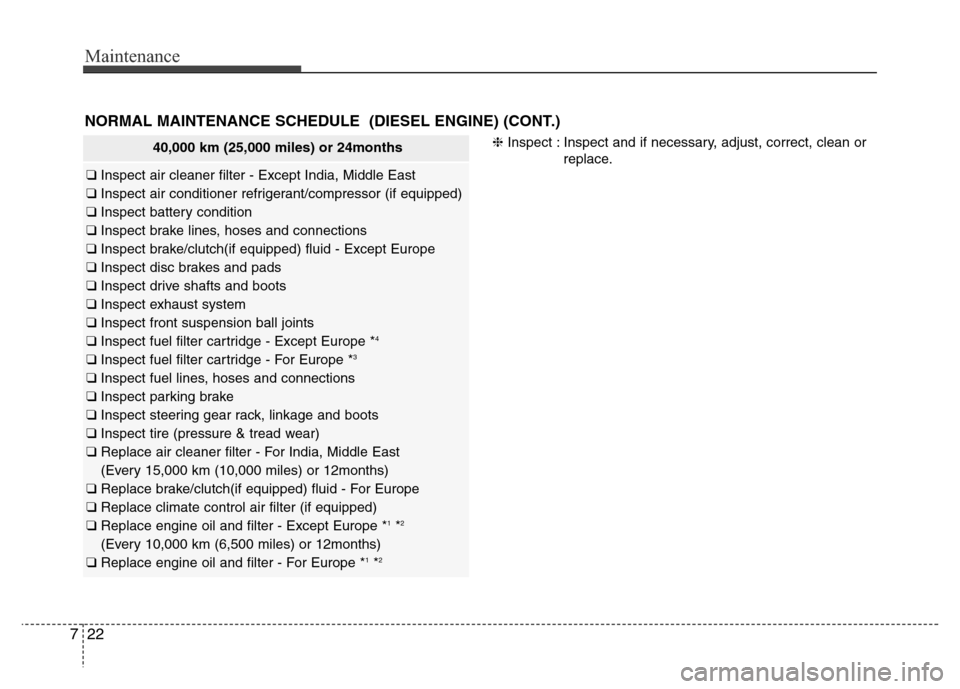

Maintenance
22 7
NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.40,000 km (25,000 miles) or 24months
❑ Inspect air cleaner filter - Except India, Middle East
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch(if equipped) fluid - Except Europe
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge - Except Europe *
4
❑ Inspect fuel filter cartridge - For Europe *3
❑ Inspect fuel lines, hoses and connections
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace brake/clutch(if equipped) fluid - For Europe
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2

723
Maintenance

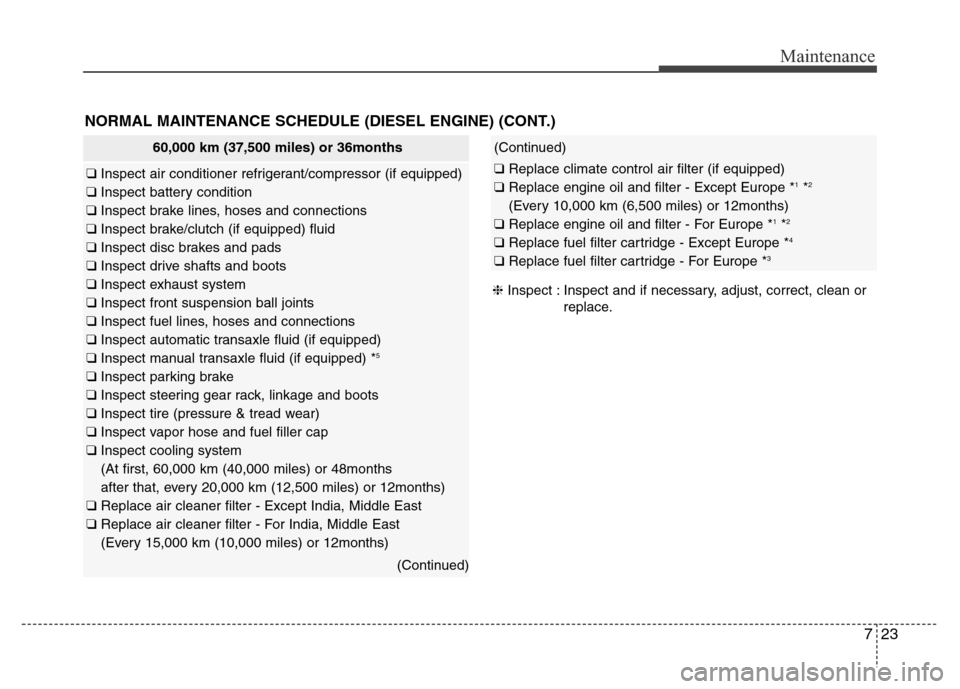

NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
60,000 km (37,500 miles) or 36months
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch (if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel lines, hoses and connections
❑ Inspect automatic transaxle fluid (if equipped)
❑ Inspect manual transaxle fluid (if equipped) *
5
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect vapor hose and fuel filler cap
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
❑ Replace air cleaner filter - Except India, Middle East
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
(Continued)
(Continued)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2
❑ Replace fuel filter cartridge - Except Europe *4
❑ Replace fuel filter cartridge - For Europe *3

Maintenance
24 7

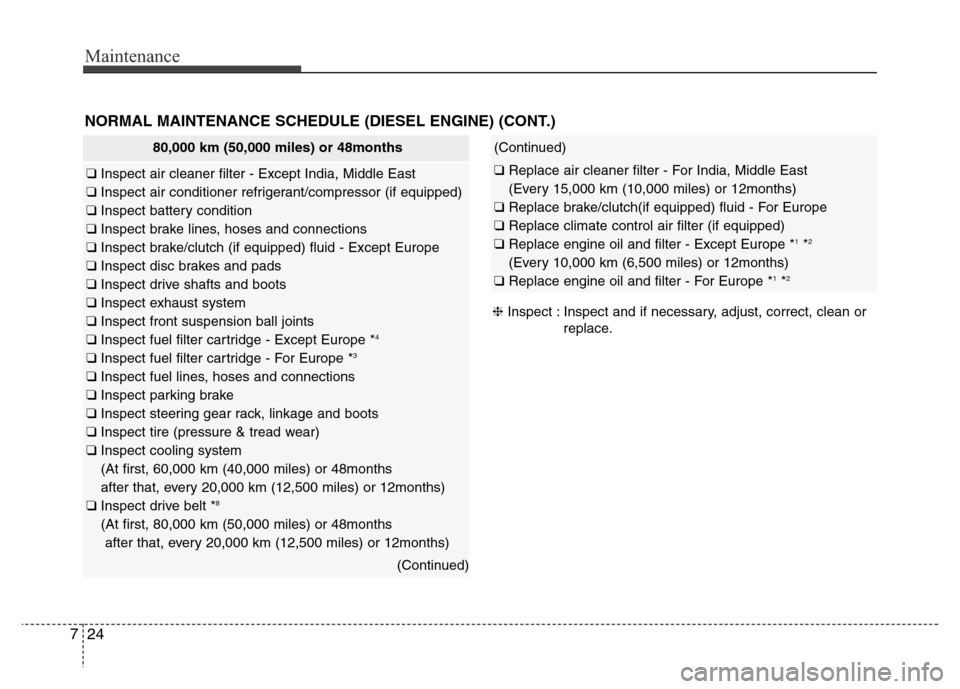

NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
80,000 km (50,000 miles) or 48months
❑ Inspect air cleaner filter - Except India, Middle East
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch (if equipped) fluid - Except Europe
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge - Except Europe *
4
❑ Inspect fuel filter cartridge - For Europe *3
❑ Inspect fuel lines, hoses and connections
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
❑ Inspect drive belt *
8
(At first, 80,000 km (50,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
(Continued)
(Continued)
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace brake/clutch(if equipped) fluid - For Europe
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2

725
Maintenance

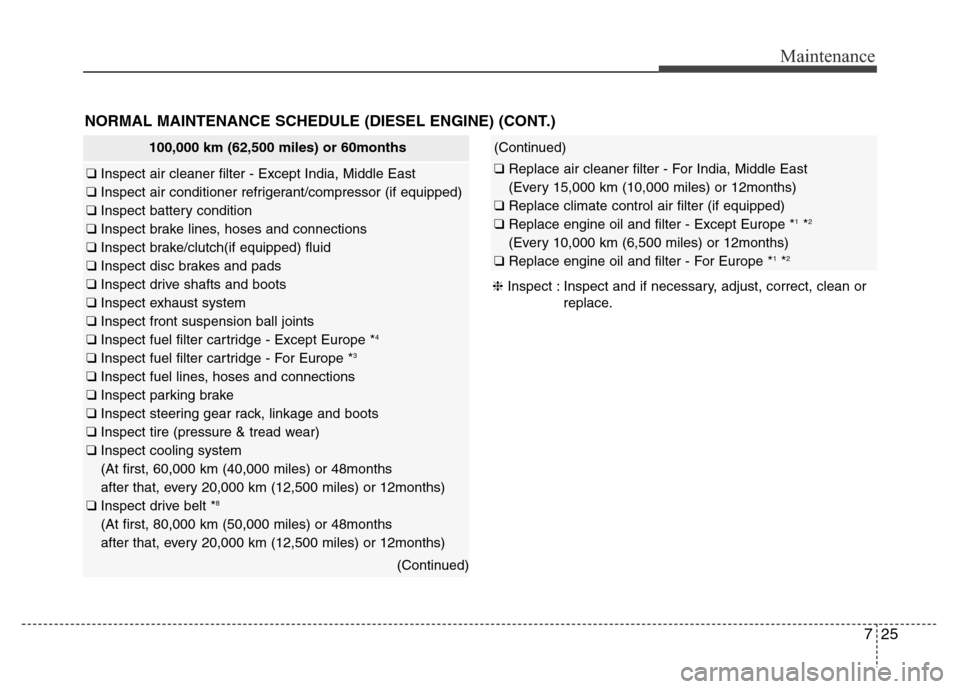

NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
100,000 km (62,500 miles) or 60months
❑ Inspect air cleaner filter - Except India, Middle East
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch(if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge - Except Europe *
4
❑ Inspect fuel filter cartridge - For Europe *3
❑ Inspect fuel lines, hoses and connections
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
❑ Inspect drive belt *
8
(At first, 80,000 km (50,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
(Continued)
(Continued)
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2

Maintenance
26 7

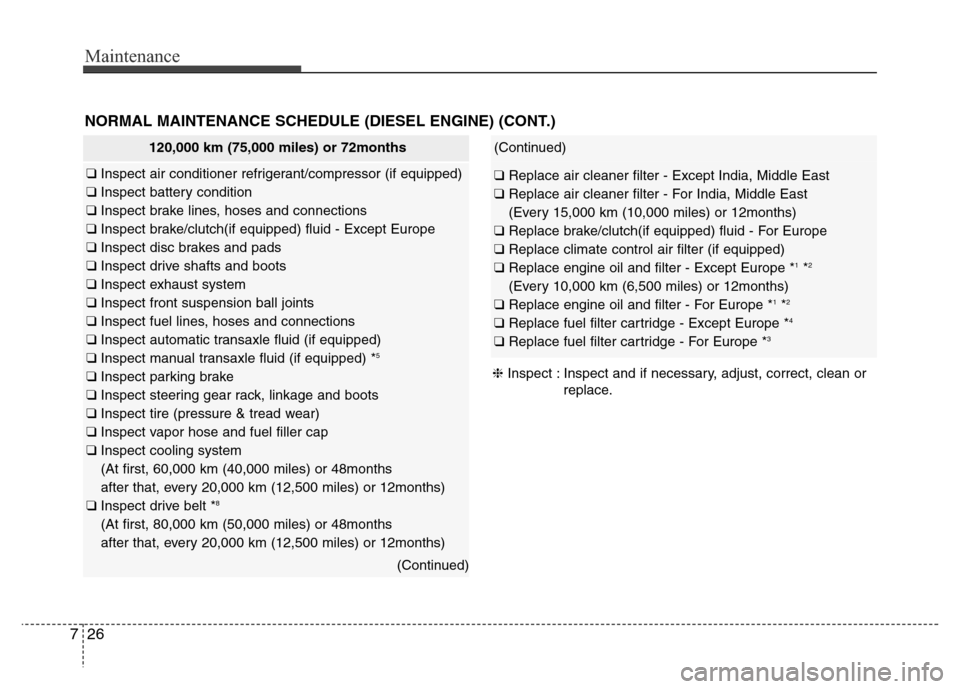

NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
120,000 km (75,000 miles) or 72months
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch(if equipped) fluid - Except Europe
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel lines, hoses and connections
❑ Inspect automatic transaxle fluid (if equipped)
❑ Inspect manual transaxle fluid (if equipped) *
5
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect vapor hose and fuel filler cap
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
❑ Inspect drive belt *
8
(At first, 80,000 km (50,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
(Continued)
(Continued)
❑ Replace air cleaner filter - Except India, Middle East
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace brake/clutch(if equipped) fluid - For Europe
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2
❑ Replace fuel filter cartridge - Except Europe *4
❑ Replace fuel filter cartridge - For Europe *3

727
Maintenance
NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
140,000 km (87,500 miles) or 84months
❑ Inspect air cleaner filter - Except India, Middle East
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch(if equipped) fluid
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge - Except Europe *
4
❑ Inspect fuel filter cartridge - For Europe *3
❑ Inspect fuel lines, hoses and connections
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
❑ Inspect drive belt *
8
(At first, 80,000 km (50,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
(Continued)
(Continued)
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2

Maintenance
28 7

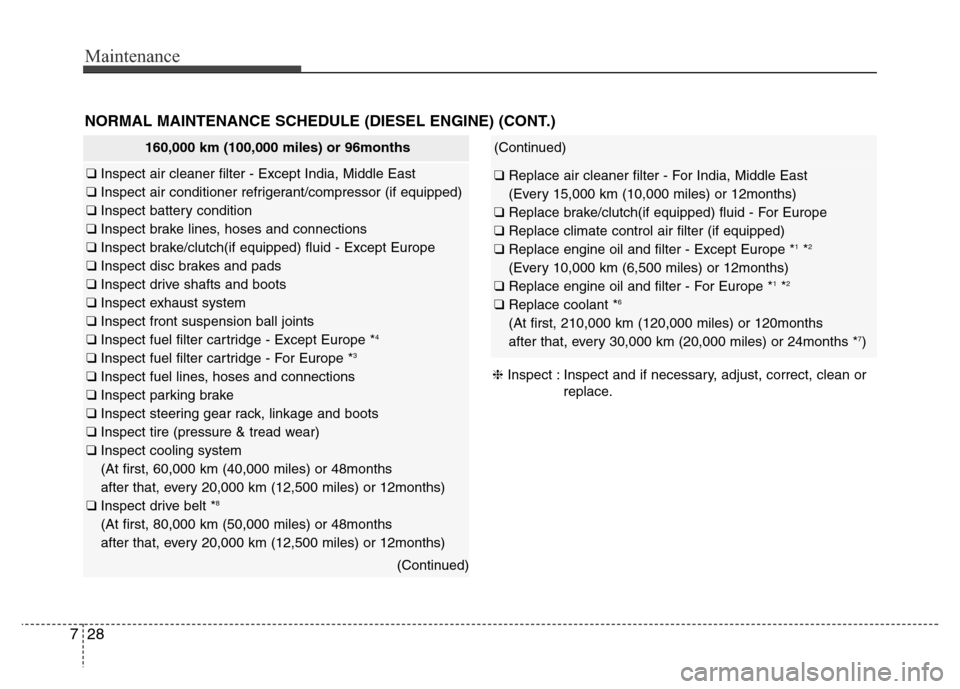

NORMAL MAINTENANCE SCHEDULE (DIESEL ENGINE) (CONT.)
❈Inspect : Inspect and if necessary, adjust, correct, clean or
replace.
160,000 km (100,000 miles) or 96months
❑ Inspect air cleaner filter - Except India, Middle East
❑ Inspect air conditioner refrigerant/compressor (if equipped)
❑ Inspect battery condition
❑ Inspect brake lines, hoses and connections
❑ Inspect brake/clutch(if equipped) fluid - Except Europe
❑ Inspect disc brakes and pads
❑ Inspect drive shafts and boots
❑ Inspect exhaust system
❑ Inspect front suspension ball joints
❑ Inspect fuel filter cartridge - Except Europe *
4
❑ Inspect fuel filter cartridge - For Europe *3
❑ Inspect fuel lines, hoses and connections
❑ Inspect parking brake
❑ Inspect steering gear rack, linkage and boots
❑ Inspect tire (pressure & tread wear)
❑ Inspect cooling system
(At first, 60,000 km (40,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
❑ Inspect drive belt *
8
(At first, 80,000 km (50,000 miles) or 48months
after that, every 20,000 km (12,500 miles) or 12months)
(Continued)
(Continued)
❑ Replace air cleaner filter - For India, Middle East
(Every 15,000 km (10,000 miles) or 12months)
❑ Replace brake/clutch(if equipped) fluid - For Europe
❑ Replace climate control air filter (if equipped)
❑ Replace engine oil and filter - Except Europe *
1*2
(Every 10,000 km (6,500 miles) or 12months)
❑ Replace engine oil and filter - For Europe *1*2
❑ Replace coolant *6
(At first, 210,000 km (120,000 miles) or 120months
after that, every 30,000 km (20,000 miles) or 24months *7)

729
Maintenance

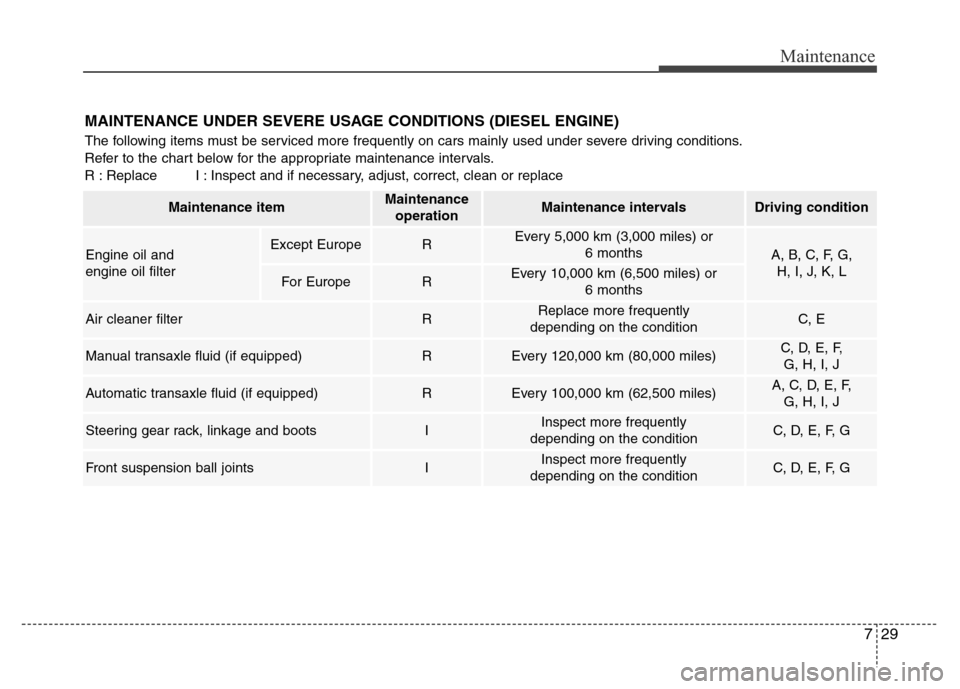

MAINTENANCE UNDER SEVERE USAGE CONDITIONS (DIESEL ENGINE)
The following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance itemMaintenance
operationMaintenance intervalsDriving condition
Engine oil and
engine oil filterExcept Europe REvery 5,000 km (3,000 miles) or
6 months
A, B, C, F, G,
H, I, J, K, L
For EuropeREvery 10,000 km (6,500 miles) or
6 months
Air cleaner filterRReplace more frequently
depending on the conditionC, E
Manual transaxle fluid (if equipped)REvery 120,000 km (80,000 miles)C, D, E, F,
G, H, I, J
Automatic transaxle fluid (if equipped)REvery 100,000 km (62,500 miles)A, C, D, E, F,
G, H, I, J
Steering gear rack, linkage and bootsIInspect more frequently
depending on the conditionC, D, E, F, G
Front suspension ball jointsIInspect more frequently
depending on the conditionC, D, E, F, G
