Hyundai Accent 2014 Owner's Manual

83
Specifications, Consumer information, Reporting safety defeccts

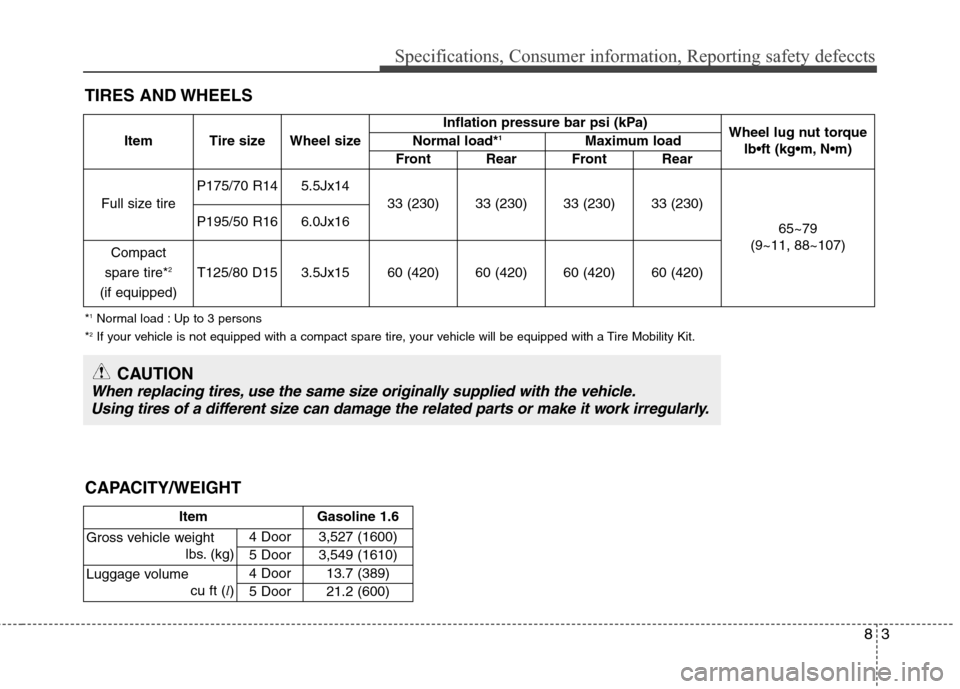

TIRES AND WHEELS
Item Tire size Wheel sizeInflation pressure bar psi (kPa)
Wheel lug nut torque
lb•ft (kg N Normal load*1Maximum load
Front Rear Front Rear
Full size tireP175/70 R14 5.5Jx14
33 (230) 33 (230) 33 (230) 33 (230)
65~79
(9~11, 88~107) P195/50 R16 6.0Jx16
Compact
spare tire*
2
(if equipped)T125/80 D15 3.5Jx15 60 (420) 60 (420) 60 (420) 60 (420)
CAPACITY/WEIGHT
Item Gasoline 1.6
Gross vehicle weight
lbs. (kg)4 Door 3,527 (1600)
5 Door 3,549 (1610)
Luggage volume
cu ft (l)4 Door 13.7 (389)
5 Door21.2 (600)
*1Normal load : Up to 3 persons
*2If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.

Specifications, Consumer information, Reporting safety defeccts
4 8

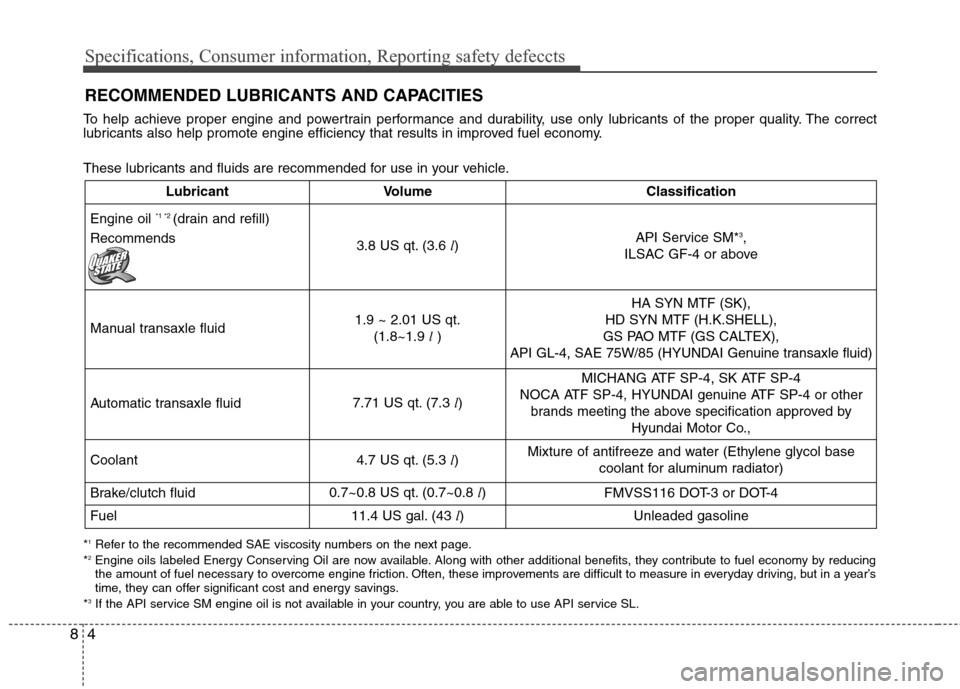

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
3.8 US qt. (3.6 l)API Service SM*3,
ILSAC GF-4 or above
Manual transaxle fluid1.9 ~ 2.01 US qt.
(1.8~1.9 l)
HA SYN MTF (SK),
HD SYN MTF (H.K.SHELL),
GS PAO MTF (GS CALTEX),
API GL-4, SAE 75W/85 (HYUNDAI Genuine transaxle fluid)
Automatic transaxle fluid7.71 US qt. (7.3 l)
MICHANG ATF SP-4, SK ATF SP-4
NOCA ATF SP-4, HYUNDAI genuine ATF SP-4 or other
brands meeting the above specification approved by
Hyundai Motor Co.,
Coolant 4.7 US qt. (5.3 l)Mixture of antifreeze and water (Ethylene glycol base
coolant for aluminum radiator)
Brake/clutch fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-3 or DOT-4
Fuel11.4 US gal. (43 l)Unleaded gasoline

85
Specifications, Consumer information, Reporting safety defeccts

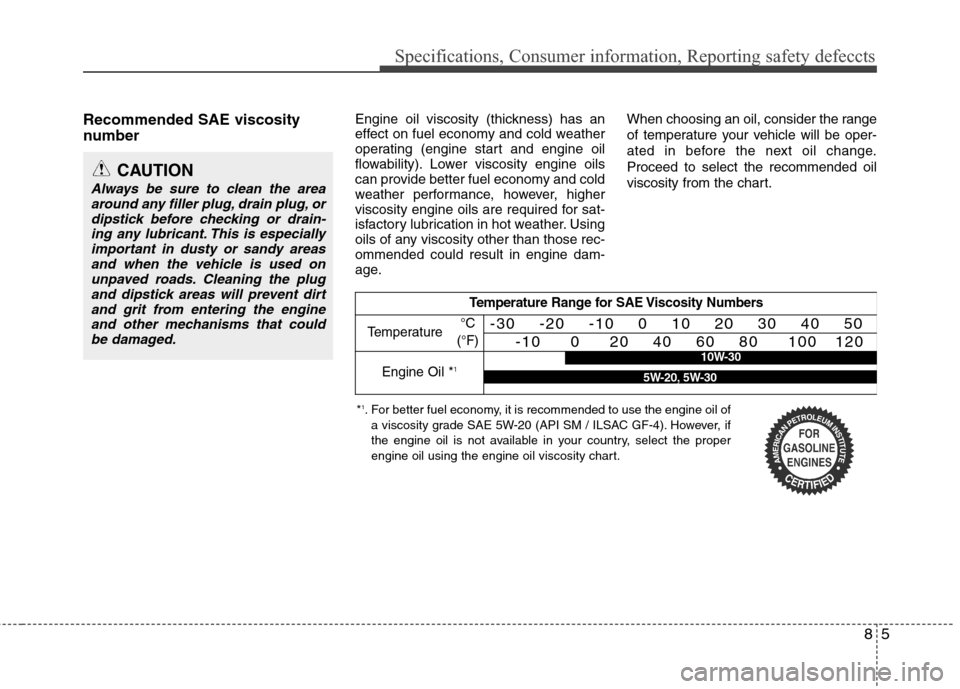

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
*1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine Oil *110W-30
5W-20, 5W-30
°C
(°F)

Specifications, Consumer information, Reporting safety defeccts
6 8

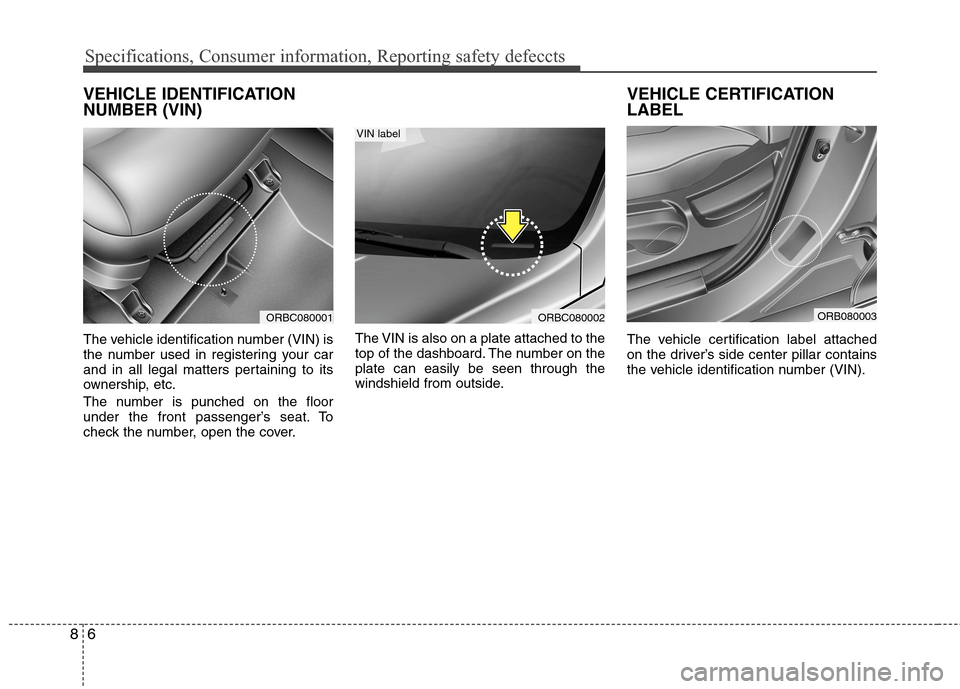

VEHICLE IDENTIFICATION
NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on the floor
under the front passenger’s seat. To
check the number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
VEHICLE CERTIFICATION
LABEL
The vehicle certification label attached
on the driver’s side center pillar contains
the vehicle identification number (VIN).
ORBC080001ORBC080002
VIN label
ORB080003

87
Specifications, Consumer information, Reporting safety defeccts

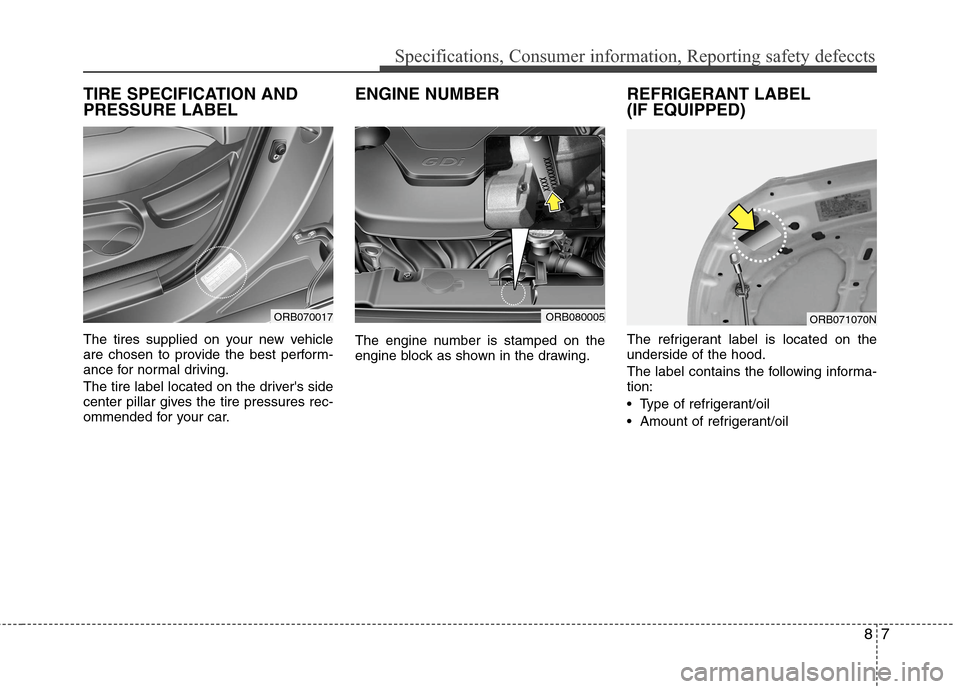

TIRE SPECIFICATION AND
PRESSURE LABEL
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
ENGINE NUMBER
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
(IF EQUIPPED)
The refrigerant label is located on the
underside of the hood.
The label contains the following informa-
tion:
Type of refrigerant/oil
Amount of refrigerant/oil
ORB071070NORB070017ORB080005

Specifications, Consumer information, Reporting safety defeccts
8 8

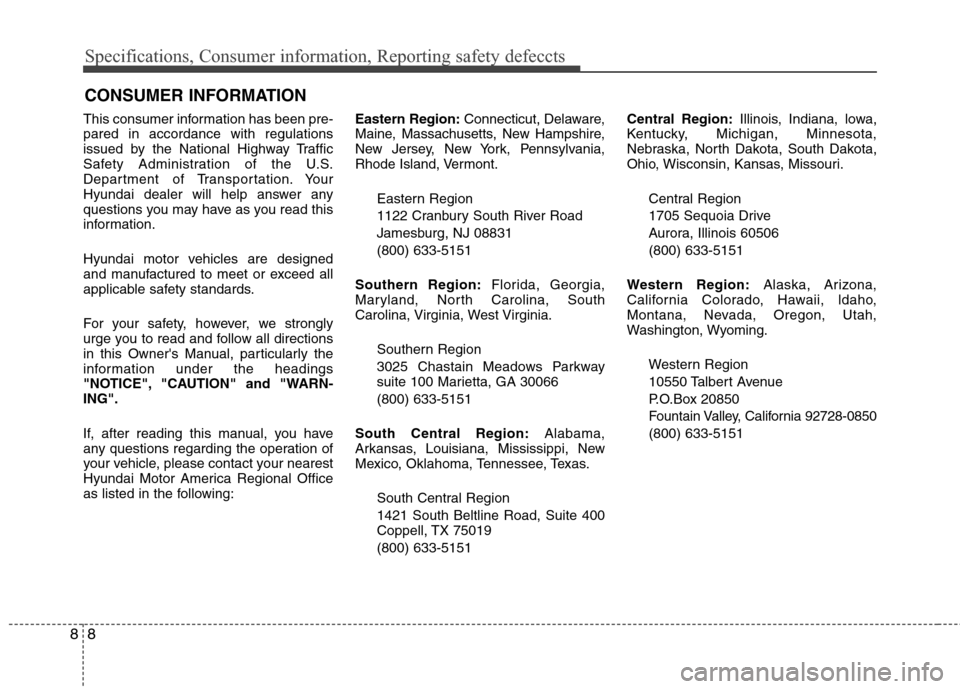

This consumer information has been pre-
pared in accordance with regulations
issued by the National Highway Traffic
Safety Administration of the U.S.
Department of Transportation. Your
Hyundai dealer will help answer any
questions you may have as you read this
information.
Hyundai motor vehicles are designed
and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly
urge you to read and follow all directions
in this Owner's Manual, particularly the
information under the headings
"NOTICE", "CAUTION" and "WARN-
ING".
If, after reading this manual, you have
any questions regarding the operation of
your vehicle, please contact your nearest
Hyundai Motor America Regional Office
as listed in the following:Eastern Region:Connecticut, Delaware,
Maine, Massachusetts, New Hampshire,
New Jersey, New York, Pennsylvania,
Rhode Island, Vermont.
Eastern Region
1122 Cranbury South River Road
Jamesburg, NJ 08831
(800) 633-5151
Southern Region:Florida, Georgia,
Maryland, North Carolina, South
Carolina, Virginia, West Virginia.
Southern Region
3025 Chastain Meadows Parkway
suite 100 Marietta, GA 30066
(800) 633-5151
South Central Region:Alabama,
Arkansas, Louisiana, Mississippi, New
Mexico, Oklahoma, Tennessee, Texas.
South Central Region
1421 South Beltline Road, Suite 400
Coppell, TX 75019
(800) 633-5151Central Region:Illinois, Indiana, lowa,
Kentucky, Michigan, Minnesota,
Nebraska, North Dakota, South Dakota,
Ohio, Wisconsin, Kansas, Missouri.
Central Region
1705 Sequoia Drive
Aurora, Illinois 60506
(800) 633-5151
Western Region:Alaska, Arizona,
California Colorado, Hawaii, ldaho,
Montana, Nevada, Oregon, Utah,
Washington, Wyoming.
Western Region
10550 Talbert Avenue
P.O.Box 20850
Fountain Valley, California 92728-0850
(800) 633-5151
CONSUMER INFORMATION

89
Specifications, Consumer information, Reporting safety defeccts

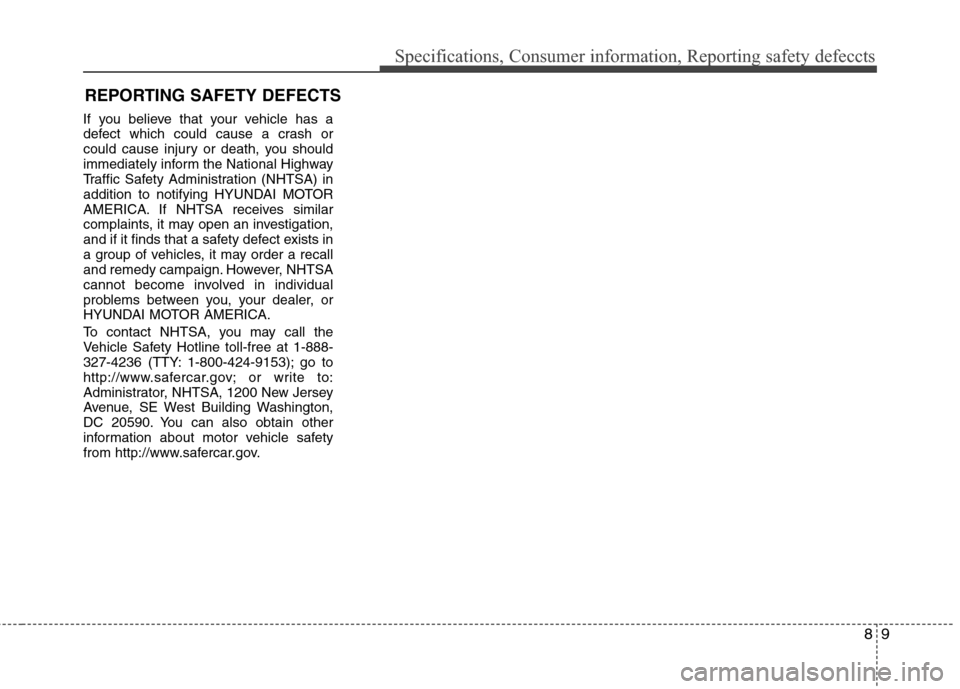

If you believe that your vehicle has a
defect which could cause a crash or
could cause injury or death, you should
immediately inform the National Highway
Traffic Safety Administration (NHTSA) in
addition to notifying HYUNDAI MOTOR
AMERICA. If NHTSA receives similar
complaints, it may open an investigation,
and if it finds that a safety defect exists in
a group of vehicles, it may order a recall
and remedy campaign. However, NHTSA
cannot become involved in individual
problems between you, your dealer, or
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to:
Administrator, NHTSA, 1200 New Jersey
Avenue, SE West Building Washington,
DC 20590. You can also obtain other
information about motor vehicle safety
from http://www.safercar.gov.
REPORTING SAFETY DEFECTS

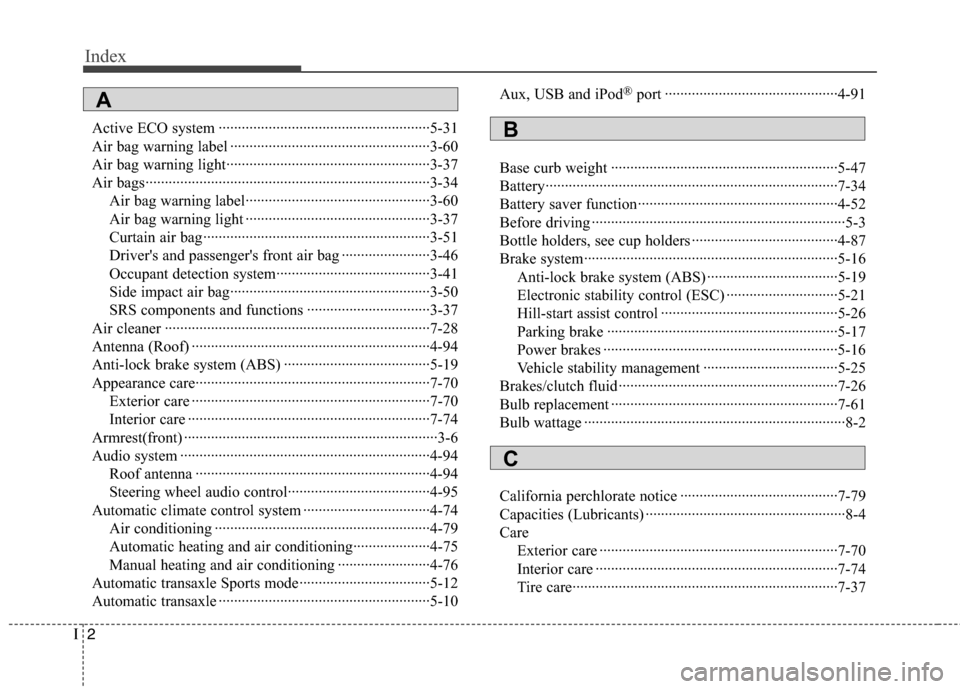

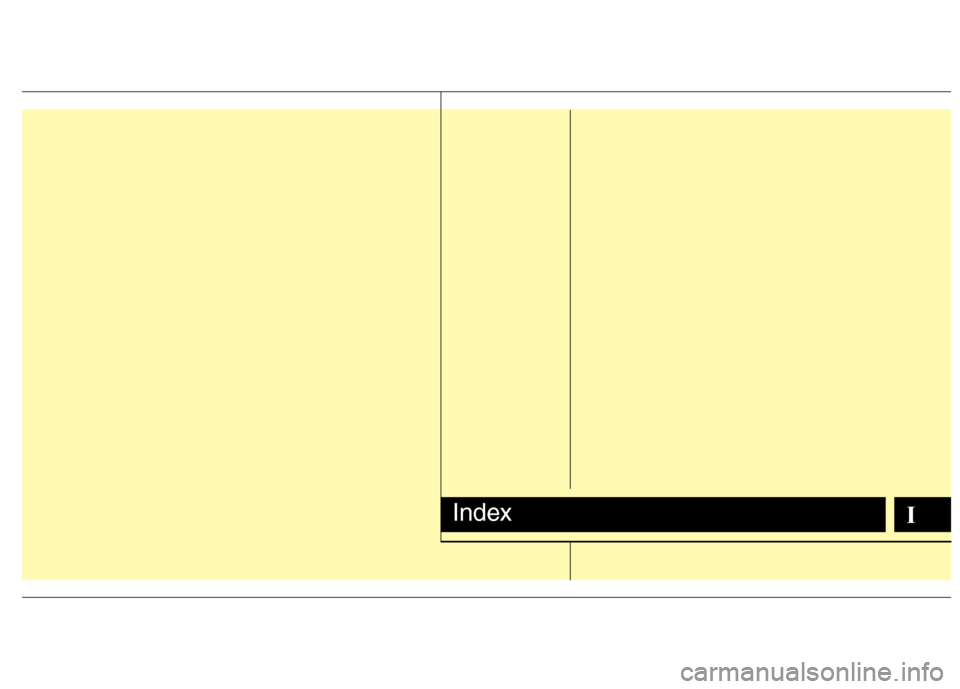

I Index

Index
2I
Active ECO system ·······················································5-31
Air bag warning label ····················································3-60
Air bag warning light·····················································3-37
Air bags··········································································3-34
Air bag warning label················································3-60
Air bag warning light ················································3-37
Curtain air bag···························································3-51
Driver's and passenger's front air bag ·······················3-46
Occupant detection system········································3-41
Side impact air bag····················································3-50
SRS components and functions ································3-37
Air cleaner ·····································································7-28
Antenna (Roof) ······························································4-94
Anti-lock brake system (ABS) ······································5-19
Appearance care·····························································7-70
Exterior care ······························································7-70
Interior care ·······························································7-74
Armrest(front) ··································································3-6
Audio system ·································································4-94
Roof antenna ·····························································4-94
Steering wheel audio control·····································4-95
Automatic climate control system ·································4-74
Air conditioning ························································4-79
Automatic heating and air conditioning····················4-75
Manual heating and air conditioning ························4-76
Automatic transaxle Sports mode··································5-12
Automatic transaxle ·······················································5-10Aux, USB and iPod
®port ·············································4-91
Base curb weight ···························································5-47
Battery············································································7-34
Battery saver function····················································4-52
Before driving ··································································5-3
Bottle holders, see cup holders ······································4-87
Brake system··································································5-16
Anti-lock brake system (ABS) ··································5-19
Electronic stability control (ESC) ·····························5-21
Hill-start assist control ··············································5-26
Parking brake ····························································5-17
Power brakes ·····························································5-16
Vehicle stability management ···································5-25
Brakes/clutch fluid ·························································7-26
Bulb replacement ···························································7-61
Bulb wattage ····································································8-2
California perchlorate notice ·········································7-79
Capacities (Lubricants) ····················································8-4
Care
Exterior care ······························································7-70
Interior care ·······························································7-74
Tire care·····································································7-37A
B
C

I3
Index

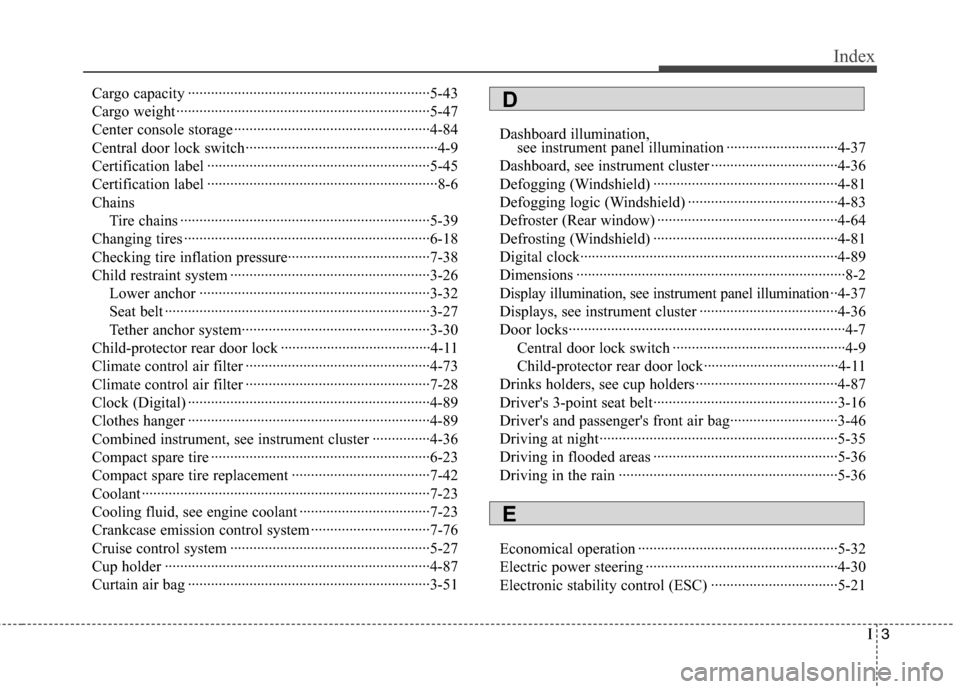

Cargo capacity ·······························································5-43
Cargo weight ··································································5-47
Center console storage ···················································4-84
Central door lock switch··················································4-9
Certification label ··························································5-45
Certification label ····························································8-6
Chains
Tire chains ·································································5-39
Changing tires ································································6-18
Checking tire inflation pressure·····································7-38
Child restraint system ····················································3-26
Lower anchor ····························································3-32
Seat belt ·····································································3-27
Tether anchor system·················································3-30
Child-protector rear door lock ·······································4-11
Climate control air filter ················································4-73
Climate control air filter ················································7-28
Clock (Digital) ·······························································4-89
Clothes hanger ·······························································4-89
Combined instrument, see instrument cluster ···············4-36
Compact spare tire ·························································6-23
Compact spare tire replacement ····································7-42
Coolant ···········································································7-23
Cooling fluid, see engine coolant ··································7-23
Crankcase emission control system ·······························7-76
Cruise control system ····················································5-27
Cup holder ·····································································4-87
Curtain air bag ·······························································3-51Dashboard illumination,
see instrument panel illumination ·····························4-37
Dashboard, see instrument cluster ·································4-36
Defogging (Windshield) ················································4-81
Defogging logic (Windshield) ·······································4-83
Defroster (Rear window) ···············································4-64
Defrosting (Windshield) ················································4-81
Digital clock···································································4-89
Dimensions ······································································8-2
Display illumination, see instrument panel illumination··4-37
Displays, see instrument cluster ····································4-36
Door locks········································································4-7
Central door lock switch ·············································4-9
Child-protector rear door lock···································4-11
Drinks holders, see cup holders·····································4-87
Driver's 3-point seat belt················································3-16
Driver's and passenger's front air bag····························3-46
Driving at night······························································5-35
Driving in flooded areas ················································5-36
Driving in the rain ·························································5-36
Economical operation ····················································5-32
Electric power steering ··················································4-30
Electronic stability control (ESC) ·································5-21D
E
