473

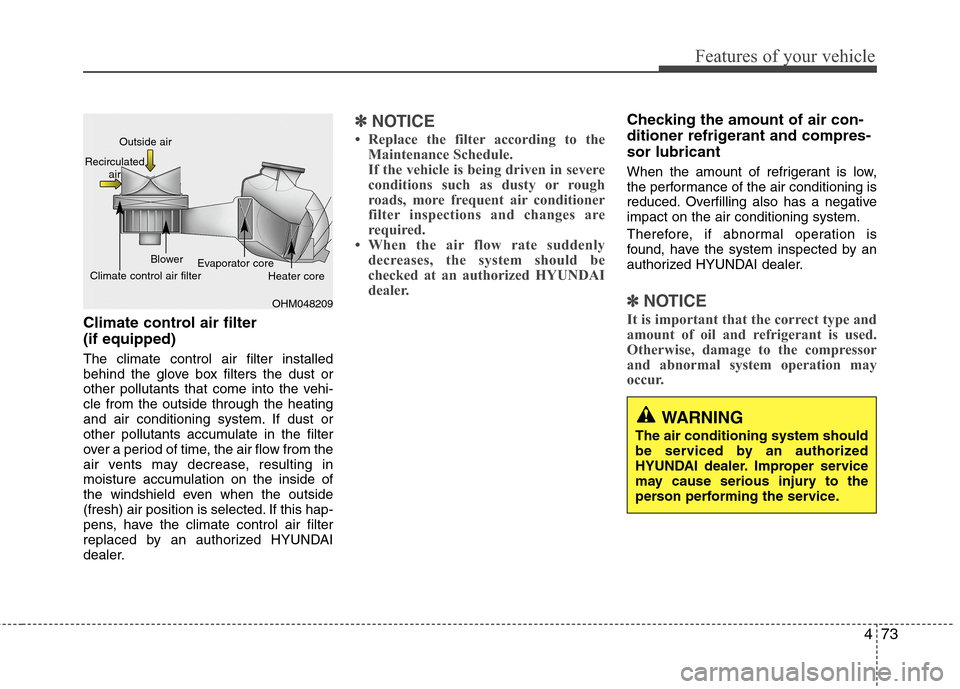

Features of your vehicle
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the vehi-
cle from the outside through the heating
and air conditioning system. If dust or
other pollutants accumulate in the filter
over a period of time, the air flow from the
air vents may decrease, resulting in
moisture accumulation on the inside of
the windshield even when the outside
(fresh) air position is selected. If this hap-
pens, have the climate control air filter
replaced by an authorized HYUNDAI
dealer.
✽ ✽
NOTICE
• Replace the filter according to the
Maintenance Schedule.
If the vehicle is being driven in severe
conditions such as dusty or rough
roads, more frequent air conditioner
filter inspections and changes are
required.
• When the air flow rate suddenly
decreases, the system should be
checked at an authorized HYUNDAI
dealer.
Checking the amount of air con-
ditioner refrigerant and compres-
sor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning is
reduced. Overfilling also has a negative
impact on the air conditioning system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
✽ ✽
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur.
OHM048209 Outside air
Recirculated
air
Climate control air filterBlower
Evaporator core
Heater core
WARNING
The air conditioning system should
be serviced by an authorized
HYUNDAI dealer. Improper service
may cause serious injury to the
person performing the service.

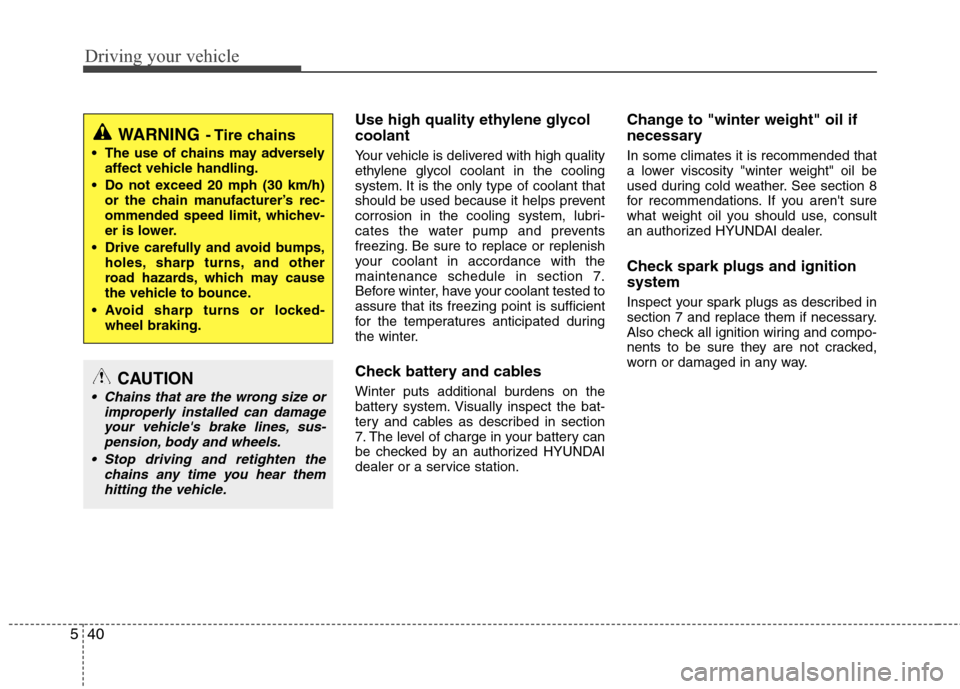

Driving your vehicle
40 5
Use high quality ethylene glycol
coolant
Your vehicle is delivered with high quality
ethylene glycol coolant in the cooling
system. It is the only type of coolant that
should be used because it helps prevent
corrosion in the cooling system, lubri-
cates the water pump and prevents
freezing. Be sure to replace or replenish
your coolant in accordance with the
maintenance schedule in section 7.
Before winter, have your coolant tested to
assure that its freezing point is sufficient
for the temperatures anticipated during
the winter.
Check battery and cables
Winter puts additional burdens on the
battery system. Visually inspect the bat-
tery and cables as described in section
7. The level of charge in your battery can
be checked by an authorized HYUNDAI
dealer or a service station.
Change to "winter weight" oil if
necessary
In some climates it is recommended that
a lower viscosity "winter weight" oil be
used during cold weather. See section 8
for recommendations. If you aren't sure
what weight oil you should use, consult
an authorized HYUNDAI dealer.
Check spark plugs and ignition
system
Inspect your spark plugs as described in
section 7 and replace them if necessary.
Also check all ignition wiring and compo-
nents to be sure they are not cracked,
worn or damaged in any way.
WARNING- Tire chains
The use of chains may adversely
affect vehicle handling.
Do not exceed 20 mph (30 km/h)
or the chain manufacturer’s rec-
ommended speed limit, whichev-
er is lower.
Drive carefully and avoid bumps,
holes, sharp turns, and other
road hazards, which may cause
the vehicle to bounce.
Avoid sharp turns or locked-
wheel braking.
CAUTION
Chains that are the wrong size or
improperly installed can damage
your vehicle's brake lines, sus-
pension, body and wheels.
Stop driving and retighten the
chains any time you hear them
hitting the vehicle.

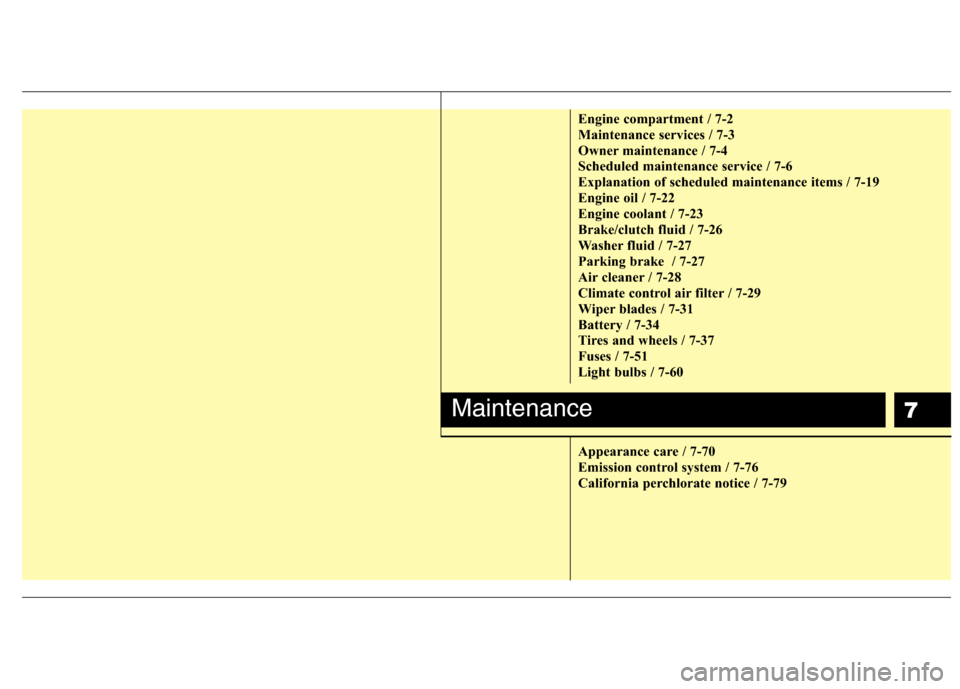

7
Engine compartment / 7-2
Maintenance services / 7-3
Owner maintenance / 7-4
Scheduled maintenance service / 7-6
Explanation of scheduled maintenance items / 7-19
Engine oil / 7-22
Engine coolant / 7-23
Brake/clutch fluid / 7-26
Washer fluid / 7-27
Parking brake / 7-27
Air cleaner / 7-28
Climate control air filter / 7-29
Wiper blades / 7-31
Battery / 7-34
Tires and wheels / 7-37
Fuses / 7-51
Light bulbs / 7-60
Appearance care / 7-70
Emission control system / 7-76
California perchlorate notice / 7-79
Maintenance

73

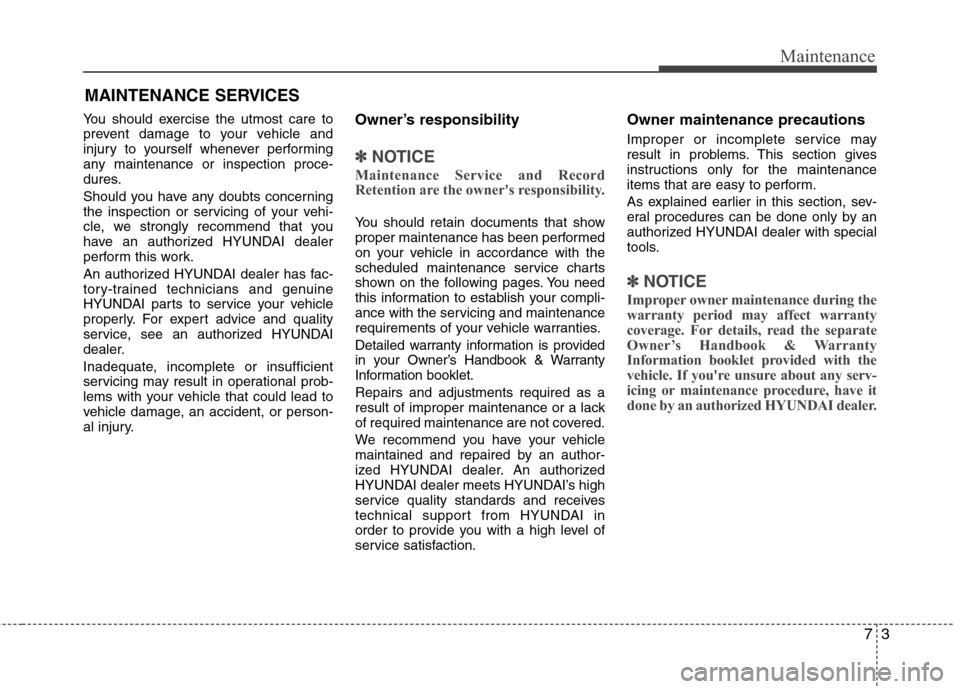

Maintenance
MAINTENANCE SERVICES
You should exercise the utmost care to
prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection proce-
dures.
Should you have any doubts concerning
the inspection or servicing of your vehi-
cle, we strongly recommend that you
have an authorized HYUNDAI dealer
perform this work.
An authorized HYUNDAI dealer has fac-
tory-trained technicians and genuine
HYUNDAI parts to service your vehicle
properly. For expert advice and quality
service, see an authorized HYUNDAI
dealer.
Inadequate, incomplete or insufficient
servicing may result in operational prob-
lems with your vehicle that could lead to
vehicle damage, an accident, or person-
al injury.Owner’s responsibility
✽ ✽
NOTICE
Maintenance Service and Record
Retention are the owner's responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with the
scheduled maintenance service charts
shown on the following pages. You need
this information to establish your compli-
ance with the servicing and maintenance
requirements of your vehicle warranties.
Detailed warranty information is provided
in your Owner’s Handbook & Warranty
Information booklet.
Repairs and adjustments required as a
result of improper maintenance or a lack
of required maintenance are not covered.
We recommend you have your vehicle
maintained and repaired by an author-
ized HYUNDAI dealer. An authorized
HYUNDAI dealer meets HYUNDAI’s high
service quality standards and receives
technical support from HYUNDAI in
order to provide you with a high level of
service satisfaction.
Owner maintenance precautions
Improper or incomplete service may
result in problems. This section gives
instructions only for the maintenance
items that are easy to perform.
As explained earlier in this section, sev-
eral procedures can be done only by an
authorized HYUNDAI dealer with special
tools.
✽ ✽
NOTICE
Improper owner maintenance during the
warranty period may affect warranty
coverage. For details, read the separate
Owner’s Handbook & Warranty
Information booklet provided with the
vehicle. If you're unsure about any serv-
icing or maintenance procedure, have it
done by an authorized HYUNDAI dealer.

Maintenance
6 7
SCHEDULED MAINTENANCE SERVICE
Follow Normal Maintenance Schedule if
the vehicle is usually operated where
none of the following conditions apply. If
any of the following conditions apply, fol-
low Maintenance Under Severe Usage
Conditions.
Repeated short distance driving.
Driving in dusty conditions or sandy
areas.
Extensive use of brakes.
Driving in areas where salt or other
corrosive materials are being used.
Driving on rough or muddy roads.
Driving in mountainous areas.
Extended periods of idling or low
speed operation.
Driving for a prolonged period in cold
temperatures and/or extremely humid
climates.
More than 50% driving in heavy city
traffic during hot weather above 90°F
(32°C).If your vehicle is operated under the
above conditions, you should inspect,
replace or refill more frequently than the
following Normal Maintenance Schedule.
After 120 months or 150,000 miles
(240,000 km) continue to follow the pre-
scribed maintenance intervals.

77
Maintenance

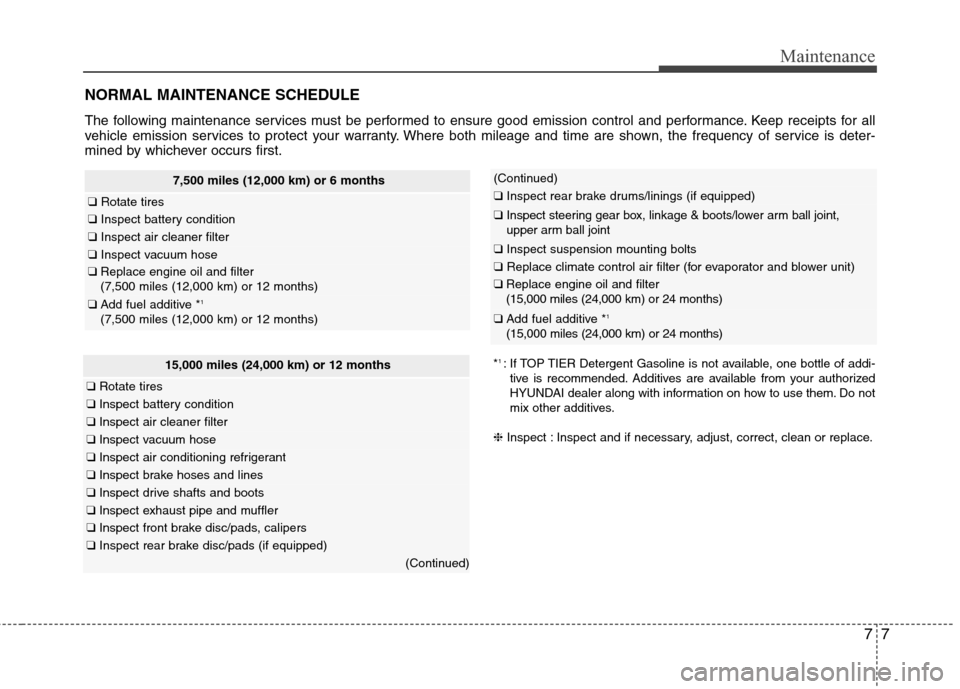

NORMAL MAINTENANCE SCHEDULE
7,500 miles (12,000 km) or 6 months
❑ Rotate tires
❑ Inspect battery condition
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Replace engine oil and filter
(7,500 miles (12,000 km) or 12 months)
❑Add fuel additive *1
(7,500 miles (12,000 km) or 12 months)
The following maintenance services must be performed to ensure good emission control and performance. Keep receipts for all
vehicle emission services to protect your warranty. Where both mileage and time are shown, the frequency of service is deter-
mined by whichever occurs first.
*1 : If TOP TIER Detergent Gasoline is not available, one bottle of addi-
tive is recommended. Additives are available from your authorized
HYUNDAI dealer along with information on how to use them. Do not
mix other additives.
❈Inspect : Inspect and if necessary, adjust, correct, clean or replace.15,000 miles (24,000 km) or 12 months
❑ Rotate tires
❑ Inspect battery condition
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers
❑Inspect rear brake disc/pads (if equipped)
(Continued)
(Continued)
❑Inspect rear brake drums/linings (if equipped)
❑Inspect steering gear box, linkage & boots/lower arm ball joint,
upper arm ball joint
❑Inspect suspension mounting bolts
❑Replace climate control air filter (for evaporator and blower unit)
❑Replace engine oil and filter
(15,000 miles (24,000 km) or 24 months)
❑Add fuel additive *1
(15,000 miles (24,000 km) or 24 months)

717
Maintenance

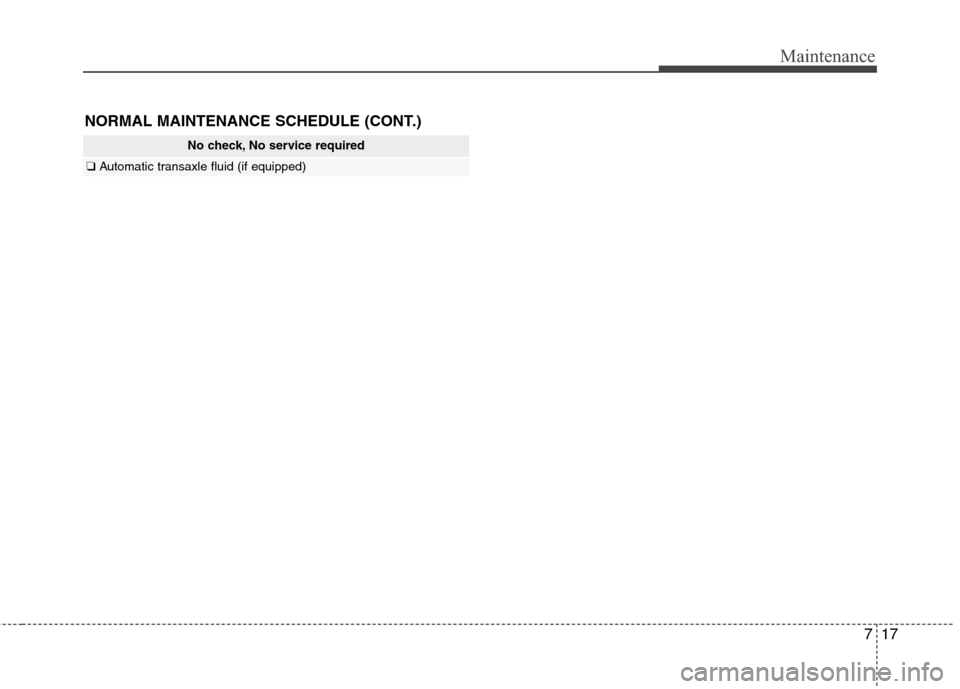

NORMAL MAINTENANCE SCHEDULE (CONT.)
No check, No service required
❑Automatic transaxle fluid (if equipped)

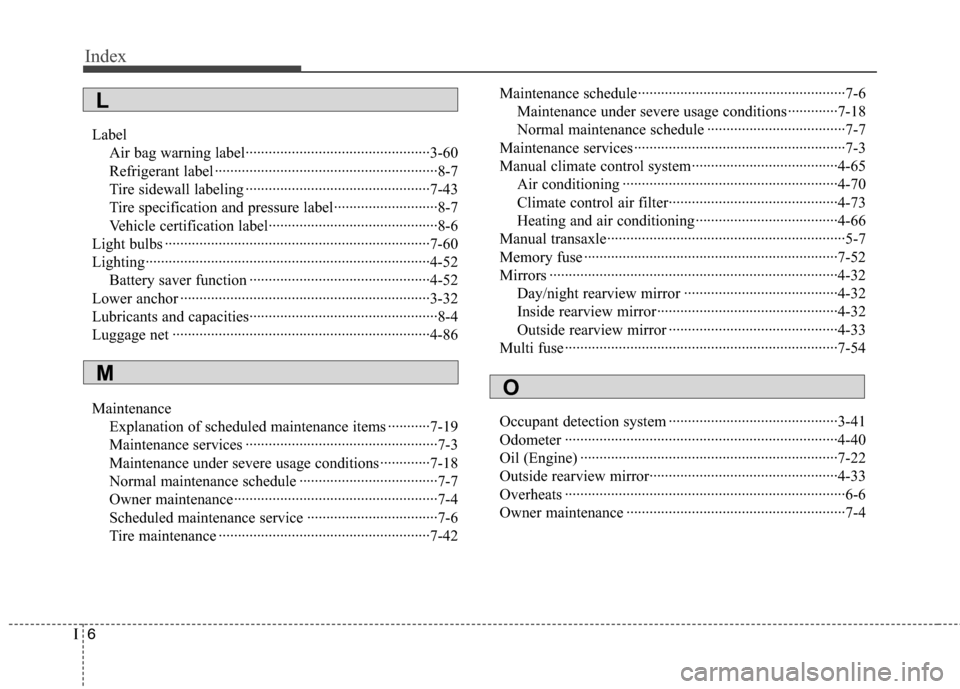

Index
6I
Label
Air bag warning label················································3-60
Refrigerant label ··························································8-7
Tire sidewall labeling ················································7-43
Tire specification and pressure label···························8-7
Vehicle certification label············································8-6
Light bulbs ·····································································7-60
Lighting··········································································4-52
Battery saver function ···············································4-52
Lower anchor ·································································3-32
Lubricants and capacities·················································8-4
Luggage net ···································································4-86
Maintenance
Explanation of scheduled maintenance items ···········7-19
Maintenance services ··················································7-3
Maintenance under severe usage conditions ·············7-18
Normal maintenance schedule ····································7-7
Owner maintenance·····················································7-4
Scheduled maintenance service ··································7-6
Tire maintenance ·······················································7-42Maintenance schedule······················································7-6
Maintenance under severe usage conditions ·············7-18
Normal maintenance schedule ····································7-7
Maintenance services ·······················································7-3
Manual climate control system······································4-65
Air conditioning ························································4-70
Climate control air filter············································4-73
Heating and air conditioning·····································4-66
Manual transaxle······························································5-7
Memory fuse ··································································7-52
Mirrors ···········································································4-32
Day/night rearview mirror ········································4-32
Inside rearview mirror···············································4-32
Outside rearview mirror ············································4-33
Multi fuse ·······································································7-54
Occupant detection system ············································3-41
Odometer ·······································································4-40
Oil (Engine) ···································································7-22
Outside rearview mirror·················································4-33
Overheats ·········································································6-6
Owner maintenance ·························································7-4
L
OM

I7
Index
Parking brake ·································································5-17
Parking brake ·································································7-26
Power brakes··································································5-16
Power outlet ···································································4-88
Power window lock button ············································4-19
Pre-tensioner seat belt····················································3-20
Push starting·····································································6-5
Rear center belt ······························································3-18
Rear seat···········································································3-9
Recommended cold tire inflation pressures ··················7-36
Recommended lubricants and capacities ·························8-4
Recommended SAE viscosity number························8-5
Refrigerant label ······························································8-7
Remote keyless entry ·······················································4-6
Replacement light bulb ··················································7-61
Road warning ···································································6-2
Rocking the vehicle ·······················································5-34
Roof antenna ··································································4-94Scheduled maintenance service ·······································7-6
Maintenance under severe usage conditions ·············7-18
Normal maintenance schedule ····································7-7
Seat belt warning ···························································3-15
Seat belts ········································································3-14
Rear center belt ·························································3-18
Height adjustment ·····················································3-16
Pre-tensioner seat belt ···············································3-20
Seat belt - Driver's 3-point system ····························3-16
Seat belt warning·······················································3-15
Seat belts - Front passenger and rear seat ·················3-17
Seatback pocket ·······························································3-8
Seating capacity ·····························································5-43
Seats ·················································································3-2
Armrest(front) ·····························································3-6
Folding the rear seat ··················································3-11
Front seat adjustment ··················································3-5
Headrest(front) ····························································3-6
Headrest(rear) ······························································3-9
Rear seat ······································································3-9
Seatback pocket···························································3-8
Side impact air bag ························································3-50
Sliding armrest ·······························································4-84
Smooth cornering···························································5-35
Snow tires ······································································5-38
PS
R
