Hyundai Accent 2015 Owner's Manual - RHD (UK. Australia)

85
Specifications & Consumer information

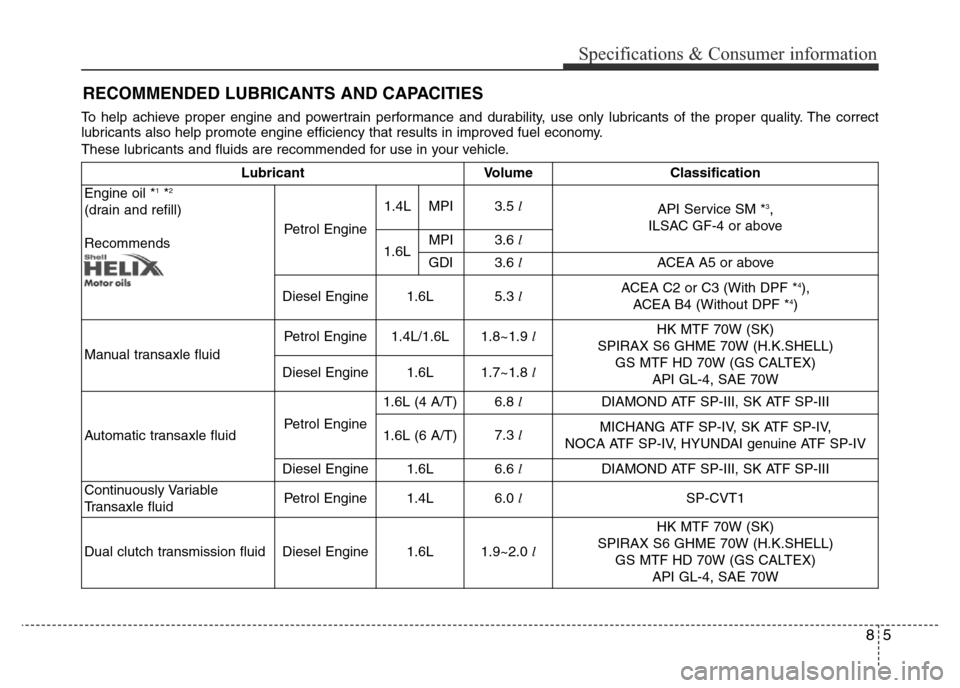

RECOMMENDED LUBRICANTS AND CAPACITIES
Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsPetrol Engine3.5 l
API Service SM *3,
ILSAC GF-4 or above
3.6 l
3.6 lACEA A5 or above
Diesel Engine1.6L5.3 lACEA C2 or C3 (With DPF *4),
ACEA B4 (Without DPF *4)
Manual transaxle fluid
Petrol Engine1.4L/1.6L1.8~1.9 lHK MTF 70W (SK)
SPIRAX S6 GHME 70W (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
API GL-4, SAE 70W
Diesel Engine1.6L1.7~1.8 l
Automatic transaxle fluidPetrol Engine1.6L (4 A/T)6.8 l
DIAMOND ATF SP-III, SK ATF SP-III
1.6L (6 A/T)7.3 lMICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV
Diesel Engine1.6L6.6 lDIAMOND ATF SP-III, SK ATF SP-III
Continuously Variable
Transaxle fluidPetrol Engine1.4L6.0 lSP-CVT1
Dual clutch transmission fluidDiesel Engine1.6L1.9~2.0 l
HK MTF 70W (SK)
SPIRAX S6 GHME 70W (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
API GL-4, SAE 70W
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
MPI
MPI 1.4L
1.6LGDI

Specifications & Consumer information
6 8
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3: If the API service SM engine oil is not available in your country, you are able to use API service SL.

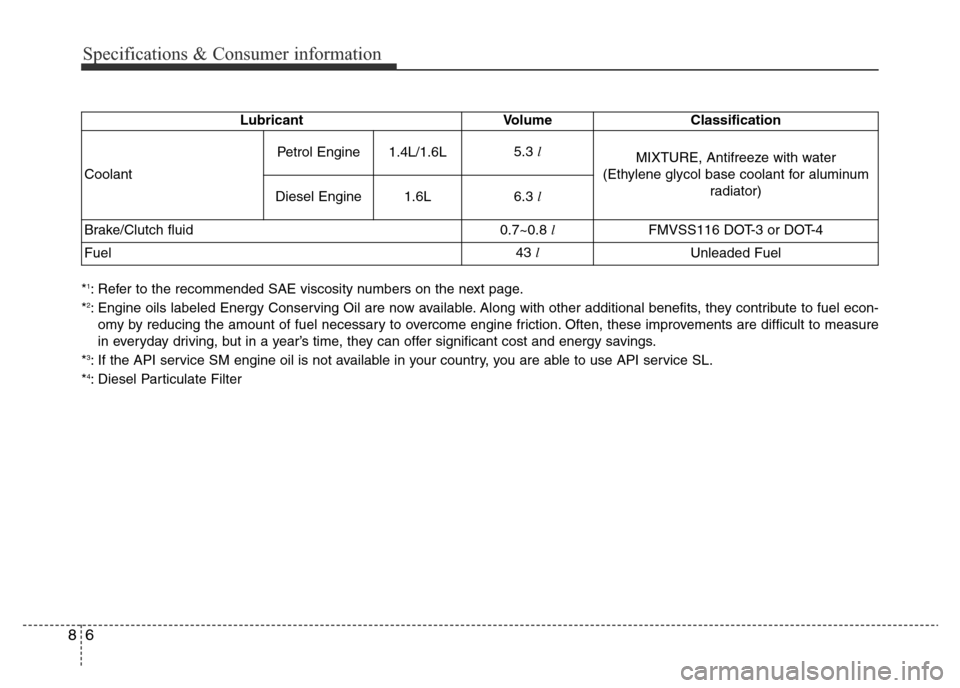

*4: Diesel Particulate FilterLubricant Volume Classification
Coolant Petrol Engine 1.4L/1.6L5.3 l
MIXTURE, Antifreeze with water
(Ethylene glycol base coolant for aluminum
radiator)
Diesel Engine1.6L6.3 l
Brake/Clutch fluid0.7~0.8 lFMVSS116 DOT-3 or DOT-4
Fuel43 lUnleaded Fuel

87
Specifications & Consumer information

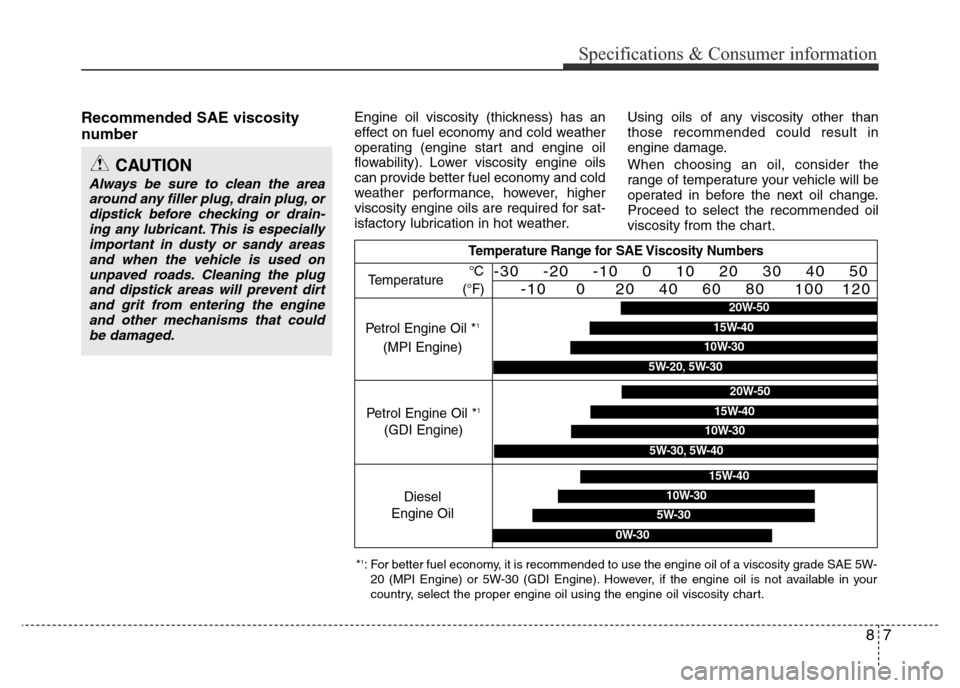

Recommended SAE viscosity
numberEngine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the
range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30
15W-40
10W-30
0W-30
*1: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (MPI Engine) or 5W-30 (GDI Engine). However, if the engine oil is not available in your
country, select the proper engine oil using the engine oil viscosity chart.
Petrol Engine Oil *1
(MPI Engine)
20W-50
10W-30
15W-40
5W-20, 5W-30
Petrol Engine Oil *1
(GDI Engine)
20W-50
10W-30
15W-40
5W-30, 5W-40

Specifications & Consumer information
8 8

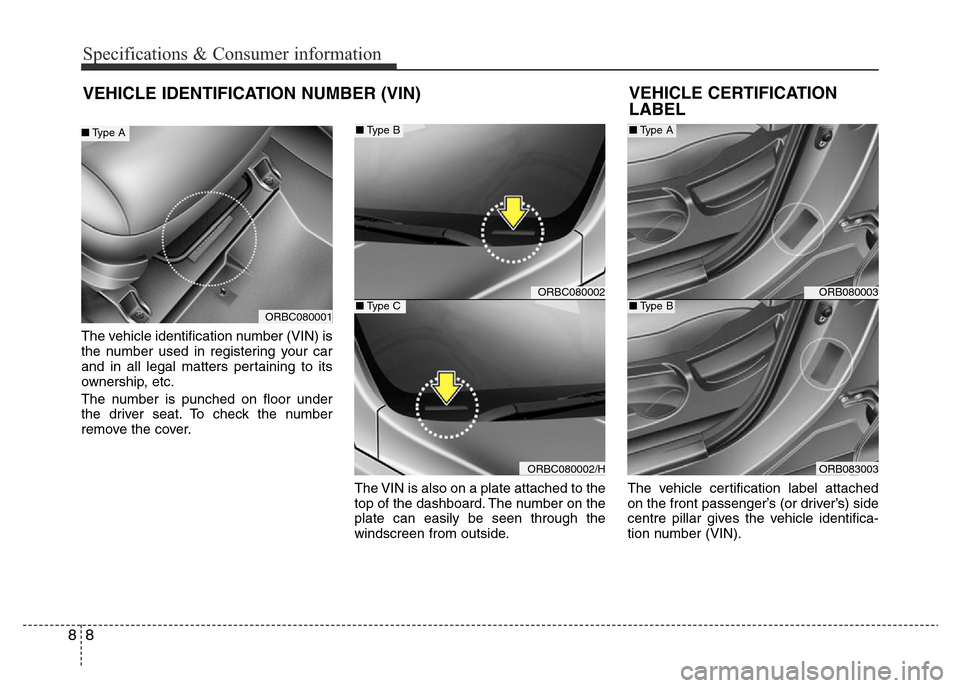

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.
The number is punched on floor under
the driver seat. To check the number
remove the cover.
The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windscreen from outside.The vehicle certification label attached
on the front passenger’s (or driver’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE CERTIFICATION
LABEL
ORBC080001
■Type A
ORB080003
ORB083003
■Type A
■Type BORBC080002
ORBC080002/H
■Type B
■Type C

89
Specifications & Consumer information

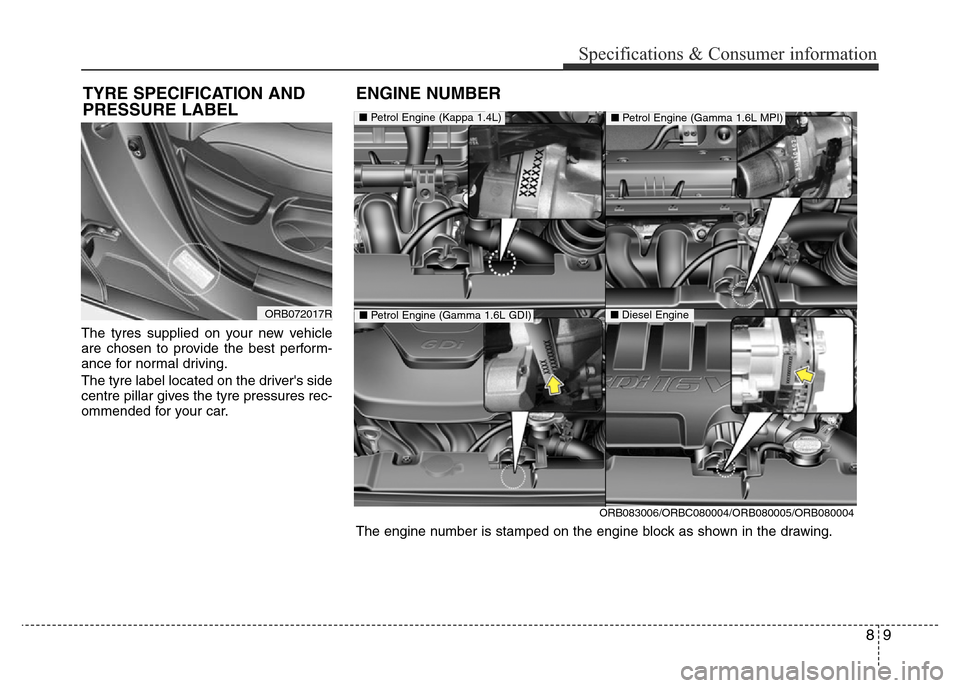

The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your car.
TYRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER
ORB072017R
■ Petrol Engine (Kappa 1.4L)
■ Petrol Engine (Gamma 1.6L GDI)
ORB083006/ORBC080004/ORB080005/ORB080004
The engine number is stamped on the engine block as shown in the drawing.
■ Petrol Engine (Gamma 1.6L MPI)
■ Diesel Engine
